Automating Trading Strategies in MQL5 (Part 42): Session-Based Opening Range Breakout (ORB) System

Introduction

In our previous article (Part 41), we developed a Candle Range Theory (CRT) trading system incorporating Accumulation, Manipulation, and Distribution (AMD) phases in MetaQuotes Language 5 (MQL5) that identified accumulation ranges on a specified timeframe, detected breaches with manipulation depth filtering, and confirmed reversals through bar closures for entry trades in the distribution phase. In Part 42, we develop a fully customizable Session-Based Opening Range Breakout (ORB) system.

This system allows us to define the start time and duration of any session in minutes. It automatically captures the true high and low during that period on a chosen timeframe. It detects breakouts with optional multi-bar close confirmation to reduce false signals. The system executes trades only in the breakout direction. Stop-loss and take-profit levels can be dynamic (range-size based) or static. Trailing stops can be used after a profit threshold has been reached. Position limits are enforced per direction. We will cover the following topics:

1. Understanding the Opening Range Breakout (ORB) Strategy
2. Implementation in MQL5

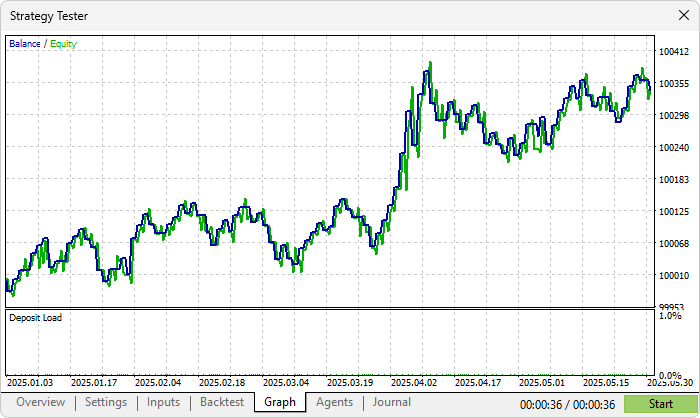

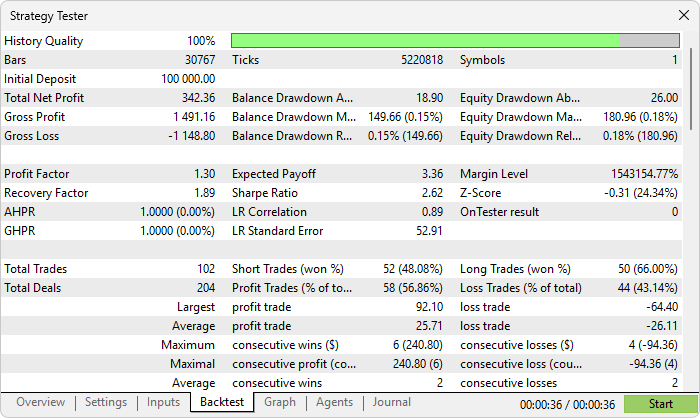

3. Backtesting
4. Conclusion

By the end, you’ll have an MQL5 program capable of trading clean opening range breakouts in any market session — London, New York, Asian, or even custom openings — ready for further customization. Let’s dive in!

Understanding the Opening Range Breakout (ORB) Strategy

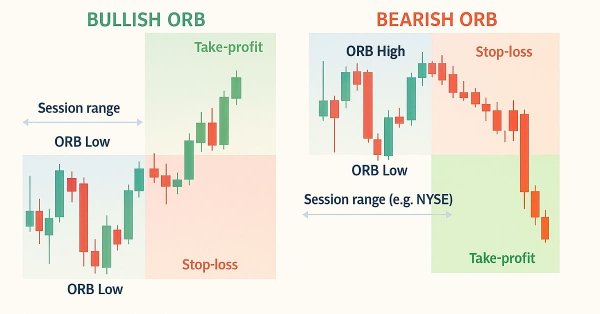

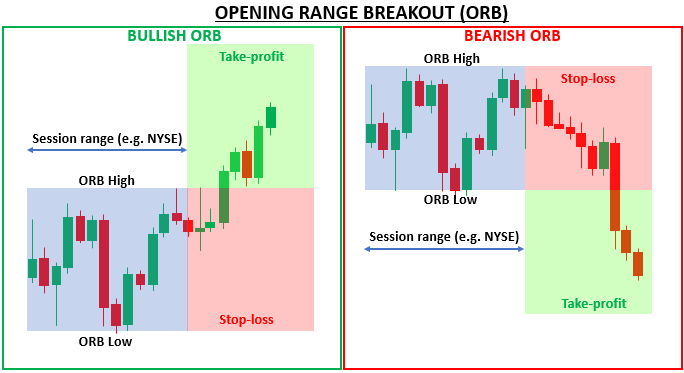

The Opening Range Breakout (ORB) is a classic intraday momentum strategy that capitalizes on the initial directional bias established at the start of a trading session. We define an "opening range" as the high and low formed during the first few minutes (typically 5–60 minutes) after the market opens, then wait for the price to break decisively above the range high (bullish breakout) or below the range low (bearish breakout) and enter in the direction of the break. The premise is simple but powerful: the opening range often represents the battle between buyers and sellers as the market digests overnight news and order flow, and a clean breakout signals that one side has won control, frequently leading to a sustained directional move. The system is generally easy. Have a look below at the different setups we could have.

Our plan is to create a fully session-flexible ORB system that works on any instrument and any trading session (New York, London, Asian, or even custom openings).  We will allow users to set the exact start time. For example, 09:30 for the NYSE or 08:00 for London. Users will also be able to define the range duration in minutes. The system will automatically calculate the true high and low on the selected timeframe within that window. If needed, users can enable multiple bar-close confirmations to validate a breakout.

The algorithm will execute only one trade per direction per session. We will offer two types of stop-loss and take-profit calculations: dynamic (based on the range size) and static, with customizable risk-reward ratios. Points-based trailing stops will also be available, activating after a minimum profit threshold is reached. In addition, the tool will provide rich chart visualization. This includes filled range rectangles, vertical markers for session start and end, persistent high/low levels, and entry arrows.

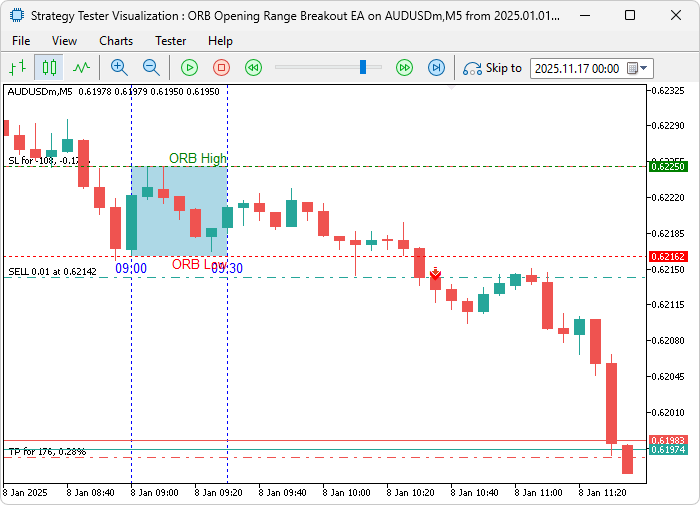

Visualization is equally important in our case, as you might have noticed by now, for clarity. In brief, here is a visual representation of our objectives.

Implementation in MQL5

To create the program in MQL5, open the MetaEditor, go to the Navigator, locate the Experts folder, click on the "New" tab, and follow the prompts to create the file. Once it is made, in the coding environment, we will need to declare some input parameters and global variables that we will use throughout the program.

//+------------------------------------------------------------------+
//|                                ORB Opening Range Breakout EA.mq5 |
//|                           Copyright 2025, Allan Munene Mutiiria. |
//|                                   https://t.me/Forex_Algo_Trader |
//+------------------------------------------------------------------+
#property copyright "Copyright 2025, Allan Munene Mutiiria."
#property link      "https://t.me/Forex_Algo_Trader"
#property version   "1.00"

#include <Trade\Trade.mqh>

//+------------------------------------------------------------------+
//| Enums                                                            |
//+------------------------------------------------------------------+
enum SLTP_Method {                                                // Define SL/TP method enum
   Dynamic_Method = 0,                                            // Dynamic based on range size
   Static_Method  = 1                                             // Static based on fixed points
};

enum TrailingTypeEnum {                                           // Define trailing type enum
   Trailing_None   = 0,                                           // None
   Trailing_Points = 1                                            // By Points
};

//+------------------------------------------------------------------+
//| Input Parameters                                                 |
//+------------------------------------------------------------------+
input ENUM_TIMEFRAMES RangeTF = PERIOD_M5;                        // Timeframe for Opening Range Calculation
input int RangeDurationMinutes = 30;                              // Duration of Opening Range in Minutes
input string SessionStartTime = "09:00";                          // Session Start Time (HH:MM)
input double TradeVolume = 0.01;                                  // Trade Volume Size
input double RR_Ratio = 2.0;                                      // Risk to Reward Ratio
input SLTP_Method SLTP_Approach = Dynamic_Method;                 // SL/TP Calculation Method
input int SL_Points = 50;                                         // SL Points (for Static Method)
input TrailingTypeEnum TrailingType = Trailing_None;              // Trailing Stop Type
input double Trailing_Stop_Points = 20.0;                         // Trailing Stop in Points
input double Min_Profit_To_Trail_Points = 30.0;                   // Min Profit to Start Trailing in Points
input int UniqueID = 987654321;                                   // Unique Trade Identifier
input int MaxPositionsDir = 1;                                     // Max Positions per Direction
input bool UseBreakoutFilter = true;                              // Use Breakout Confirmation Filter
input int ConfirmBars = 1;                                        // Bars to Confirm Breakout on Close (0 to disable)

We begin the implementation by including the trade library with "#include <Trade\Trade.mqh>", which supplies the CTrade class and functions necessary for order execution and position management. We then define two enumerations to organize user options clearly. The "SLTP_Method" enum provides "Dynamic_Method" for stop-loss and take-profit levels based on the actual opening range size and "Static_Method" for fixed points-based calculations. Similarly, the "TrailingTypeEnum" enum offers "Trailing_None" to disable trailing and "Trailing_Points" to enable trailing by a user-defined number of points once a minimum profit threshold is reached.

Next, we declare input parameters that make the program highly configurable directly from the properties window. These include "RangeTF" to select the timeframe used for calculating the opening range high and low, "RangeDurationMinutes" to set how many minutes after session start constitute the opening range, "SessionStartTime" as a string in "HH:MM" format to define when each new session begins (e.g., "09:30" for NYSE open, "08:00" for London, etc.), "TradeVolume" for lot size, and the rest which are self explanatory. We added comments for clarity. This set of inputs ensures the system can be perfectly adapted to any market or session without code changes. The next thing we need is the global variables definition.

//+------------------------------------------------------------------+
//| Global Variables                                                 |
//+------------------------------------------------------------------+
CTrade obj_Trade;                                                 //--- Trade object
datetime sessionStart = 0;                                        //--- Session start time
datetime rangeEndTime = 0;                                        //--- Range end time
double rangeHigh = 0.0;                                           //--- Range high
double rangeLow = 0.0;                                            //--- Range low
bool rangeDefined = false;                                        //--- Range defined flag
bool breakoutHigh = false;                                        //--- Breakout high flag
bool breakoutLow = false;                                         //--- Breakout low flag
double breakoutPrice = 0.0;                                       //--- Breakout price
string highLevelObj = "ORB_HighLevel";                            //--- High level object name
string lowLevelObj = "ORB_LowLevel";                              //--- Low level object name
string highTextObj = "ORB_High_Text";                             //--- High text object
string lowTextObj = "ORB_Low_Text";                               //--- Low text object
bool tradedLong = false;                                          //--- Traded long flag
bool tradedShort = false;                                         //--- Traded short flag
datetime lastConfirmTime = 0;                                     //--- Last confirm time

We continue by declaring a set of global variables that maintain the program's state throughout each trading session and ensure proper tracking of the opening range breakout logic. We instantiate "obj_Trade" from the CTrade class to handle all order executions and position modifications. Timing variables include "sessionStart" to record the exact datetime when a new session begins and "rangeEndTime" to mark when the opening range period concludes. We track the opening range boundaries with "rangeHigh" (initialized to 0.0) and "rangeLow", while "rangeDefined" serves as a boolean flag indicating whether the current session's range has been fully established. The rest are straightforward. Once that is done, we need to initialize the system by just setting the magic number.

//+------------------------------------------------------------------+
//| EA Start Function                                                |
//+------------------------------------------------------------------+
int OnInit() {
   obj_Trade.SetExpertMagicNumber(UniqueID);                      //--- Set magic number
   return(INIT_SUCCEEDED);                                        //--- Return success
}

In the OnInit event handler, which executes automatically when the program is first loaded or attached to a chart, we assign the user-defined "UniqueID" as the magic number to the "obj_Trade" object by calling "obj_Trade.SetExpertMagicNumber(UniqueID)". This ensures that every trade opened by the program carries this unique identifier, allowing precise filtering and management even when multiple programs or manual trades are active on the same account. We conclude by returning INIT_SUCCEEDED, confirming to the platform that initialization completed without issues and the program is ready for operation. We will define some helper functions that we will use for visualization when we have the logic ready, as below.

//+------------------------------------------------------------------+
//| Render Horizontal Level                                          |
//+------------------------------------------------------------------+
void RenderLevel(string objName, double levelVal, color levelClr, string levelDesc) {
   ObjectDelete(ChartID(), objName);                               //--- Delete object
   ObjectCreate(ChartID(), objName, OBJ_HLINE, 0, 0, levelVal);    //--- Create hline
   ObjectSetInteger(ChartID(), objName, OBJPROP_COLOR, levelClr);  //--- Set color
   ObjectSetInteger(ChartID(), objName, OBJPROP_STYLE, STYLE_DOT); //--- Set style
   ObjectSetString(ChartID(), objName, OBJPROP_TOOLTIP, levelDesc); //--- Set tooltip
   ChartRedraw(ChartID());                                         //--- Redraw chart
}

//+------------------------------------------------------------------+
//| Render Vertical Line                                             |
//+------------------------------------------------------------------+
void RenderVLine(string objName, datetime timeVal, color lineClr, string desc) {
   ObjectDelete(ChartID(), objName);                              //--- Delete object
   ObjectCreate(ChartID(), objName, OBJ_VLINE, 0, timeVal, 0);    //--- Create vline
   ObjectSetInteger(ChartID(), objName, OBJPROP_COLOR, lineClr);  //--- Set color
   ObjectSetInteger(ChartID(), objName, OBJPROP_STYLE, STYLE_DOT); //--- Set style
   ObjectSetInteger(ChartID(), objName, OBJPROP_WIDTH, 1);        //--- Set width
   ObjectSetInteger(ChartID(), objName, OBJPROP_BACK, true);      //--- Set back
   ObjectSetInteger(ChartID(), objName, OBJPROP_RAY, true);       //--- Set ray
   ObjectSetInteger(ChartID(), objName, OBJPROP_HIDDEN, true);    //--- Set hidden
   ObjectSetString(ChartID(), objName, OBJPROP_TOOLTIP, desc);    //--- Set tooltip
   ChartRedraw(ChartID());                                        //--- Redraw chart
}

//+------------------------------------------------------------------+
//| Render Text Label                                                |
//+------------------------------------------------------------------+
void RenderText(string objName, datetime timeVal, double priceVal, string textStr, color textClr, int anchorVal) {
   ObjectDelete(ChartID(), objName);                              //--- Delete object
   ObjectCreate(ChartID(), objName, OBJ_TEXT, 0, timeVal, priceVal); //--- Create text
   ObjectSetString(ChartID(), objName, OBJPROP_TEXT, textStr);    //--- Set text
   ObjectSetInteger(ChartID(), objName, OBJPROP_COLOR, textClr);  //--- Set color
   ObjectSetInteger(ChartID(), objName, OBJPROP_ANCHOR, anchorVal); //--- Set anchor
   ObjectSetInteger(ChartID(), objName, OBJPROP_FONTSIZE, 10);    //--- Set fontsize
   ChartRedraw(ChartID());                                        //--- Redraw chart
}

//+------------------------------------------------------------------+
//| Draw Entry Arrow                                                 |
//+------------------------------------------------------------------+
void DrawEntryArrow(datetime timeVal, double priceVal, bool isBuy) {
   string markerName = "EntryMarker_" + IntegerToString(timeVal); //--- Marker name
   ObjectCreate(ChartID(), markerName, OBJ_ARROW, 0, timeVal, priceVal); //--- Create arrow
   int arrowCode = isBuy ? 233 : 234;                             //--- Arrow code
   color arrowClr = isBuy ? clrBlue : clrRed;                     //--- Arrow color
   int anchor = isBuy ? ANCHOR_BOTTOM : ANCHOR_TOP;               //--- Anchor
   ObjectSetInteger(ChartID(), markerName, OBJPROP_ARROWCODE, arrowCode); //--- Set code
   ObjectSetInteger(ChartID(), markerName, OBJPROP_COLOR, arrowClr); //--- Set color
   ObjectSetInteger(ChartID(), markerName, OBJPROP_ANCHOR, anchor); //--- Set anchor
   ChartRedraw(ChartID());                                        //--- Redraw chart
}

//+------------------------------------------------------------------+
//| Count Active Positions by Type                                   |
//+------------------------------------------------------------------+
int ActivePositions(ENUM_POSITION_TYPE posType) {
   int total = 0;                                                 //--- Init total
   for (int pos = PositionsTotal() - 1; pos >= 0; pos--) {        //--- Iterate positions
      if (PositionGetSymbol(pos) == _Symbol && PositionGetInteger(POSITION_MAGIC) == UniqueID && PositionGetInteger(POSITION_TYPE) == posType) { //--- Check position
         total++;                                                    //--- Increment total
      }
   }
   return total;                                                  //--- Return total
}

Here, we create several helper functions to handle chart visualization and position management, ensuring the opening range and trade signals are clearly displayed while maintaining clean code organization. The "RenderLevel" function draws or updates persistent horizontal lines for the range high and low. It deletes any existing object with the given name, creates a new OBJ_HLINE at the specified price level, sets its color (green for high, red for low), applies a dotted style, adds a descriptive tooltip, and redraws the chart for immediate visibility.

Similarly, the "RenderVLine" function places vertical lines to mark session start and range end times. It removes prior instances, creates an OBJ_VLINE at the given datetime, configures it with blue color, dotted style, width 1, background placement, rightward ray extension, hidden from object list, a tooltip showing the exact time, and triggers a chart redraw using the ChartRedraw function. The "RenderText" function adds customizable text labels, such as start/end times or "ORB High"/"ORB Low" annotations. It clears existing text objects, creates an OBJ_TEXT at the specified time and price coordinates, sets the text content, and other properties.

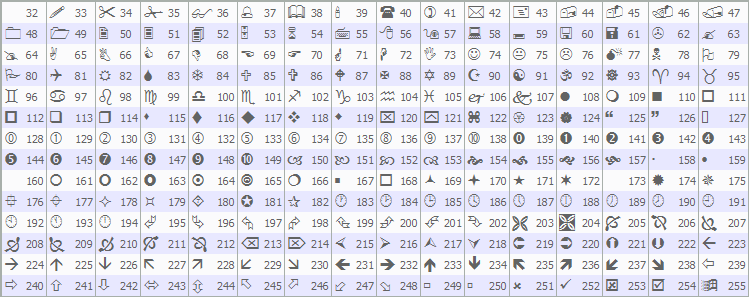

For trade entries, we implement "DrawEntryArrow," which places a visual marker directly on the chart at the moment of execution. It generates a unique name using the current time, creates an OBJ_ARROW, selects Wingdings symbol 233 (up arrow) for buys or 234 (down arrow) for sells, applies blue for long or red for short, anchors it correctly at the bottom or top, and redraws the chart. For the arrow codes, MQL5 has dedicated fonts as below, and you can switch to whichever you like.

Finally, we define the "ActivePositions" function to safely count how many open positions exist for a specific type (buy or sell) that belong to this program. It loops backward through all positions, checks for a matching symbol, magic number via "UniqueID", and position type using POSITION_TYPE_BUY or "POSITION_TYPE_SELL", then returns the accurate count. With these, we can now begin the strategy implementation by first defining the ranges daily.

//+------------------------------------------------------------------+
//| Tick Processing Function                                         |
//+------------------------------------------------------------------+
void OnTick() {
   datetime currentTime = TimeCurrent();                          //--- Get current time
   MqlDateTime timeStruct;                                        //--- Time structure
   TimeToStruct(currentTime, timeStruct);                         //--- Convert to struct
   // Determine if a new session has started
   string currentTimeStr = StringFormat("%02d:%02d", timeStruct.hour, timeStruct.min); //--- Format time string
   if (currentTimeStr == SessionStartTime && sessionStart != currentTime - (timeStruct.hour * 3600 + timeStruct.min * 60 + timeStruct.sec)) { //--- Check new session
      sessionStart = currentTime - timeStruct.sec;                //--- Align to minute start
      rangeEndTime = sessionStart + RangeDurationMinutes * 60;    //--- Calc end time
      rangeHigh = 0.0;                                            //--- Reset high
      rangeLow = DBL_MAX;                                         //--- Reset low
      rangeDefined = false;                                       //--- Reset defined
      breakoutHigh = false;                                       //--- Reset high breakout
      breakoutLow = false;                                        //--- Reset low breakout
      tradedLong = false;                                         //--- Reset long traded
      tradedShort = false;                                        //--- Reset short traded
      lastConfirmTime = 0;                                        //--- Reset confirm time
      // Clean previous visuals for current levels
      ObjectDelete(ChartID(), highLevelObj);                      //--- Delete high level
      ObjectDelete(ChartID(), lowLevelObj);                       //--- Delete low level
      ObjectDelete(ChartID(), highTextObj);                       //--- Delete high text
      ObjectDelete(ChartID(), lowTextObj);                        //--- Delete low text
   }
   if (sessionStart == 0) return;                                 //--- Return if no session
   double currBid = SymbolInfoDouble(_Symbol, SYMBOL_BID);        //--- Get bid
   double currAsk = SymbolInfoDouble(_Symbol, SYMBOL_ASK);        //--- Get ask
   // Define the opening range
   if (currentTime < rangeEndTime) {                              //--- Check within range
      rangeHigh = MathMax(rangeHigh, iHigh(_Symbol, RangeTF, 0)); //--- Update high
      rangeLow = MathMin(rangeLow, iLow(_Symbol, RangeTF, 0));    //--- Update low
   } else if (!rangeDefined) {                                    //--- Check not defined
      rangeDefined = true;                                        //--- Set defined

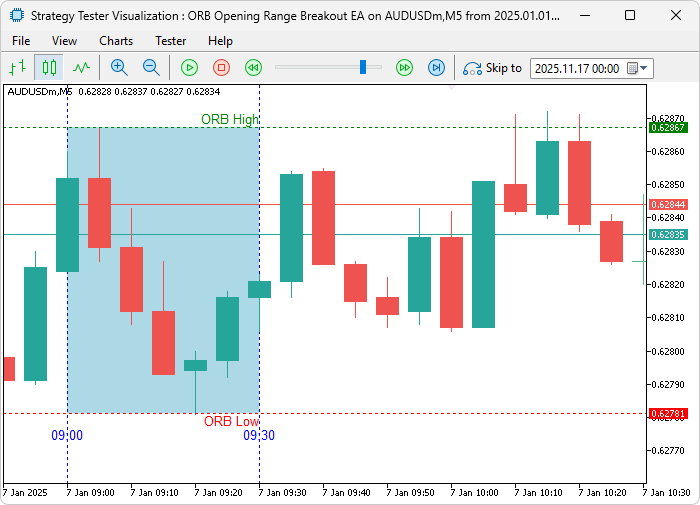

      // Draw the opening range rectangle
      string rectObj = "ORB_Rectangle_" + IntegerToString(sessionStart); //--- Rect name
      ObjectCreate(ChartID(), rectObj, OBJ_RECTANGLE, 0, sessionStart, rangeHigh, rangeEndTime, rangeLow); //--- Create rect
      ObjectSetInteger(ChartID(), rectObj, OBJPROP_COLOR, clrLightBlue); //--- Set color
      ObjectSetInteger(ChartID(), rectObj, OBJPROP_FILL, true);   //--- Set fill
      ObjectSetInteger(ChartID(), rectObj, OBJPROP_BACK, true);   //--- Set back
      ObjectSetInteger(ChartID(), rectObj, OBJPROP_STYLE, STYLE_SOLID); //--- Set style
      ChartRedraw(ChartID());                                     //--- Redraw chart
      // Add vertical lines for start and end
      string startVLineObj = "ORB_StartVLine_" + IntegerToString(sessionStart); //--- Start vline name
      RenderVLine(startVLineObj, sessionStart, clrBlue, "ORB Start at " + TimeToString(sessionStart, TIME_MINUTES)); //--- Render start vline
      string endVLineObj = "ORB_EndVLine_" + IntegerToString(sessionStart); //--- End vline name
      RenderVLine(endVLineObj, rangeEndTime, clrBlue, "ORB End at " + TimeToString(rangeEndTime, TIME_MINUTES)); //--- Render end vline
      // Add time text labels for start and end
      double textOffset = (rangeHigh - rangeLow) * 0.05;          //--- Calc offset
      string startTimeTextObj = "ORB_StartTime_Text_" + IntegerToString(sessionStart); //--- Start text name
      RenderText(startTimeTextObj, sessionStart, rangeLow - textOffset, TimeToString(sessionStart, TIME_MINUTES), clrBlue, ANCHOR_UPPER); //--- Render start text
      string endTimeTextObj = "ORB_EndTime_Text_" + IntegerToString(sessionStart); //--- End text name
      RenderText(endTimeTextObj, rangeEndTime, rangeLow - textOffset, TimeToString(rangeEndTime, TIME_MINUTES), clrBlue, ANCHOR_UPPER); //--- Render end text
      // Render high and low levels
      RenderLevel(highLevelObj, rangeHigh, clrGreen, "ORB High"); //--- Render high level
      RenderLevel(lowLevelObj, rangeLow, clrRed, "ORB Low");      //--- Render low level
      // Add text labels
      RenderText(highTextObj, rangeEndTime, rangeHigh, "ORB High", clrGreen, ANCHOR_RIGHT_LOWER); //--- Render high text
      RenderText(lowTextObj, rangeEndTime, rangeLow, "ORB Low", clrRed, ANCHOR_RIGHT_UPPER); //--- Render low text
   }
}

In the OnTick event handler, we begin by capturing the server's current time with TimeCurrent into "currentTime", converting it to an MqlDateTime structure via TimeToStruct to access individual components like hour and minute. We then format the current time as a "HH:MM" string using StringFormat and store it in "currentTimeStr". This is how the structure looks.

struct MqlDateTime {
   int year;           // Year
   int mon;            // Month
   int day;            // Day
   int hour;           // Hour
   int min;            // Minutes
   int sec;            // Seconds
   int day_of_week;    // Day of week (0-Sunday, 1-Monday, ... ,6-Saturday)
   int day_of_year;    // Day number of the year (January 1st is assigned the number value of zero)
};

Segregating into a structure helps us get the specific components with ease. To detect the exact start of a new trading session, we compare this string to the user-defined "SessionStartTime". The additional condition ensures we trigger only once per day by checking that "sessionStart" does not already match the current day aligned to that minute (subtracting seconds to normalize). When a new session begins, we align "sessionStart" precisely to the start of that minute by subtracting remaining seconds, calculate "rangeEndTime" by adding "RangeDurationMinutes" × 60 seconds, reset "rangeHigh" to 0.0 and "rangeLow" to the maximum double value for proper initial updates, clear all flags ("rangeDefined", "breakoutHigh", "breakoutLow", "tradedLong", "tradedShort", "lastConfirmTime"), and delete the persistent high/low level and text objects from the previous session to prepare a clean slate. If no active session has been detected yet ("sessionStart" == 0), we simply return to avoid unnecessary processing. Otherwise, we retrieve the current bid and ask prices using the SymbolInfoDouble function.

During the opening range formation period (while "currentTime" < "rangeEndTime"), we continuously update the range boundaries by setting "rangeHigh" to the maximum of its current value or the latest bar's high on "RangeTF" at shift 0 via "iHigh", and "rangeLow" to the minimum of its current value or the latest bar's low via the iLow function. Once the range period ends and the range hasn't been finalized yet ("!rangeDefined"), we set "rangeDefined" to true and proceed to visualize the completed opening range.

We draw a filled light-blue rectangle spanning from "sessionStart" at "rangeHigh" to "rangeEndTime" at "rangeLow" using a unique name based on the session timestamp, with solid style and background placement. Vertical blue dotted lines are added at both start and end times via "RenderVLine" with descriptive tooltips. Time labels are placed just below the range using "RenderText" with a small offset calculated as 5% of the range size, anchored upward in blue. Finally, we render the persistent horizontal levels with "RenderLevel" (green for high, red for low) and their corresponding text labels anchored at the right side of the range end time, ensuring we always see the exact breakout levels even hours or days later. Upon compilation, we get the following outcome.

With the ranges established, we just need to track them and their breakouts, and once we break from either range, we determine the direction and thus the type of breakout setup and open trades. Easy peasy. Here is the logic we use to achieve that.

if (!rangeDefined) return;                                     //--- Return if not defined
// Detect breakout
bool justBreached = false;                                     //--- Init just breached
if (currAsk > rangeHigh && !breakoutHigh) {                    //--- Check high breakout
   breakoutHigh = true;                                        //--- Set high breakout
   justBreached = true;                                        //--- Set just breached
   breakoutPrice = currAsk;                                    //--- Set breakout price
} else if (currBid < rangeLow && !breakoutLow) {               //--- Check low breakout
   breakoutLow = true;                                         //--- Set low breakout
   justBreached = true;                                        //--- Set just breached
   breakoutPrice = currBid;                                    //--- Set breakout price
}
if ((breakoutHigh || breakoutLow) && !(tradedLong || tradedShort)) { //--- Check breakout and not traded
   // Confirm breakout with bar closures if enabled
   bool confirmed = false;                                      //--- Init confirmed
   if (ConfirmBars == 0) {                                      //--- Check no confirm
      confirmed = true;                                         //--- Set confirmed
   } else {                                                     //--- Else
      datetime currConfirmTime = iTime(_Symbol, RangeTF, 0);    //--- Get confirm time
      if (currConfirmTime != lastConfirmTime) {                 //--- Check new confirm
         lastConfirmTime = currConfirmTime;                     //--- Update last confirm
         int confirmCount = 0;                                  //--- Init count
         for (int i = 1; i <= ConfirmBars; i++) {               //--- Iterate bars
            double closePrice = iClose(_Symbol, RangeTF, i);    //--- Get close
            if (breakoutHigh && closePrice > rangeHigh) confirmCount++; //--- Check high
            if (breakoutLow && closePrice < rangeLow) confirmCount++; //--- Check low
         }
         if (confirmCount >= ConfirmBars) confirmed = true;     //--- Set confirmed
      }
   }
   if (confirmed && UseBreakoutFilter) {                        //--- Check confirmed and filter
      // Additional filter logic if needed, but for now assume confirmed
   }
   if (confirmed) {                                             //--- Check confirmed
      double sl = 0.0, tp = 0.0;                                //--- Init SL TP
      if (breakoutHigh && ActivePositions(POSITION_TYPE_BUY) < MaxPositionsDir && !tradedLong) { //--- Check long entry
         if (SLTP_Approach == Dynamic_Method) {                  //--- Check dynamic
            double rangeSize = rangeHigh - rangeLow;             //--- Calc range size
            sl = NormalizeDouble(rangeLow, _Digits);             //--- Set SL
            tp = NormalizeDouble(currAsk + rangeSize * RR_Ratio, _Digits); //--- Set TP
         } else {                                                //--- Static
            sl = NormalizeDouble(currAsk - SL_Points * _Point, _Digits); //--- Set SL
            tp = NormalizeDouble(currAsk + (SL_Points * _Point) * RR_Ratio, _Digits); //--- Set TP
         }
         if (obj_Trade.Buy(TradeVolume, _Symbol, currAsk, sl, tp, "ORB Long Breakout")) { //--- Open buy
            if (obj_Trade.ResultRetcode() == TRADE_RETCODE_DONE) { //--- Check success
               Print("Long Breakout: Entry at ", DoubleToString(currAsk, _Digits), " SL at ", DoubleToString(sl, _Digits), " TP at ", DoubleToString(tp, _Digits)); //--- Log entry
               DrawEntryArrow(currentTime, currBid, true);        //--- Draw arrow
               tradedLong = true;                                 //--- Set long traded
            }
         }
      } else if (breakoutLow && ActivePositions(POSITION_TYPE_SELL) < MaxPositionsDir && !tradedShort) { //--- Check short entry
         if (SLTP_Approach == Dynamic_Method) {                  //--- Check dynamic
            double rangeSize = rangeHigh - rangeLow;             //--- Calc range size
            sl = NormalizeDouble(rangeHigh, _Digits);            //--- Set SL
            tp = NormalizeDouble(currBid - rangeSize * RR_Ratio, _Digits); //--- Set TP
         } else {                                                //--- Static
            sl = NormalizeDouble(currBid + SL_Points * _Point, _Digits); //--- Set SL
            tp = NormalizeDouble(currBid - (SL_Points * _Point) * RR_Ratio, _Digits); //--- Set TP
         }
         if (obj_Trade.Sell(TradeVolume, _Symbol, currBid, sl, tp, "ORB Short Breakout")) { //--- Open sell
            if (obj_Trade.ResultRetcode() == TRADE_RETCODE_DONE) { //--- Check success
               Print("Short Breakout: Entry at ", DoubleToString(currBid, _Digits), " SL at ", DoubleToString(sl, _Digits), " TP at ", DoubleToString(tp, _Digits)); //--- Log entry
               DrawEntryArrow(currentTime, currAsk, false);       //--- Draw arrow
               tradedShort = true;                                //--- Set short traded
            }
         }
      }
   }
}

Once the opening range is fully defined, we immediately return if "rangeDefined" is still false, ensuring no breakout logic runs prematurely. We then monitor for a breakout: if the current ask price exceeds "rangeHigh" and "breakoutHigh" is not yet set, we mark a bullish breakout by setting "breakoutHigh" to true, record the exact breakout price in "breakoutPrice", and note that a fresh breach has occurred. We do the same thing for low breakout. When at least one breakout direction is active and neither a long nor short trade has been taken in this session ("!tradedLong && !tradedShort"), we proceed to the confirmation stage. If "ConfirmBars" is zero, the breakout is considered instantly confirmed. Otherwise, on each new bar of the range timeframe (detected by comparing iTime at shift 0 with "lastConfirmTime"), we count how many of the previous "ConfirmBars" bars closed decisively outside the range — above "rangeHigh" for bullish or below "rangeLow" for bearish. Only when the required number of confirming closes is reached do we set "confirmed" to true.

We respect the "UseBreakoutFilter" input (though currently it simply passes the confirmation forward — room for future enhancements if you want to add more filters). Once confirmed, we calculate stop-loss and take-profit levels according to the chosen method. For a bullish breakout, if buy positions are below "MaxPositionsDir" and no long has been traded yet, we use dynamic mode to place stop-loss exactly at the range low (normalized) and take-profit at current ask plus the full range size multiplied by "RR_Ratio". In static mode, we place a stop-loss at a fixed "SL_Points" below the ask and take-profit the same distance times ratio above. We then execute the buy order via "obj_Trade.Buy", and on success (TRADE_RETCODE_DONE), log the entry details to the Experts tab, draw a blue upward arrow at the entry using "DrawEntryArrow", and set "tradedLong" to true to lock out further longs this session. The bearish side mirrors this exactly. Upon compilation, we get the following outcome.

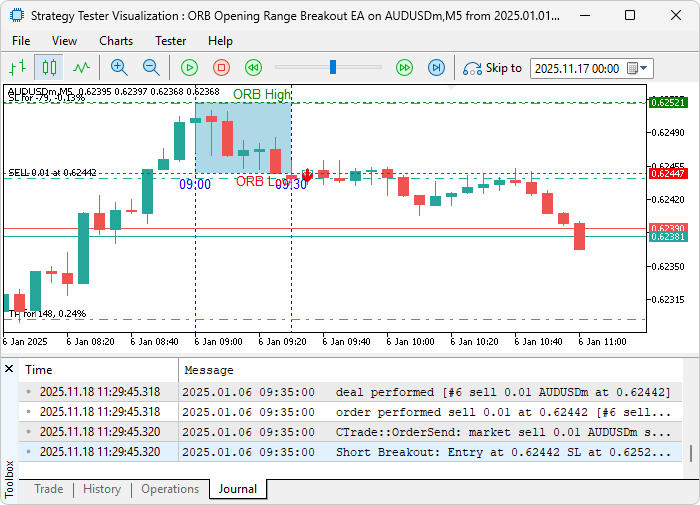

From the image, we can see that we open trades once we have a breakout. We now just need to manage the open positions by applying a trailing stop once the market moves in our favour, if we want to.

//+------------------------------------------------------------------+
//| Apply Points Trailing Stop                                       |
//+------------------------------------------------------------------+
void ApplyPointsTrailing() {
   double point = _Point;                                         //--- Get point
   for (int i = PositionsTotal() - 1; i >= 0; i--) {              //--- Iterate positions
      if (PositionGetTicket(i) > 0) {                             //--- Check ticket
         if (PositionGetString(POSITION_SYMBOL) == _Symbol && PositionGetInteger(POSITION_MAGIC) == UniqueID) { //--- Check symbol magic
            double sl = PositionGetDouble(POSITION_SL);              //--- Get SL
            double tp = PositionGetDouble(POSITION_TP);              //--- Get TP
            double openPrice = PositionGetDouble(POSITION_PRICE_OPEN); //--- Get open
            ulong ticket = PositionGetInteger(POSITION_TICKET);      //--- Get ticket
            if (PositionGetInteger(POSITION_TYPE) == POSITION_TYPE_BUY) { //--- Check buy
               double newSL = NormalizeDouble(SymbolInfoDouble(_Symbol, SYMBOL_BID) - Trailing_Stop_Points * point, _Digits); //--- Calc new SL
               if (newSL > sl && SymbolInfoDouble(_Symbol, SYMBOL_BID) - openPrice > Min_Profit_To_Trail_Points * point) { //--- Check conditions
                  obj_Trade.PositionModify(ticket, newSL, tp);       //--- Modify position
               }
            } else if (PositionGetInteger(POSITION_TYPE) == POSITION_TYPE_SELL) { //--- Check sell
               double newSL = NormalizeDouble(SymbolInfoDouble(_Symbol, SYMBOL_ASK) + Trailing_Stop_Points * point, _Digits); //--- Calc new SL
               if (newSL < sl && openPrice - SymbolInfoDouble(_Symbol, SYMBOL_ASK) > Min_Profit_To_Trail_Points * point) { //--- Check conditions
                  obj_Trade.PositionModify(ticket, newSL, tp);       //--- Modify position
               }
            }
         }
      }
   }
}

//--- Call the function per tick in the "OnTick" event handler

if (TrailingType == Trailing_Points && PositionsTotal() > 0) { //--- Check trailing
   ApplyPointsTrailing();                                      //--- Apply trailing
}

Here, we implement the "ApplyPointsTrailing" function to dynamically trail the stop-loss when "Trailing_Points" mode is selected, protecting profits as the market moves in our favor. The function begins by storing the symbol's point value in "point" using _Point. It then iterates backward through all open positions to safely handle any modifications without index conflicts. For each valid ticket, we verify that the position belongs to the current symbol and carries our "UniqueID" magic number. We retrieve the current stop-loss, take-profit, open price, and ticket number.

For buy positions, we calculate a potential new stop-loss by subtracting "Trailing_Stop_Points" × point from the current bid (normalized to the symbol's digits). We only apply the modification if this new level is higher than the existing stop-loss (tightening it) and the unrealized profit exceeds "Min_Profit_To_Trail_Points" × point, ensuring we only trail after a meaningful buffer. The position is updated via "obj_Trade.PositionModify" while preserving the original take-profit. The logic for sell positions mirrors this exactly. Finally, at the end of OnTick, we check if trailing is enabled ("TrailingType == Trailing_Points") and there are open positions. If so, we immediately invoke "ApplyPointsTrailing" on every tick, providing real-time profit protection without delay. Finally, we need to delete our visualization objects when we remove the program from the chart.

//+------------------------------------------------------------------+
//| EA Stop Function                                                 |
//+------------------------------------------------------------------+
void OnDeinit(const int code) {
   ObjectDelete(ChartID(), highLevelObj);                         //--- Delete high level
   ObjectDelete(ChartID(), lowLevelObj);                          //--- Delete low level
   ObjectDelete(ChartID(), highTextObj);                          //--- Delete high text
   ObjectDelete(ChartID(), lowTextObj);                           //--- Delete low text
   // Clean dynamic objects
   ObjectsDeleteAll(ChartID(), "ORB_Rectangle_", OBJ_RECTANGLE);  //--- Delete rectangles
   ObjectsDeleteAll(ChartID(), "ORB_StartVLine_", OBJ_VLINE);     //--- Delete start vlines
   ObjectsDeleteAll(ChartID(), "ORB_EndVLine_", OBJ_VLINE);       //--- Delete end vlines
   ObjectsDeleteAll(ChartID(), "ORB_StartTime_Text_", OBJ_TEXT);  //--- Delete start texts
   ObjectsDeleteAll(ChartID(), "ORB_EndTime_Text_", OBJ_TEXT);    //--- Delete end texts
   ObjectsDeleteAll(ChartID(), "EntryMarker_", OBJ_ARROW);        //--- Delete entry markers
}

In the OnDeinit function, which runs when the program is removed from the chart or the terminal shuts down, we first delete the four persistent objects by name: the high and low horizontal levels via "highLevelObj" and "lowLevelObj", and their text labels with "highTextObj" and "lowTextObj". We then use ObjectsDeleteAll to remove every dynamically created object from the current session and all previous ones. This complete cleanup prevents object accumulation across multiple sessions or chart reloads. Upon compilation, we get the following outcome when the trailing stop is enabled.

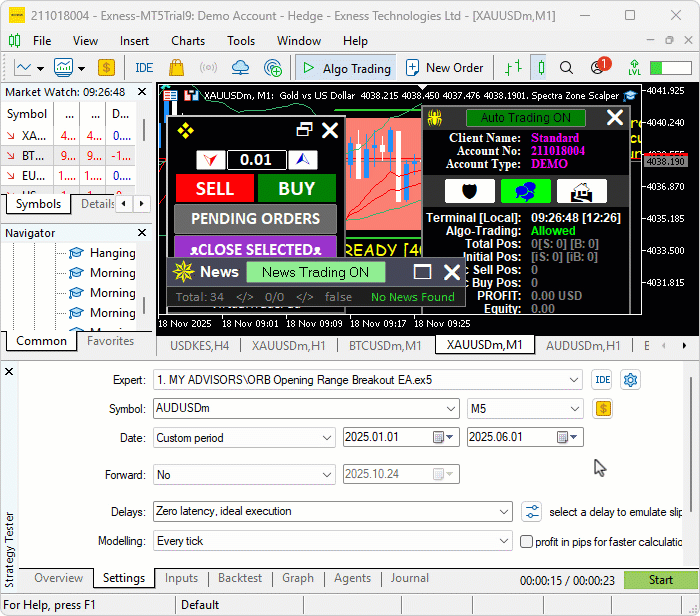

From the visualization, we can see that we define the ranges, open positions, and manage them by applying trailing stops when needed, hence achieving our objectives. The thing that remains is backtesting the program, and that is handled in the next section.

Backtesting

After thorough backtesting, we have the following results.

Backtest graph:

Backtest report:

Conclusion

In conclusion, we’ve developed a session-based Opening Range Breakout (ORB) system in MQL5 that allows custom session start times and opening range durations in minutes, automatically determines the true high and low on a selected timeframe, detects breakouts with optional multi-bar close confirmation, and executes trades only in the breakout direction.

Disclaimer: This article is for educational purposes only. Trading carries significant financial risks, and market volatility may result in losses. Thorough backtesting and careful risk management are crucial before deploying this program in live markets.

With this session-based Opening Range Breakout strategy, you’re equipped to trade intraday breakout setups in any chosen market session, ready for further optimization in your trading journey. Happy trading!
