TimeAndPriceLine
- Utilities
- Version: 3.0
- Updated: 11 September 2026
- Activations: 5

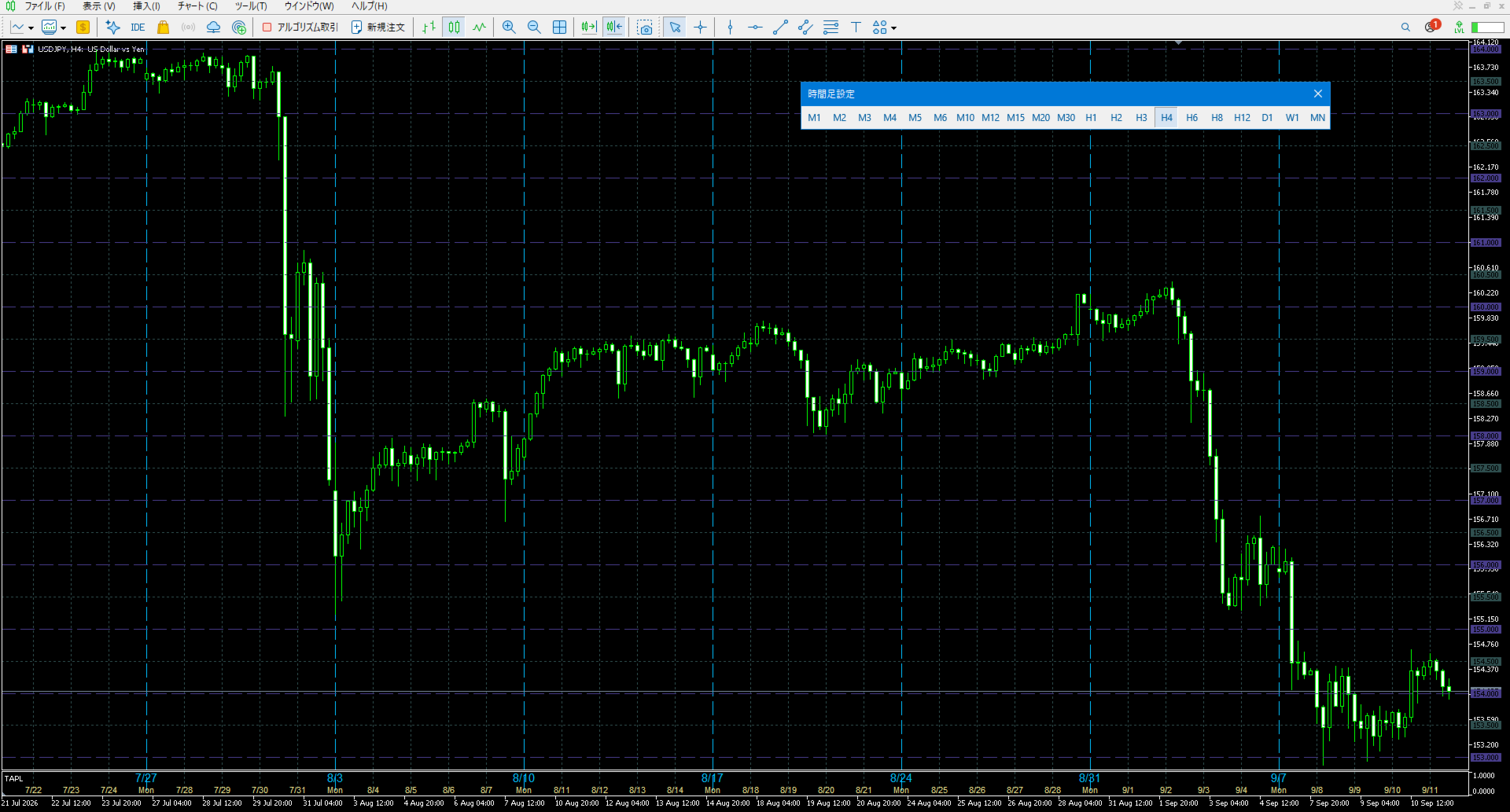

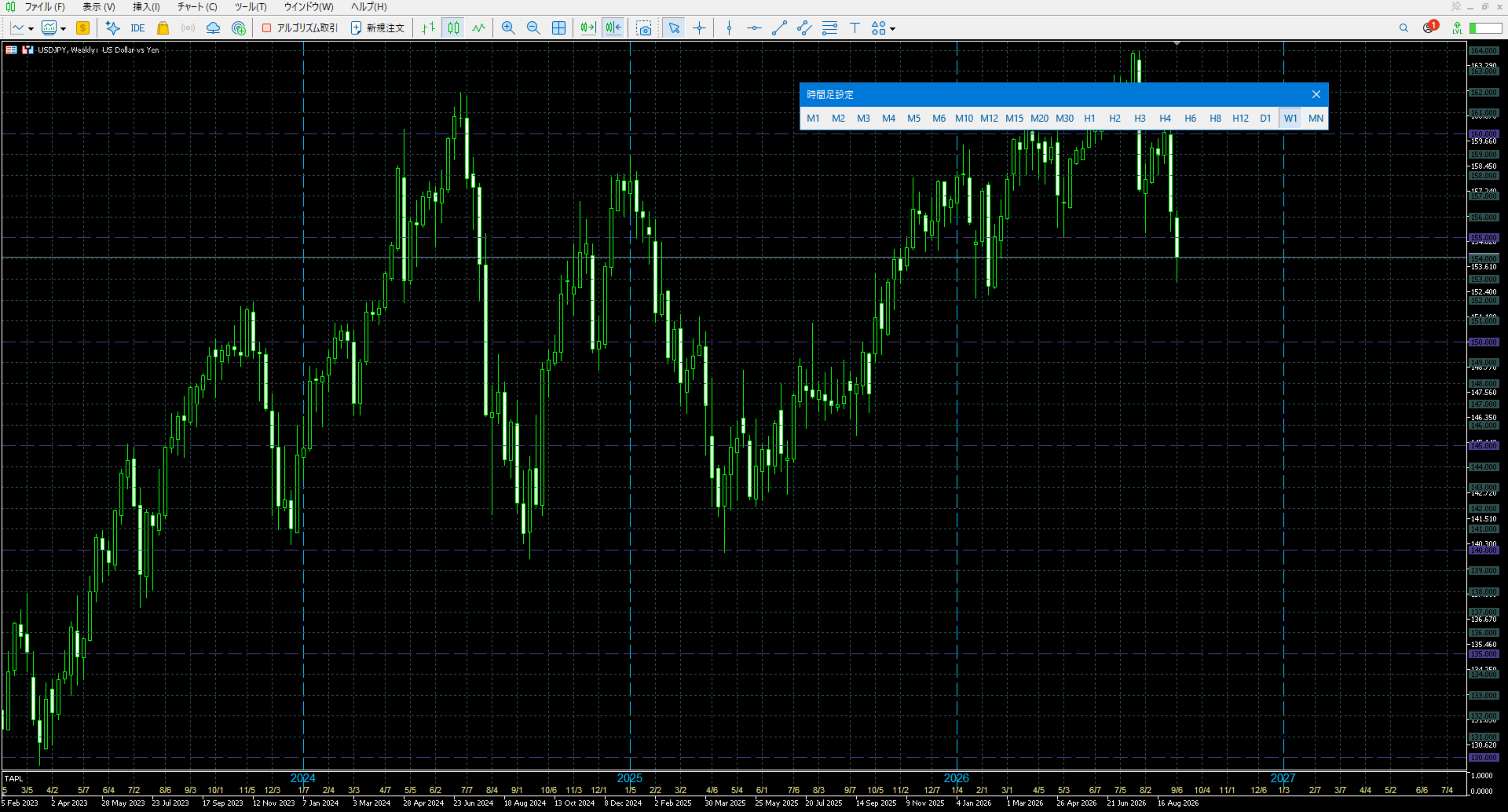

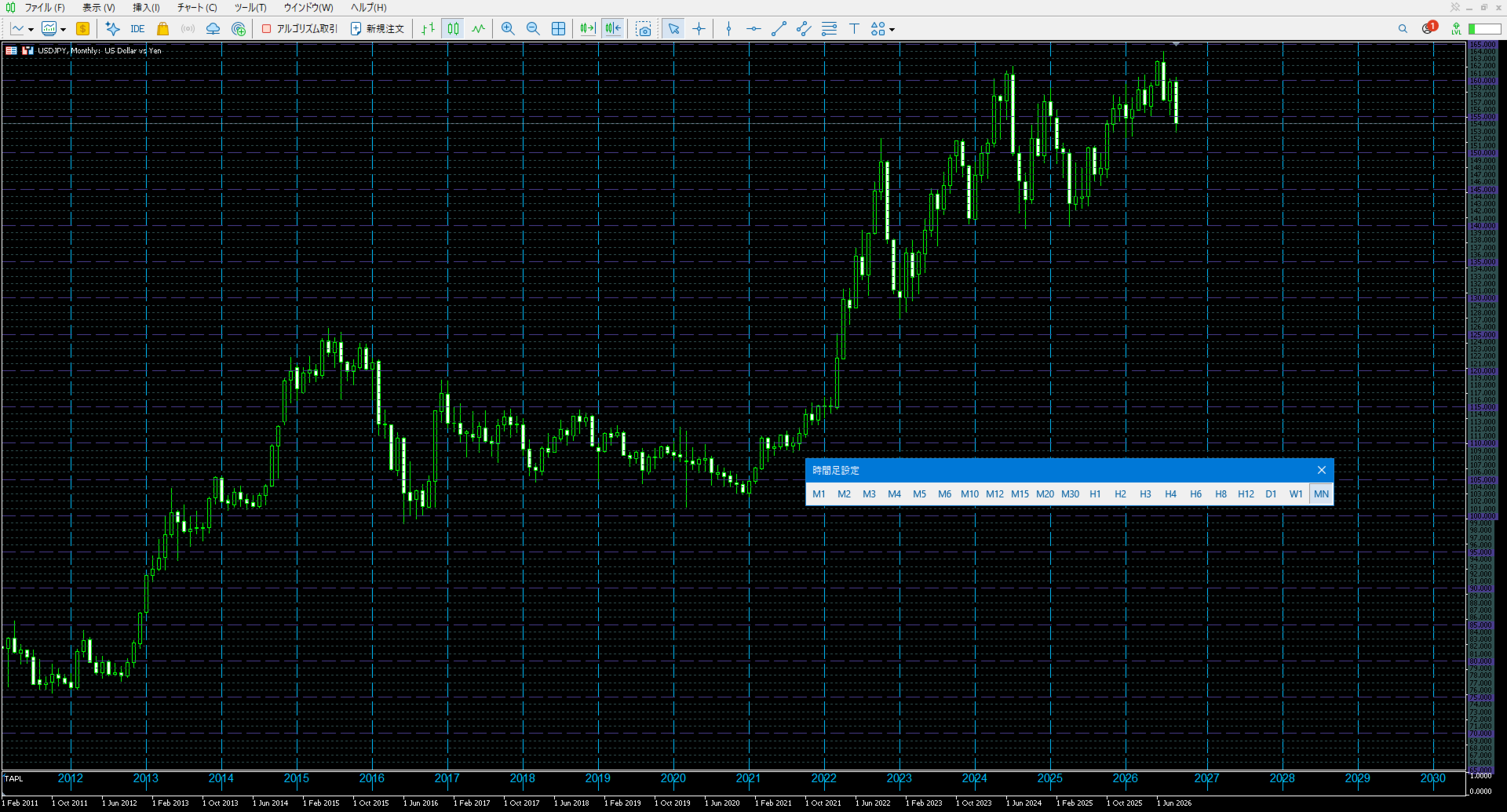

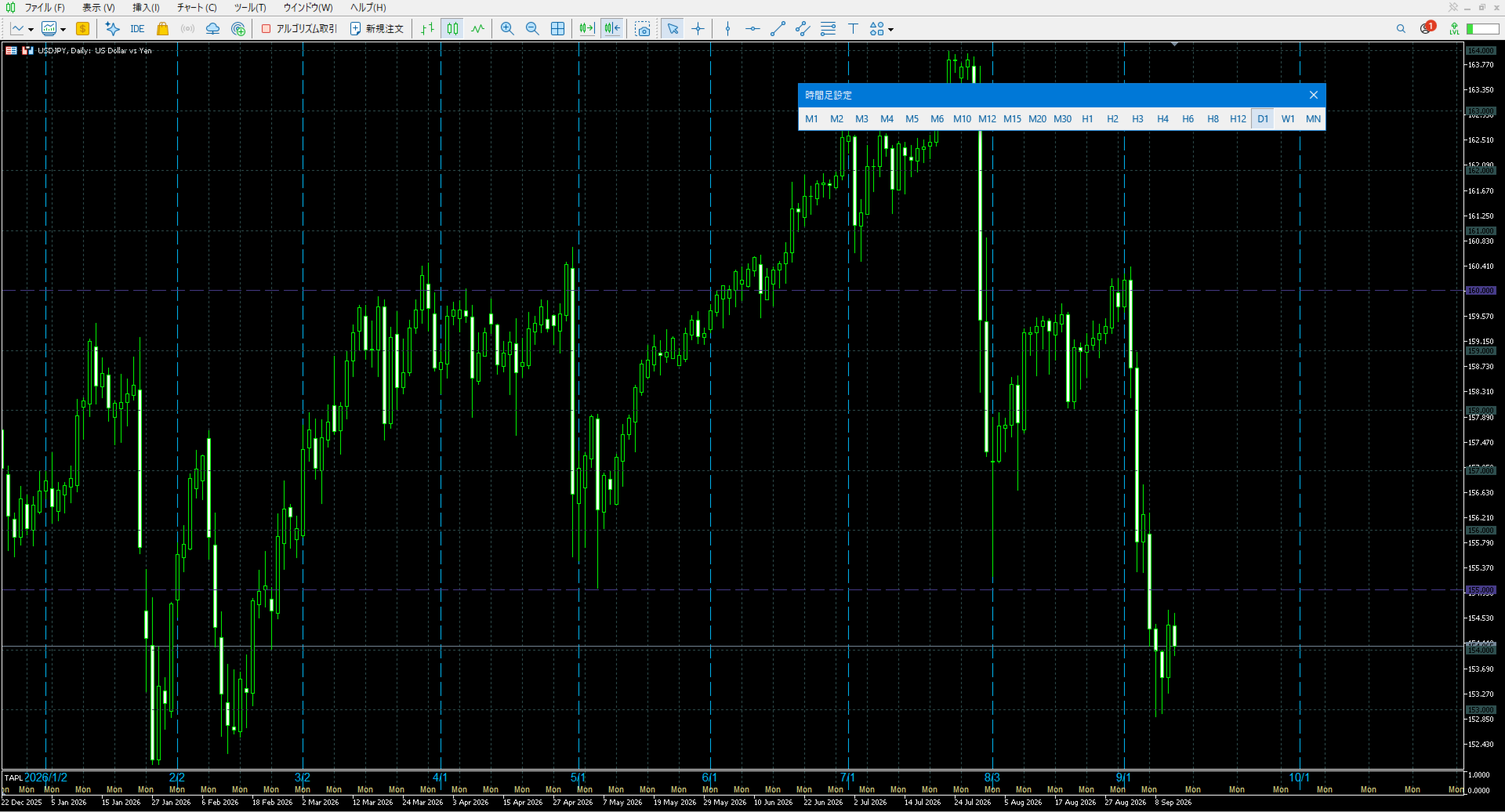

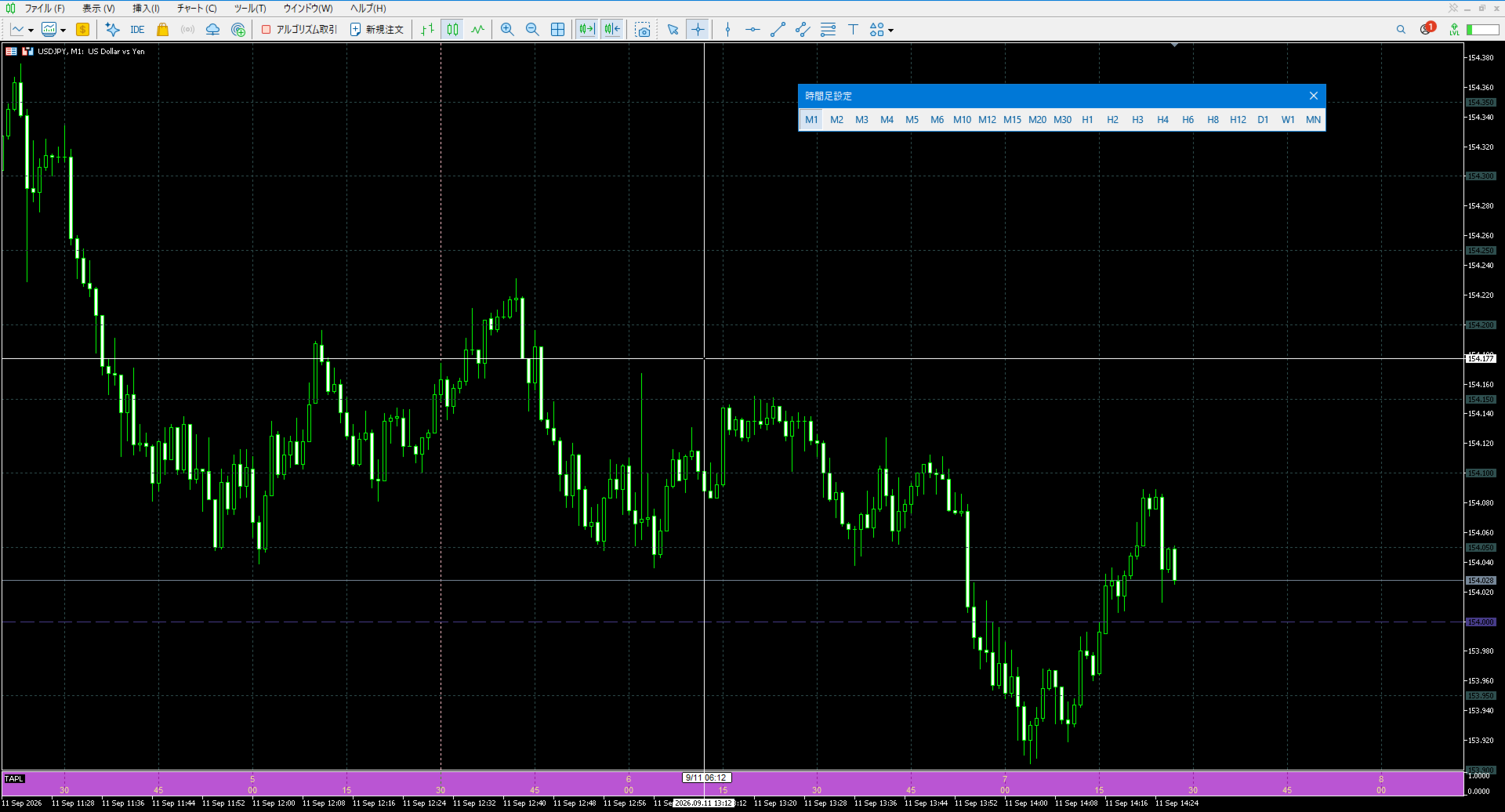

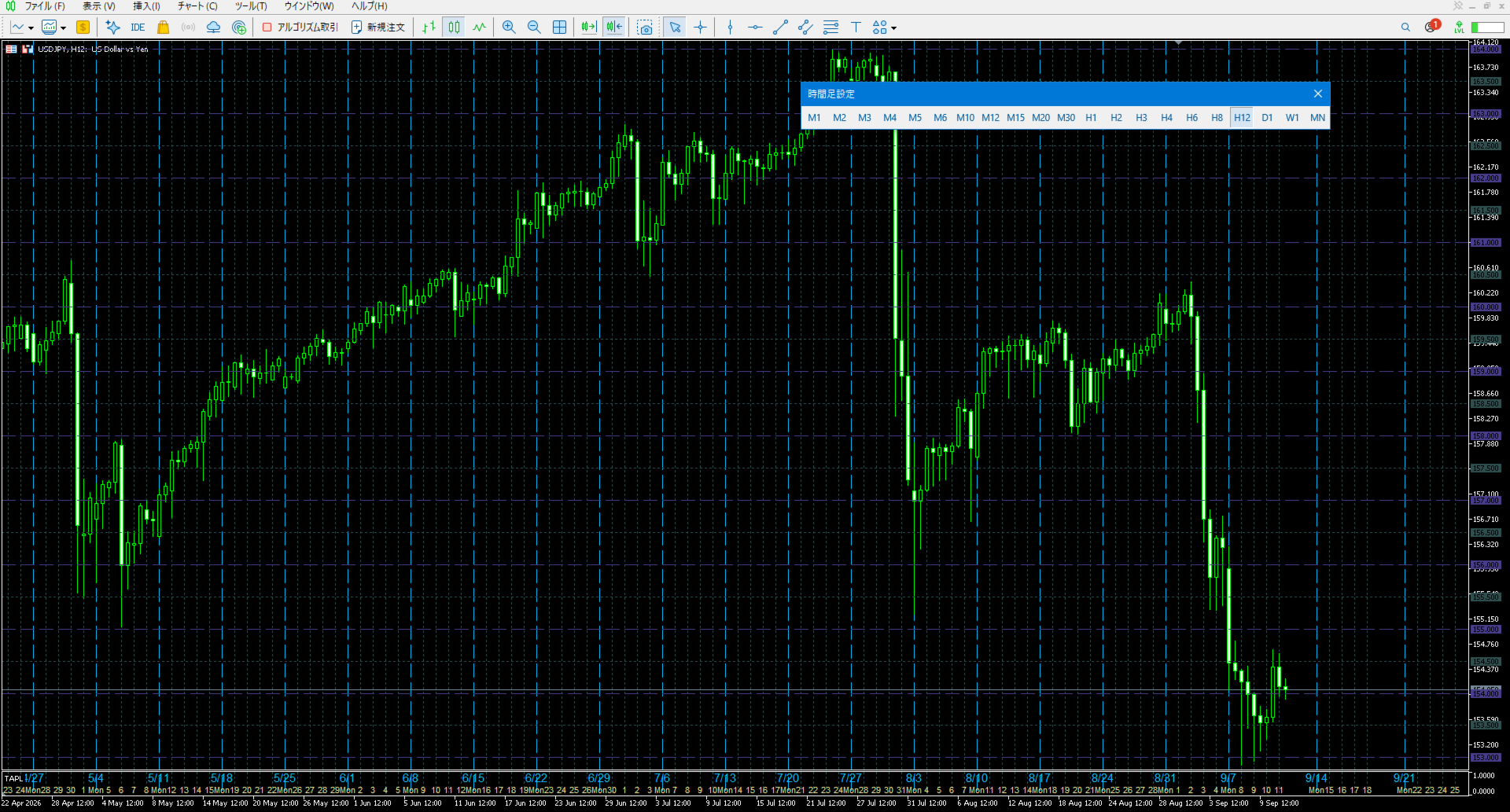

The timeline will be displayed according to the set time difference. (Time differences in 30-minute increments are not supported.)
Additionally, price lines are displayed at round numbers such as 100.000, 100.010, and 100.020.
The standard gridlines are displayed with the time and price by MT4, but they are very confusing as they become the broker's time and are displayed at the halfway point along with the price.It hides them and displays gridlines at user-defined time differences and prices in easy-to-understand positions.
The system is implemented to run lightly so as not to overload other EAs and discretionary trading.
MT4Ver:https://www.mql5.com/ja/market/product/79204
The following features are available
- Easy to read with a two-line display
The year, date, and time are displayed in two separate lines.
- Time and price can be displayed at set intervals.
- Displays future times

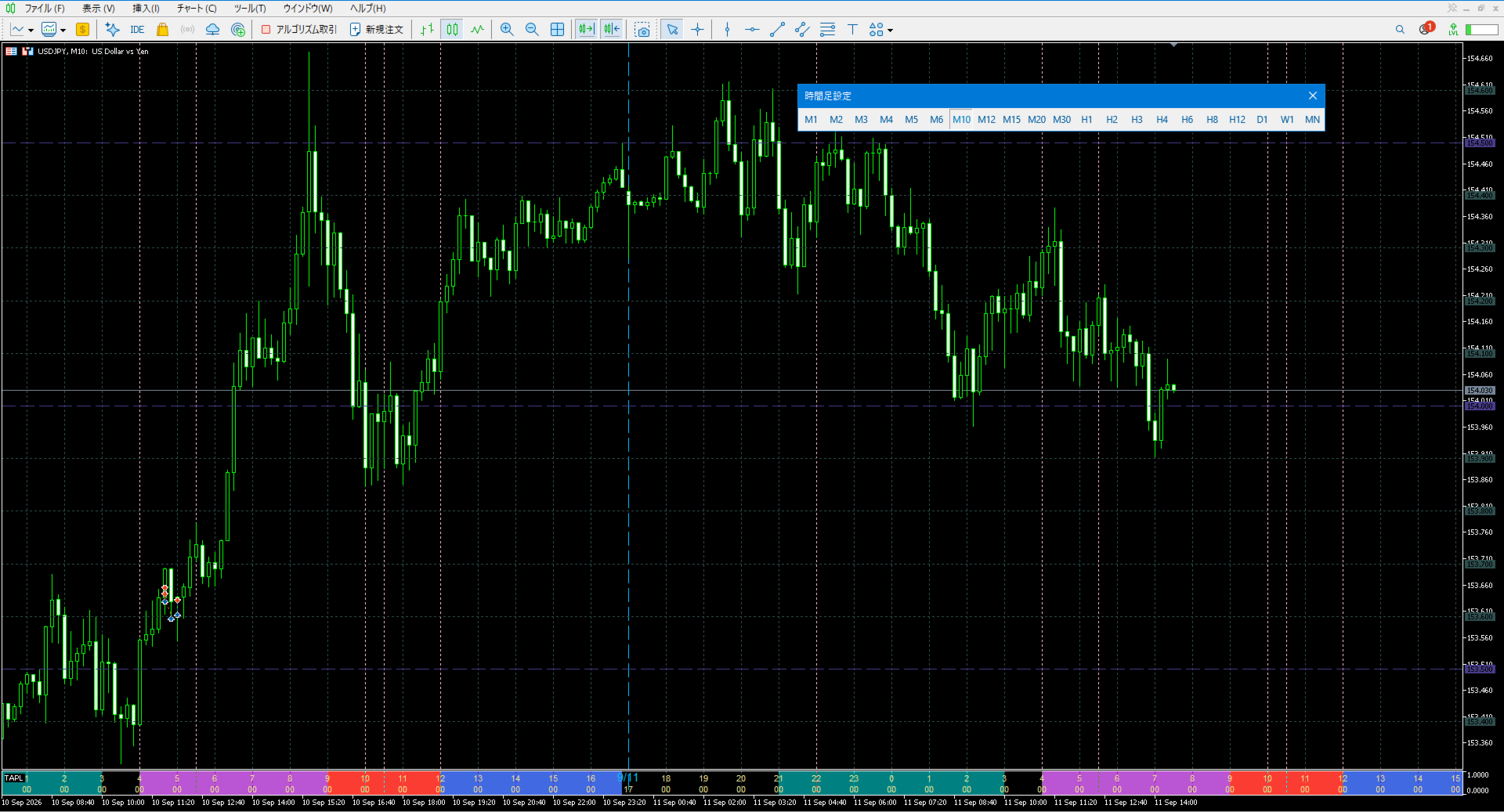

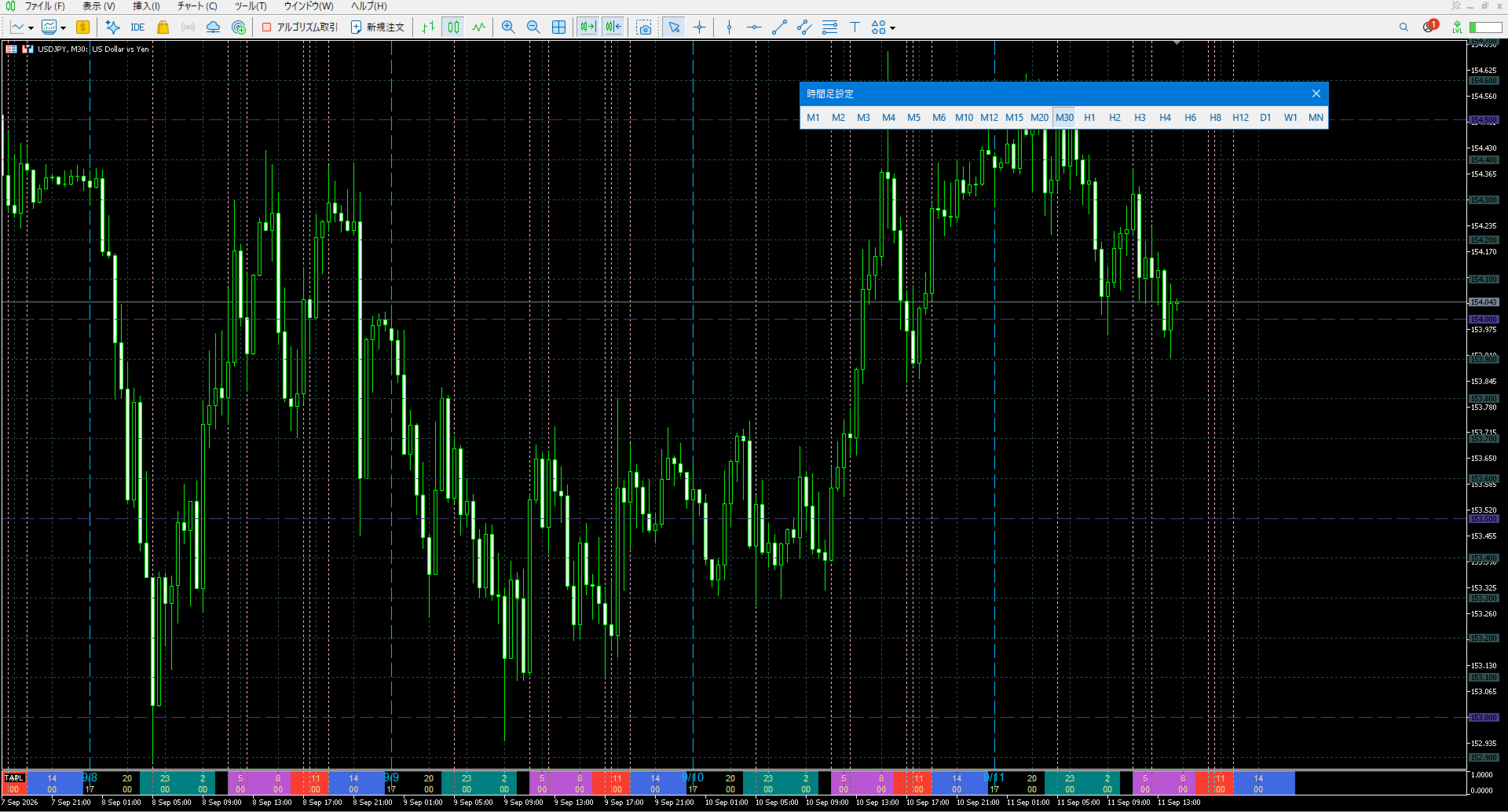

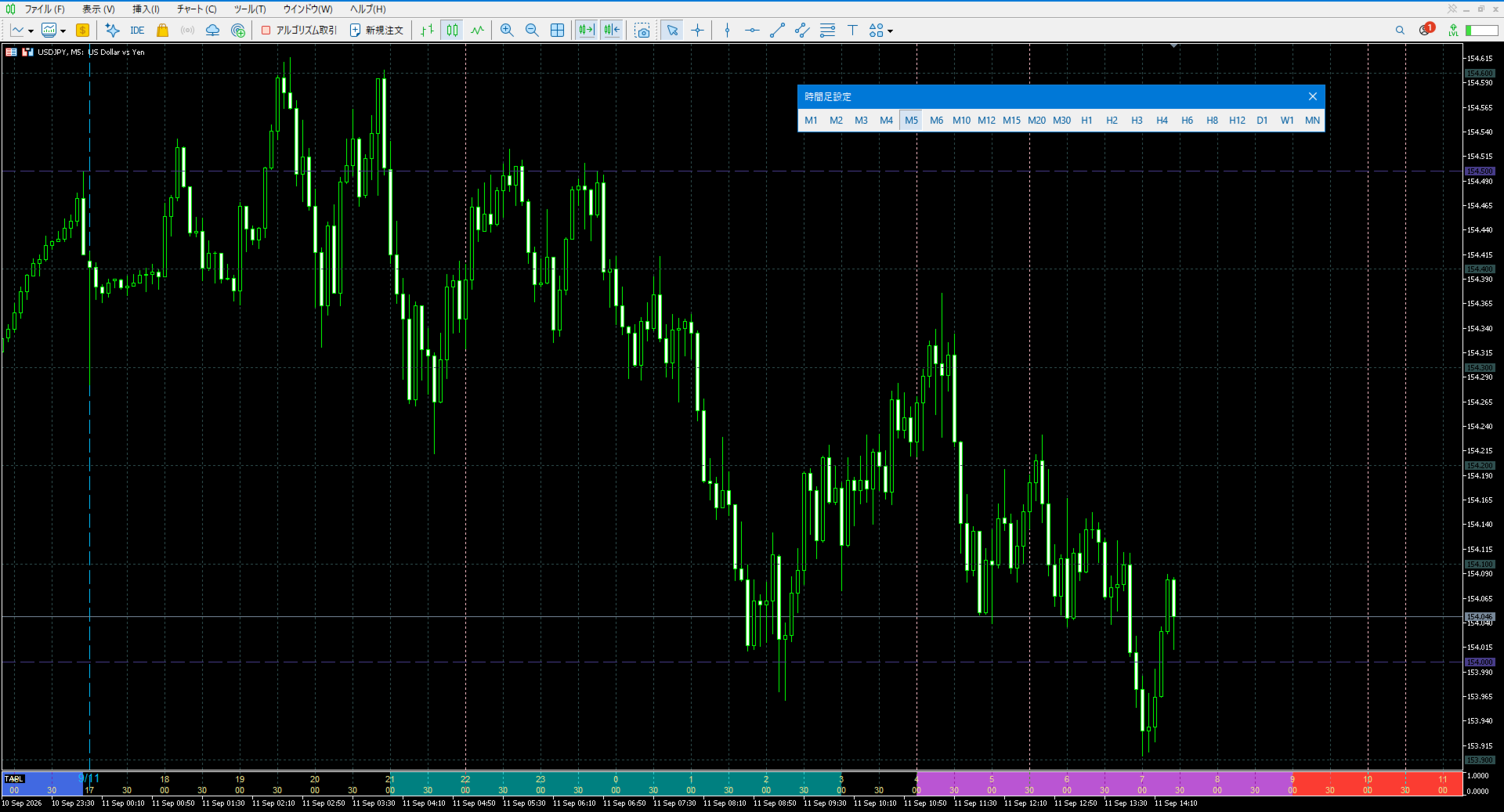

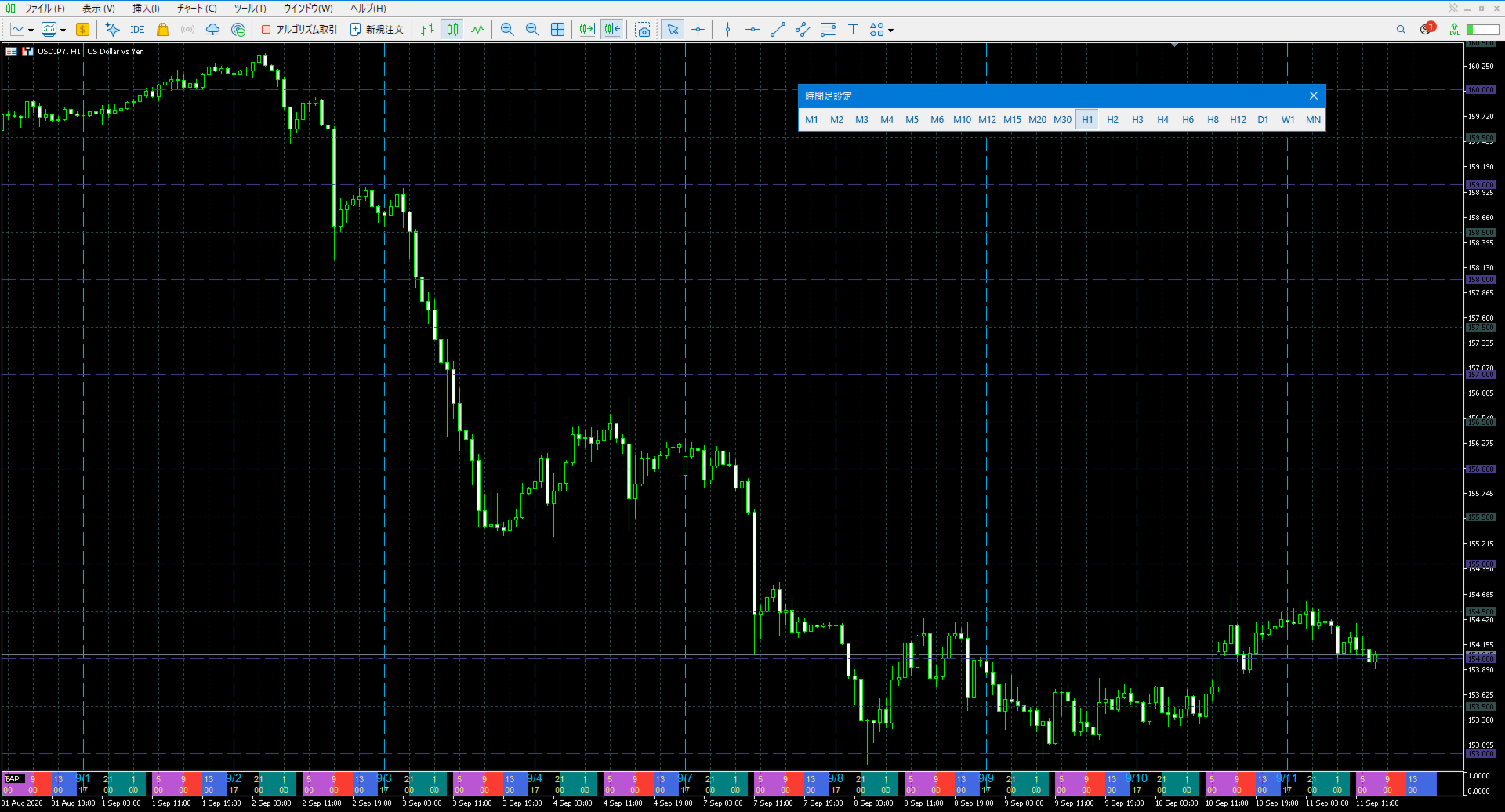

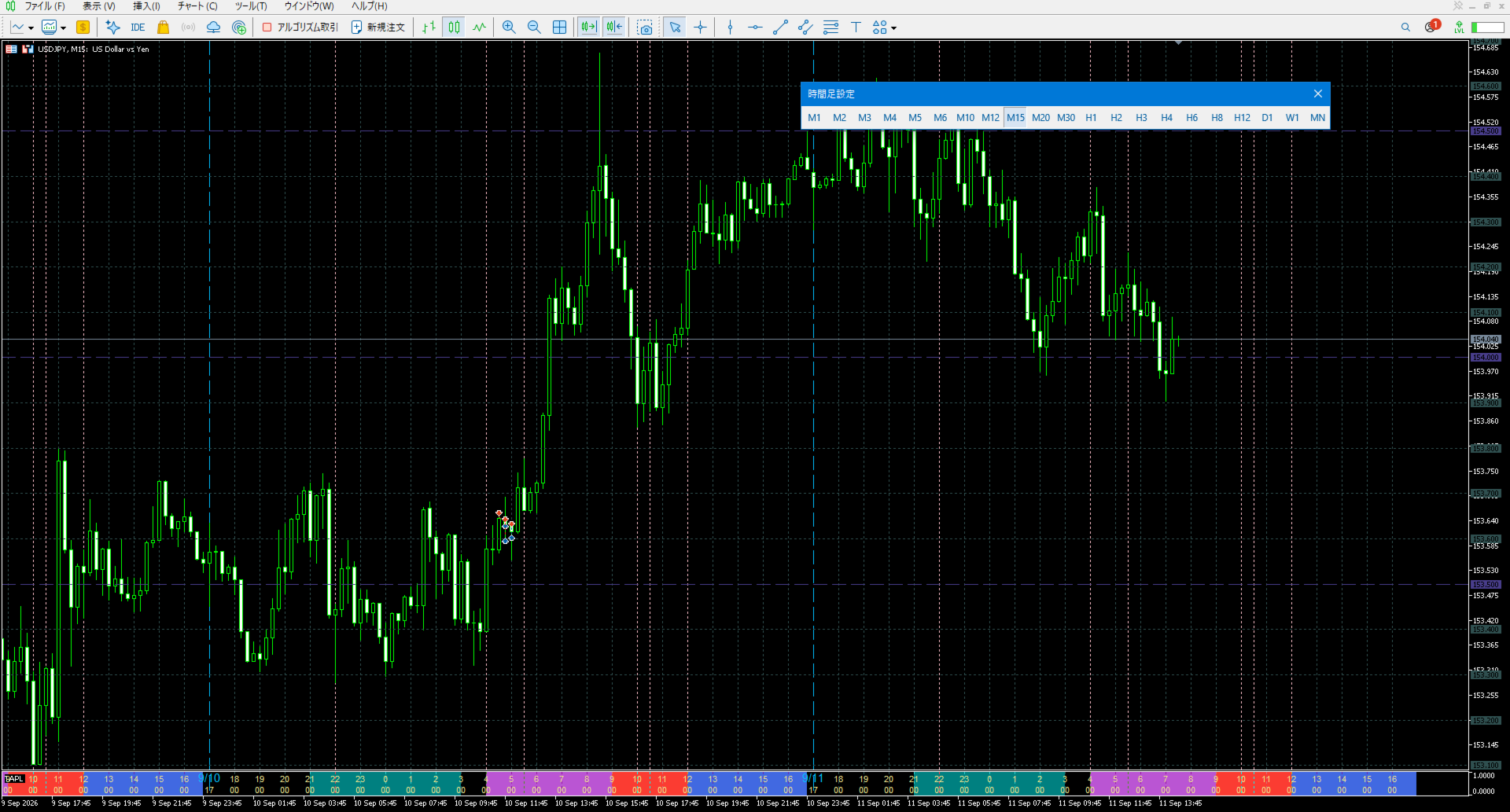

- Time zones for the three major markets are displayed in different colors.
- You can set the display format for the month, day, and time.
- You can display LINE at special times every day.
You can display a line at a specific time each day that you want to pay attention to.Up to 6 can be set.
- Detailed time can be displayed as a label.
Pressing the "F" key will display the detailed time at the cursor position as a label.Press the "F" key again to hide it.
parameter description
| Parameter | Description |
|---|---|
| • Time offset: | Set the time difference. |
| • Bars time range: | The number of bars determines the range in which the timeline is displayed. Setting it to "0" will display it across the entire range. |
| • Base line color: | Set the colors for the timeline and priceline. |
| • Base line style | Set the style for the time line and price line. |
| • Show date area | MT5's standard date area display setting at the bottom of the chart. true: Display. false: hidden. *Please note that hiding this feature will prevent the "Fast Navigation" menu, which is displayed when you press the "Enter" or "Space" key, from appearing. |
| • Price line step settings (Pips) | The interval at which the price line is displayed. Specify in Pips. Hour is set to H1 and H4. Day is set to D1, W1, and MN. |
| • Price support line (Pips): | The display interval for the price lines that serve as dividing points. Specify in pips. This can be set separately from the price line step, for example, every 100 pips. Settings can be configured for M1-M30, H1-H4, and Day-MN. |
| • Price support line color: | Sets the color of the price support line. |
| • Price support line style: | Set the style of the price support line. |
| ･ Time interval settings M1-M4: | Specify the value by the number of bars. The default configurations are based on "M1"; setting this to "0" will apply the "M1" settings. If you want to configure them individually, please set them in "M2–M4". |
| ･ Time interval settings M5-M30: | Specify the value by the number of bars. The default configurations are based on "M5". setting this to "0" will apply the "M5" settings. If you want to configure them individually, please set them in "M6–M30". |
| ･ Time interval settings H1-H3: | Specify the value by the number of bars. The default configurations are based on "H1". setting this to "0" will apply the "H1" settings. If you want to configure them individually, please set them in "H2,H3". |
| • Time notation: | Sets the time display format. |
| • Date notation: | Sets the date display format. |
| • Time font size: | Sets the font size for the time. |
| • Time color: | Sets the color for the time. |
| • Day and year color: | Set the color for the date. |
| • Day and year line color: | Set the start and end times for the Asian time zone. |
| • Day and year line style: | Set the style of the day and year line style. |
| • Asia open time: • Asia end time: | Set the start and end times for the Asian time zone. |
| • EU Open Time: • EU end time: | Set the start and end times for the EU time zone. |
| • US Open Time: • US end time: | Set the start and end times for the US time zone. |
| • Asia range color: • EU range color: • US range color: | Sets the colors for the Asian, EU, and US time zones. |
| • Special Time 1 - 6: | Set lines to display at specific times, such as market opening times or events. You can set up to 6 lines. To hide it, set the number to 2400. To display it at 24:00, set the number to 0 . It will not be displayed in H1, H4, D1, W1, and MN. |
| • Special Time 1 - 6 colors: | Set the line color for Special Time. |
| • Special Timeline style: | Set the style for Special Time. |
