⚡ EA PRO Risk Panel — Risk Management & Trade Manager for MT5
EA PRO Risk Panel is a free MT5 risk management panel for prop firm and retail traders — risk-based position sizing, partial take profit with draggable chart lines, and a live drawdown monitor with daily loss limit controls.
🎯 Exact lot size from your risk ($ or %) — before you click Buy
📉 Three partial TP levels — draggable lines, even while minimized
🛡 Automatic break-even (Risk-Free) on TP1
📊 Live daily drawdown monitor — built around prop firm rules
✅ 100% Free — no signals, no promises, just clean risk control
👨💻 Credits: Developed by Sayed Ali Ordibehesht & Afshin Partovi.
▶ Overview
EA PRO Risk Panel is a trading panel for MetaTrader 5 that helps you size risk, preview orders on the chart, and execute Market and Pending orders with clear controls for Volume, Stop Loss, and Take Profit. The tool does not provide trading signals and it does not guarantee profits.

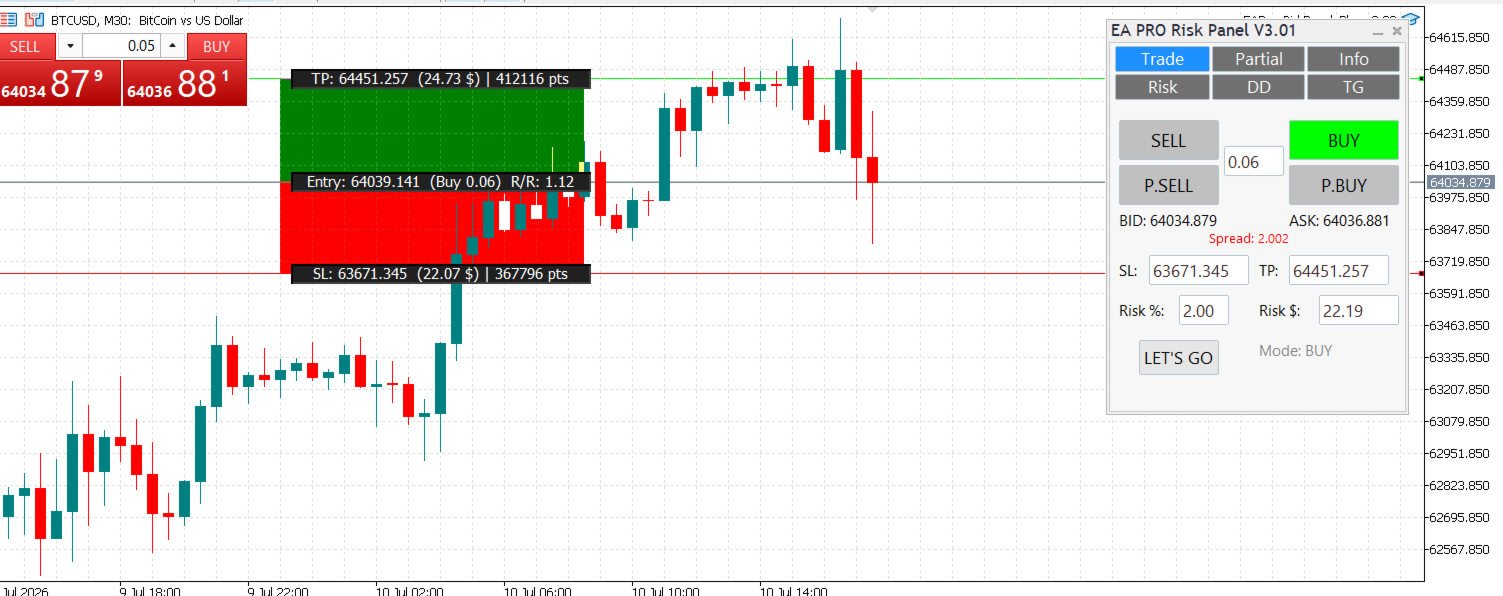

▶ Market & Pending orders
- Market BUY/SELL using current Bid/Ask.
- Pending BUY/SELL from a draggable Entry line on the chart.
- SL/TP can be set at placement; all levels are normalized to tick size and broker rules.

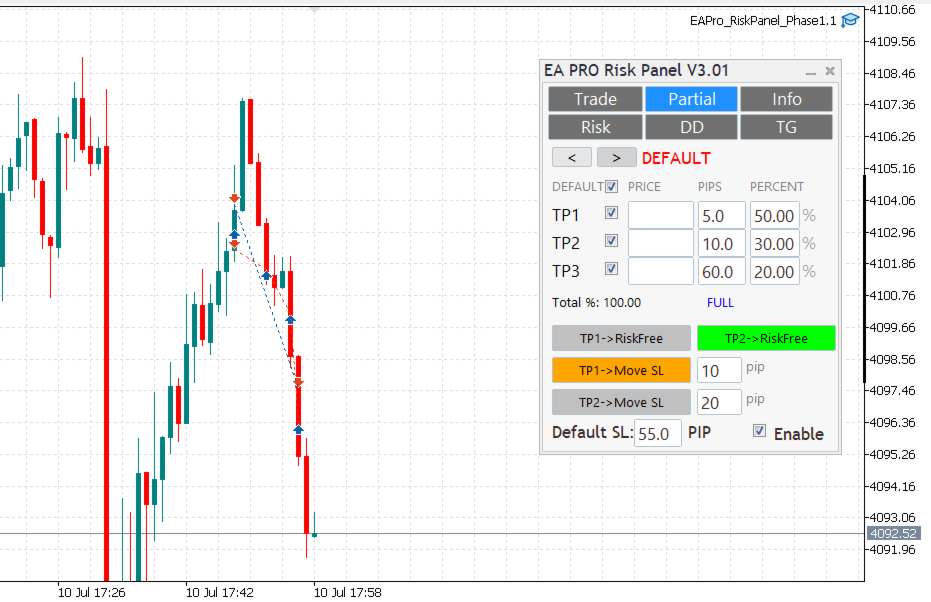

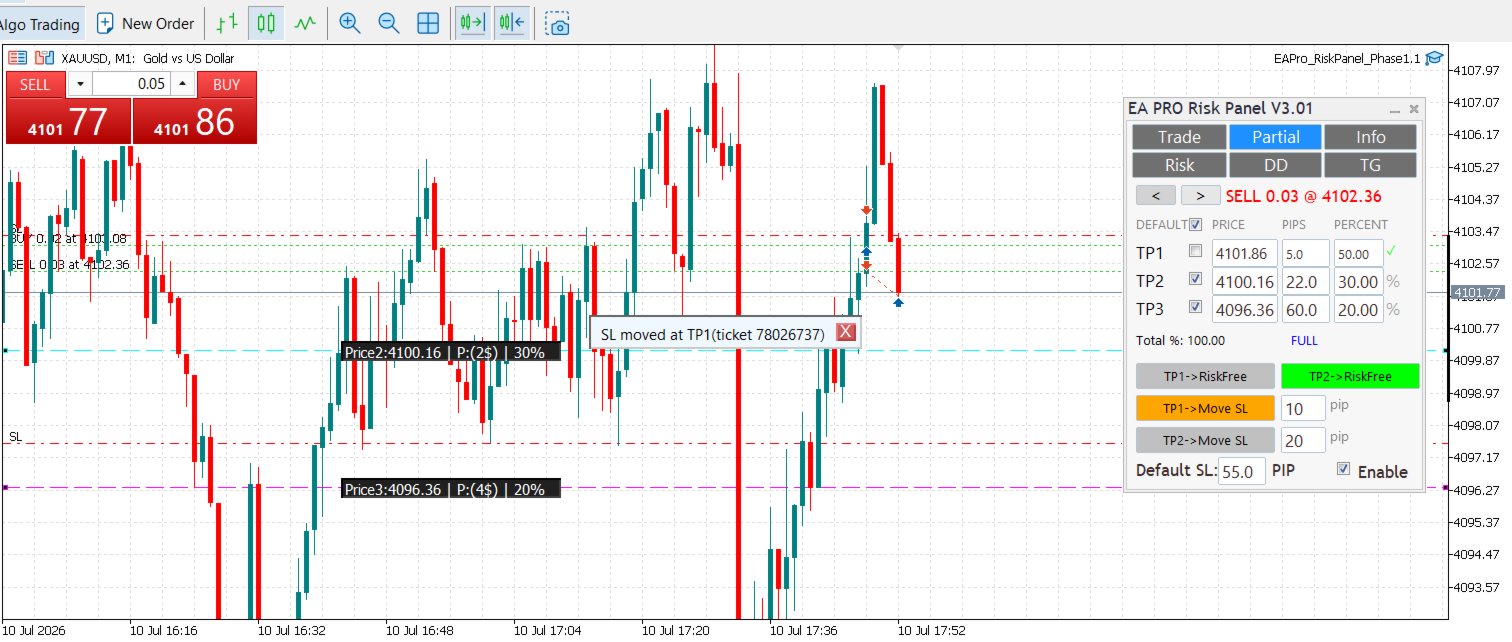

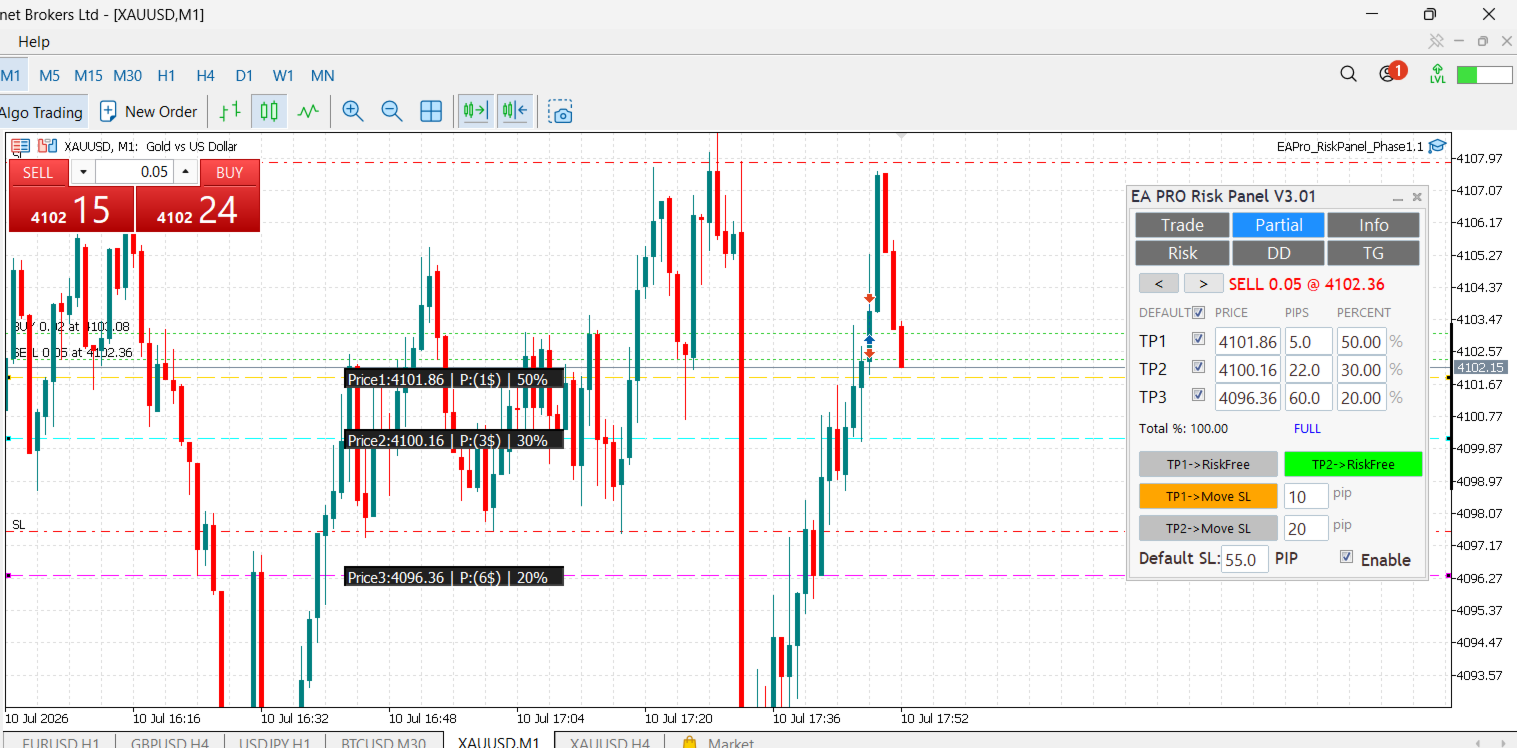

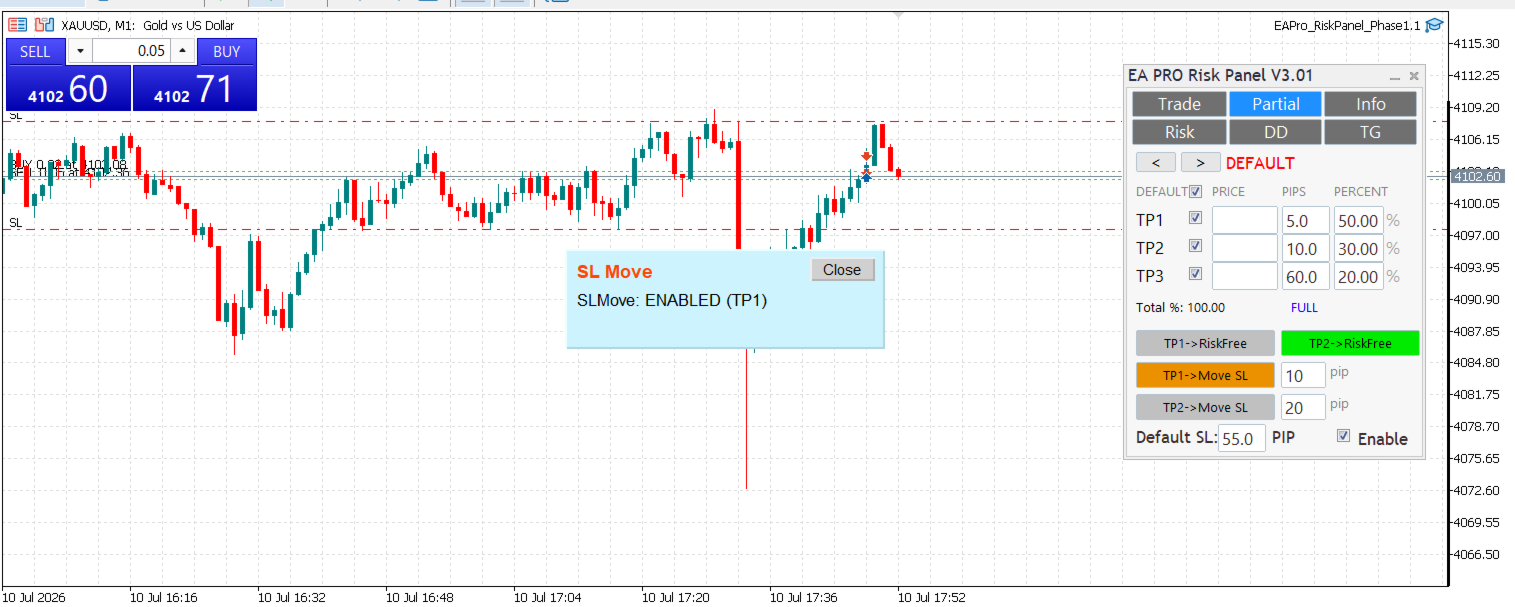

▶ Partial exits (TP1/TP2/TP3)
- ✔ Three TP rows with per-row percent; Total% is the mechanical sum of enabled rows.
- ✔ Draggable TP lines directly on the chart — fully functional even while the panel is minimized.
- On HIT (DONE), the row locks and styling updates; states persist per ticket (hedging-aware).
- Optional Risk-Free on TP1 (per ticket): move SL to break-even (with spread) once when TP1 is hit.
- Position picker: switch between open positions and manage partials on each one separately.

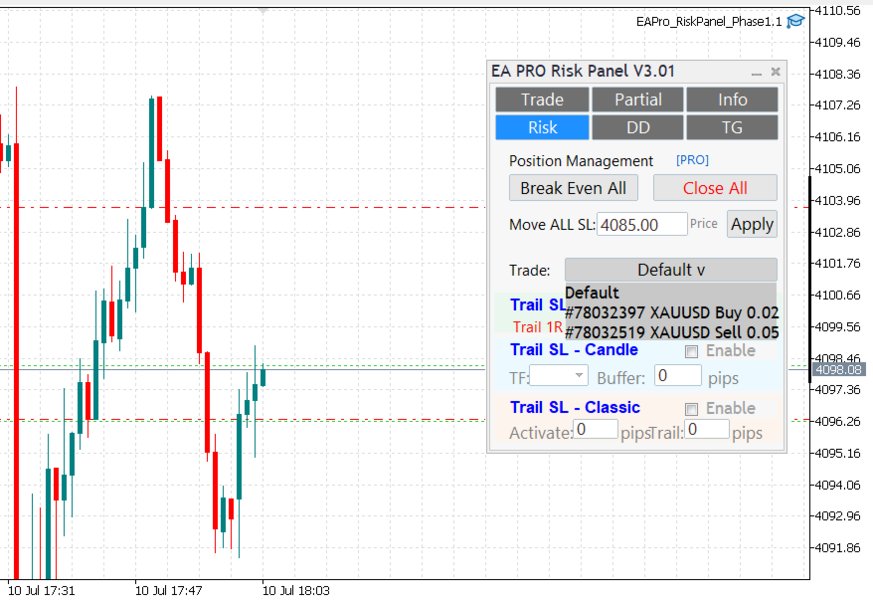

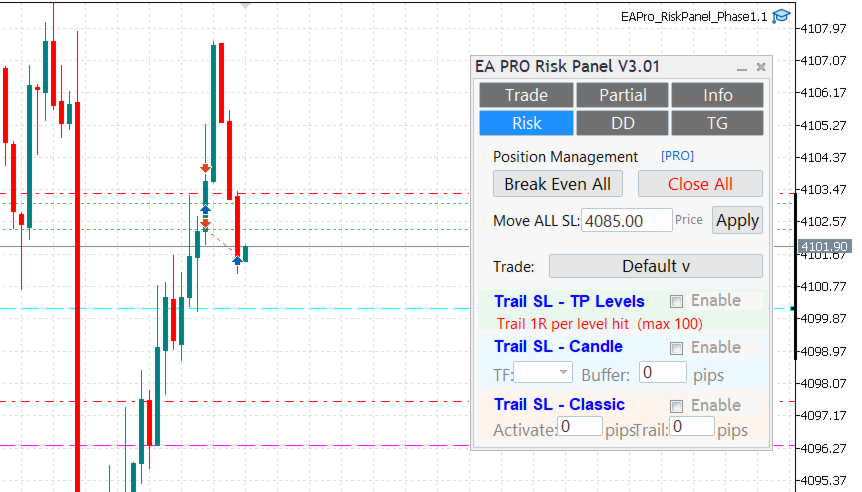

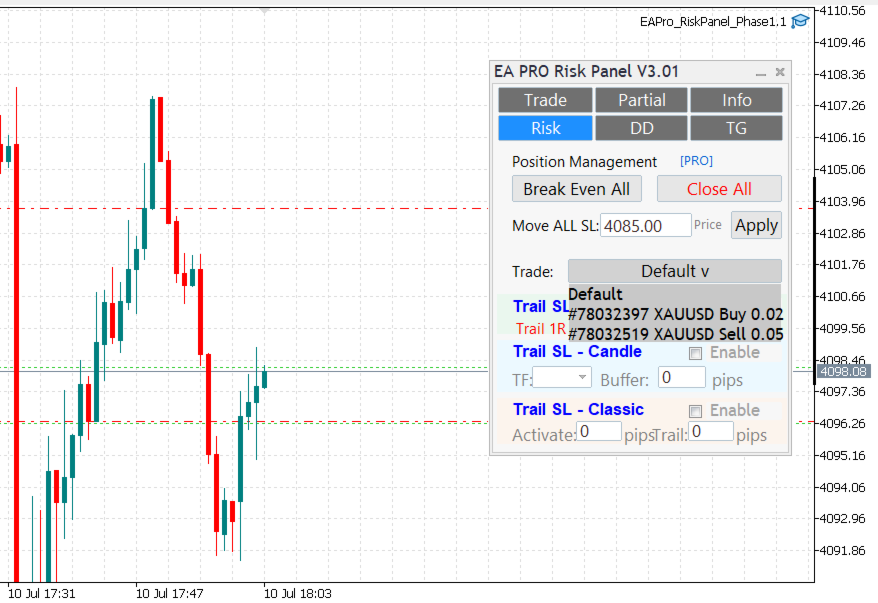

▶ Risk tab — position management
- Break Even All and Close All controls.
- Move all SLs to a chosen price in one click.
- Trail SL previews: TP-levels based, candle based, and classic pip trailing.

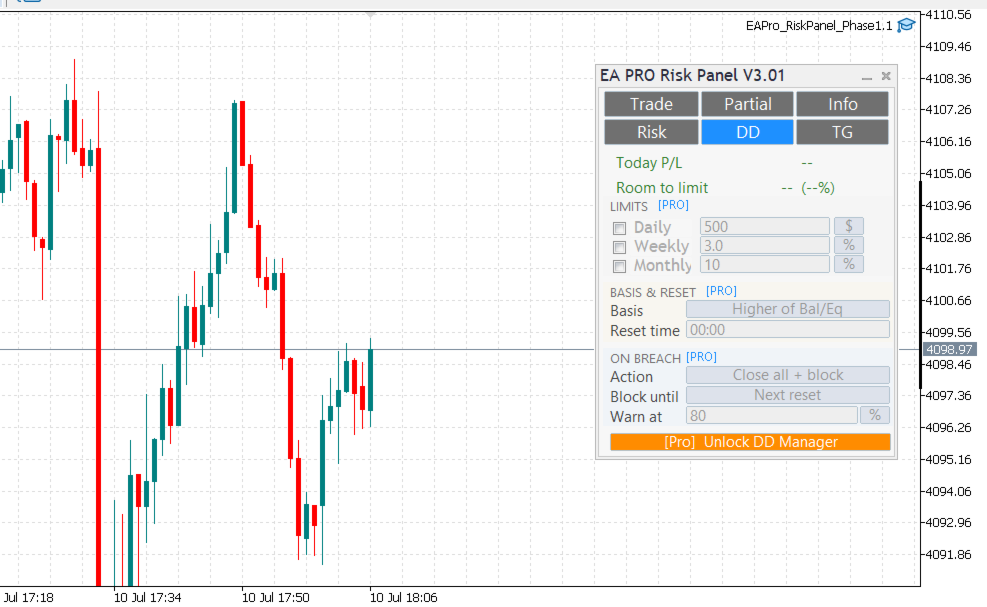

📊 DD tab — drawdown monitor
- ✔ Live Today P/L and room-to-limit display.
- Daily / Weekly / Monthly loss limit controls with Balance / Equity / Higher-of-both basis and custom reset time — designed around prop firm rules (full functionality coming in v4).
- Breach actions preview: close all, block trading until reset.

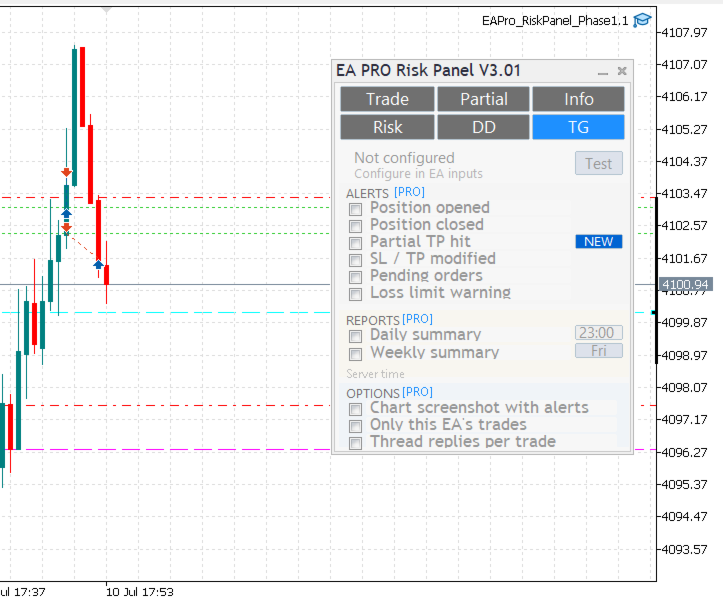

🔔 TG tab — Telegram alerts (preview, full functionality coming in v4)
- Alerts: position opened/closed, partial TP hit, SL/TP modified, pending orders.
- Daily and weekly summary reports on server time; chart screenshot with alerts.
▶ Chart previews & labels
- Entry/SL/TP lines are the single source of truth for pending order geometry.
- Attached TP boxes display TP price and configured percent, with clear HIT/DONE status.
- First-drag snap is fixed; the panel prevents click-through to the underlying chart.
▶ Risk sizing, volume, and margin
- Risk target in account currency = Balance × Risk%; lot auto-adjusts so actual risk ≤ target.
- Final lot is capped by affordable margin at the intended price to avoid "Insufficient margin".
- Volume is normalized to SYMBOL_VOLUME_STEP and broker min/max. If the result is below minimum, a clear message is shown.
▶ Alerts & messages
- Pre-TP alert via TP_Alert_Pips: shows an alert when price approaches a TP by the specified distance.
- Friendly messages for common cases: "Market Closed", "Insufficient margin", "Invalid stops", etc.
🛡 Persistence & stability
- ✔ Per-ticket settings persist across symbol/timeframe changes (netting and hedging supported).
- Auto-repair and safe cleanup of chart objects on ticket/symbol/TF change.
▶ How to use
- Attach the Expert Advisor to a chart and enable Algo Trading.
- Choose mode: BUY, SELL, Pending BUY, or Pending SELL.
- For Pending, drag the Entry line to the desired price.
- Set Volume, SL, TP and/or Risk%.
- Press "LET'S GO".
⚙ Inputs (summary)
- TP_Alert_Pips: distance (in pips) to trigger pre-TP alert.
- AutoRepair_Enable: keep panel/lines healthy across chart changes.
- AutoValidation_Enable: Strategy Tester (non-visual) only; performs a minimal, affordable operation to register at least one trade for Market verification. Has no effect on live charts or visual tests.
- Debug_Logs: internal messages (kept minimal for clarity).
▶ Compatibility & requirements
- Platform: MetaTrader 5 (MT5).
- Accounts: netting and hedging.
- No DLLs, no external files.
✉ Support and updates
- Please use MQL5 messages for support and questions.
- Website: https://eaproteam.co.uk/
- Email: ali@eaproteam.co.uk
- Updates: https://t.me/EAPROTEAMHub
▶ Disclaimer
This product does not guarantee profits and does not provide trading signals. Trading involves risk. Past performance does not guarantee future results.
