TCZ – TriCurrency Z-Score Reversion (MetaTrader 5 / MT5 indicator)
A tri-currency mean-reversion indicator + companion scanner for 3-pair FX triangles (triads). It adapts cointegration residual Z-score logic from statistical arbitrage to visualize price distortions across a synthetic spread, timing entries on H1/H4 swing charts. Not a triangular-arbitrage bot; it never places orders.
WHAT IT DOES
-

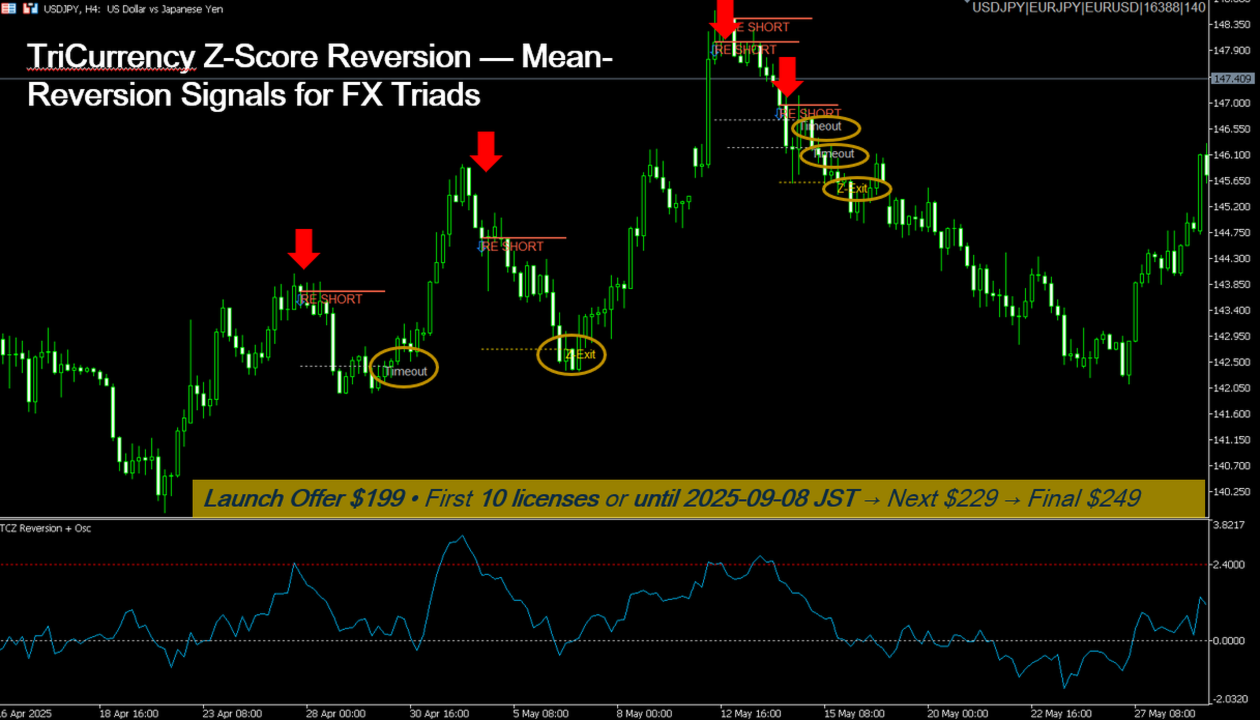

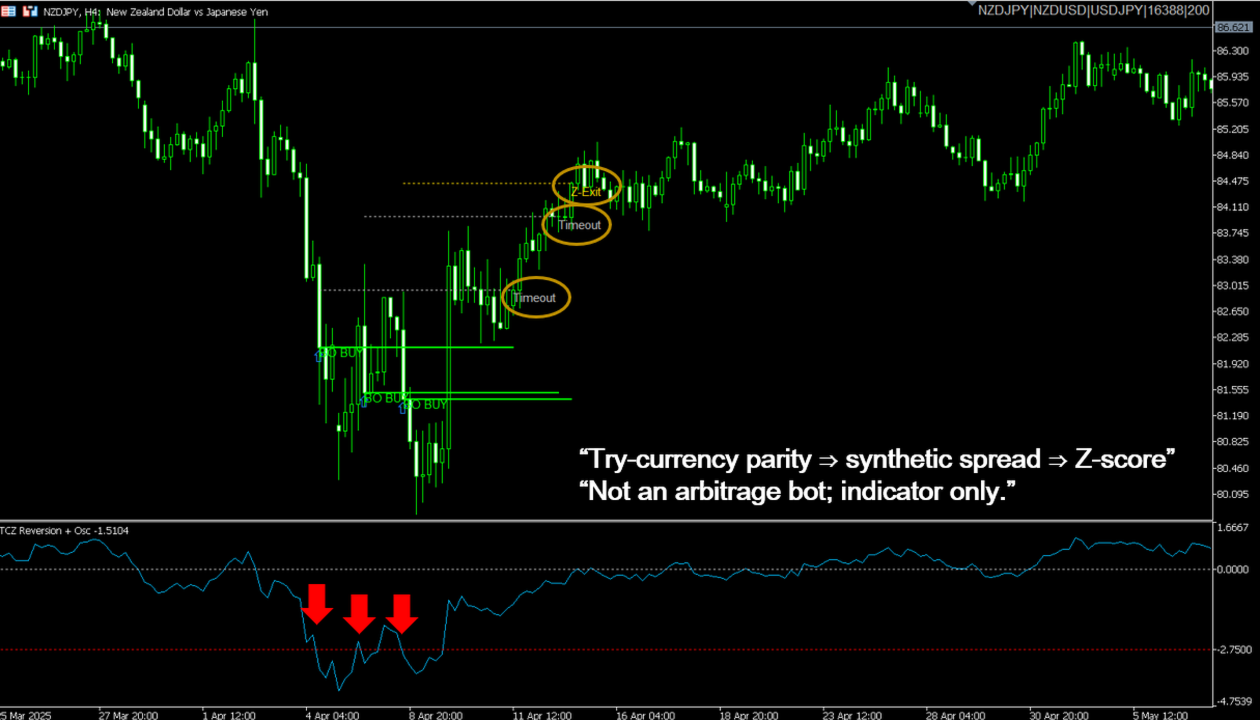

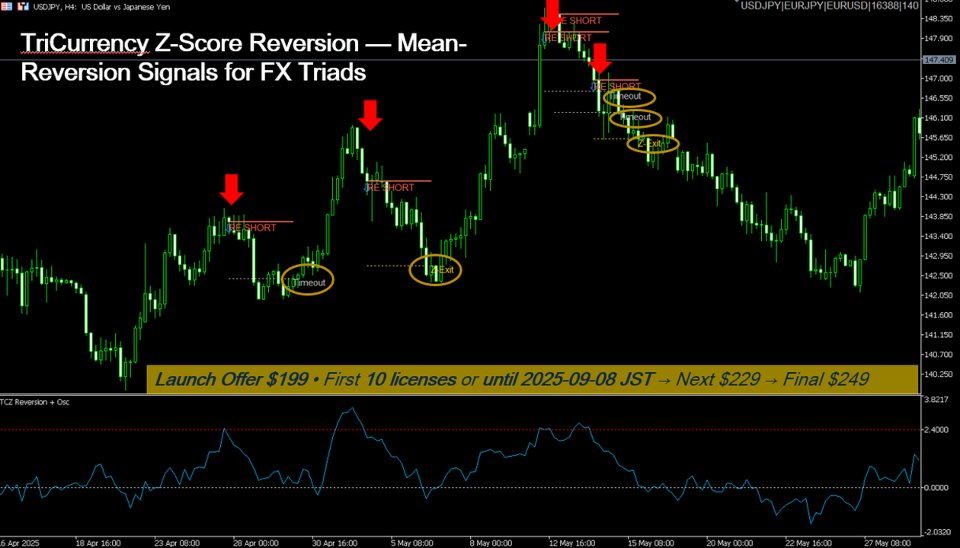

Builds a synthetic spread from a valid triad (e.g., EURUSD–GBPUSD–EURGBP), standardizes it as a Z-score, and draws entry/exit segments on the main chart.
-
Adds a toggleable Z-Oscillator subwindow for quick reading of BO/RE/RT moments.
-
Optional Dominance Gate filters out cases where a single leg dominates the move.
-
Half-life time-stop (timeout) and hysteresis thresholding improve signal quality.
-
META / Global-Variable outputs allow integration with companion EAs/Scanners (sold separately).
WHY TCZ
Pairs trading relies mostly on empirical correlation; TCZ leverages the triangular parity constraint in FX, making mean-reversion signals more structurally grounded.
QUICK START
-

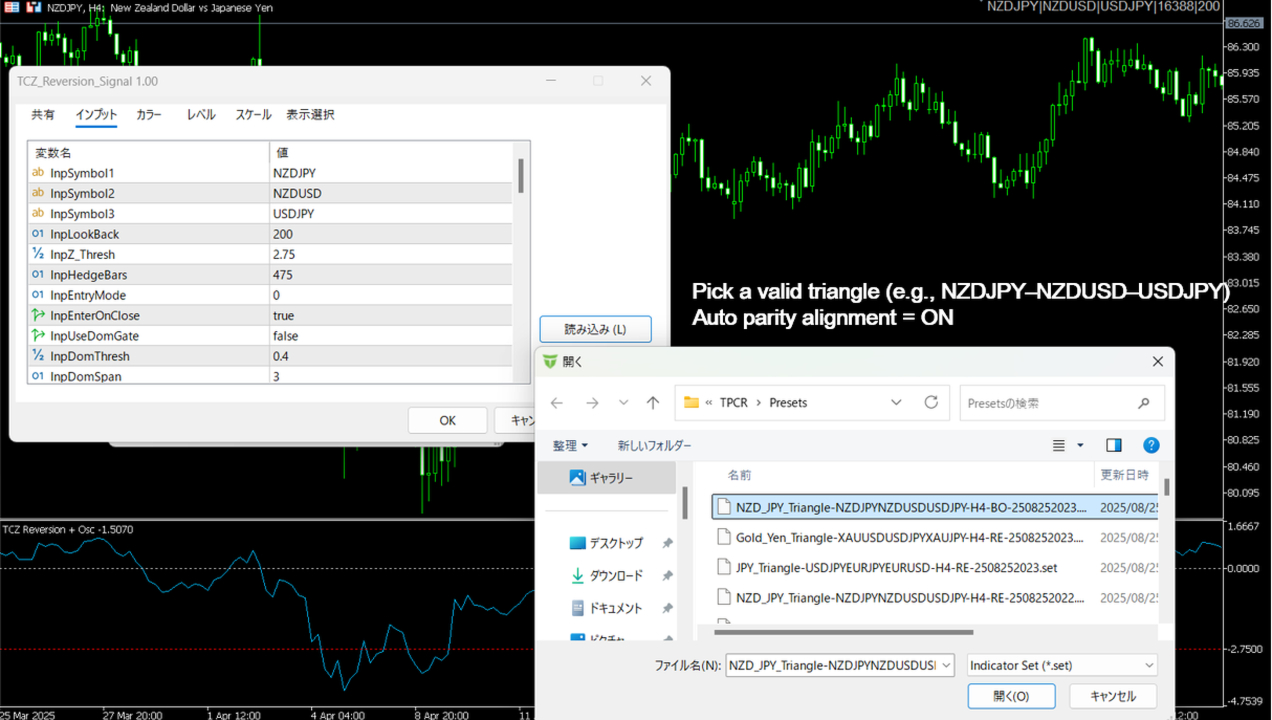

Attach to any symbol that belongs to a valid triad.
-
Set InpSymbol1 to the symbol drawn on the chart; set InpSymbol2/3 to complete the triangle (broker names must match).
-

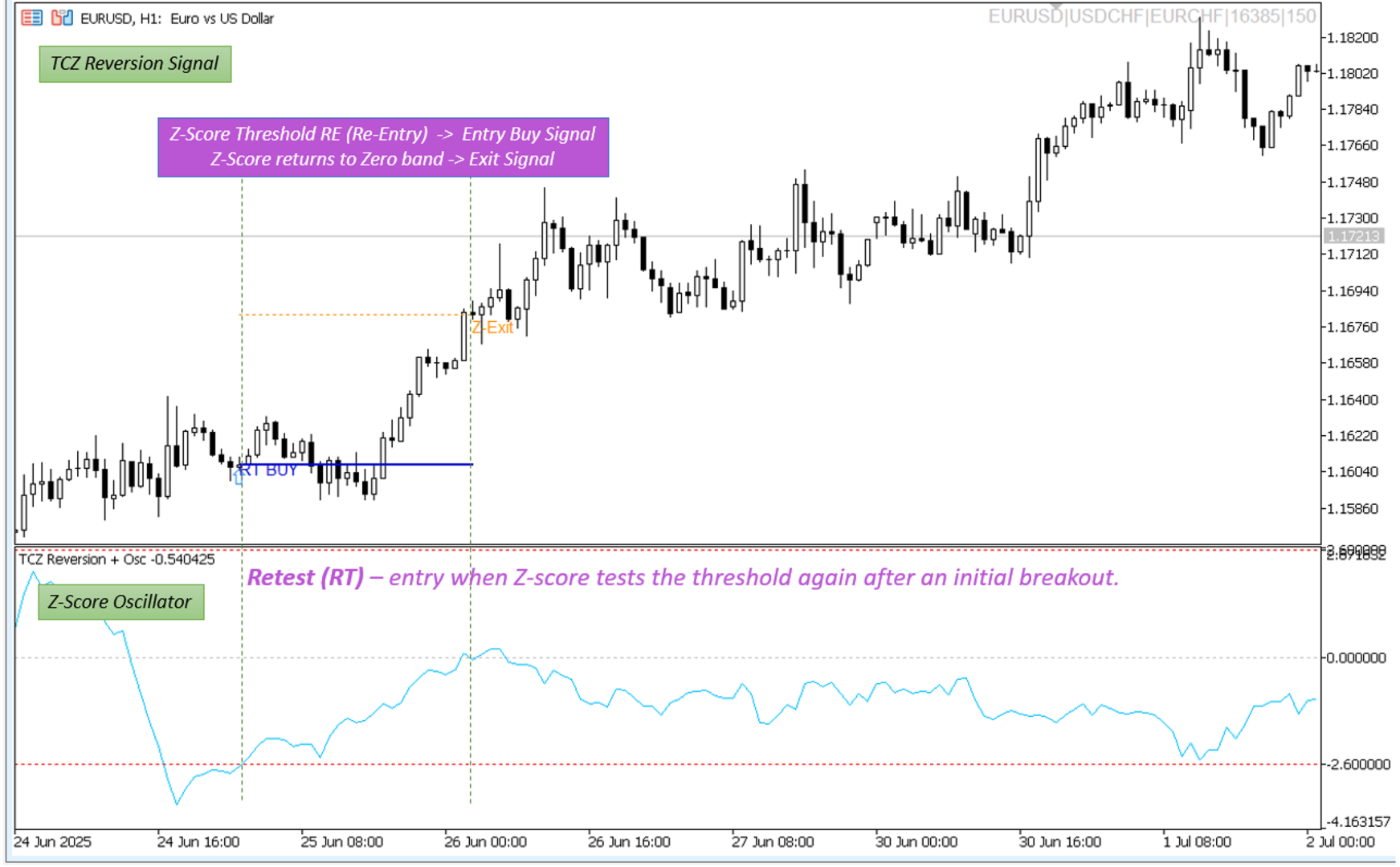

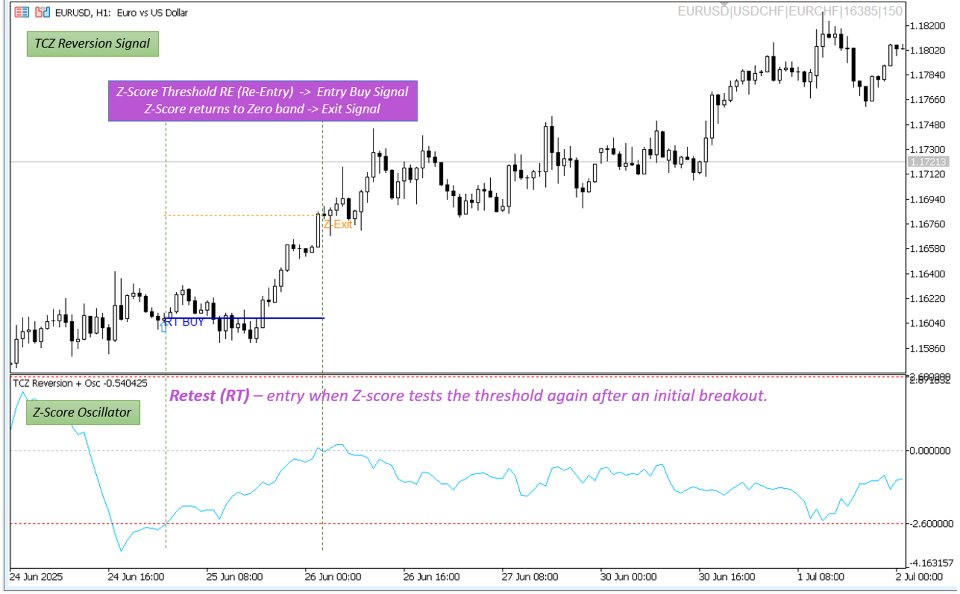

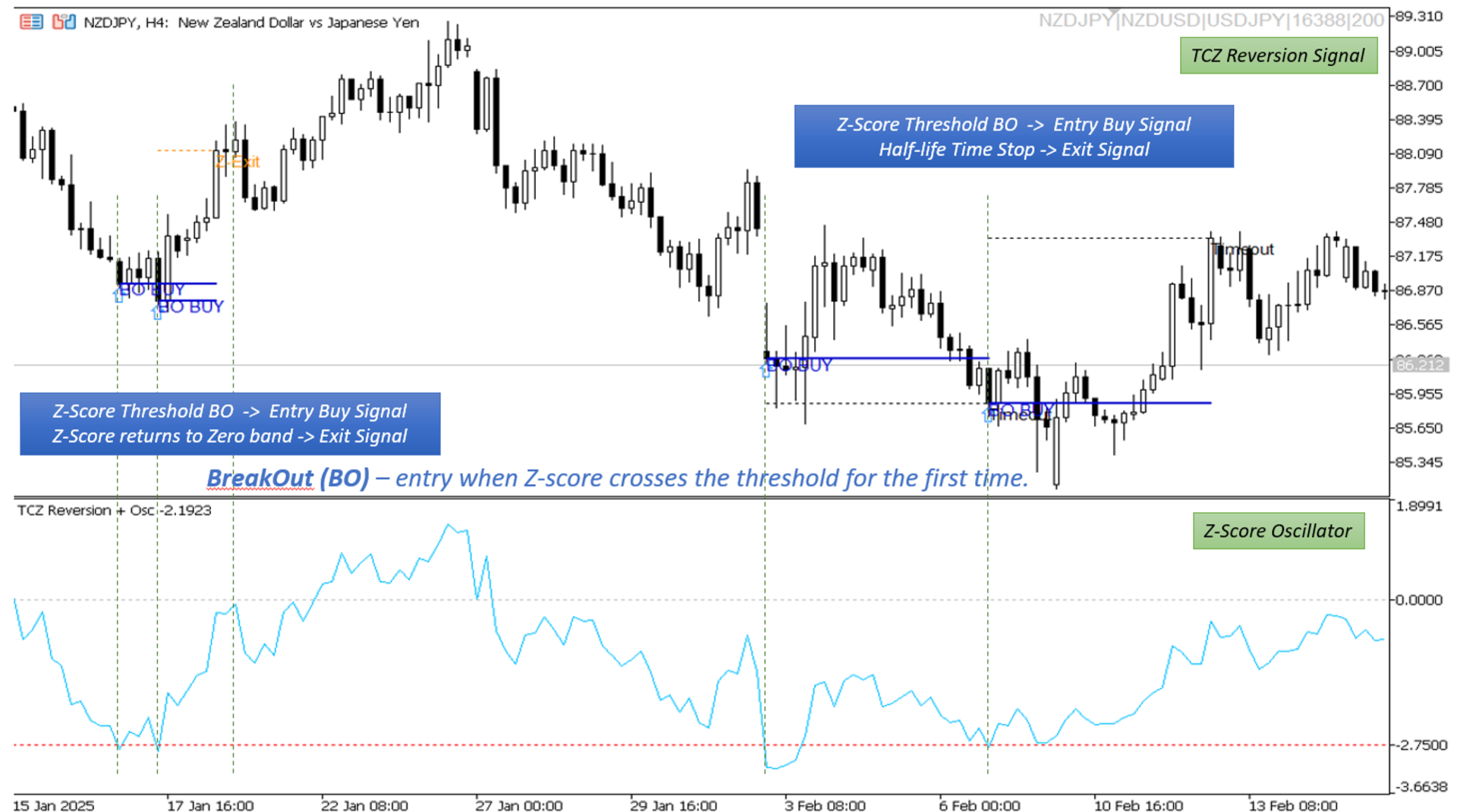

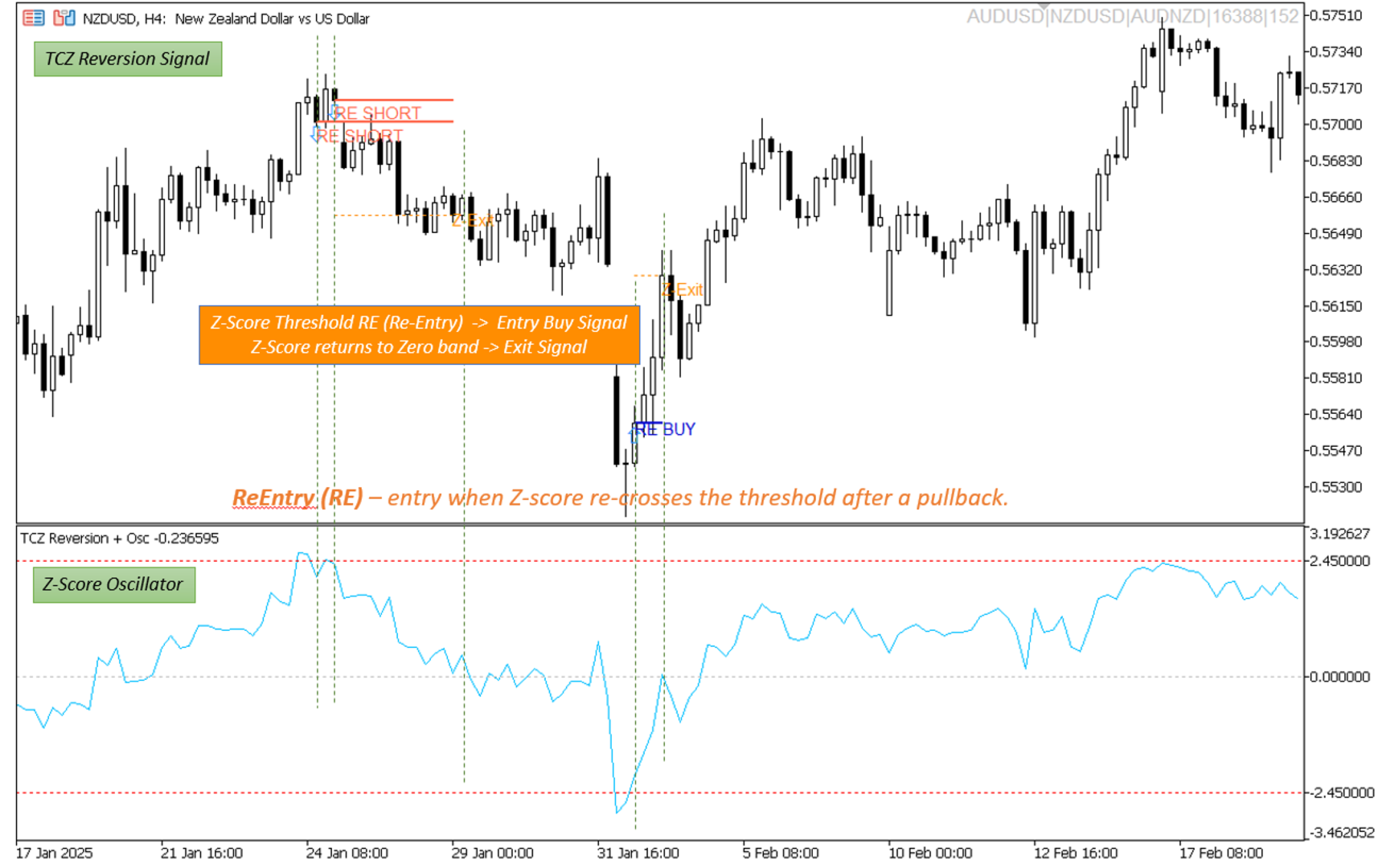

Choose Entry Mode: BreakOut (BO), ReEntry (RE), or Retest (RT).
-
Typical working defaults: Z_Thresh = 2.5, LookBack = 150–240. Exits occur near Z ≈ 0 band or on half-life timeout.
-
Timeframes: H1–H4. Validate with ≥3 months of data. Enable Dominance Gate if one-leg dominance is frequent.
KEY FEATURES
-
3-pair FX triangle processing (triad parity awareness)
-
Hysteresis triggers: BO / RE / RT
-
Dominance Gate (one-leg dominance detection; span & threshold)
-
Half-life-based time stop
-
Z-Oscillator subwindow (toggle)
-
Multi-channel alerts: popup / sound / email / push
-
Integration: META & GV outputs for EAs/Scanners; optional top-right info panel
-
Works on netting or hedging accounts (indicator only)

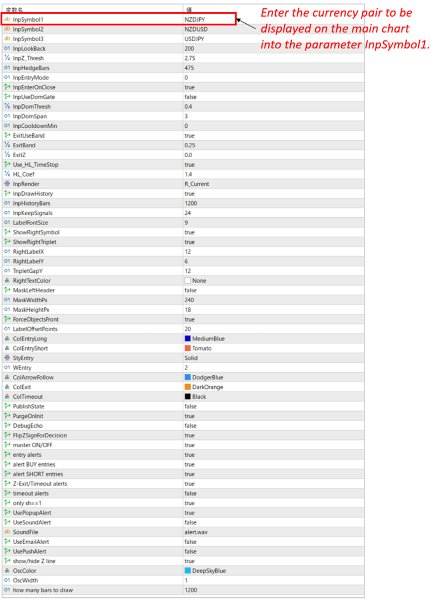

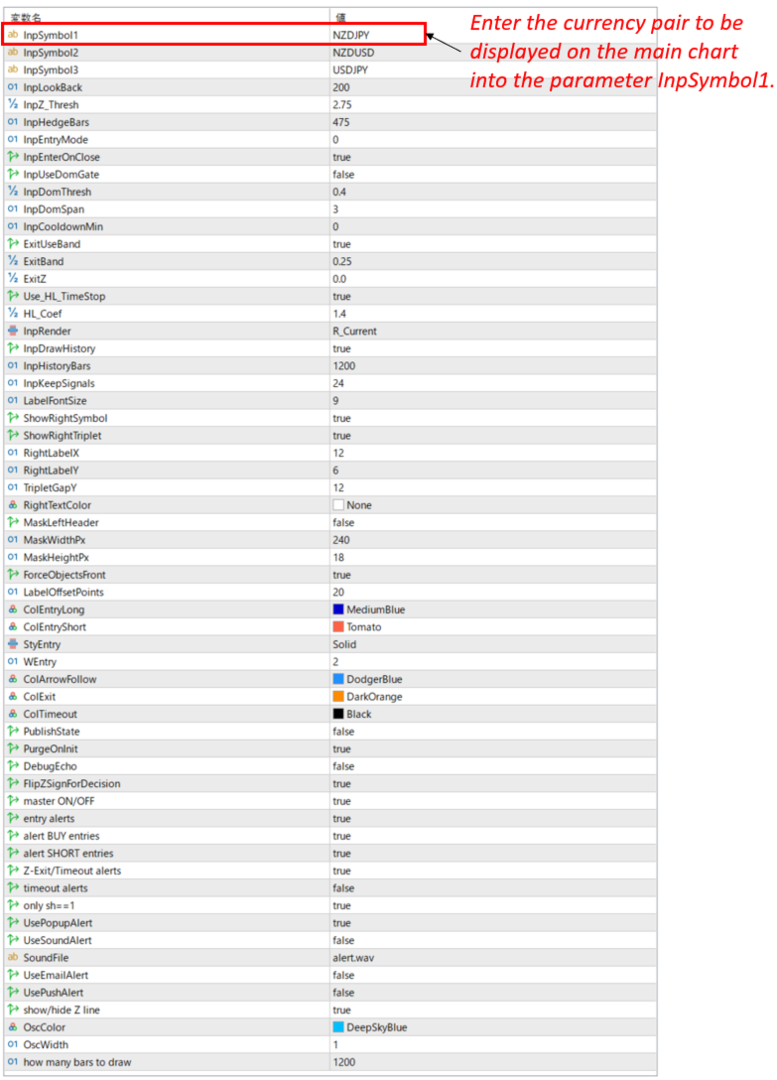

MAIN INPUT GROUPS
-
Symbols & History: InpSymbol1/2/3 (triad members), InpHedgeBars (β fit), InpLookBack (Z window), InpRender (which symbol to draw).
-
Triggers: InpZ_Thresh, InpEntryMode (BO/RE/RT), InpEnterOnClose, InpCooldownMin.
-
Dominance Gate: InpUseDomGate, InpDomThresh, InpDomSpan.
-
Exits & Time Stop: ExitUseBand / ExitBand(≈0), ExitZ (alt), Use_HL_TimeStop, HL_Coef.
-
Visuals: InpDrawHistory / *Bars, InpKeepSignals, right-side labels (symbol/triad, offsets), styles/colors, FlipZSignForDecision.
-
Alerts: EnableAlerts, Entry/Exit/Timeout toggles, On-close only, channels (popup/sound/email/push).
-
Oscillator: ShowOscillator, OscHistoryBars, line width.
-
Integration & Maintenance: PublishState (META/GV), PurgeOnInit, DebugEcho.
REPRESENTATIVE TRIADS (examples)
-
EURUSD – GBPUSD – EURGBP
-
USDJPY – EURUSD – EURJPY
-
XAUUSD – USDJPY – XAUJPY
REQUIREMENTS
-
MetaTrader 5 (latest build recommended).
-
Historical data available for all 3 symbols with exact broker names.
-
Timeframe follows chart Period() (typical H1–H4).
LIMITATIONS / NOTES
-
Market demo runs in Strategy Tester; use Visual mode for multi-symbol behavior.
-
No profit guarantees; not an arbitrage tool.
-
The indicator does not open/close positions. Support via MQL5 comments/messages only.
-
H1/H4 swing orientation ⇒ fewer signals in short spans; test with ≥3 months of data.
CHANGE LOG
-
v1.0.0 — Initial Market release
—
日本語サマリー
TCZ は 3通貨のトライアド(例:EURUSD–GBPUSD–EURGBP)の合成スプレッドを Zスコアで標準化し、H1/H4 の平均回帰シグナルを可視化する MT5インジケーターです。BO/RE/RT(ヒステリシス)、ドミナンス・ゲート、ハーフライフ型タイムストップ、Z-オシレーター、アラート、META/GV 連携を搭載。自動売買や三角裁定のEAではありません(ポジションは開きません)。使用時は3通貨すべてのヒストリカルが必要、目安は Z閾値2.5 / LookBack 150–240 / H1–H4 / 過去3か月以上での検証を推奨。
