2012.12.13 10:55
Indicators

AutoTrendLines - indicator for MetaTrader 5

| English Русский 中文 Español Deutsch 日本語 Português

Views:
10109
Rating:
votes: 29

When a new bar is occurred, the indicator defines points to draw trend lines and, if the coordinates of points are changed, it redraws the lines. When determining the points, the current bar is ignored. Support line is drawn on low, resistance line is drawn on high. There are two points of determining in the indicator. Both types are described below on the example of the support line.

Main parameters:

  • InpLineType - Line type
  • InpLeftExmSide - Left extremum side* (Type 1, 2)
  • InpRightExmSide - Right extremum side (Type 1)
  • InpFromCurrent - Offset from the current bar (Type 2)
  • InpPrevExmBar - To consider bar before extremum (Type 2)


Type 1. By two extremums.

  1. From the next to last bar "go" to the left and search for the first (right) point-extremum from InpRightExmSide bars on the either side.
  2. From the first point again "go" to the left and search for the second (left) point-extremum from InpLeftExmSide bars on the either side.
  3. Draw the trend line.

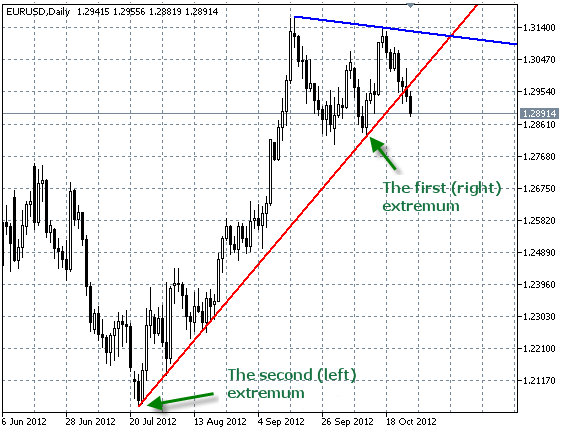

AutoTrendLines type 1 (EXM_EXM)


Type 2. Extremum and delta.

  1. From the next to last bar "go" to the left and search for the second (left) point-extremum from InpLeftExmSide on the either side.
  2. Starting from InpFromCurrent bar from the current and to the second point of the extremum, searching for the bar with the lower delta**. Two variants are possible: consider/not consider bar from the right side of the second point.
  3. Draw the trend line.

а) Lines are drawn considering bar from the right side of the left point.

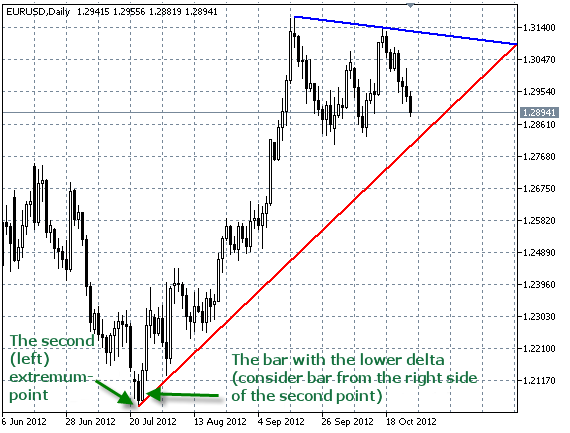

AutoTrendLines type 2 (EXM_DELTA) InpPrevExmBar=true


а) Lines are drawn without considering bar from the right side of the left point.

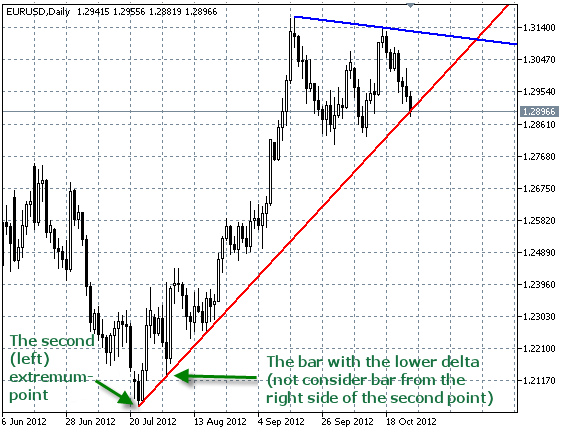

AutoTrendLines type 2 (EXM_DELTA) InpPrevExmBar = false


*The extremum means such a bar, on the left and right side of which there are N bars with the higher lows and the lower highs. In fact, the extremum is practically identical to the N-bar fractal.

**Delta calculates using the following formula:

to support: (right price - left price) / (right bar index - left bar index)

to resist: (left price - right price) / (right bar index - left bar index)

Recommendations:

  • The extremum on the left side should be more valuable than the extremum on the right side, that is why the parameter of its side is set higher.
  • It is recommended to observe for the behavior of the indicator with small value of its parameters on time frame М1 before appliance.
  • In my opinion the line of the second type (extremum and delta) are more dynamic, and more correspond to the existing on the market.
  • After each parameter is noted on what type of drawing it affects (the exceptions are such properties of the line as thickness and color).

Translated from Russian by MetaQuotes Software Corp.
Original code: https://www.mql5.com/ru/code/1220
