How to create bots for Telegram in MQL5

27 June 2016, 16:56
Andrey Voytenko
7
8 105

Introduction

During the F8 conference held in San Francisco on 12th of April in 2016, Facebook announced the integration of API for bots into the Messenger. The same day a major update for the Telegram Bot Platform was released. Version 2.0 has pleasantly surprised with its functionality. It seems that bots that used to be popular in the ICQ era are now experiencing a comeback. At the new stage of development bots were given a thoughtful functionality, open interface for programing, and multimedia support. Basically, they have all the conditions to become irreplaceable when you want to find, see or purchase something.

This article is a step-by-step manual for creating bots for Telegram in MQL5. So what is a "bot"? A bot (shortened from "robot") is a special account in Telegram for exchanging messages. Bots operate on your (client) side, and interact with the Telegram server using a special set of commands that are part of Bot API. Before we proceed with creating a bot, please download Telegram and login to it. The registration is linked to the telephone number, but you can also search by @username. It is time now to get acquainted with a folder of all bots.

Registration of a new bot

A special bot @BotFather is in charge of registering and setting up bots. We will find it through the search engine. After adding it to the list of contacts, we will start communicating with it using the /start command. As a response it will send you a list of all available commands, as shown in Fig. 1.

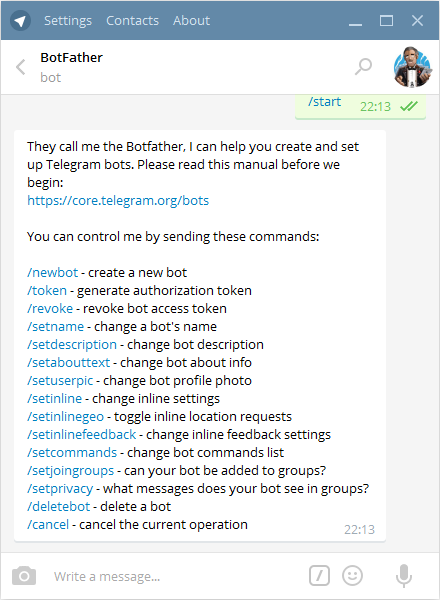

List of @BotFather commands.

Fig.1. List of @BotFather commands.

With the /newbot command we begin the registration of a new bot. We need to come up with two names. The first one is a name of a bot that can be set in your native language. The second one is a username of a bot in Latin that ends with a “bot” prefix. As a result, we obtain a token – the access key for operating with a bot through API. The example of registration is shown in Fig. 2.

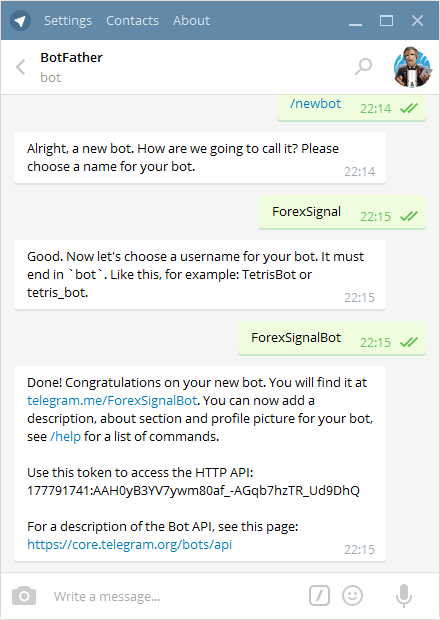

Registration of a new bot

Fig.2.  Registration of a new bot.

If you wish, few parameters can be amended. I suggest keeping the settings for the inline mode. Otherwise, our bots won't be able to work with it. I would recommend setting only the cosmetic qualities:
  • /setcommands – setting the list of supported commands. This list will appear to users as a tooltip when entering the symbol "/" in the chat window.
  • /setuserpic – setting the profile picture. Without one, a bot just isn't presentable enough.
  • /setdescription – a text displayed as a greeting when a bot is added to the Messenger. Normally, there are few sentences to describe the purpose of a bot.

So, a new bot is registered. Let's discuss now the modes it can be used in.

Operation mode for bots

Telegram has three schemes of interaction between bots and users. First - private chats. Every user communicates with a bot independently from each other, as shown if Fig 3, by making requests and receiving replies.

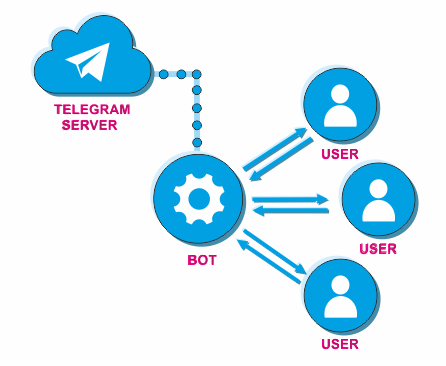

bot and private chats

Fig.3.  Bot and private chats.


Users send messages to a bot. They are stored on the server for no longer than 24 hours, and are removed afterwards. A bot has time to request these messages and to respond to them. This is the main mode that our bots will be operating in.

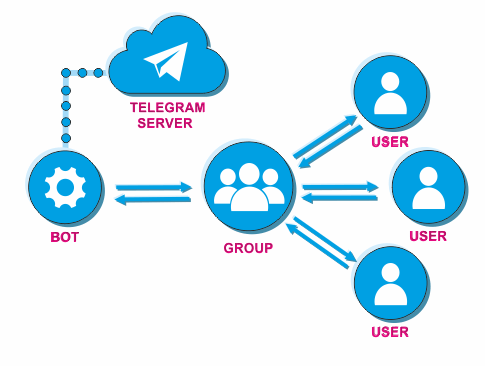

The second mode involves group chats. In this case, the message sent by any member of a group is seen by the entire group (Fig. 4).

bot and group chat

Fig.4. Bot in a group chat.

With regard to bots, you can let them join groups by using the /setjoingroups command. If a bot is added to a group, then by using the /setprivacy command you can set the option to either receive all messages, or only those that start with a sign of the symbol team “/”. To be honest, I only managed to think of one bot appointment in this mode – statistics of messages for a subsequent analysis.

The third mode focuses on operation on a channel. Telegram channels are accounts for transmitting messages for a wide audience that support an unlimited number of subscribers. The important feature of channels is that users can't leave comments and likes on the news feed (one-way connection). Only channel administrators can create messages there (Fig. 5).

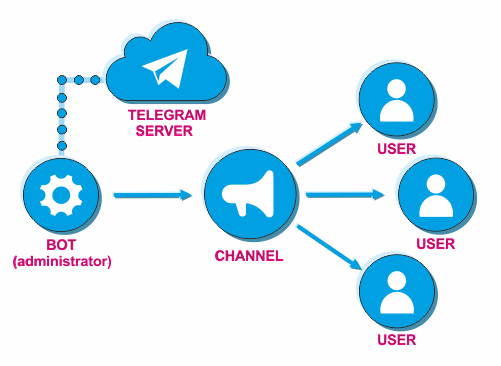

Bot as a channel administrator

Fig.5. Bot as a channel administrator.

Bots can be also added to the list of administrators. This makes a channel an ideal tool for providing trading signals. A bit later we will write a simple bot that publishes signals from the standard MACD indicator. A new public channel can be created through the messenger's “New Channel” menu. Don't forget to add your bot to the list of channel's admins. It is achieved through the property window of the channel. All preparations have been concluded to let us proceed with programming.


Handling a stream of messages

While writing this article, I had a goal to create a class that would undertake the routine of handling messages and allow to focus on the bot's logic. As a result, the CCustomBot class that implements a minimum functionality for work was written.

Communication with a server occurs through POST requests using the WebRequst function. Every command has its own URL:

https://api.telegram.org/bot< TOKEN >/ METHOD_NAME

where TOKEN is a token of a registered bot; METHOD_NAME — a list of supported methods.

Responses from the server arrive in the JSON format, therefore a good JSON parser was required. I have applied a native parser JSON Serialization and Deserialization. I would like to thank Alexey (sergeev) for the work he accomplished. Also, the panel for displaying some parameters is also applied. The CComment class taken from the Codebase was suitable for this task. Names of class public methods were borrowed from the documentation for Bot API to achieve universality. The methods that we have managed to implement in the class are listed below:

In order to understand how to use these functions, we are going to get deeper into programming.


GetMe

Since during every request a token is sent, then, above all, the GetMe function that checks for its credibility is implemented. It is advisable to perform this check at the start of EA, and notify a user in case of failure.

int GetMe()
 Returned value  error code

If successful, GetMe returns 0, and you can find out the bot username through the Name() method. This name is not used for operation. However, it will be displayed on the panel for information purposes. The address like telegram.me/<botname> allows to use a Web-version of Messenger and will serve as a link to advertise your bot. The EA that checks the token in OnInit would look as follows:

//+------------------------------------------------------------------+
//|                                               Telegram_GetMe.mq5 |
//|                        Copyright 2014, MetaQuotes Software Corp. |
//|                                              http://www.mql5.com |
//+------------------------------------------------------------------+
#property copyright "Copyright 2014, MetaQuotes Software Corp."
#property link      "http://www.mql5.com"
#property version   "1.00"
#property strict

#include <Telegram.mqh>

input string InpToken="177791741:AAH0yB3YV7ywm80af_-AGqb7hzTR_Ud9DhQ";//Token

CCustomBot bot;
int getme_result;
//+------------------------------------------------------------------+
//|   OnInit                                                         |
//+------------------------------------------------------------------+
int OnInit()
  {
//--- set token
   bot.Token(InpToken);
//--- check token
   getme_result=bot.GetMe();
//--- run timer
   EventSetTimer(3);
   OnTimer();
//--- done
   return(INIT_SUCCEEDED);
  }
//+------------------------------------------------------------------+
//|   OnDeinit                                                       |
//+------------------------------------------------------------------+
void OnDeinit(const int reason)
  {
   Comment("");
  }
//+------------------------------------------------------------------+
//|   OnTimer                                                        |
//+------------------------------------------------------------------+
void OnTimer()
  {
//--- show error message end exit
   if(getme_result!=0)
     {
      Comment("Error: ",GetErrorDescription(getme_result));
      return;
     }
//--- show bot name
   Comment("Bot name: ",bot.Name());

//---{ insert your code here }
  }
//+------------------------------------------------------------------+

GetUpdates

The main function GetUpdates reads an array of messages stored on the server. It needs to be called by the timer. A period of updating the timer shouldn't be set below 1 second in order to avoid server overload.

int GetUpdate()
 Returned value  error code

Let's have a look inside this function. When it is called, reading and parsing of all unread messages received from users is performed. The example of one of those messages is provided below:

{
   "ok":true,
   "result":[
      {
         "update_id":349778698,
         "message":{
            "message_id":2,
            "from":{
               "id":198289825,
               "first_name":"Andriy",
               "last_name":"Voitenko",
               "username":"avaticks"
            },
            "chat":{
               "id":198289825,
               "first_name":"Andriy",
               "last_name":"Voitenko",
               "username":"avaticks",
               "type":"private"
            },
            "date":1459775817,
            "text":"\/start"
         }
      }
   ]
}

A user with avaticks username has sent the /start command to the bot. The point is to save such messages and to respond to them in the future. The chat number chat[id] is a unique identifier. The same user communicating with a bot through various devices has different chat identifiers. This parameter is suitable as a unique key for building a chat list. While operating, bots will accumulate the chat array and update the last received message in each of them. If we have responded to it, then this message has been handled and we can set the done flag to it. The chat type is also known. It can be either private, or group.

In order to write your own bot, it is simply required to inherit from CCustomBot and re-determine the ProcessMessage virtual function in the class, that is provided for implementing the operation logic. A full-fledged bot, as per Telegram documentation, needs to know how to respond to two commands: "/start" and "/help". Let's write the first bot that will respond to them.

//+------------------------------------------------------------------+
//|                                          Telegram_GetUpdates.mq5 |
//|                        Copyright 2014, MetaQuotes Software Corp. |
//|                                              http://www.mql5.com |
//+------------------------------------------------------------------+
#property copyright "Copyright 2014, MetaQuotes Software Corp."
#property link      "http://www.mql5.com"
#property version   "1.00"
#property strict

#include <Telegram.mqh>
//+------------------------------------------------------------------+
//|   CMyBot                                                         |
//+------------------------------------------------------------------+
class CMyBot: public CCustomBot
  {
public:
   void ProcessMessages(void)
     {
      for(int i=0; i<m_chats.Total(); i++)
        {
         CCustomChat *chat=m_chats.GetNodeAtIndex(i);
         //--- if the message is not processed
         if(!chat.m_new_one.done)
           {
            chat.m_new_one.done=true;
            string text=chat.m_new_one.message_text;

            //--- start
            if(text=="/start")
               SendMessage(chat.m_id,"Hello, world! I am bot. \xF680");

            //--- help
            if(text=="/help")
               SendMessage(chat.m_id,"My commands list: \n/start-start chatting with me \n/help-get help");
           }
        }
     }
  };

//---
input string InpToken="177791741:AAH0yB3YV7ywm80af_-AGqb7hzTR_Ud9DhQ";//Token
//---
CMyBot bot;
int getme_result;
//+------------------------------------------------------------------+
//|   OnInit                                                         |
//+------------------------------------------------------------------+
int OnInit()
  {
//--- set token
   bot.Token(InpToken);
//--- check token
   getme_result=bot.GetMe();
//--- run timer
   EventSetTimer(3);
   OnTimer();
//--- done
   return(INIT_SUCCEEDED);
  }
//+------------------------------------------------------------------+
//|   OnDeinit                                                       |
//+------------------------------------------------------------------+
void OnDeinit(const int reason)
  {
   Comment("");
  }
//+------------------------------------------------------------------+
//|   OnTimer                                                        |
//+------------------------------------------------------------------+
void OnTimer()
  {
//--- show error message end exit
   if(getme_result!=0)
     {
      Comment("Error: ",GetErrorDescription(getme_result));
      return;
     }
//--- show bot name
   Comment("Bot name: ",bot.Name());
//--- reading messages
   bot.GetUpdates();
//--- processing messages
   bot.ProcessMessages();
  }
//+------------------------------------------------------------------+

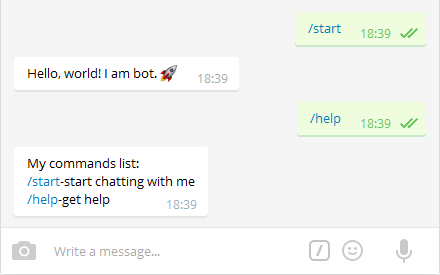

The result achieved is shown in figure 6.


Bot with a minimal set of commands

Fig.6. Bot with a minimal set of commands.

Working with a keyboard

For interactive communication with users for bots, developers have come up with an idea of a “keyboard”. When sending messages for every chat, a "keyboard" with a pre-selected set of keys can be displayed. When pressing a key, a user sends a message with a text indicated on it. This way, the interaction between a bot and a user is significantly simplified.

The class has three functions for working with the keyboard. The first function creates the keyboard's object.

string ReplyKeyboardMarkup(const string keyboard,
                           const bool resize,
                           const bool one_time)
 keyboard
 string that sets the location of keys
 resize  permission to resize the keyboard size
 one_time  to show keyboard just one time. The keyboard disappears after pressing the key.
 Returned value The string (JSON object) that needs to be transmitted as the reply_markup parameter when sending a message with SendMessage

The second function hides the keyboard.

string ReplyKeyboardHide()
 Returned value The string (JSON object) that needs to be transmitted as the reply_markup parameter when sending a message with SendMessage

The third function allows to send a small panel whose type indicates that a bot expects an answer from you in the form of a text (the keyboard is not displayed).

string ForceReply()
 Returned value The string (JSON object) that needs to be transmitted as the reply_markup parameter when sending a message with SendMessage

Now we proceed to analyzing how these functions are used.

SendMessage

The keyboard can't be displayed or hidden by itself. The action is sent with a message. The SendMessage function for sending messages to the chat looks as follows:

int SendMessage(const long chat_id,
                const string text,
                const string reply_markup=NULL)
 chat_id
 chat number
 text  message text
 reply markup  keyboard (JSON object)
 Returned value  error code

The keyboard is optional in this case. We can send simple text messages from our MQL-programs. In my opinion, this function is more interesting that the native SendNotification. Firstly, we can send messages more often (approximately once per second). Secondly, the HTML format is supported. In addition to that, the ability to send Emoji is a serious bonus.

Тelegram supports a number of Emoji characters from the table that can be viewed here. As you can see, the majority of Emoji codes are in the range of 1F300 – 1F700. Their bitness goes beyond two-byte code of strings acceptable in MQL5. If you remove higher digits so only a two-bite number remains, then the obtained range (F300 – F700) falls in the area (E000— F8FF) that in the Unicode table is reserved for a certain use. This way, nothing stops us from using 2 lower bites for sending Emoji. The string message with a classic Emoji with a code U+1F642 looks as follows:

string text="Have a nice day.\xF642";//message text with Emoji U+1F642

This is also fair for keys that are a text, in fact. Nothing stops us from using Emoji on keys. Let's write a sample for displaying three keys with the event handler.

//+------------------------------------------------------------------+
//|                                         Telegram_SendMessage.mq5 |
//|                        Copyright 2014, MetaQuotes Software Corp. |
//|                                              http://www.mql5.com |
//+------------------------------------------------------------------+
#property copyright "Copyright 2014, MetaQuotes Software Corp."
#property link      "http://www.mql5.com"
#property version   "1.00"
#property strict

#include <Telegram.mqh>
//+------------------------------------------------------------------+
//|   CMyBot                                                         |
//+------------------------------------------------------------------+
class CMyBot: public CCustomBot
  {
private:
   string            m_button[3];
public:
   //+------------------------------------------------------------------+
   void CMyBot::CMyBot(void)
     {
      m_button[0]="Button #1";
      m_button[1]="Button #2";
      m_button[2]="Button #3";
     }

   //+------------------------------------------------------------------+
   string GetKeyboard()
     {
      return("[[\""+m_button[0]+"\"],[\""+m_button[1]+"\"],[\""+m_button[2]+"\"]]");
     }

   //+------------------------------------------------------------------+
   void ProcessMessages(void)
     {
      for(int i=0;i<m_chats.Total();i++)
        {
         CCustomChat *chat=m_chats.GetNodeAtIndex(i);
         if(!chat.m_new_one.done)
           {
            chat.m_new_one.done=true;
            string text=chat.m_new_one.message_text;

            //--- start or help commands
            if(text=="/start" || text=="/help")
               bot.SendMessage(chat.m_id,"Click on the buttons",bot.ReplyKeyboardMarkup(GetKeyboard(),false,false));

            //--- on click event
            int total=ArraySize(m_button);
            for(int k=0;k<total;k++)
              {
               if(text==m_button[k])
                  bot.SendMessage(chat.m_id,m_button[k],bot.ReplyKeyboardMarkup(GetKeyboard(),false,false));
              }
           }
        }
     }
  };

input string InpToken="177791741:AAH0yB3YV7ywm80af_-AGqb7hzTR_Ud9DhQ";//Token

CMyBot bot;
int getme_result;
//+------------------------------------------------------------------+
//|   OnInit                                                         |
//+------------------------------------------------------------------+
int OnInit()
  {
//--- set token
   bot.Token(InpToken);
//--- check token
   getme_result=bot.GetMe();
//--- run timer
   EventSetTimer(1);
   OnTimer();
//--- done
   return(INIT_SUCCEEDED);
  }
//+------------------------------------------------------------------+
//|   OnDeinit                                                       |
//+------------------------------------------------------------------+
void OnDeinit(const int reason)
  {
   Comment("");
  }
//+------------------------------------------------------------------+
//|   OnTimer                                                        |
//+------------------------------------------------------------------+
void OnTimer()
  {
//--- show error message end exit
   if(getme_result!=0)
     {
      Comment("Error: ",GetErrorDescription(getme_result));
      return;
     }
//--- show bot name
   Comment("Bot name: ",bot.Name());
//--- reading messages
   bot.GetUpdates();
//--- processing messages
   bot.ProcessMessages();
  }
//+------------------------------------------------------------------+

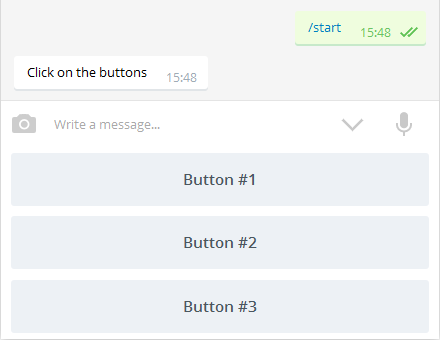

As a result we will get a message with the keyboard as displayed in Fig. 7.

message with keyboard

Fig.7. Message with keyboard.

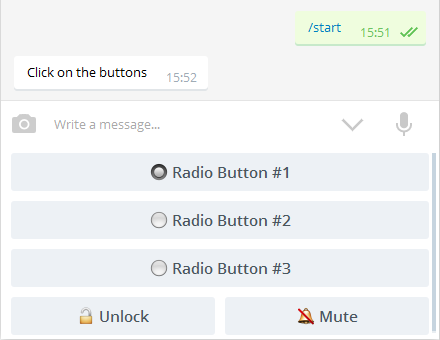

Now, we will try to implement the analog of RadioButton and CheckBox controls. For example, we have to select one out of three options, and also enable or disable a certain option. Changes will affect our class only, therefore the remaining EA code from the previous example will remain the same.
//+------------------------------------------------------------------+
//|                                         Telegram_SendMessage.mq5 |
//|                        Copyright 2014, MetaQuotes Software Corp. |
//|                                              http://www.mql5.com |
//+------------------------------------------------------------------+
#property copyright "Copyright 2014, MetaQuotes Software Corp."
#property link      "http://www.mql5.com"
#property version   "1.00"
#property strict

#include <Telegram.mqh>

#define MUTE_TEXT       "Mute"
#define UNMUTE_TEXT     "Unmute"

#define LOCK_TEXT       "Lock"
#define UNLOCK_TEXT     "Unlock"

#define RADIO_SELECT    "\xF518"
#define RADIO_EMPTY     "\x26AA"

#define MUTE_CODE       "\xF515"
#define UNMUTE_CODE     "\xF514"

#define LOCK_CODE       "\xF512"
#define UNLOCK_CODE     "\xF513"
//+------------------------------------------------------------------+
//|   CMyBot                                                         |
//+------------------------------------------------------------------+
class CMyBot: public CCustomBot
  {
private:
   string            m_radio_button[3];
   int               m_radio_index;
   bool              m_lock_state;
   bool              m_mute_state;

public:
   //+------------------------------------------------------------------+
   void CMyBot::CMyBot(void)
     {
      m_radio_button[0]="Radio Button #1";
      m_radio_button[1]="Radio Button #2";
      m_radio_button[2]="Radio Button #3";
      m_radio_index=0;
      m_lock_state=false;
      m_mute_state=true;
     }

   //+------------------------------------------------------------------+
   string GetKeyboard()
     {
      //---
      string radio_code[3]={RADIO_EMPTY,RADIO_EMPTY,RADIO_EMPTY};
      if(m_radio_index>=0 && m_radio_index<=2)
         radio_code[m_radio_index]=RADIO_SELECT;
      //---
      string mute_text=UNMUTE_TEXT;
      string mute_code=UNMUTE_CODE;
      if(m_mute_state)
        {
         mute_text=MUTE_TEXT;
         mute_code=MUTE_CODE;
        }
      //---
      string lock_text=UNLOCK_TEXT;
      string lock_code=UNLOCK_CODE;
      if(m_lock_state)
        {
         lock_text=LOCK_TEXT;
         lock_code=LOCK_CODE;
        }
      //---
      //Print(m_lock.GetKey());
      return(StringFormat("[[\"%s %s\"],[\"%s %s\"],[\"%s %s\"],[\"%s %s\",\"%s %s\"]]",
             radio_code[0],m_radio_button[0],
             radio_code[1],m_radio_button[1],
             radio_code[2],m_radio_button[2],
             lock_code,lock_text,
             mute_code,mute_text));
     }

   //+------------------------------------------------------------------+
   void ProcessMessages(void)
     {
      for(int i=0;i<m_chats.Total();i++)
        {
         CCustomChat *chat=m_chats.GetNodeAtIndex(i);
         if(!chat.m_new_one.done)
           {
            chat.m_new_one.done=true;
            string text=chat.m_new_one.message_text;

            //--- start
            if(text=="/start" || text=="/help")
              {
               bot.SendMessage(chat.m_id,"Click on the buttons",bot.ReplyKeyboardMarkup(GetKeyboard(),false,false));
              }

            //--- Click on a RadioButton
            int total=ArraySize(m_radio_button);
            for(int k=0;k<total;k++)
              {
               if(text==RADIO_EMPTY+" "+m_radio_button[k])
                 {
                  m_radio_index=k;
                  bot.SendMessage(chat.m_id,m_radio_button[k],bot.ReplyKeyboardMarkup(GetKeyboard(),false,false));
                 }
              }

            //--- Unlock
            if(text==LOCK_CODE+" "+LOCK_TEXT)
              {
               m_lock_state=false;
               bot.SendMessage(chat.m_id,UNLOCK_TEXT,bot.ReplyKeyboardMarkup(GetKeyboard(),false,false));
              }

            //--- Lock
            if(text==UNLOCK_CODE+" "+UNLOCK_TEXT)
              {
               m_lock_state=true;
               bot.SendMessage(chat.m_id,LOCK_TEXT,bot.ReplyKeyboardMarkup(GetKeyboard(),false,false));
              }

            //--- Unmute
            if(text==MUTE_CODE+" "+MUTE_TEXT)
              {
               m_mute_state=false;
               bot.SendMessage(chat.m_id,UNMUTE_TEXT,bot.ReplyKeyboardMarkup(GetKeyboard(),false,false));
              }

            //--- Mute
            if(text==UNMUTE_CODE+" "+UNMUTE_TEXT)
              {
               m_mute_state=true;
               bot.SendMessage(chat.m_id,MUTE_TEXT,bot.ReplyKeyboardMarkup(GetKeyboard(),false,false));
              }
           }
        }
     }
  };

As a result we get the following window (figure 8).

Fig.8. RadioButton and CheckBox controls

We can see here that Emoji used here provide settings with a better visibility. Apart from these controls, we will be able to easily implement hierarchical menu with navigation in every sub-menu. Everything will depend on functionality that you will come up with and decide to implement.

In case we decide to publish messages on the channel, there is a second option - SendMessage.

int SendMessage(const string channel_name,
                const string text)
 channel_name
 channel name as @name
 text  message text. HTML tags are supported.
 Returned value  error code

The result of this function is displayed in figure 9 below.

Working with multimedia

Bots can exchange photos, audio and video files and also voice messages, stickers and location coordinates. At the point of writing this article, Bot API 2.0 with a function of exchanging contact data and invitations to meet up was released. From the whole list provided, only the option to exchange photos holds relevance for us.

SendPhoto

The class has implemented the opportunity to send photos with two ways of application.

int SendPhoto(const long   chat_id,
              const string local_path,
              string       &photo_id,
              const string caption=NULL,
              const bool   common_flag=false,
              const int    timeout=10000)
 chat_id  chat number
 local_path  local path to the folder in <data folder>\MQL5\Files
 photo_id  identifier of the photo uploaded to the server
 caption  signature text below photo
 common_flag  file location flag in the common folder of all client terminals \Terminal\Common\Files
 timeout  operation time out in milliseconds

Example of the code that sends photo:

CCustomBot bot;

string token = "208375865:AAFnuOjlZ3Wsdan6PAjeqqUtBybe0Di1or8";

bot.Token(token);

string photo_id;
int result=bot.SendPhoto(198289825,"EURUSD1.gif",photo_id,"screenshot");
if(result==0)
   Print("Photo ID: ",photo_id);
else
   Print("Error: ",GetErrorDescription(result));

I believe you will have cases when it will be required to send a photo to several users or send the same photo several times. In this case it is more rational to upload a photo once, and to apply the photo_id identifier along with the second option of the SendPhoto function when re-sending a photo:

int SendPhoto(const long chat_id,
              const string photo_id,
              const string caption=NULL)
 chat_id  chat number
 photo_id  identifier of the photo uploaded to the server
 caption  signature text below photo

SendChartAction

Imagine that you handle a user's response and are almost ready to provide him with a result. Since it may take few seconds to create a response, it would be polite to notify a user that you are in the process already. And this is what events are used for. For example, while the chart screenshot is formed to be sent to a user, you can send the "send photo" event in the meantime. This is achieved via SendChatAction.

int SendChatAction(const long chat_id,
                   const ENUM_CHAT_ACTION actiona)
 chat_id  chat number
 action  event identifier
All previously described functions where implemented in three demonstration bots that we are going to speak about later.

Examples of bots

The first bot Telegram_Bot_EA allows to obtain information about the account balance, quotes and chart screenshots. How it operates is shown in this video.


The second bot Telegram_Search_EA sends search results to MQL5.com. You may be curious to watch the following video to see how it actually works.


The third bot Telegram_Signal_EA publishes signals from the MACD standard indicator on the channel. I think it will be easy to change MACD to your favorite indicator and use this code for your purposes.

//+------------------------------------------------------------------+
//|                                        Telegram_Signal_EA_v1.mq4 |
//|                        Copyright 2014, MetaQuotes Software Corp. |
//|                                              http://www.mql5.com |
//+------------------------------------------------------------------+
#property copyright "Copyright 2014, MetaQuotes Software Corp."
#property link      "http://www.mql5.com"
#property version   "1.00"

//+------------------------------------------------------------------+
//|   Includes                                                       |
//+------------------------------------------------------------------+
#include <Telegram.mqh>

//--- Input parameters
input string InpChannelName="@forexsignalchannel";//Channel Name
input string InpToken="177791741:AAH0yB3YV7ywm80af_-AGqb7hzTR_Ud9DhQ";//Token

//--- Global variables
CCustomBot bot;
int macd_handle;
datetime time_signal=0;
//+------------------------------------------------------------------+
//| Expert initialization function                                   |
//+------------------------------------------------------------------+
int OnInit()
  {
   time_signal=0;

//--- set token
   bot.Token(InpToken);

//--- get an indicator handle
   macd_handle=iMACD(NULL,0,12,26,9,PRICE_CLOSE);
   if(macd_handle==INVALID_HANDLE)
      return(INIT_FAILED);

//--- done
   return(INIT_SUCCEEDED);
  }
//+------------------------------------------------------------------+
//| Expert tick function                                             |
//+------------------------------------------------------------------+
void OnTick()
  {

//--- get time
   datetime time[1];
   if(CopyTime(NULL,0,0,1,time)!=1)
      return;

//--- check the signal on each bar
   if(time_signal!=time[0])
     {
      //--- first calc
      if(time_signal==0)
        {
         time_signal=time[0];
         return;
        }

      double macd[2]={0.0};
      double signal[2]={0.0};

      if(CopyBuffer(macd_handle,0,0,2,macd)!=2)
         return;
      if(CopyBuffer(macd_handle,1,0,2,signal)!=2)
         return;

      time_signal=time[0];

      //--- Send signal BUY
      if(macd[1]>signal[1] &&
         macd[0]<=signal[0])
        {
         string msg=StringFormat("Name: MACD Signal\nSymbol: %s\nTimeframe: %s\nType: Buy\nPrice: %s\nTime: %s",
                                 _Symbol,
                                 StringSubstr(EnumToString(_Period),7),
                                 DoubleToString(SymbolInfoDouble(_Symbol,SYMBOL_ASK),_Digits),
                                 TimeToString(time[0]));
         int res=bot.SendMessage(InpChannelName,msg);
         if(res!=0)
            Print("Error: ",GetErrorDescription(res));
        }

      //--- Send signal SELL
      if(macd[1]<signal[1] &&
         macd[0]>=signal[0])
        {
         string msg=StringFormat("Name: MACD Signal\nSymbol: %s\nTimeframe: %s\nType: Sell\nPrice: %s\nTime: %s",
                                 _Symbol,
                                 StringSubstr(EnumToString(_Period),7),
                                 DoubleToString(SymbolInfoDouble(_Symbol,SYMBOL_BID),_Digits),
                                 TimeToString(time[0]));
         int res=bot.SendMessage(InpChannelName,msg);
         if(res!=0)
            Print("Error: ",GetErrorDescription(res));
        }
     }
  }
//+------------------------------------------------------------------+

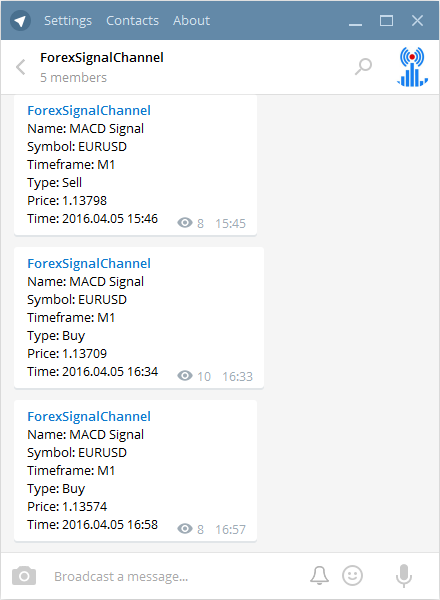

As a result you will receive messages shown in Fig. 9.

MACD indicator signals

Fig.9. MACD indicator signals.

Conclusion

Those who wish to connect analytics to the Yandex.AppMetrika base for their bot, may use the Botan source. The idea of the service is to send them messages received from users, and to request indicators like segmentation, tracking, cohort analysis etc. There is no need to exit Messenger, because statistics will be sent by the special bot in the form of charts, and a more detailed report will be available on the website.

I hope that this articles has inspired you to apply Telegram in trading. It wasn't my goal to cover all details, because they have been already provided in documentation for Bot API. The codes attached to this article are adapted to trading on both platforms — MetaTrader 4 and MetaTrader 5.

Translated from Russian by MetaQuotes Software Corp.
Original article: https://www.mql5.com/ru/articles/2355

Attached files |
telegram.zip (30.5 KB)
Last comments | Go to discussion (7)
nima_fad
nima_fad | 29 Jul 2016 at 14:43

Hi

Thanks for your useful article. I have tried Telegram_signal_EA. but I receive "URL does not allowed for WebRequest " error, in strategy tester. I added suggested URLs but the problem is not solved yet.could u please help me?

Andrey Voytenko
Andrey Voytenko | 5 Aug 2016 at 10:58
nima_fad:

I have tried Telegram_signal_EA. but I receive "URL does not allowed for WebRequest " error, in strategy tester.

Thanks for your positive feedback. But WebRequest() function cannot be executed in the Strategy Tester.

Tatu Francis
Tatu Francis | 25 Aug 2016 at 08:13
How I can send trades from my MT4 to a custom PHP
Andrey Voytenko
Andrey Voytenko | 25 Aug 2016 at 08:35
Tatu Francis:
How I can send trades from my MT4 to a custom PHP
It is easy. Use WebRequest function.
duddas
duddas | 29 Aug 2016 at 12:28

How i can call function in Class in OnCalculate? to send screenshot when i need with a button for example

Thank you

Step on New Rails: Custom Indicators in MQL5 Step on New Rails: Custom Indicators in MQL5

I will not list all of the new possibilities and features of the new terminal and language. They are numerous, and some novelties are worth the discussion in a separate article. Also there is no code here, written with object-oriented programming, it is a too serous topic to be simply mentioned in a context as additional advantages for developers. In this article we will consider the indicators, their structure, drawing, types and their programming details, as compared to MQL4. I hope that this article will be useful both for beginners and experienced developers, maybe some of them will find something new.

Here Comes the New MetaTrader 5 and MQL5 Here Comes the New MetaTrader 5 and MQL5

This is just a brief review of MetaTrader 5. I can't describe all the system's new features for such a short time period - the testing started on 2009.09.09. This is a symbolical date, and I am sure it will be a lucky number. A few days have passed since I got the beta version of the MetaTrader 5 terminal and MQL5. I haven't managed to try all its features, but I am already impressed.

Using text files for storing input parameters of Expert Advisors, indicators and scripts Using text files for storing input parameters of Expert Advisors, indicators and scripts

The article describes the application of text files for storing dynamic objects, arrays and other variables used as properties of Expert Advisors, indicators and scripts. The files serve as a convenient addition to the functionality of standard tools offered by MQL languages.

How to create an indicator of non-standard charts for MetaTrader Market How to create an indicator of non-standard charts for MetaTrader Market

Through offline charts, programming in MQL4, and reasonable willingness, you can get a variety of chart types: "Point & Figure", "Renko", "Kagi", "Range bars", equivolume charts, etc. In this article, we will show how this can be achieved without using DLL, and therefore such "two-for-one" indicators can be published and purchased from the Market.
