MetaTrader tick info access from MetaTrader services to python application using sockets

Introduction

Sometimes everything is not programmable in the MQL5 language. And even if it is possible to convert existing advanced libraries in MQL5, it would be time-consuming. A better option is to integrate or utilize the existing libraries to achieve a task. For example, there are numerous machine-learning-libraries in python. It's not the best option for us to create identical copies in MQL5 form just to achieve a machine learning task for trading. It is better to export the data needed for that python machine learning library, do the necessary process in the python environment and import the result back into the MQL5 program. This article is about transporting such data from the MetaTrader terminal to the python environment.

There is a python package called MetaTrader 5 which can be used to access MetaTrader’s charts data such as bars info, tick info, user info, trade info etc. But this package is only available for Windows, meaning that if you want to use the package, then you need to have Windows OS. In this article, I am going to show you how you can access tick data from MetaTrader to a python program using sockets.

With the introduction of Berkeley sockets in the 4.2BSD Unix operating system in 1983, communication between machines became easy and widespread. More advanced application layer libraries and protocols all depend on transport level socket protocols, which we are going to use in this article.

For demo purpose, I am going to transport only tick data (bid, ask and time of tick data) to the python application through socket ports to be utilized in the python application. We can export all kinds of chart data such as bar info, user info, trade info etc. using the idea presented in this article. And we can use not only services but also scripts, indicators or expert advisors to do the task.

Program Flow

This article focuses on utilizing MetaTrader’s 5 services program to send tick info such as bid, ask and time to a python server and the python server will broadcast the info to all the client sockets which are connected to the server. This is more clear in the following figure.

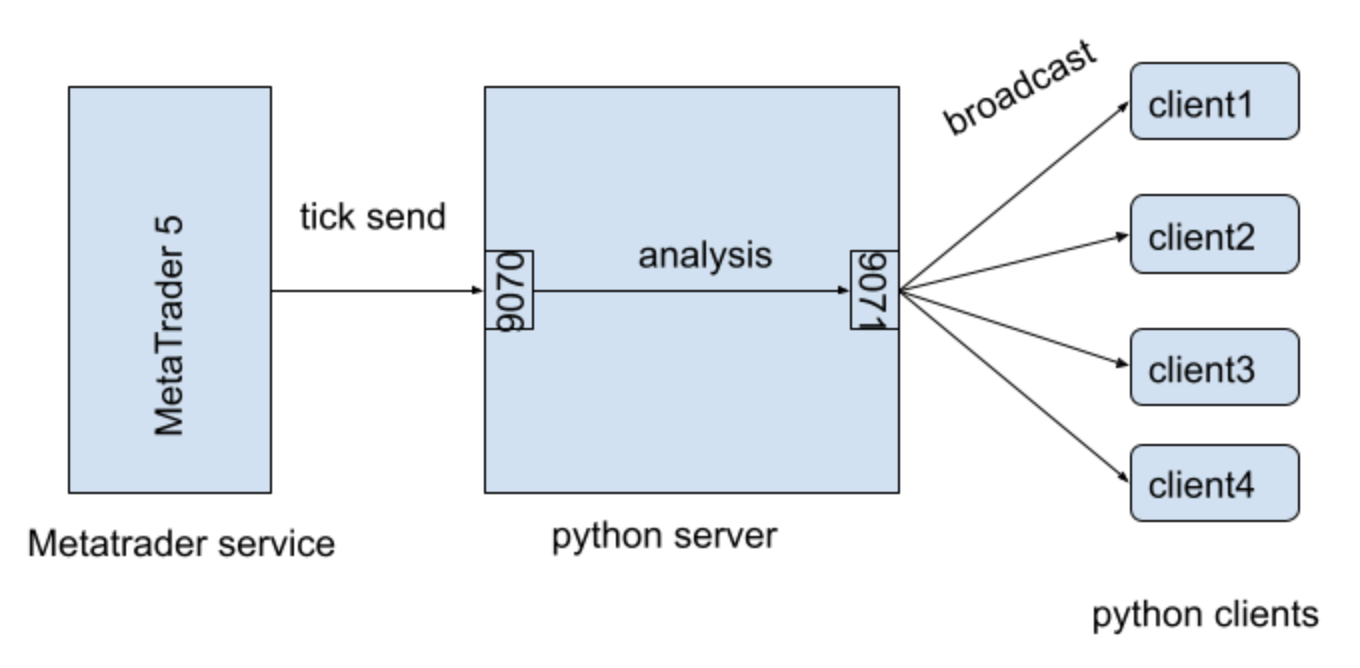

As you can see from the figure, the MetaTrader service program is connected to a python server listening on port 9070. All the tick data of the charts that are open in MetaTrader 5 terminal, will be sent to the python server at port 9070. The Python server then analyzes the data received from MetaTrader 5, does the necessary analysis on the data and distributes or better say broadcasts the tick info to the connected clients. The clients can then use the received data to perform necessary tasks or apply algorithms to achieve the desired result, which can be transmitted back to the MetaTrader services program for further processing.

Why services and python?

There is no specific reason to choose MetaTrader 5 services to send tick information. Scripts, Indicator and Expert Advisor can also be used to do such tasks and I shall do that in my next articles. I just wanted to show that tick and other chart related information can be transported to other applications using MetaTrader services using socket programming. And instead of python server and clients, we can use other platforms and frameworks to develop the server and clients as well. Python was convenient for me.

Services Program

As we all know that services in MetaTrader 5 have only one function, OnStart and everything has to be done within that function. Services are not tied to any windows and the built-in functions like _Symbol, _Period, _Point and others are inaccessible in services like they can be accessed in scripts, indicators and expert advisors. And running and managing services can only be done through the navigator window. Services cannot be dragged to open chart windows for running. You can see how to run services in the demo section below, where I have included a GIF file.

The services program starts by defining socket, server and port variables.

int socket;
string server = "localhost";
int port = 9070;

The SocketInit() function creates a socket handle using the SocketCreate() method. The socket handle along with server address and port is passed to SocketConnect() function for connecting to the server, which return true in case connection is successful.

void SocketInit() {
   socket=SocketCreate();
   bool connect = SocketConnect(socket, server, port, 1000);
   if(connect) {
      Print("socket is connected", " ", server, " port ", port);
   }
}

When we add and run the services program from the navigator window in MetaTrader terminal, OnStart function is called where we call the SocketInit() function.

void OnStart() {
   SocketInit();

Then three variables are defined, first one to store tick info of opened chart, second to store the chart ID and third to store tick info to be sent to the server.

MqlTick latestTick;
long next;
string payload;

As we need to constantly send tick info to the server, while loop with true is defined and then check if the server is connected. If the socket connection wasn't successful, then SocketIsConnected(socket handle) would return false and the service is stopped.

while(true) {
   if(!SocketIsConnected(socket)){
      Print("socket is not initialized yet so stopping the service");
      break;
   }

The next and payload variables are initialized with the first chart ID and empty string.

next = ChartFirst();
payload = "";

Another while loop for looping all the chart windows and then getting the chart symbol is done next.

while (next != -1) {
   string chartSymbol = ChartSymbol(next);

Latest tick info such as bid, ask and time for the chart are extracted.

SymbolInfoTick(chartSymbol, latestTick);
double bid = latestTick.bid;
double ask = latestTick.ask;
string tickTime = TimeToString(latestTick.time, TIME_SECONDS);

A payload is generated to be sent to the server, using symbol, time, bid and ask values. I have tried to create a JSON string value for the payload so that I can use the JSON library in python server to decode the JSON string into a JSON object for data extraction. You can use whatever format is convenient for you.

bool stringAdded = StringAdd(payload, StringFormat("{\"pair\": \"%s\", \"time\": \"%s\", \"bid\": %f, \"ask\": %f}", chartSymbol, tickTime, bid, ask));

If there are more chart windows open, then to append the tick info of next chart window by using #@# as a separator is done.

next = ChartNext(next);
if (next != -1 && stringAdded) {
   stringAdded = StringAdd(payload, "#@#");
}

When all the open chart windows are scanned for tick data and the payload is populated, it is ready to be sent to the server. SocketSend method sends the data to the socket port that was defined socket handle. Make sure the value in the length field is correct else it will send extra characters with the data which would be an extra burden on the server side for parsing the data.

uchar data[];
int len = StringToCharArray(payload, data);
SocketSend(socket, data, len-1);

And the loop is continued restarting from the first chart window open until the connection to the server is open.

Python Server Program

As described in the program flow, that server should be listening to receive tick information at 9070 from MetaTrader terminal and also listening to clients for sending the received tick information on port 9071. So two socket connections are bound to those ports and kept listening at those ports.

host = '127.0.0.1'
MT5_RECIEVING_PORT = 9070
CLIENT_SENDING_PORT = 9071
mt5Socket = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
mt5Socket.bind((host, MT5_RECIEVING_PORT))
mt5Socket.listen()
clientSocket = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
clientSocket.bind((host, CLIENT_SENDING_PORT))
clientSocket.listen()

I programmed the server in such a way that only one MetaTrader 5 is allowed to connect and communicate. This is done to avoid mismanagement and havoc conditions that may arise for multiple MetaTrader 5 connections. On the other hand, clients are to receive the tick data for further processing, the same data can be utilized by different clients for different algorithms to be applied to achieve the desired result. Thus, there is a need to manage the client connections.

The following dict variable is used for storing live connected clients for managing the connected clients on the server side.

connectedClients = {}

MetaTrader and clients flow are started as separate threads so that they can run independently of each other.

if __name__ == "__main__":

   thread = threading.Thread(target=acceptFromMt5)
   thread.start()
   thread = threading.Thread(target=acceptFromClients)
   thread.start()

MetaTrader 5 thread continues to wait until MetaTrader service connects to it. Once the connection is accepted, the processMt5Data function is called where data is received, processed and sent to respective clients. I will discuss more on this later.

If there is an error in accepting a connection from MetaTrader service, then it will wait for the next connection.

def acceptFromMt5():
   try:
       print("Server is listening for mt5")
       mt5Client, address = mt5Socket.accept()
       print(f"mt5 service is connected at {str(address)}")
       processMt5Data(mt5Client)

   except Exception as ex:
       print(f"error in accepting mt5 client {ex}")
       acceptFromMt5()

Before discussing the tick info analysis part, it is crucial to understand how clients are connected and managed. As with the MetaTrader 5 service, the server waits for a new client connection. A client is required to send its identification so that it can be managed on the server. The identification is the symbol pair of the chart window. This identification is used as the key to the dict object, and the client is added to that dictionary. A while loop is used so that many clients can connect.

def acceptFromClients():
   try:
       while True:

           print("Server is listening for clients")
           client, address = clientSocket.accept()
           pair = client.recv(7).decode("ascii")
           print(f"{pair} client service is connected at {str(address)}")
           clients = connectedClients[pair] if connectedClients and pair in connectedClients.keys() else []
           clients.append(client)
           connectedClients[pair] = clients

   except Exception as ex:
       print(f"error in accepting other clients {ex}")
       acceptFromClients()

Now that we have understood how newly connected clients are added, it would be easy to understand how the tick data received is broadcasted to those clients. Tick data is converted to JSON object and symbol is extracted from it. And tick info is broadcasted to clients based on the clients’ identification key sent to the server while connecting.

Tick data is split using the same separator used in MetaTrader 5 services program. Additional splitting is needed if multiple tick data for a chart is sent all at once. The second splitting was done as the python library for JSON parsing was unable to parse the tick info if multiple tick information is sent all at once from MetaTrader service to the server.

def processMt5Data(mt5Client):
   data = "mt5 client connected"
   repeatativeEmpty = 0
   while(len(data) > 0):

       try:
          data = mt5Client.recv(1024000).decode("ascii")

           if len(data) > 0:
               for jsn in data.split("#@#"):

                   if "}{" in jsn:
                       splittedTickData = jsn.split("}{")
                       jsn = splittedTickData[0] + "}"

                   jsonTickData = json.loads(jsn)
                   pair = jsonTickData["pair"]

                   if pair in connectedClients.keys():
                       broadcastToClients(pair, jsonTickData)
           repeatativeEmpty = repeatativeEmpty + 1 if len(data) == 0 else 0

           if repeatativeEmpty > 10:
               print(f"data is not recieved for 10 times in a row {data}")
               break

       except Exception as ex:
           print(f"error in processing mt5 data {ex}")
           break

       time.sleep(0.1)
   acceptFromMt5()

Sending data to clients is straightforward. If an error occurs while sending data, then the client is removed from the connected clients list assuming the client is not connected and the dictionary is updated.

def broadcastToClients(pair, message):
   for client in connectedClients[pair]:

       try:
           client.send(str(message).encode("ascii"))

       except Exception as ex:
           print(f"error while sending {message} to {client} for {pair}")
           client.close()
           clients = connectedClients[pair]
           clients.remove(client)
           connectedClients[pair] = clients

And that completes the server program.

Python Client Program

The client program connects with the server on port 9071 as already discussed in program flow. And as already discussed above that for proper management of clients on the server, a key representing the symbol/currency pair is needed in the server. Thus, we need options to show available key list to be chosen from the list for identification ID which is to be sent to the server.

CURRENCY_PAIRS = [

   "AUDUSD",
   "AUDJPY",
   "AUDCAD",
   "AUDNZD",
   "AUDCHF",
   "CADJPY",
   "CADCHF",
   "CHFJPY",
   "EURUSD",
   "EURJPY",
   "EURGBP",
   "EURCAD",
   "EURAUD",
   "EURNZD",
   "EURCHF",
   "GBPUSD",
   "GBPJPY",
   "GBPCAD",
   "GBPAUD",
   "GBPNZD",
   "GBPCHF",
   "NZDUSD",
   "NZDJPY",
   "NZDCAD",
   "USDCHF",
   "USDJPY",
   "USDCAD",
   "NZDCHF"
]
server = "127.0.0.1"
port = 9071

As you can see, one option from the above list is chosen and sent to the server once connected, and then it waits for data to arrive from the server.

if __name__ == "__main__":
   print(f"please choose from the currency pairs given below as name \n {', '.join(CURRENCY_PAIRS)}")
   name = input("enter the name for the client : ")

   if name in CURRENCY_PAIRS:
       client = socket.socket(socket.AF_INET, socket.SOCK_STREAM)

       if client.connect_ex((server, port)) == 0:
           client.send(name.encode("ascii"))
           receiveData(client)

       else:
           print("server could not be connected.")

   else:
       print("you didn't choose from the above list")

The client program I wrote just prints the tick data, but we can do anything with it according to our requirements, such as further processing of data using available frameworks and libraries, applying machine learning libraries etc.

def receiveData(client):
   repeatativeEmpty = 0

   while True:
       data = client.recv(1024).decode("ascii")
       print("data received ", data)
       repeatativeEmpty = repeatativeEmpty + 1 if len(data) == 0 else 0

       if repeatativeEmpty > 10:
           print(f"data is not recieved for 10 times in a row {data}")

           break

And that completes the client program.

Demo of Data Flow

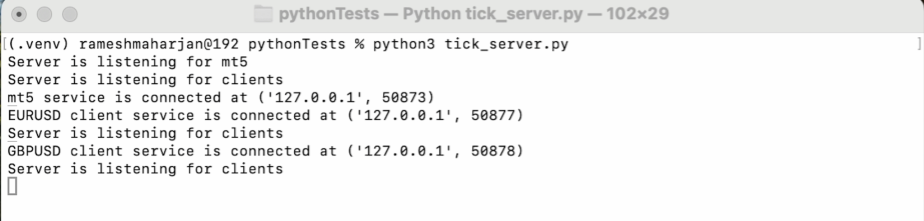

The server needs to be started first for the smooth data transformation, otherwise none of the services would run. For testing purpose, the python server is run on virtual environment, which can be seen in the following figure.

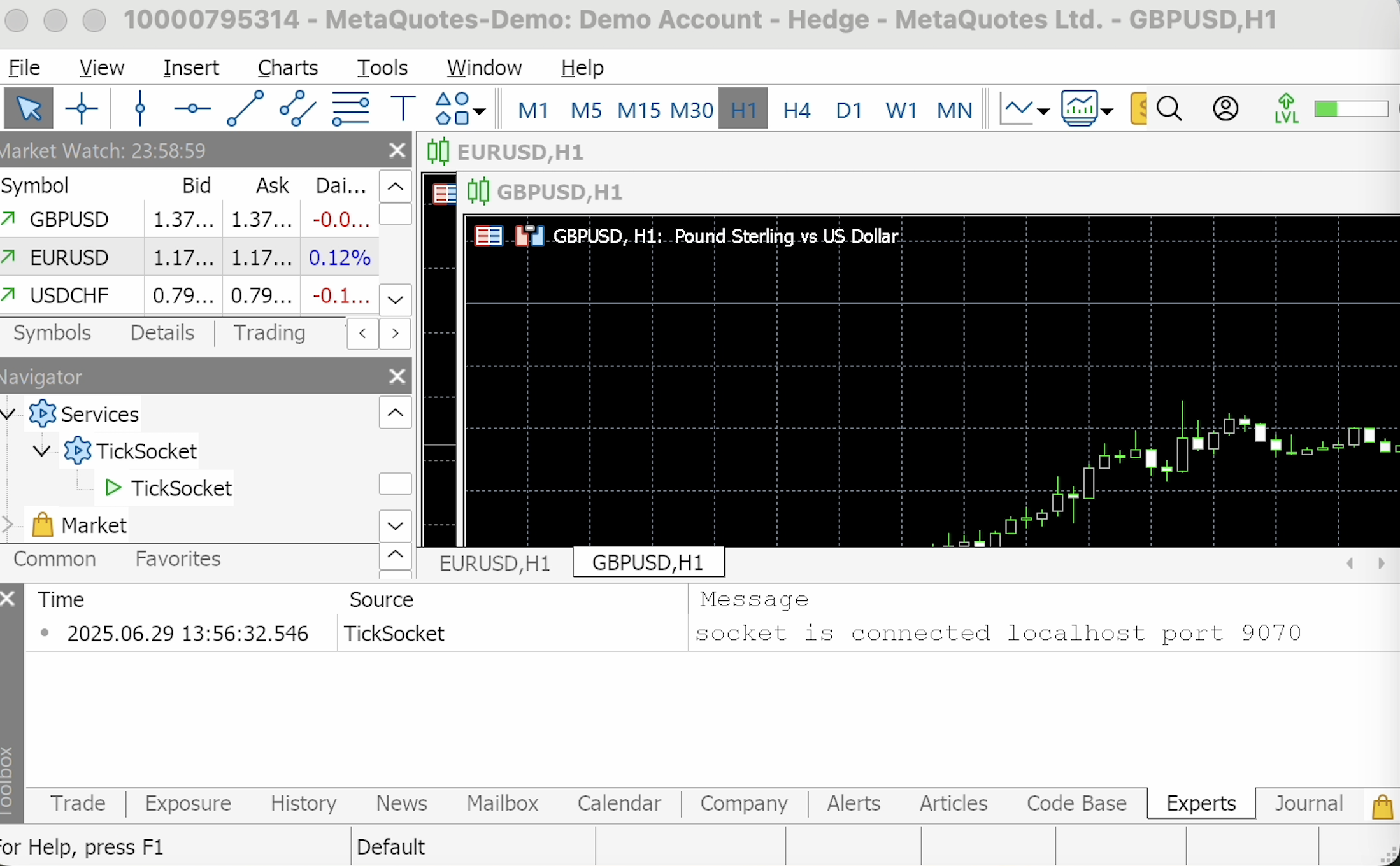

We need the tick data to be received by the server and then broadcasted to clients, so the second task is to start the MetaTrader services program, as seen in the following screenshot.

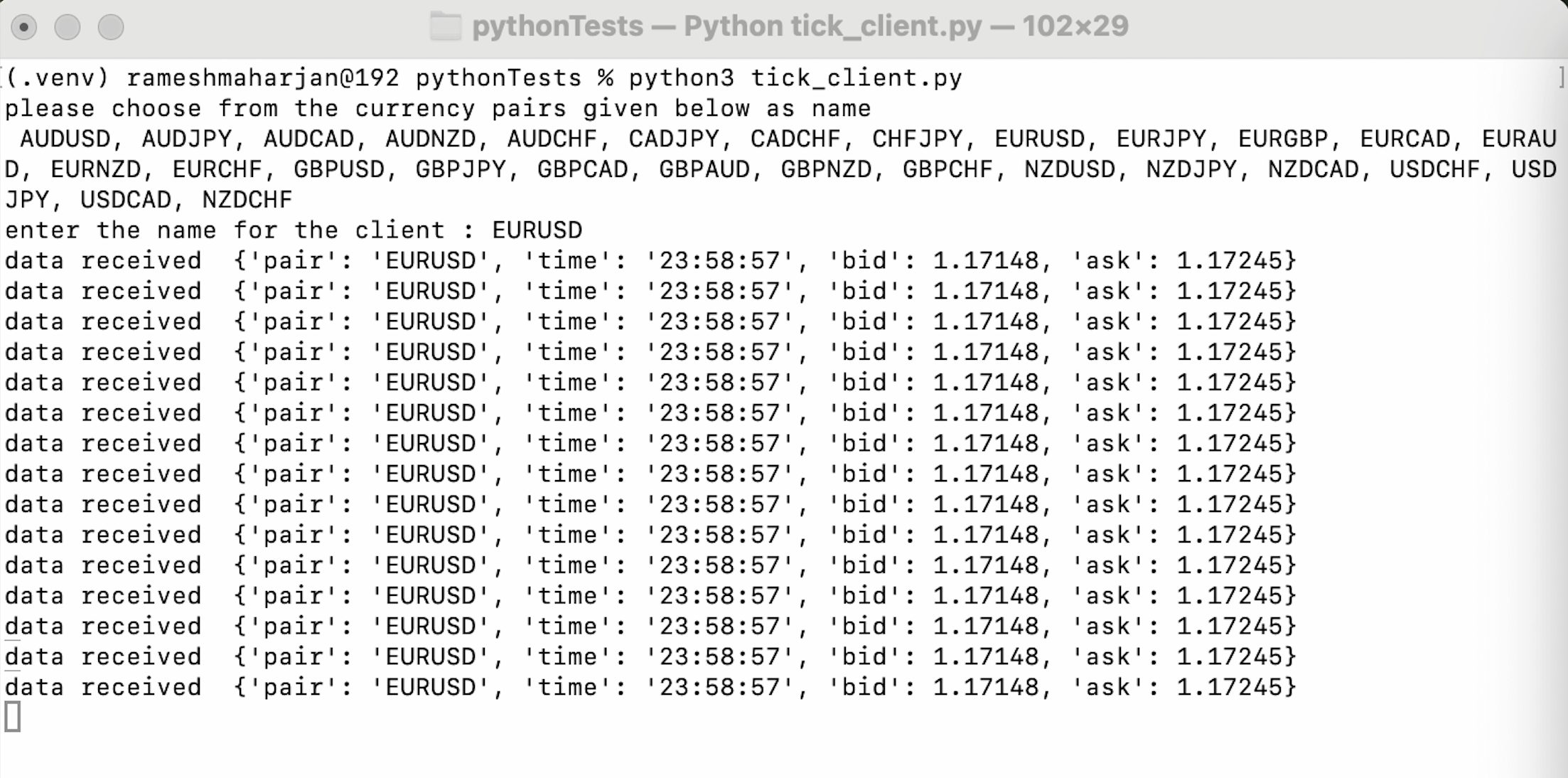

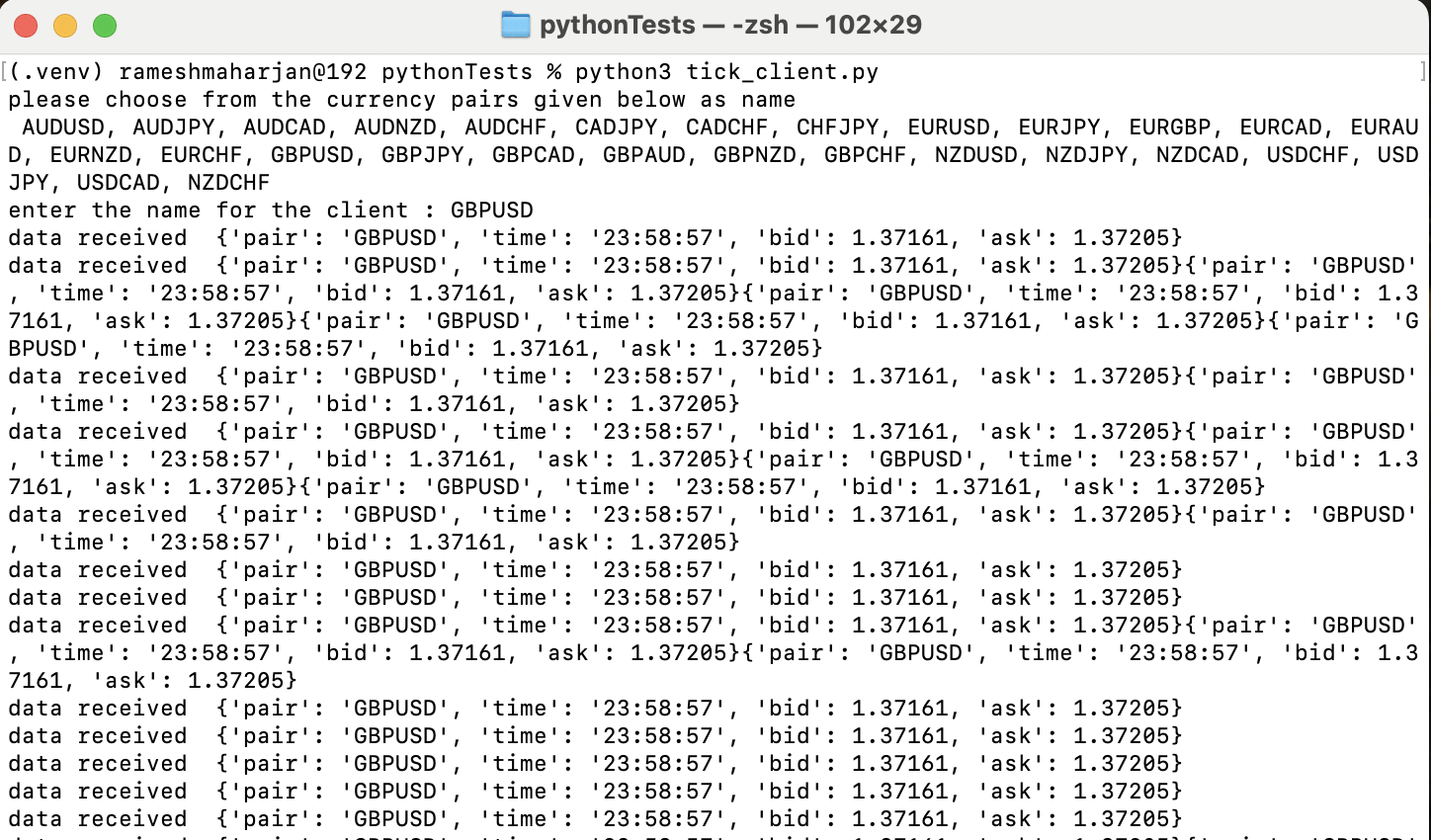

If MetaTrader service is not run, then connected clients would wait for data to be received. As soon as a client sends identification keys to the server and if there is tick data sent from MetaTrader services, the data is printed in the client terminal for now. This is done for EURUSD and GBPUSD as both chart windows are open in the MetaTrader 5 terminal at that moment. This is evident in the following screenshots.

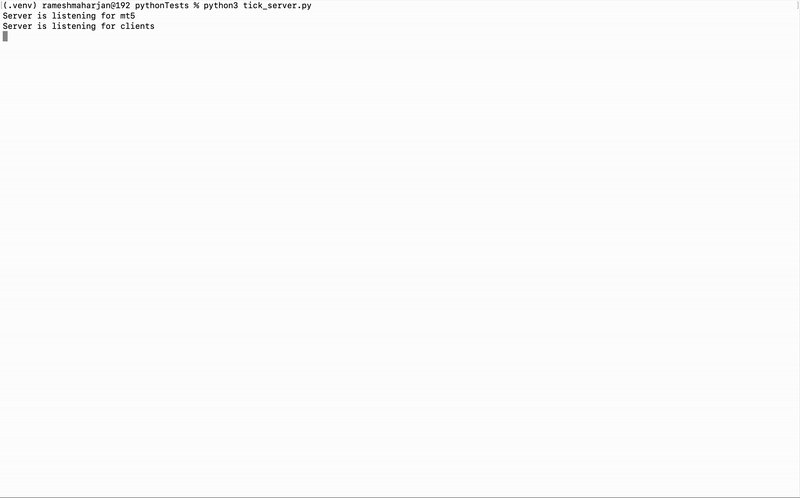

I have tried to capture all of the above screenshotted process in a GIF so that the whole process is more evident.

Conclusion

This article discusses using socket programming to send tick data from MetaTrader 5 to a python application using MetaTrader services and python server and client. As we can transport tick data as done in this article, we can transport other information about charts as well. I have used services, but we can use scripts, indicators or expert advisors too. And like python, we can use other programming languages too.

Moreover, this article also tries to eradicate the Windows OS dependency. MetaTrader and python library such as MetaTrader 5 all depend on Windows OS. Instead of using the MetaTrader 5 python library, we can use the socket protocol for data transfer from MetaTrader to a more convincing library for easy and advanced processing of MetaTrader data.

File Name	Description
TickSocketService.mq5	MQL file containing codes to connect to socket server at 9070 and then send tick data
tick_server.py	python server socket opening port 9070 for MetaTrader and port 9071 for other clients
tick_client.py	python client socket connecting to port 9071 and receives data sent by the server
