2011.11.22 19:30
Indicators

Cycle Period - indicator for MetaTrader 5

| English Русский 中文 Español Deutsch 日本語 Português

Published by:
Nikolay Kositsin
Views:
4511
Rating:
votes: 11

Real author:

Witold Wozniak

This indicator is designed for measurement of a financial asset price change periodicity.

The indicator stores in its indicator buffer the current market cycle values, which can never be stable for obvious reasons. This indicator is created to be used with oscillators to provide their adaptation to constantly changing market cycles and their transformation to adaptive ones.

The indicator is inspired by John Ehlers' article "Using The Fisher Transform" published in November 2002 in the "Technical Analysis Of Stock & Commodities" magazine.

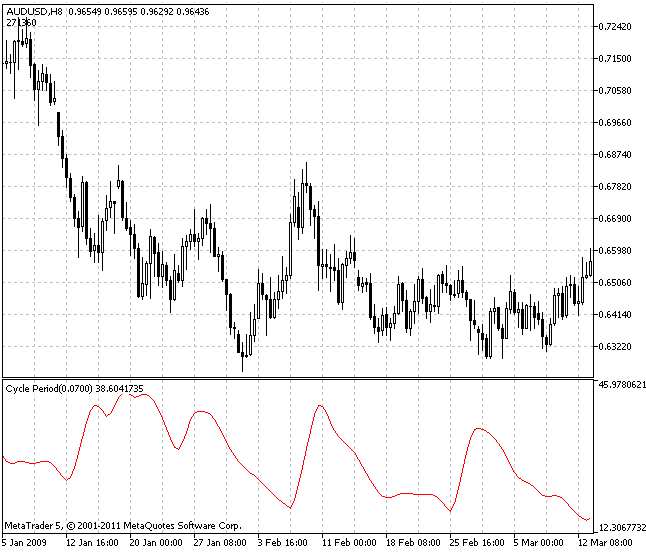

Cycle Period

The CyclePeriod indicator handle variable must be declared on the global level to let the indicator be used in another indicator's code (for example, in RVI oscillator):

//---- declaration of integer variables for the indicators handles
int CP_Handle;

Then, the CyclePeriod indicator handle must be received in the RVI indicator initialization block:

//---- getting the CyclePeriod indicator handle
   CP_Handle=iCustom(NULL,0,"CyclePeriod",Alpha);
   if(CP_Handle==INVALID_HANDLE)
     {
      Print(" Failed to get the CyclePeriod indicator handle");
      return(1);
     }

Now, we have the new Alpha variable that is the input parameter of the used indicator and the period averaging ratio. This variable must be transformed to the developed indicator input variable.

//+----------------------------------------------+
//| Indicator input parameters                   |
//+----------------------------------------------+
input double Alpha=0.07; // Indicator smoothing ratio

The previous Length input variable must be removed from the list of the input parameters transforming it to the local variable inside the OnCalculate() function.

The size of the arrays used for the indicator smoothing is fixed by the Length parameter value:

//---- Memory distribution for the variables arrays
   ArrayResize(Count,Length);
   ArrayResize(Value1,Length);
   ArrayResize(Value2,Length);

The value of this parameter is changing now. Therefore, it is better to set the sizes of these arrays to be not less than the assumed high value of this variable.

While analyzing the indicator charts, we can see that this value does not exceed 100. Therefore, the arrays sizes will have the same value:

//---- Memory distribution for the variables arrays
   ArrayResize(Count,MAXPERIOD);
   ArrayResize(Value1,MAXPERIOD);
   ArrayResize(Value2,MAXPERIOD);

And further on, period values for the current bar in the OnCalculate() block must be taken from the CyclePeriod custom indicator buffer to let them be used instead of the value of the Length former input parameter.

//---- main indicator calculation loop
   for(bar=first; bar<rates_total && !IsStopped(); bar++)
     {
      //---- copy newly appeared data into the array
      if(CopyBuffer(CP_Handle,0,rates_total-1-bar,4,period)<=0) return(RESET);

      Length=int(MathFloor((4.0*period[0]+3.0*period[1]+2.0*period[2]+period[3])/20.0));
      if(bar<Length) Length=bar; // cutting the smoothing down to the real number of bars

In this case four last values are taken from the CyclePeriod indicator buffer and their linearly weighted smoothing is performed, after which the gained value is used as a Length smoothing period. And finally, the line at the end of the indicator code must be altered:

      if(bar<rates_total-1) Recount_ArrayZeroPos(Count,MAXPERIOD);

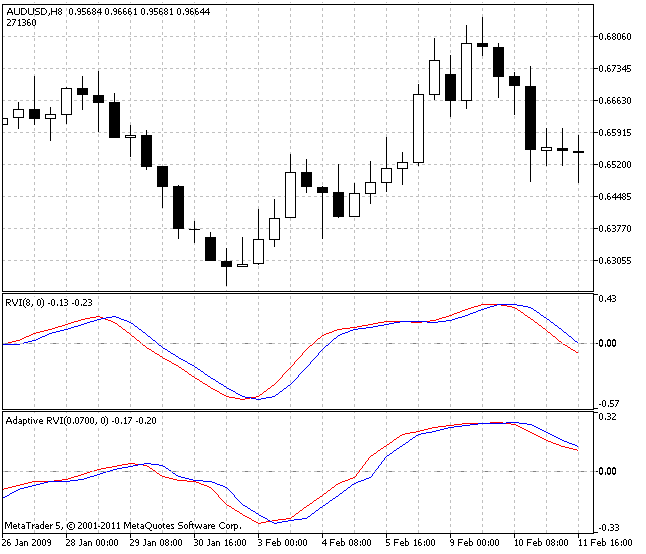

As a result, we have received Adaptive RVI oscillator:

RVI and Adaptive RVI indicators

Translated from Russian by MetaQuotes Software Corp.
Original code: https://www.mql5.com/ru/code/562
