2012.02.03 15:16
Indicators

FisherTransform_HTF_Signal - indicator for MetaTrader 5

| English Русский 中文 Español Deutsch 日本語 Português

Views:
3424
Rating:
votes: 16

FisherTransform_HTF_Signal shows a trend direction or a signal for performing a deal generated by FisherTransform indicator at the chosen bar as a graphic object with colored trend indication or deal direction and sends alerts or audio signals in case of a market entry moment.

In case a trend continues at the selected bar, the indicator alerts by a graphic object in the form of the right arrow, the color of which corresponds to a trend direction. In case a trend has changed at the selected bar, the indicator alerts by the arrow, color and direction of which correspond to a performed deal direction.

All input parameters can be divided into three large groups:

  1. FisherTransform indicator input parameters:
    //+------------------------------------------------+
    //|  Indicator input parameters                    |
    //+------------------------------------------------+
    input string Symbol_="";                   // Financial instrument
    input ENUM_TIMEFRAMES Timeframe=PERIOD_H6; // Timeframe for the indicator calculation
    input uint Length=10;                      // Indicator period
  2. FisherTransform_HTF_Signal indicator input parameters that are necessary for the indicator visualization:
    //---- indicator display settings
    input uint SignalBar=0;                              // Signal bar index, 0 is a current bar
    input string Symbols_Sirname=INDICATOR_NAME"_Label_";// Indicator labels name
    input color UpSymbol_Color=Teal;                     // Growth symbol color
    input color DnSymbol_Color=DarkOrange;               // Downfall symbol color
    input color IndName_Color=DarkOrchid;                // Indicator name color
    input uint Symbols_Size=60;                          // Signal symbols size
    input uint Font_Size=10;                             // Indicator name font size
    input int X_1=5;                                     // Horizontal shift of the name
    input int Y_1=-15;                                   // Vertical shift of the name
    input bool ShowIndName=true;                         // Indicator name display
    input ENUM_BASE_CORNER WhatCorner=CORNER_RIGHT_UPPER;// Location corner
    input uint X_=0;                                     // Horizontal shift
    input uint Y_=20;                                    // Vertical shift

  3. FisherTransform_HTF_Signal indicator input parameters that are necessary for triggering alerts and audio signals:
    //---- alerts settings
    input ENUM_ALERT_MODE alert_mode=OnlySound; // Actuation indication version
    input uint AlertCount=0;                    // Number of submitted alerts

In case several FisherTransform_HTF_Signal are to be used on one chart, each of them should have its own Symbols_Sirname (indicators labels names) string variable value.

Place the FisherTransform indicator compiled file to the terminal_data_folder\MQL5\Indicators\.

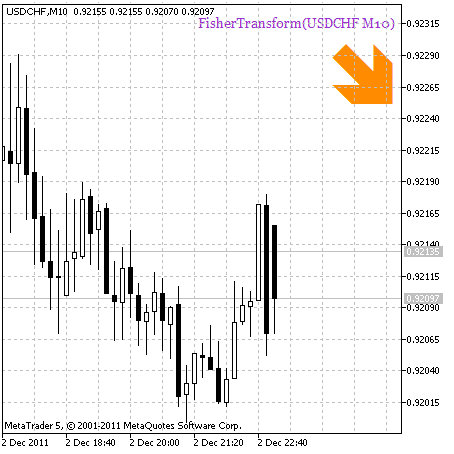

Fig.1. FisherTransform_HTF_Signal indicator. Sell signal

Fig. 1. Sell signal

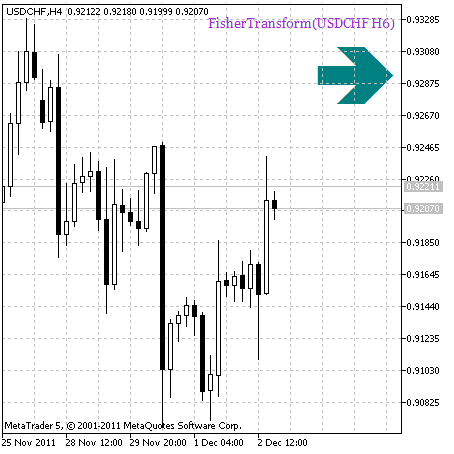

Fig.2. FisherTransform_HTF_Signal indicator. Uptrend continuation signal

Fig. 2. Uptrend continuation signal

Translated from Russian by MetaQuotes Software Corp.
Original code: https://www.mql5.com/ru/code/742
