MT5 Trade Copier Drawdown Protection: How It Protects Your Receiver Account
Product link:
https://www.mql5.com/en/market/product/191385
When using an MT5 Trade Copier, copying trades accurately is only one part of the job. The more important question is what happens when the copied strategy starts losing money.
A trade copier can replicate profitable trades, but it can also replicate losing trades. This becomes especially important when one Sender account is connected to multiple Receiver accounts, when managing prop firm accounts, or when the Receiver account has stricter risk limits than the Sender.
This is where Drawdown Protection becomes an important part of a professional MT5 trade copier.
COPYLATOR includes an advanced Drawdown Protection system designed to monitor the Receiver account and automatically react when predefined daily or total drawdown limits are reached.
What Is Drawdown Protection?
Drawdown is the decline of an account from a defined reference point.
For example, suppose an MT5 Receiver account has a balance of $10,000 and the maximum allowed drawdown is 5%.
A 5% drawdown means the protection threshold is approximately $500.
Without protection, the trade copier could continue accepting new trades from the Sender even after the Receiver has reached a level where continuing to trade may be undesirable.
A Drawdown Protection system adds another layer between the copied signal and the Receiver account.
Instead of simply asking:
"Should this trade be copied?"
the system can also continuously ask:
"Is this Receiver account still within its permitted risk limits?"
This distinction is particularly important when using an MT5 trade copier across multiple accounts.
Daily Drawdown vs. Total Drawdown
COPYLATOR separates drawdown protection into two different measurements:
Daily Drawdown
Daily drawdown measures the loss relative to the highest Equity or Balance reached during the current trading day, depending on the selected DrawdownBasedOn setting.
For example, if the Receiver account reaches $10,500 during the day and subsequently falls to $9,975:
- Peak value = $10,500
- Current value = $9,975
- Difference = $525
- Drawdown = 5%
If the configured maximum daily drawdown is 5%, the protection mechanism can be triggered.
This type of protection is useful for traders who want to limit how much an account can give back during a single trading session.
Total Drawdown
Total drawdown uses the account's initialBalance as the reference point.
For example:
- Initial balance = $10,000
- Maximum total drawdown = 10%
- Protection threshold = $9,000
If the account falls to or below the configured threshold, the total drawdown protection can be triggered.
The two mechanisms solve different problems.
Daily drawdown protects the account from excessive losses during the current trading day, while total drawdown provides a longer-term account protection layer.
Why Drawdown Protection Is Important for an MT5 Trade Copier
A normal trade copier is primarily responsible for synchronization.
COPYLATOR goes further by allowing the Receiver account to have its own independent protection rules.
This is important because the Sender and Receiver do not necessarily have identical risk conditions.
For example, imagine:
- Sender balance: $50,000
- Receiver balance: $10,000
- Sender strategy continues trading normally
- Receiver has a strict 5% daily loss limit
Even if the Sender continues trading, the Receiver may need to stop copying once its own drawdown threshold is reached.
This makes Drawdown Protection particularly useful for:
- Prop firm accounts
- Funded trading accounts
- Multiple personal accounts
- Portfolio distribution
- Multi-account trade copying
- Accounts with different balances
- Accounts using different lot-sizing rules
What Happens When the Drawdown Limit Is Reached?
COPYLATOR provides configurable actions when the drawdown threshold is exceeded.
The most important distinction is controlled by:
CloseOrdersOnDrawdown
When this option is enabled, the EA can close open positions and delete pending orders when the protection is triggered.
When it is disabled, the existing positions are not closed and the system can instead focus on preventing additional copied trades.
In both cases, the copying block can prevent new trades from being copied after the protection condition has been reached.
Conservative Protection
A trader may choose:
- Drawdown protection = enabled
- Close orders = enabled
- Daily drawdown = 5%
- Total drawdown = 10%
When the limit is reached, the Receiver can close its active exposure and prevent additional copying.
Blocking Protection
Another trader may prefer to keep existing positions open but stop accepting new copied trades.
In this configuration:
- Drawdown protection = enabled
- Close orders = disabled
The account stops increasing its copied exposure while existing positions remain under management.
Pending Orders Are Also Important
Drawdown protection should not only consider open market positions.
A Receiver can also have pending orders waiting to be activated.
For example:
- Buy Stop
- Sell Stop
- Buy Limit
- Sell Limit
If the account reaches its drawdown threshold while pending orders remain active, allowing those orders to trigger could create additional exposure.
Therefore, when CloseOrdersOnDrawdown is enabled, COPYLATOR can also delete pending orders as part of the protection response.
Automatic Daily Reset
Drawdown protection does not necessarily mean that an account remains permanently blocked.
COPYLATOR supports a daily reset mechanism using the configured reset time.
After the daily reset:
- The daily drawdown calculation is reset.
- The daily block can be removed.
- The system begins monitoring the new trading day.
However, the important point is that an automatic daily reset does not change the total drawdown baseline.
For example, suppose:
- Initial balance = $10,000
- Current balance = $9,300
- Total drawdown limit = 10%
A new trading day begins.
The daily drawdown counter can reset, but the original $10,000 total-drawdown baseline remains.
Therefore, if the account is still beyond its total drawdown limit, the protection can be triggered again.
This prevents a daily reset from accidentally bypassing the longer-term account protection.
Manual Reset

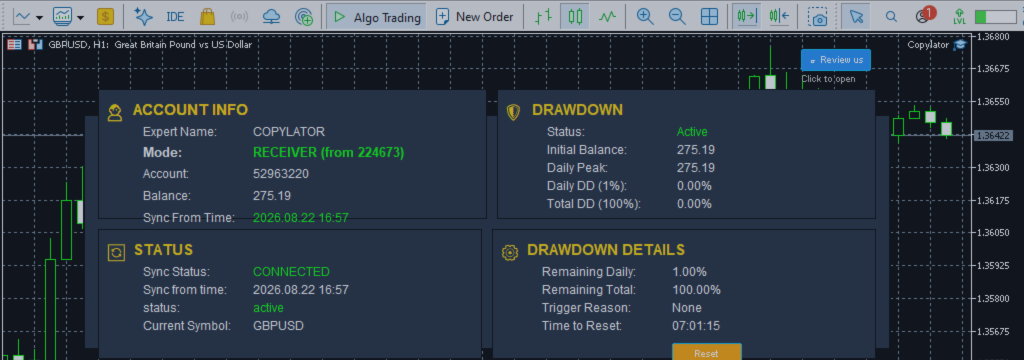

COPYLATOR also provides a manual reset mechanism through the Drawdown Details panel in Receiver mode.
A manual reset is different from the normal daily reset.
It can:
- Remove the current drawdown block
- Reset daily drawdown
- Reset total drawdown
- Establish the current account balance as a new initialBalance
This can effectively start a new protection cycle.
For example, if a trader deliberately decides that the current $9,500 account balance should become the new baseline, a manual reset can establish that value as the new reference point.
Because this changes the total drawdown baseline, it should be used deliberately rather than simply as a way to bypass a loss limit.
Equity or Balance: Which Should Be Used?
COPYLATOR allows the drawdown calculation to be based on either:
EQUITY
or
BALANCE
The difference is important.
Equity-Based Drawdown
Equity includes floating profit and loss.
Therefore, if an open position is currently losing money, that floating loss can contribute to the drawdown calculation.
This can provide a more immediate risk-control mechanism.
Balance-Based Drawdown
Balance reflects the account result after trades have been closed.
Floating profit and loss does not affect the balance until positions are closed.
Therefore, Balance-based drawdown and Equity-based drawdown can produce different results while trades are open.
COPYLATOR allows the trader to choose the appropriate calculation method through the DrawdownBasedOn parameter.
Drawdown Protection and Lot Management Work Together
Drawdown protection should not be confused with lot management.
They perform different functions.
Lot management controls how much exposure is created.
Drawdown protection controls what happens when account losses reach predefined limits.
COPYLATOR provides several lot-management options, including:
- Fixed lot
- Lot multiplier
- Balance-ratio scaling
- Maximum lot limitation
These can be combined with Drawdown Protection to create multiple layers of risk management.
For example, a trader could use balance-ratio scaling to reduce the copied volume on a smaller Receiver account while also setting a maximum daily and total drawdown.
This is generally more robust than relying on a single risk-control mechanism.
A Practical Example for a Prop Firm Account
Consider a $10,000 Receiver account.
| Setting | Example |
|---|---|
| EnableDrawdownProtection | true |
| CloseOrdersOnDrawdown | true |
| MaxDailyDrawdownPercent | 5% |
| MaxTotalDrawdownPercent | 10% |
| DrawdownBasedOn | EQUITY |
| Daily Reset | Broker/server-defined reset time |
The Sender can continue generating trades normally.
The Receiver independently monitors its own account.
If the Receiver reaches the configured daily or total drawdown threshold, COPYLATOR can intervene rather than blindly continuing to copy every new Sender trade.
This is particularly useful when several Receiver accounts follow the same Sender but have different balances or risk requirements.
Drawdown Protection in Multi-Receiver Setups
One of the strongest use cases is a multi-account environment.
Imagine one Sender connected to:
- Receiver 1
- Receiver 2
- Receiver 3
- Receiver 4
- Receiver 5
Each Receiver can have its own account balance and risk characteristics.
A drawdown event on one Receiver does not necessarily mean that every other Receiver should stop operating.
This makes independent Receiver-side protection valuable when using one-to-many MT5 trade copying.
COPYLATOR supports one-to-many, many-to-one, and many-to-many configurations, allowing traders to build more complex MT5 account structures.
Drawdown Protection Is Not a Trading Strategy
It is important to understand what Drawdown Protection does—and what it does not do.
It does not predict the market.
It does not determine whether EURUSD, XAUUSD, GBPUSD, or another instrument will rise or fall.
It does not turn a losing strategy into a profitable strategy.
Instead, it provides a risk-control layer around the copying process.
The objective is simple:
If the Receiver account reaches a predefined loss condition, the system should stop allowing the account to take unlimited additional copied risk.
That makes Drawdown Protection a risk-management feature rather than a trading strategy.
Why This Matters When Choosing an MT5 Trade Copier
When comparing MT5 trade copiers, traders often focus on copying speed, symbol mapping, lot management, SL/TP synchronization, and the number of supported accounts.
Those features are important.
But for multi-account trading, the question of what happens when something goes wrong can be equally important.
A professional MT5 trade copier should not only replicate trades accurately—it should also provide mechanisms for controlling the risk created by that replication.
COPYLATOR combines trade replication with Receiver-side Drawdown Protection, flexible lot management, real-time SL/TP synchronization, automatic Hedging/Netting detection, symbol mapping, and multi-Sender/Multi-Receiver support.
For traders managing personal accounts, multiple MT5 accounts, or prop firm accounts, this creates an additional layer of control between the trading strategy and the capital being exposed.
Conclusion
Drawdown Protection is one of the most useful risk-management features that can be added to an MT5 Trade Copier.
Instead of allowing the Receiver account to continue copying regardless of its own performance, the system can monitor daily and total drawdown and react when predefined limits are reached.
With COPYLATOR, traders can choose between Equity or Balance-based monitoring, configure daily and total drawdown limits, close positions when required, delete pending orders when closing is enabled, block new copying, and use automatic or manual reset mechanisms.
The result is a trade-copying environment where synchronization and risk management work together rather than operating as completely separate systems.
Product link:
https://www.mql5.com/en/market/product/191385
