Buffer Finder MT5

Buffer Finder MT5

Is a custom technical Utility for MetaTrader 5, designed to inspect and analyze buffers of other indicators for EA integration, signal detection, or debugging.

Feel free to join my Telegram Channel

Key Features

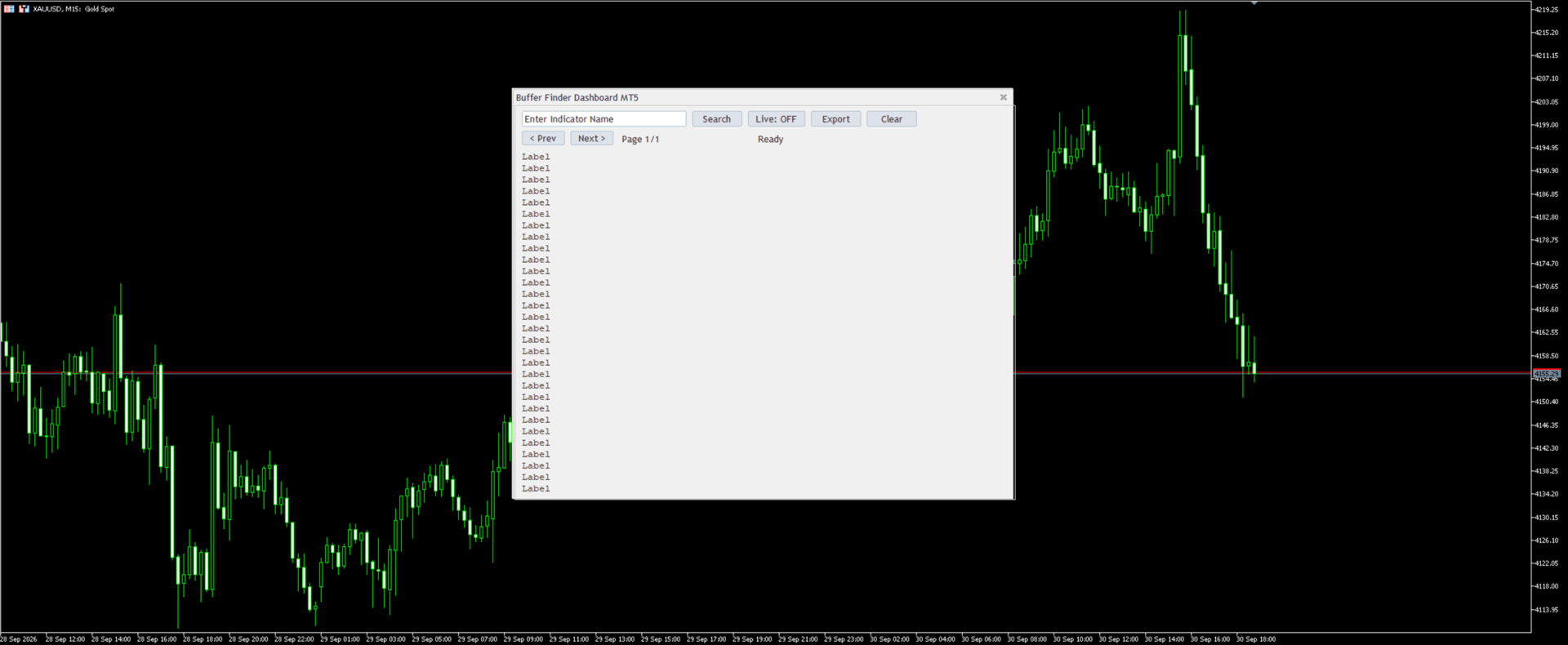

• User-Friendly Dashboard: Input an indicator name and click "Search" to scan the chart or load it dynamically via iCustom from standard folders (Indicators, Market, Examples).

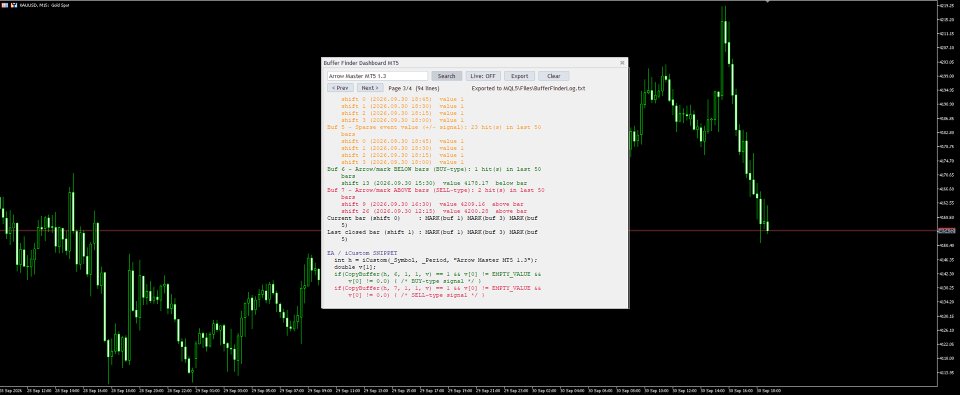

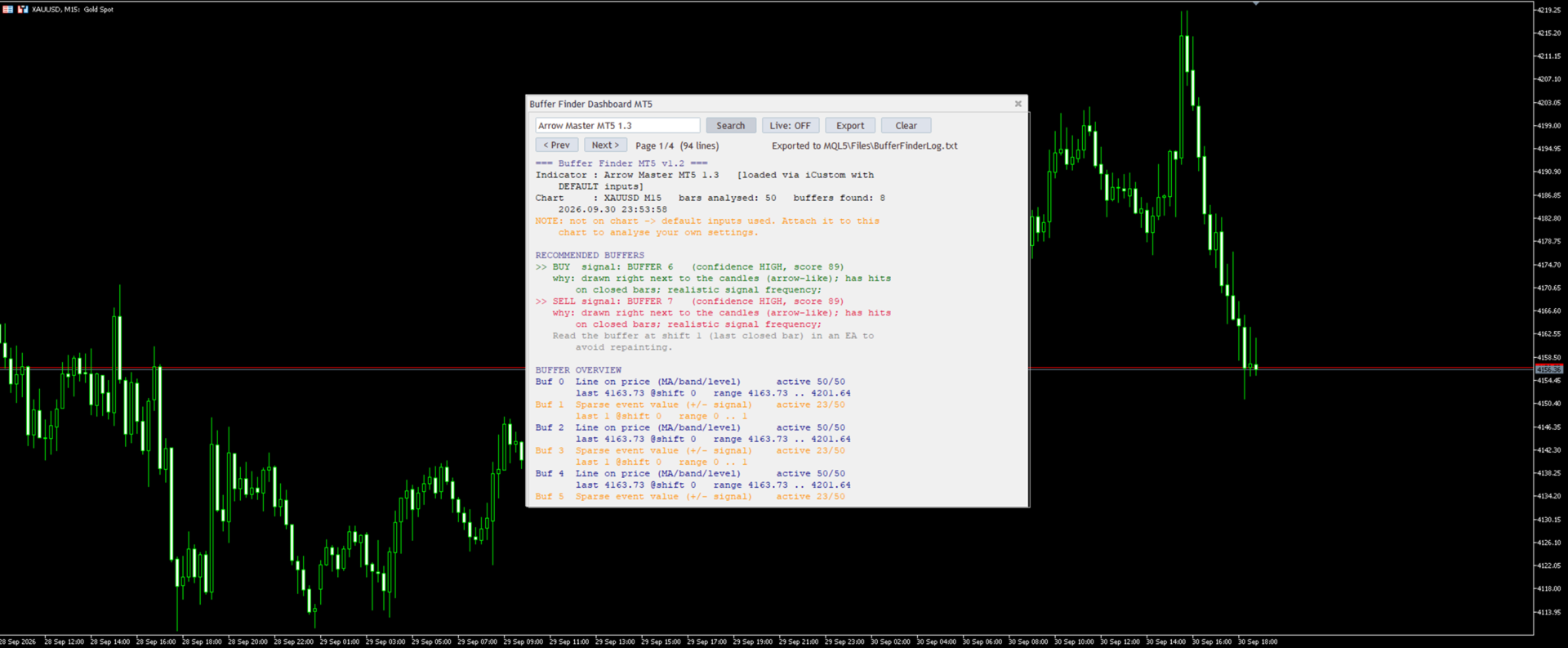

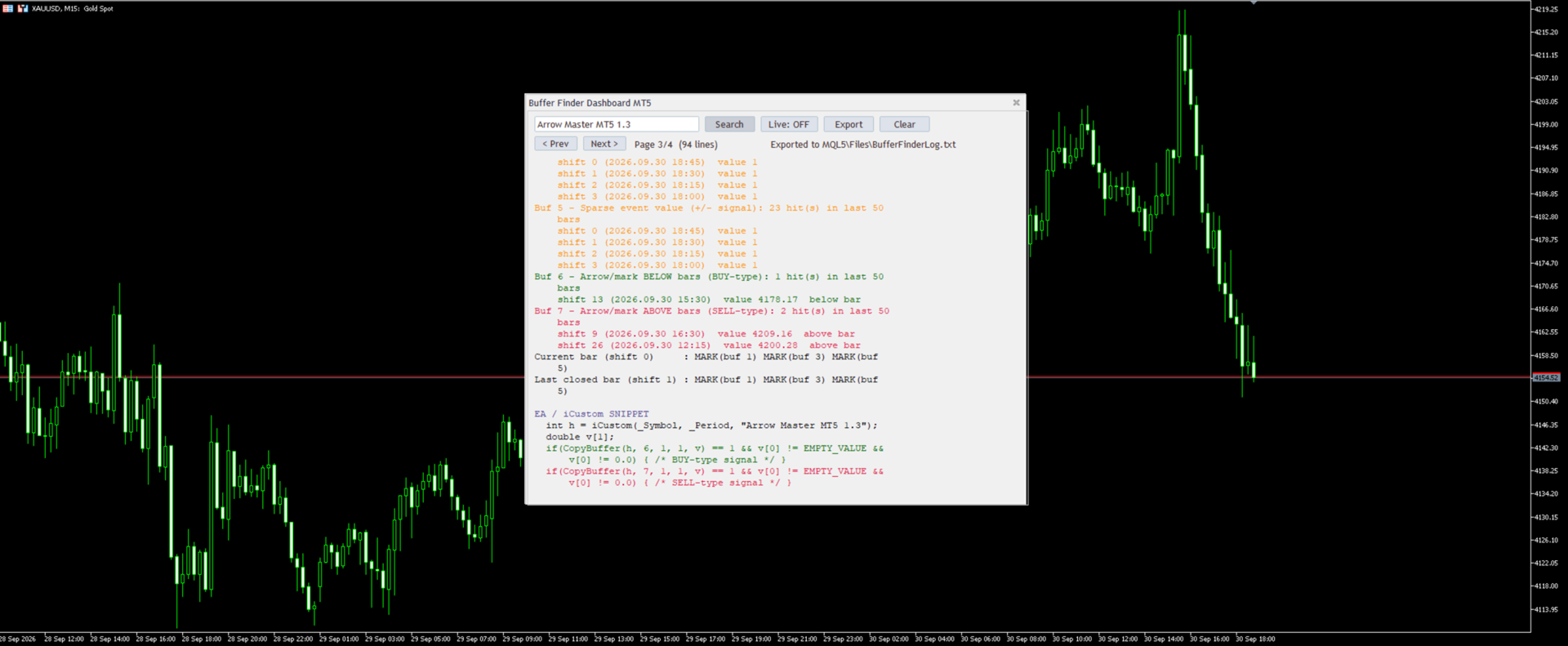

• Buffer Inspection: Extracts and displays data for recent bars (default: 5), checking up to 30 buffers; highlights potential color buffers (0-32 integers) or arrow/signal buffers (sparse non-empty values).

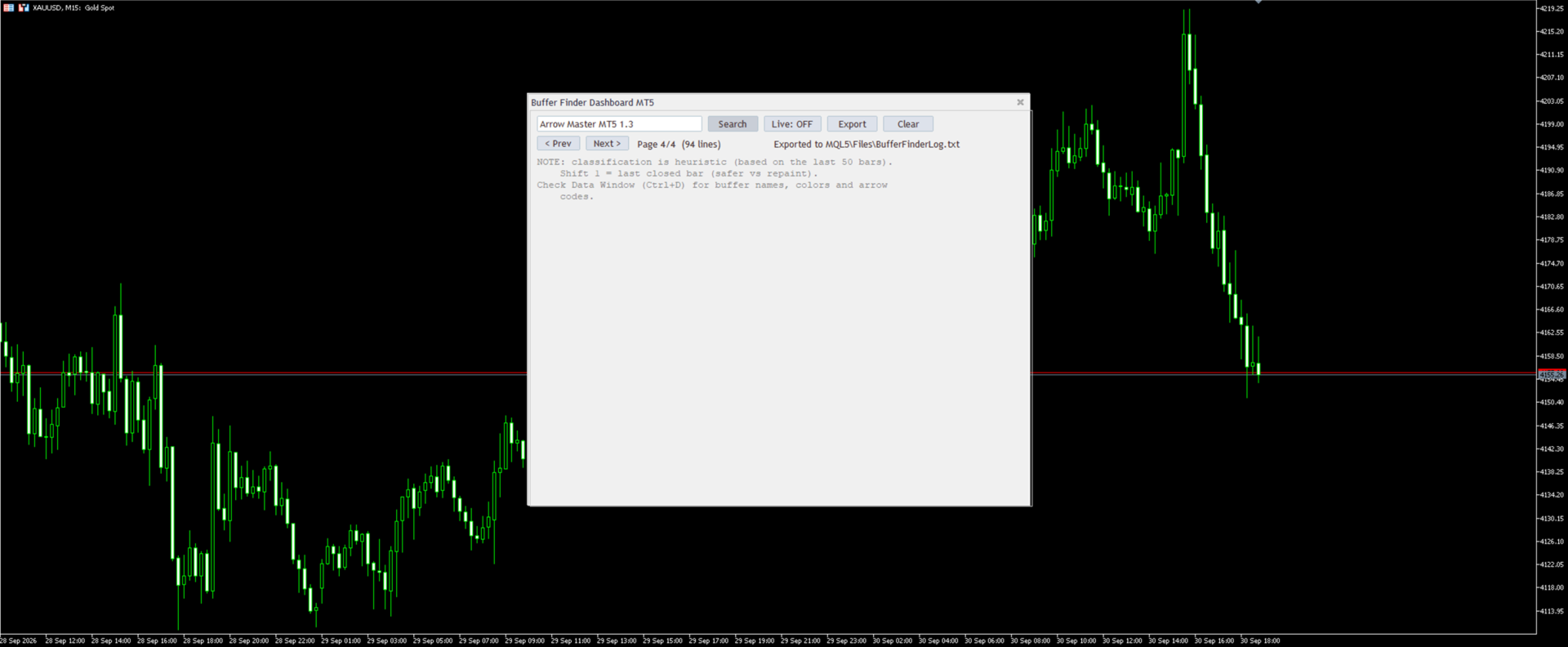

• Signal Detection: Suggests likely buy/sell patterns and advises checking visuals in the Data Window (Ctrl+D).
• Customization Options: Adjustable position, size, font, background color, max result lines; auto-resizes for optimal display.

Perfect for developers building EAs, troubleshooting indicators, or exploring data structures.

Note: Uses default parameters for dynamic loads..

         Buffer Finder is not updating or reading buffers in the Strategy Tester.

Settings Description

BarsForAnalysis (int, default: 5):
Number of recent bars to analyze and display buffer data for.

DashboardBackgroundColor (color, default: clrLightGray):
Background color of the dashboard panel.

LabelFontSize (int, default: 10):
Font size for labels and text in the dashboard.

DashboardX (int, default: 300):
Horizontal (X-axis) position of the dashboard on the chart.

DashboardY (int, default: 100):
Vertical (Y-axis) position of the dashboard on the chart.

DashboardWidth (int, default: 600):
Initial width of the dashboard window (auto-adjusts as needed).

DashboardHeight (int, default: 700):
Initial height of the dashboard window (auto-adjusts as needed).

MaxResultLines (int, default: 30):
Maximum number of result lines (labels) to display in the dashboard.

LabelPadding (int, default: 20):
Extra padding added to label widths for better text fitting.
