Three MACD Filters on US_TECH100: Five Years of Broker Data

Introduction

I have been looking at charts for more than twenty years, and I have been programming in MQL5 for about ten. It took me almost a decade of programming to feel that I understood what I was doing, rather than just copying patterns from other people's code. Two years ago something clicked, and since then I have been building my own tools instead of buying them.

One thing that bothered me for years is how often vendors sell "improved MACD" indicators by stacking filters on top of the classic crossover logic. They stack regime filters, higher-timeframe alignment, and session windows. The pitch is always the same: these filters transform a noisy MACD into a reliable system. I have bought several of these over the years and studied their results. My suspicion was that most of the improvement was either cherry-picked or the filters were doing less than the pitch suggested.

So I used real broker H1 data for US_TECH100, ran the raw MACD crossover strategy, and then added each filter one at a time to measure the impact on the results. There are no opinions and no narratives, just closed trades, win rates, and expectancy over five years.

The result surprised me. The filter everyone talks about the least is the one that moved the needle the most. Two of the three "standard" filters barely changed anything when used alone. Below is the full breakdown, with the MQL5 code so you can reproduce it on your own data.

The article targets two audiences: traders new to systematic analysis, and developers who want the full MQL5 implementation and results. Both should leave with the same conclusion: on this particular instrument and timeframe, conventional wisdom about MACD filters is not supported by the data.

The Setup

The data comes from AvaTrade and was exported to CSV using a forensic export script that reads directly from the broker's H1 feed. Period: April 2021 to April 2026. Total bars: 29,646. Symbol: US_TECH100 (a Nasdaq-100 CFD).

The choice of broker-native data matters more than most people realize. If you backtest on third-party data (Dukascopy, Tickdata, historical CSV packs) and then trade live on another broker, the gap between backtest and live performance is often blamed on slippage or spreads. In reality, much of the gap comes from feed differences: bar construction, weekend gaps, and intraday noise patterns. To avoid this, all tests in this article use data exported directly from the broker where any live deployment would run.

The baseline strategy is minimal on purpose:

• Buy when MACD histogram crosses from negative to positive
• Sell when MACD histogram crosses from positive to negative
• Stop loss at 2.5 times the 14-period ATR
• Take profit at 3.0 times the 14-period ATR
• Maximum holding period: 48 bars (if neither SL nor TP is hit, close at market)

MACD settings are the classic 12-26-9. Nothing exotic. The point of the exercise is to measure the marginal impact of each filter on this baseline, not to optimize the baseline itself.

I normalize risk per trade to 1R so I can compare results across 2,000+ trades without position-sizing distortions. A TP hit yields +1.2R (3.0 ATR vs 2.5 ATR SL); an SL hit yields -1.0R. This way the comparison across configurations is about which filter set produces the best risk-adjusted flow of trades, independent of account size or leverage.

The Four Configurations Tested

I tested four configurations in sequence:

1. Raw MACD: every crossover is a signal, no filter
2. Regime filter: only trade when market is in TREND or NORMAL regime (not RANGE or VOLATILE), classified via ADX and rolling ATR percentiles
3. Regime + HTF alignment: regime filter plus the requirement that price is aligned with the long-term trend (above EMA200 for buys, below for sells)
4. Regime + HTF + Session filter: the previous filters plus the requirement that the signal fires during the main US trading hours (14:00 to 20:00 broker time, which covers the NYSE regular session)

Each configuration adds to the previous one. So configuration 4 has all three filters active simultaneously. This incremental structure is important: it lets us isolate the marginal impact of each filter, rather than testing them as a single bundle.

A common mistake in vendor-backed studies is to compare "raw vs everything" and claim the delta as evidence that the filter set works. That does not tell you which filter in the set is doing the work. It could be that one filter carries all the edge and the others are cosmetic. Or it could be that the filters cancel each other out and only one of them matters. By layering them one at a time, we can see exactly what each filter contributes.

Results: The Full Comparison

Here is the complete table for five years of data on the same instrument and entry logic; only the filters change:

Configuration	Trades	Win Rate	Expectancy	Profit Factor	Max Drawdown
Raw MACD	2,213	46.5%	+0.017R	1.03	-28.8R
+ Regime	1,634	46.1%	+0.013R	1.02	-33.4R
+ Regime + HTF	794	45.8%	+0.007R	1.01	-29.6R
+ Regime + HTF + Session	195	50.3%	+0.100R	1.20	-9.7R

Let me translate what this means for a trader reading the table.

The raw MACD on US_TECH100 is not as bad as some people paint it. With 2.5/3.0 ATR stops, over five years it produces a barely positive expectancy of +0.017R per trade and a profit factor just above break-even. You would not get rich with it, but it is not pure noise either. That is an honest starting point that many vendor pitches conveniently omit.

Adding the regime filter alone did almost nothing. It removed 579 trades (26% of the flow), but the surviving trades have similar win rates and expectancies. The maximum drawdown even got slightly worse, which is an uncomfortable result, but it is what the data shows. This contradicts what many vendors claim about regime filters.

Adding HTF alignment on top of the regime filter made things slightly worse again. Another 840 trades are removed, and the expectancy drops to +0.007R, effectively break-even. The 'trade with the trend' rule did not add edge here, at least on H1 using EMA200 as the trend definition.

The session filter is what changed everything. Restricting trading to the main US session removed another 599 trades, leaving only 195 over five years (about 40 per year). But those 195 trades have a +0.100R expectancy, a profit factor of 1.20, and a maximum drawdown three times smaller than the raw version.

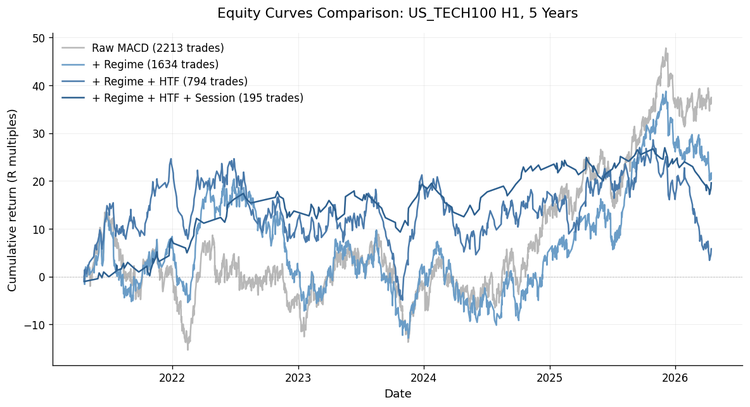

Figure 1. Cumulative R multiples for the four configurations over five years of US_TECH100 H1 data

The equity curves illustrate this visually. Notice how the raw MACD (gray) and the two intermediate configurations (light and medium blue) produce similar shapes: choppy, with deep drawdowns, marginally positive over the full period. The session-filtered curve (dark blue) behaves differently: smoother, shallower drawdowns, fewer trades, but each trade contributes more.

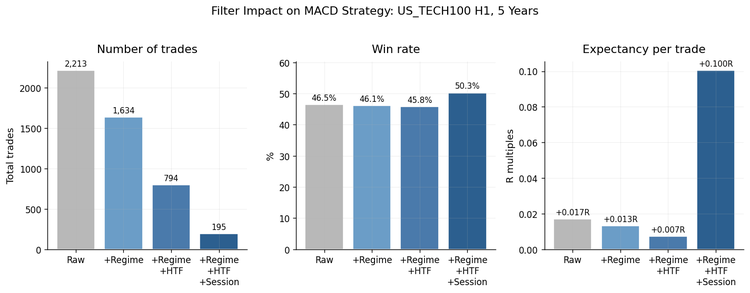

Figure 2. Trade count, win rate, and expectancy per trade across the four configurations

The Regime Breakdown Nobody Talks About

When I broke down the raw MACD performance by regime, I found something that contradicts the standard narrative even more. Here is what the raw MACD did in each regime, without any filters:

Regime	Trades	Win Rate	Expectancy
TREND	1,199	45.6%	+0.005R
NORMAL	435	47.4%	+0.036R
RANGE	78	42.3%	-0.069R
VOLATILE	501	48.5%	+0.042R

The standard wisdom is: MACD works in TREND, fails in RANGE, and is unreliable in VOLATILE conditions. The data says something different.

Yes, RANGE is the worst regime (the only one with negative expectancy). The filter was correct to cut those trades.

But VOLATILE was the highest-performing regime for the raw MACD, not the worst. Higher win rate, higher expectancy than any other category. And TREND, the regime where MACD is supposed to shine, produced the lowest positive expectancy of the four.

I do not have a clean theoretical explanation for this. My working hypothesis is that VOLATILE conditions on TECH100 often correspond to strong directional moves (earnings reactions, Fed days, tech sector shocks) where the MACD crossover captures the directional impulse effectively. Meanwhile, "TREND" by ADX definition can include slow, grinding moves where crossovers happen late and mean-revert frequently.

What this means practically: the regime filter I built filters out VOLATILE, which turns out to be the second most profitable regime. That is why the regime filter alone does not help. It is throwing away good trades along with the bad ones.

This is the kind of discovery that only shows up when you run real data. Theory-based articles about regime filters would never surface this. After twenty years of trading and reading strategy literature, I have come to believe that this gap between theory and empirical result is the norm, not the exception.

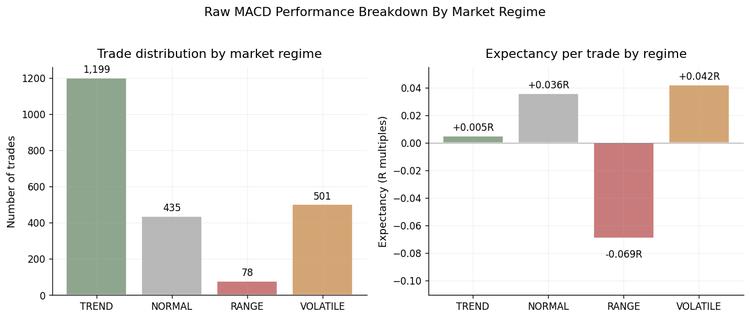

Figure 3. Raw MACD trade distribution and expectancy broken down by market regime

The Session Filter: Why It Worked

The session filter is conceptually the simplest of the three: only trade between 14:00 and 20:00 broker time, which covers the main US session. Nothing about market structure, nothing about ADX thresholds. Just a time window.

And yet it was the only filter that produced a meaningful improvement. From a profit factor of 1.01 (regime + HTF) to 1.20 (all three combined). From a drawdown of -29.6R to -9.7R. From an expectancy of +0.007R to +0.100R, a six-fold improvement.

My interpretation is that outside the main US hours, liquidity on TECH100 is thinner, spreads are wider, and a disproportionate share of "crossover signals" occur during low-conviction overnight drift. Those signals tend to mean-revert before hitting the 3.0 ATR target, so the raw strategy accumulates small losses. Cut those hours, and the quality of the remaining signals is noticeably higher.

This matches what institutional desks already know: execution quality and signal reliability are a function of liquidity. Retail traders tend to underweight this because they focus on the indicator math and ignore the microstructure. The data on TECH100 suggests that session timing is more important than any combination of statistical filters on the indicator itself.

I want to emphasize that this finding is instrument-specific. The session filter window that works for TECH100 would be very different for EUR/USD (which has London liquidity peaks) or for Crude Oil (which has its own pit hours and API release effects). The principle transfers, but the specific parameters do not.

Implementing the Regime Classifier in MQL5

For readers who want to reproduce this, here is a compact regime classifier in MQL5. This is a simplified version of what I use, enough to replicate the classifications shown above.

//+------------------------------------------------------------------+
//|                                             RegimeClassifier.mqh |
//|                                                   Marcelo Borasi |
//|                                                                  |
//| Location: MQL5/Include/MBorasi/RegimeClassifier.mqh              |
//|                                                                  |
//| Simple 4-state market regime classifier based on ADX and         |
//| adaptive ATR percentiles. See the companion article for          |
//| methodology and empirical results.                               |
//+------------------------------------------------------------------+
#property copyright "Marcelo Borasi"
#property version   "1.00"

//+------------------------------------------------------------------+
//| Market regime enumeration                                        |
//+------------------------------------------------------------------+
enum ENUM_REGIME
  {
   REGIME_TREND,
   REGIME_NORMAL,
   REGIME_RANGE,
   REGIME_VOLATILE
  };

//+------------------------------------------------------------------+
//| Class for classifying market regime                              |
//+------------------------------------------------------------------+
class CRegimeClassifier
  {
private:
   int               m_adx_handle;
   int               m_atr_handle;
   int               m_lookback;     // rolling window for ATR percentile
   double            m_adx_trend_th; // ADX above this = TREND candidate
   double            m_adx_range_th; // ADX below this = RANGE candidate

public:
                     CRegimeClassifier(void) : m_adx_handle(INVALID_HANDLE),
                     m_atr_handle(INVALID_HANDLE),
                     m_lookback(500),
                     m_adx_trend_th(25.0),
                     m_adx_range_th(20.0) {}

   //+------------------------------------------------------------------+
   //| Initialization method                                            |
   //+------------------------------------------------------------------+
   bool              Init(string symbol, ENUM_TIMEFRAMES tf,
                          int adx_period = 14, int atr_period = 14,
                          int lookback = 500,
                          double trend_th = 25.0, double range_th = 20.0)
     {
      m_adx_handle = iADX(symbol, tf, adx_period);
      m_atr_handle = iATR(symbol, tf, atr_period);
      if(m_adx_handle == INVALID_HANDLE || m_atr_handle == INVALID_HANDLE)
         return(false);
      m_lookback = lookback;
      m_adx_trend_th = trend_th;
      m_adx_range_th = range_th;
      return(true);
     }

   //+------------------------------------------------------------------+
   //| Classify current regime at the given bar shift                   |
   //+------------------------------------------------------------------+
   ENUM_REGIME       Classify(int shift = 0)
     {
      double adx[];
      if(CopyBuffer(m_adx_handle, 0, shift, 1, adx) <= 0)
         return(REGIME_NORMAL);

      double atr[];
      if(CopyBuffer(m_atr_handle, 0, shift, m_lookback, atr) <= 0)
         return(REGIME_NORMAL);

      double close_now = iClose(_Symbol, _Period, shift);
      if(close_now <= 0)
         return(REGIME_NORMAL);

      double atr_pct_now = 100.0 * atr[m_lookback - 1] / close_now;

      double atr_pcts[];
      ArrayResize(atr_pcts, m_lookback);
      for(int i = 0; i < m_lookback; i++)
        {
         double c = iClose(_Symbol, _Period, shift + m_lookback - 1 - i);
         atr_pcts[i] = (c > 0) ? 100.0 * atr[i] / c : 0.0;
        }
      ArraySort(atr_pcts);
      double p20 = atr_pcts[(int)(m_lookback * 0.20)];
      double p80 = atr_pcts[(int)(m_lookback * 0.80)];

      double adx_now = adx[0];

      if(atr_pct_now > p80)
         return(REGIME_VOLATILE);
      if(adx_now > m_adx_trend_th)
         return(REGIME_TREND);
      if(adx_now < m_adx_range_th && atr_pct_now < p20)
         return(REGIME_RANGE);
      return(REGIME_NORMAL);
     }

   //+------------------------------------------------------------------+
   //| Release indicator handles                                        |
   //+------------------------------------------------------------------+
   void              Release(void)
     {
      if(m_adx_handle != INVALID_HANDLE)
         IndicatorRelease(m_adx_handle);
      if(m_atr_handle != INVALID_HANDLE)
         IndicatorRelease(m_atr_handle);
     }
  };
//+------------------------------------------------------------------+

This class uses two indicator handles (ADX and ATR) and a rolling window of 500 bars to compute adaptive percentiles of volatility. The classification logic is intentionally transparent. You can read each condition and understand what it means. Tune the thresholds to match your instrument.

To use it in an EA or indicator:

#include <MBorasi/RegimeClassifier.mqh>

CRegimeClassifier regime;

//+------------------------------------------------------------------+
//| Initialization function of the expert                            |
//+------------------------------------------------------------------+
int OnInit()
  {
   if(!regime.Init(_Symbol, _Period))
      return(INIT_FAILED);
   return(INIT_SUCCEEDED);
  }

//+------------------------------------------------------------------+
//| Deinitialization function of the expert                          |
//+------------------------------------------------------------------+
void OnDeinit(const int reason)
  {
   regime.Release();
  }

//+------------------------------------------------------------------+
//| Function-event handler "tick"                                    |
//+------------------------------------------------------------------+
void OnTick()
  {
   ENUM_REGIME current = regime.Classify(0);
   if(current == REGIME_RANGE)
      return;   // skip this signal
// ... rest of strategy logic
  }
//+------------------------------------------------------------------+

Nothing magical here. The value is in the data-driven calibration, not the code. The 25/20 ADX thresholds and the 20th/80th ATR percentile cutoffs are what I arrived at after testing on the TECH100 data. On a different instrument, you would calibrate these differently.

A practical tip for anyone implementing this: the rolling ATR percentile calculation is more expensive than it looks. On every new bar, we re-sort the last 500 ATR-percent values, which is O(n log n). On liquid symbols, where OnTick can fire many times per bar, this overhead can become meaningful. The simplest optimization is to compute the classification once per bar (in OnTimer or on the first tick of a new bar) and cache the result.

How to Use the Companion Script

This article is accompanied by two MQL5 files attached below. Together they allow any reader to reproduce the analysis on their own broker's data in a few minutes.

File 1: RegimeClassifier.mqh is the include file containing the CRegimeClassifier class shown in the code section above. It has no dependencies outside of MetaTrader 5 standard functions.

File 2: MACD_Filter_Backtest.mq5 is a script that loads the historical bars from the chart it runs on, applies the four progressive filter configurations described in this article, and prints the resulting metrics to the Experts log. It also writes a CSV file with the complete trade list for further analysis.

Installation:

1. Place RegimeClassifier.mqh in MQL5/Include/MBorasi/. Create the MBorasi subfolder if it does not exist.
2. Place MACD_Filter_Backtest.mq5 in MQL5/Scripts/.
3. In MetaEditor, open the script and compile it. It should compile without warnings.
4. In MetaTrader 5, open an H1 chart of the symbol you want to test (US_TECH100 recommended to reproduce the article's numbers).
5. Drag the script from the Navigator onto the chart.
6. A dialog appears with the input parameters. Click OK to accept defaults, or adjust them first.

Output: The script runs in a few seconds and prints the full results to the Experts log at the bottom of MetaTrader 5. Results are also exported to MQL5/Files/MACD_Backtest_[Symbol]_[Period]_BACKTEST.csv  for further analysis in Excel or Python.

Why a script and not an Expert Advisor: The analysis runs once over all available historical bars and produces a static report. A script is the appropriate MQL5 object type for this kind of offline, one-shot analysis. An Expert Advisor would add continuous tick processing overhead that serves no purpose here. A custom indicator would display values on the chart but cannot export CSV or drive the multi-configuration comparison cleanly.

How I Ran the Backtest

The backtest methodology matters because it determines whether the numbers you see are real or curve-fitted artifacts. My protocol:

Data source. Broker-native OHLC exported directly from AvaTrade's H1 feed. Not Dukascopy, not CSV packs from third-party vendors. This matters because when you deploy a strategy live, you will be trading the same broker's data feed. Backtesting on a different feed often produces numbers that do not hold up live.

Bar count. 29,646 H1 bars over 5 years. Enough to cover multiple market regimes: the 2022 bear market, the 2023 grind higher, the 2024 AI rally, the 2025 volatility expansion, and the early 2026 activity.

Trade simulation. For each signal, simulate forward bar by bar. Check if SL hit (close at -1R), if TP hit (close at +1.2R), or timeout at 48 bars (close at market). Pessimistic assumption: on bars where both SL and TP could have been hit within the same bar, assume SL was hit first. This is standard practice in conservative backtesting and typically understates performance slightly.

Expectancy normalization. All trades are expressed in R multiples so the analysis is scale-independent. This also means the results hold regardless of the account size you would apply them to.

Baseline assumptions. The baseline assumes no slippage and no commissions. I kept this pure to isolate the filter effect. Real trading would reduce all four configurations by roughly the same amount, which does not change the relative comparisons. A rough estimate for TECH100: 2 to 3 points of spread per round trip, which at 2.5 ATR stop translates to approximately 0.05R of frictional cost per trade. Over 2,213 trades that is 110R of cumulative friction, enough to flip the raw MACD from barely profitable to marginally losing. This reinforces the point that the raw strategy is not a viable system in practice.

This is not the most sophisticated backtest in the world. It does not include Monte Carlo of trade sequences, walk-forward optimization of the regime thresholds, or parameter sensitivity analysis across a grid. But it is honest, reproducible, and based on real broker data. The MQL5 code and the CSV files to reproduce it fit in under 300 lines total.

What These Filters Do Not Solve

A few things worth stating explicitly, because I do not want anyone reading this to think I am selling a system.

Even the fully filtered configuration (all three filters) produces only a +0.100R expectancy per trade and a 50.3% win rate. This means that:

• You need to take many trades for the edge to materialize. 40 per year on a single instrument is not going to pay the rent.
• Losing streaks are statistically certain. The data shows a streak of 8 consecutive losses at one point. You need the discipline to keep trading after that.
• A 1.20 profit factor is thin. Small changes in spread, execution, or market regime can push it below 1.0 in future data.
• Commissions and spreads on live trading can easily eat 30-50% of the expectancy shown in the backtest. At +0.050R expectancy after friction, a bad month can erase a whole year of gains.
• The results are specific to TECH100 H1 with these exact SL/TP settings. Change any of those, and the ranking of filters may flip.

Filters do not create alpha; they reduce noise around whatever signal you already have. If the underlying signal is weak, filtering it will not rescue it. In this case, the MACD crossover on TECH100 H1 has a small positive edge, and the session filter turns it from "barely exists" into "visible but modest."

The lesson I took from this exercise, after all the years of looking at charts and writing code: the microstructure context (when you trade, not just what you trade) often matters more than the indicator refinements we obsess over. Twenty years ago I would have spent six months optimizing MACD periods. Now I run the data and see that the session window moves the expectancy six times more than the indicator tuning.

The other lesson, which is harder to accept for someone who loves programming: most of what is sold as "advanced filtered MACD" in the commercial market does not survive rigorous empirical testing on broker-native data. This is not a conspiracy; it is just that vendors test on sanitized data, and retail traders rarely verify on their own feeds. The effort to verify is small compared to the cost of trading a flawed system for a year.

Next Steps for Readers

If you want to extend this analysis on your own data, here is what I would suggest in order of value.

First, run the same backtest on your broker's feed for US_TECH100 H1. Compare your numbers to mine. If they differ significantly, your broker's data feed or spread behavior is the variable, not the strategy. This single exercise will teach you more about your broker than a year of passive trading.

Second, change the session window. Try 14:30 to 20:00 (NYSE regular cash session) versus 13:00 to 22:00 (broad US including pre-market and after-hours). The expectancy will move. This sensitivity analysis is more valuable than any parameter tuning on the MACD itself.

Third, test on a different instrument. Gold, S&P 500, and Dow Jones behave differently from Nasdaq-100 despite correlating intraday. My expectation based on trading these instruments is that the ranking of filter effectiveness will change. Session filtering may still dominate on US indices, but on Gold the HTF filter may carry more weight due to the different volatility profile.

Fourth, add a divergence filter as a fourth condition. My results on Helix (my own indicator) suggest that divergence-confirmed crossovers tend to be higher quality, but I did not include that in this article to keep the comparison clean. It is the logical next filter to investigate.

Fifth, do not fit the parameters to the test period. Split the data in half, fit on the first half, and evaluate blind on the second. If your numbers hold up, you have something robust. If they collapse on the second half, you were curve-fitting without realizing it.

The regime classifier code above and the backtest methodology are enough to run all of this yourself. If you do, I would be genuinely interested to hear your results on other instruments. The community of rigorous empirical testers in MQL5 is small, and it could use more members.

A Note on What I Built

I spent the better part of two years refining the full version of this logic into a compiled indicator for personal use and, eventually, for sale. It adds a few more filters that I deliberately did not include in this article (the adaptive threshold calibration, the anti-whipsaw cooldown, and a more careful session handling across different broker time zones). The result is published on the MQL5 Market as Helix MACD for traders who prefer a ready-made implementation over building and calibrating it themselves.

I mention it here for completeness, not as the point of the article. The point of the article is the data and the code above. Anyone can reproduce the results and verify them.

Conclusion

The three-filter combination on a MACD crossover strategy produces meaningful improvement over the raw version, but not in the way most vendor pitches suggest. Regime filtering alone did nothing measurable. HTF alignment alone did nothing measurable. The session filter did most of the work.

The practical takeaway from five years of data on TECH100 H1 is this: if you are going to trade MACD crossovers on US indices, the single most important parameter is not the MACD settings or the regime logic. It is what hours of the day you let the system fire. Everything else is marginal.

This goes against the complexity-sells-more bias of the indicator market. But the data is what the data is.

If I had read this article twenty years ago, I would have saved myself a lot of time optimizing indicator parameters that turned out not to matter. The newer developer reading this now has an advantage that I did not have: access to cheap data, fast laptops, and a development environment (MQL5) that lets you test hypotheses in hours instead of weeks. Use it to verify claims rather than accept them.

All code referenced in this article is attached below. The following table describes the source code files that accompany the article.

#	Name	Description
1	RegimeClassifier.mqh	Include file containing the CRegimeClassifier class. Provides 4-state market regime detection (TREND, NORMAL, RANGE, VOLATILE) using ADX and adaptive ATR percentile thresholds. Should be placed in MQL5/Include/MBorasi/ before compiling the script
2	MACD_Filter_Backtest.mq5	Standalone script that reproduces the full backtest from the article. Iterates over all available historical bars on the chart, applies the four progressive filter configurations (raw MACD, +Regime, +Regime+HTF, +Regime+HTF+Session), and reports complete metrics to the Experts log. Also exports a detailed CSV file to MQL5/Files/ for further analysis
