Confluence Dashboard MT4 is a dashboard indicator for MetaTrader 4. One row per symbol shows six checks (EMA, ADX, MACD, RSI, SuperTrend, UT Bot) and a BUY, SELL or WAIT verdict, with alerts.
You choose how many checks must agree before the verdict turns BUY or SELL, so you see at a glance which symbols line up on one timeframe.

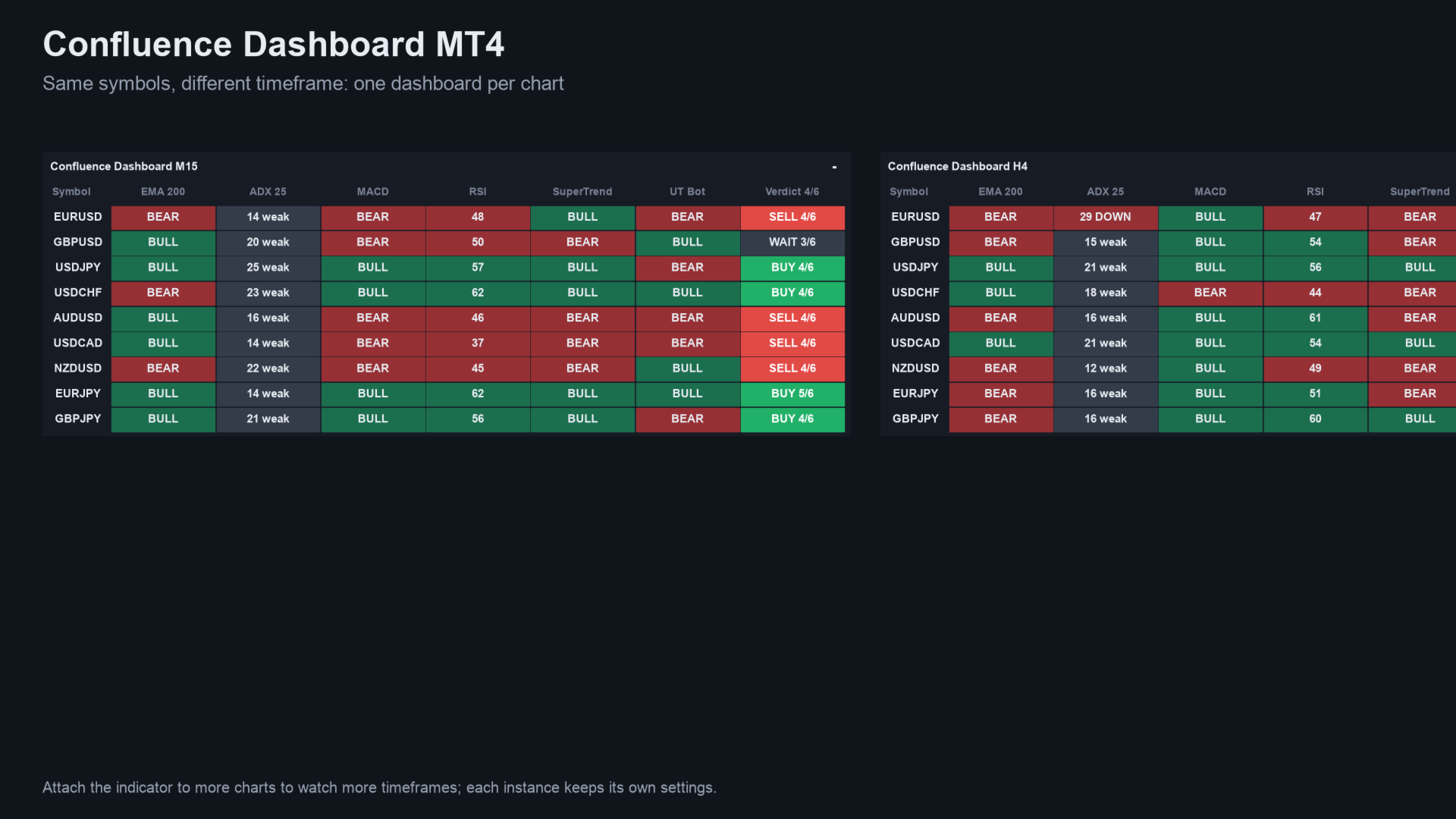

It places no orders and does not repaint. Rows use closed bars only, and one copy shows one timeframe.
Standalone: everything is built in. You do not need to buy or install any other product named on this page.
MetaTrader 4 edition: the same calculation, panel, inputs, alerts and buffers as the MetaTrader 5 version. The dashboard can use any of the nine MetaTrader 4 timeframes (M1, M5, M15, M30, H1, H4, D1, W1, MN1).
Quick start
- Attach the indicator to any chart. It shows the timeframe set in its inputs (H1 by default).
- Choose the symbols: the Market Watch (default) or "My list". Up to 30 are shown by default.
- Set how many columns must agree (4 by default) and switch off any column you do not want to count.
- The pop-up alert is on. Turn on sound, push or e-mail in the Alerts inputs.

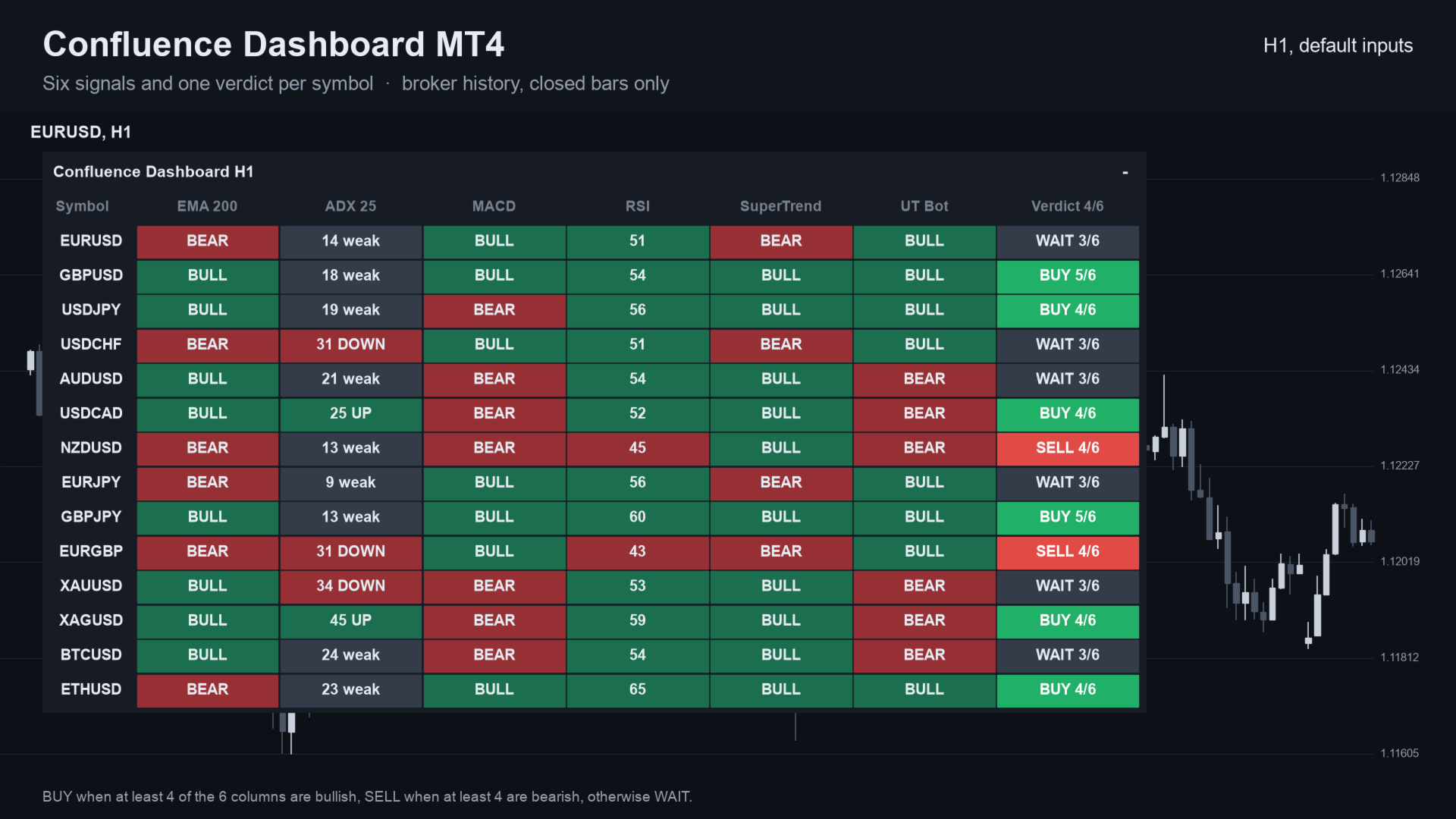

What you see on the chart
- One row per symbol, one column per check.
- A last column with the verdict and the count, for example "BUY 5/6".

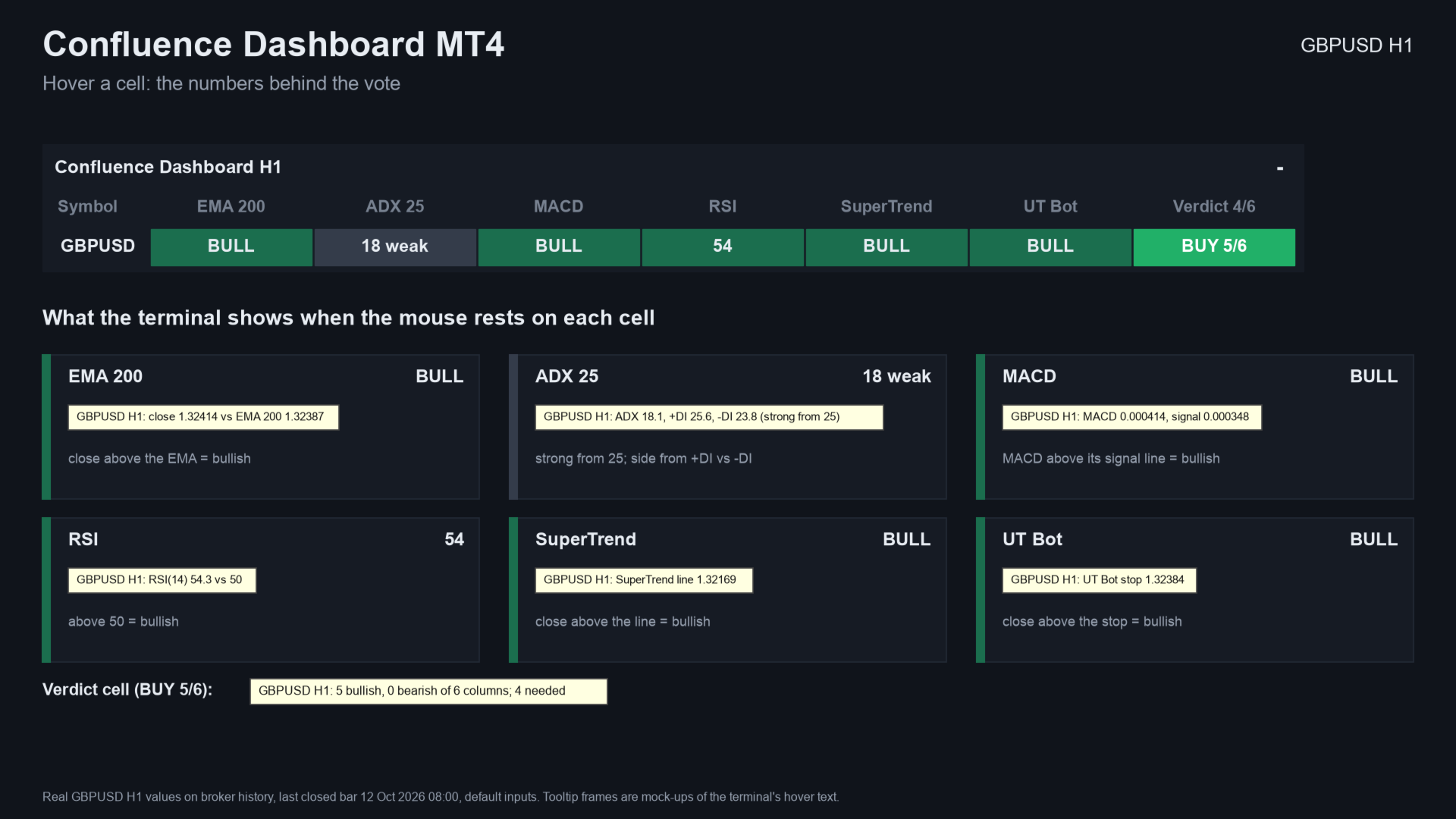

- A tooltip on each cell with the numbers behind it.
- Click a row to open that symbol.

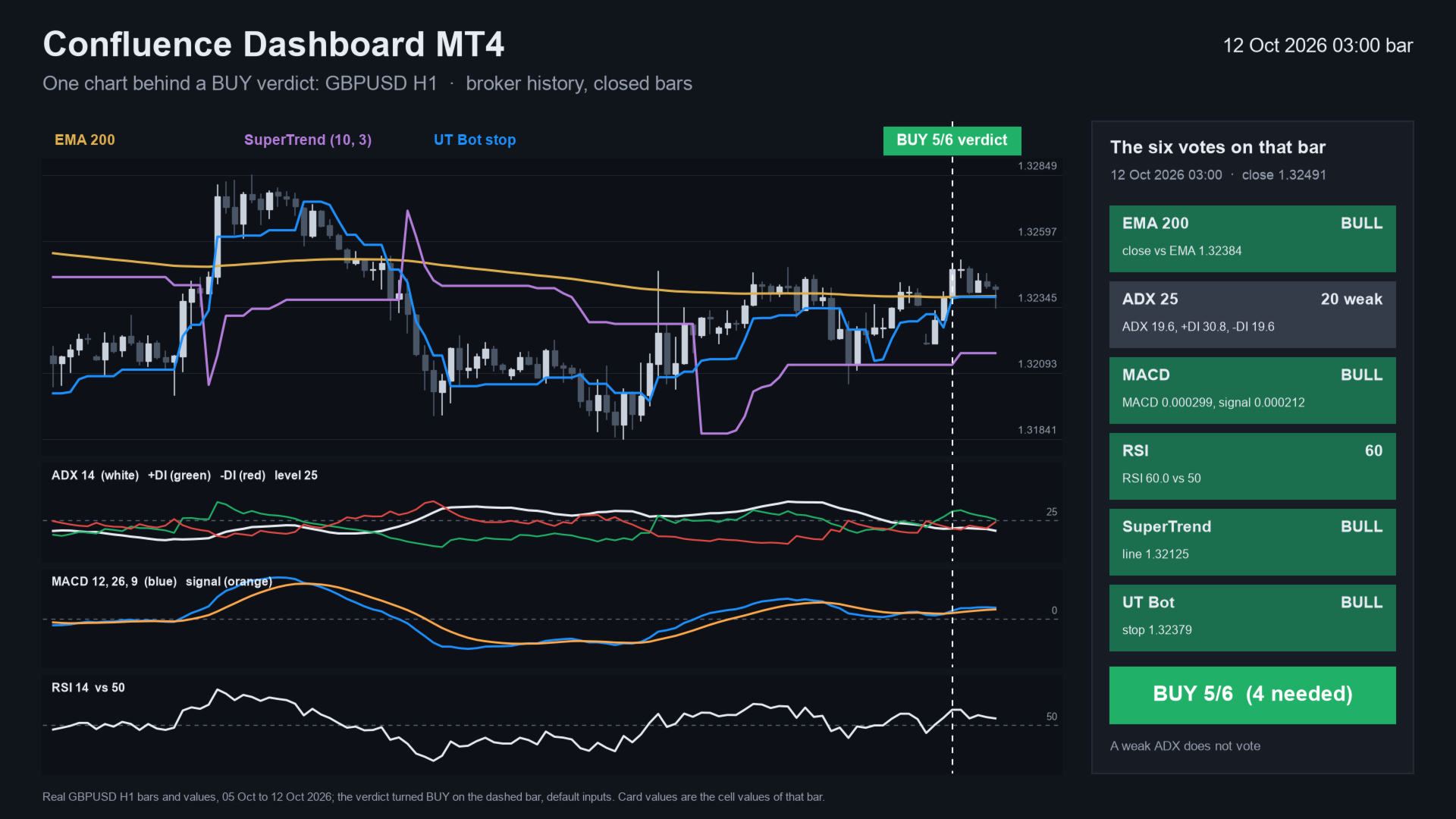

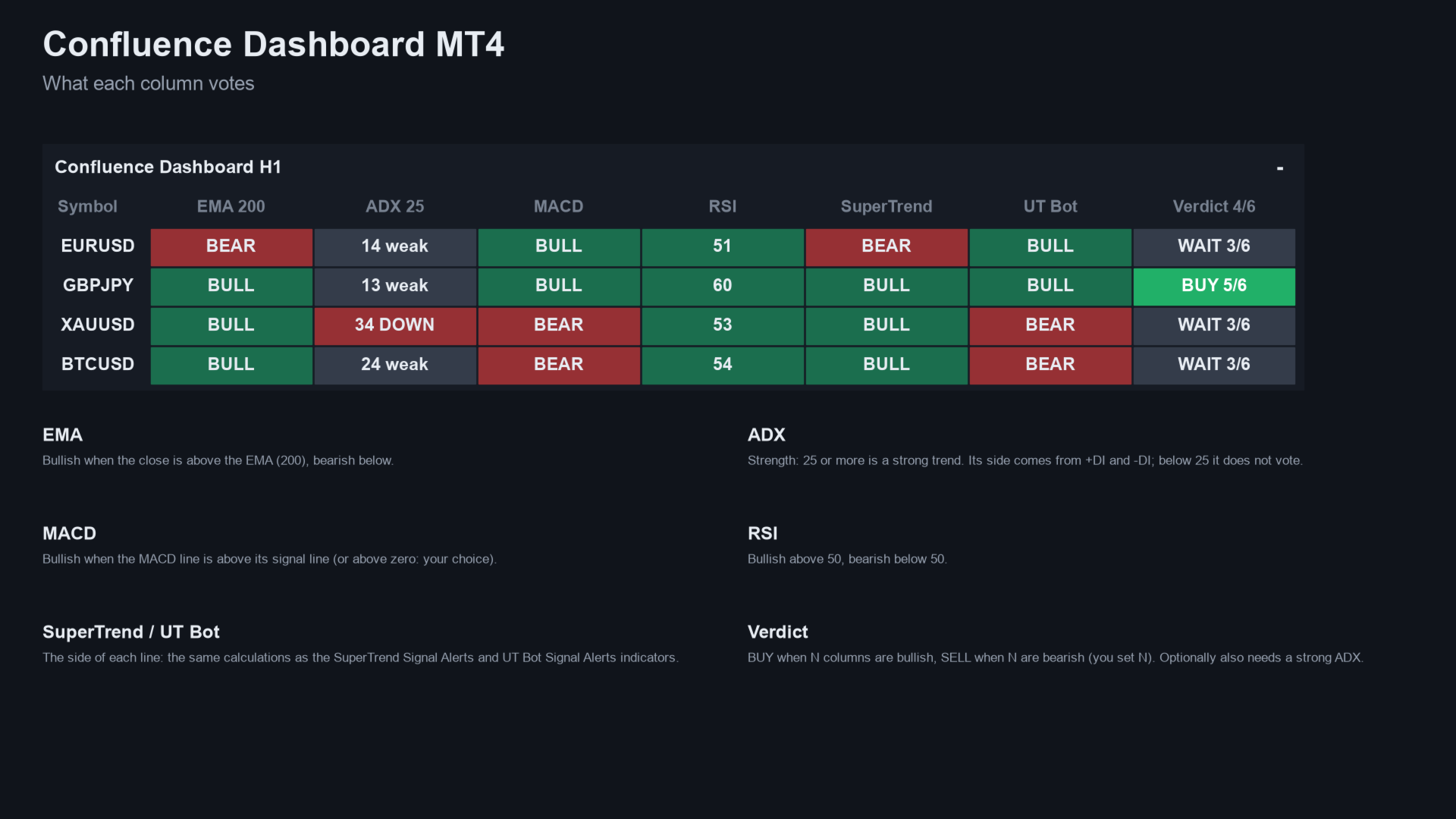

What each column votes
- EMA: bullish when the close is above the EMA (200), bearish below.
- ADX: from the level (25) up, the side of +DI against -DI. Below it the column says "weak" and does not vote. Wilder's ADX, as TradingView's DMI.
- MACD: the line (12, 26) above or below its signal line (9), or above or below zero.
- RSI (14): above or below 50.
- SuperTrend: the side of the line (ATR 10, multiplier 3), as in SuperTrend Signal Alerts MT4.
- UT Bot: the side of the trailing stop (key value 1, ATR 10), as in UT Bot Signal Alerts MT4.
How the verdict is built
The dashboard counts the bullish and bearish columns among those switched on. BUY needs at least your number of bullish columns and more bullish than bearish. SELL is the mirror. Anything else is WAIT. An optional rule also asks for a strong ADX. Only closed bars are used, so a verdict is fixed once its bar has closed.
Who it is for
For traders who want to see several indicators agree across many symbols.

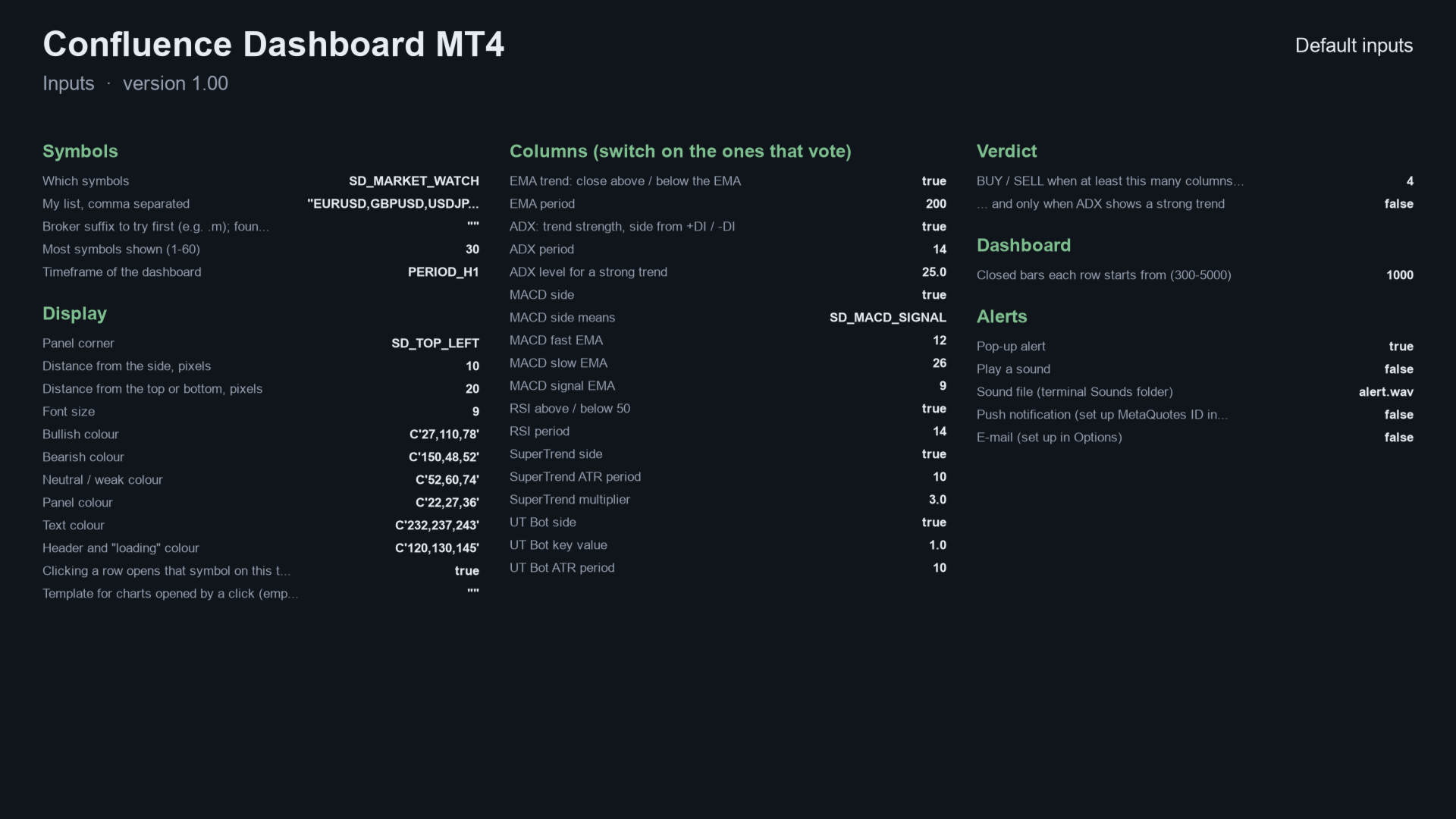

Inputs
| Input | Default |
|---|---|
| Which symbols, My list, Most symbols shown (30) | Market Watch or your own list |
| Timeframe of the dashboard | H1 |
| EMA on / period | on / 200 |
| ADX on / period / level | on / 14 / 25 |
| MACD on / fast / slow / signal | on / 12 / 26 / 9 |
| RSI on / period | on / 14 |
| SuperTrend on / ATR / multiplier | on / 10 / 3.0 |
| UT Bot on / key value / ATR | on / 1.0 / 10 |
| BUY / SELL when at least this many columns agree | 4 |
| Also require a strong ADX | off |

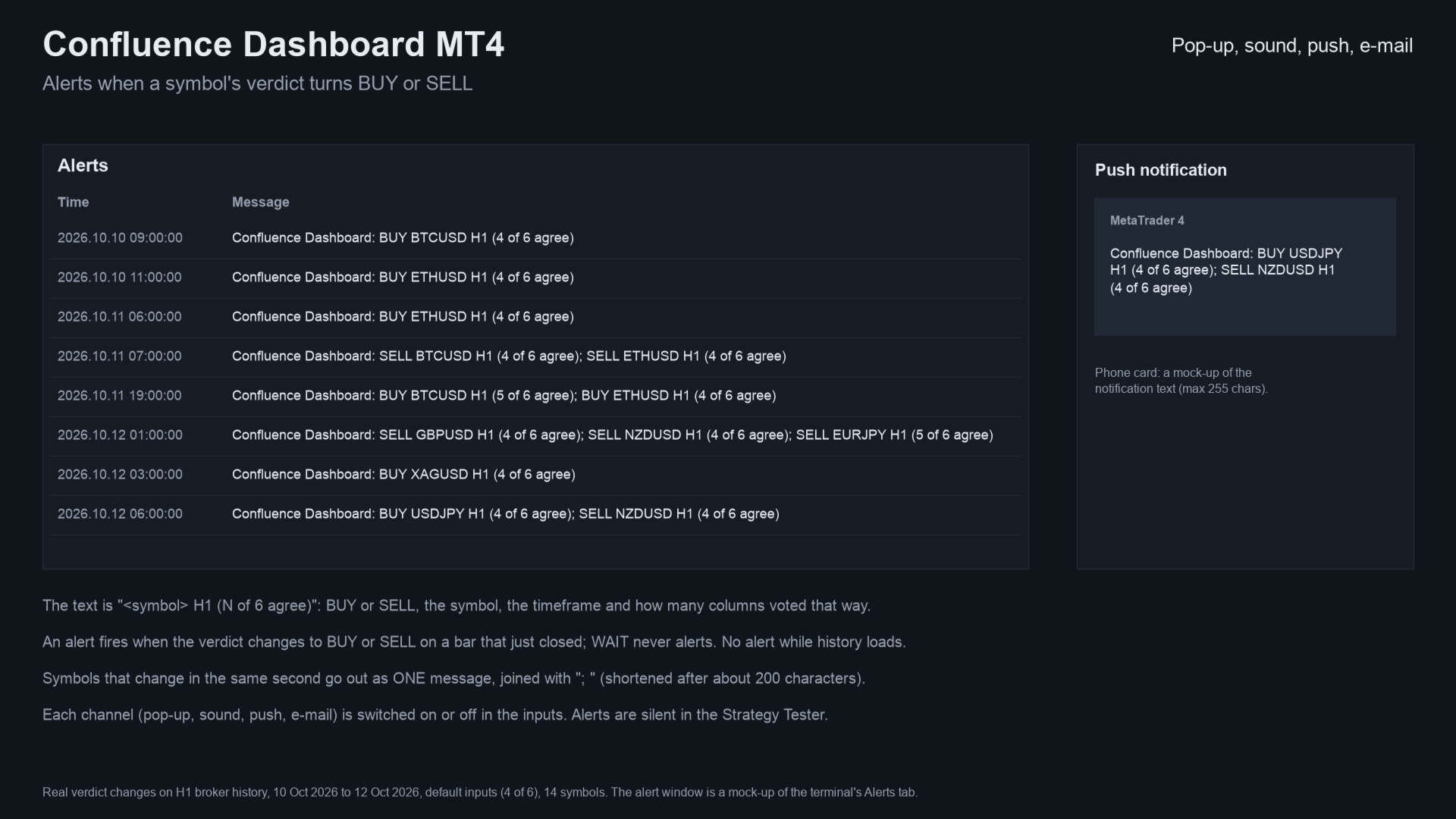

Alerts and Expert Advisors
An alert is sent when a symbol's verdict changes to BUY or SELL on a closed bar. Pop-up (on), sound, push and e-mail, each switched separately. Never twice for the same symbol and bar.
Buffer 0 holds the number of symbols with BUY, buffer 1 the number with SELL, on the newest bar.

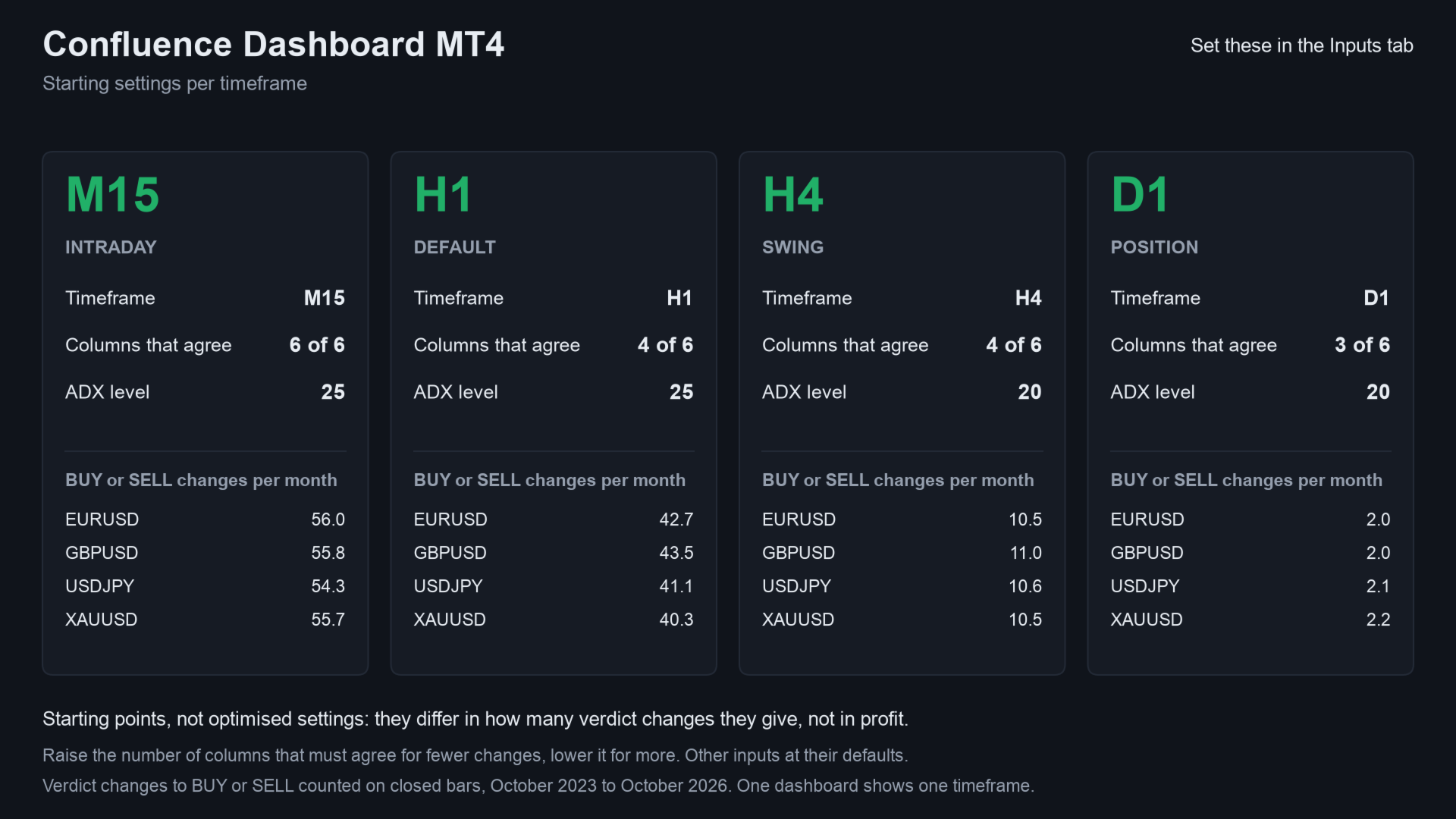

Starting settings
Presets by timeframe. They change how often the verdict flips, not profit, and none is optimised. Changes to BUY or SELL per month on EURUSD, GBPUSD, USDJPY and XAUUSD, October 2023 to October 2026, closed bars (a code calculation, not a trading result).
| Timeframe | Columns that agree | ADX level | Changes per month |
|---|---|---|---|
| M15 | 6 of 6 | 25 | about 54 to 56 |
| H1 | 4 of 6 (default) | 25 | about 40 to 44 |
| H4 | 4 of 6 | 20 | about 10 to 11 |
| D1 | 3 of 6 | 20 | about 2 |
Requiring more columns to agree gives fewer changes. The other inputs stay at their defaults.
How it was checked
- Code check: in the MetaTrader 4 Strategy Tester, 24,177,956 cell and verdict values were compared bar by bar with an independent Python calculation. The test used 156 files: EURUSD, GBPJPY, XAUUSD and BTCUSD on M15, H1, H4 and D1, with three settings. In a run through the test period, every row used only bars that had closed. After start-up, the BUY and SELL counts of the dashboard matched on all 35,966,034 checks.
- The frequency table comes from the same calculation on broker history. No trading results are claimed.
Related products
- Confluence Dashboard: the same dashboard for MetaTrader 5.
- UT Bot Signal Alerts MT4: its UT Bot column uses the same calculation.
- SuperTrend Signal Alerts MT4: its SuperTrend column uses the same calculation.
- UT Bot Scanner Pro MT4: the UT Bot rule for many symbols and timeframes in one panel.
- All my products on MQL5
Questions
- Does it repaint? No. Rows use closed bars only.
- Can I try it first? The Strategy Tester demo shows the panel in visual mode.
- Why WAIT when most columns agree? Your number of columns is not reached, or a weak ADX does not vote.
- Does it work on gold and crypto? Yes, on any symbol with history.
- Is it the same as UT Bot Scanner Pro MT4? No. The scanner shows one rule across many timeframes. This shows several rules and a verdict for one.
If it helps your trading, a short review on this page helps other traders find it.
Questions: use the comments on this page or send me a message on MQL5.
Trading involves risk. The dashboard shows the state of technical rules. It does not predict the market, and past signals are no indication of future results.
