SignalForge One

SignalForge One

An 11-indicator confluence system for MetaTrader 5 that combines multiple technical filters into clear entry signals, with built-in ATR-based risk management and dual dashboard display.

SignalForge One is a multi-indicator confluence tool for MetaTrader 5 designed to help traders identify high-probability entry points by requiring agreement across multiple independent indicators before generating a signal. Rather than relying on a single method, the indicator evaluates up to eleven technical conditions simultaneously and combines them using either an AND logic (all enabled indicators must agree) or an OR logic (any enabled indicator triggers a signal). Each signal is accompanied by dynamic Stop Loss, Take Profit, and Trailing Stop levels calculated from the Average True Range, so risk parameters adapt automatically to current market volatility.

Overview

SignalForge One processes eleven indicators in parallel on every closed bar: SMA Crossover, RSI filter, MACD Crossover, Supertrend, Stochastic, Bollinger Bands trend bias, EMA Crossover, Awesome Oscillator, Parabolic SAR, CCI filter, and ADX directional filter. Each indicator can be enabled or disabled independently through the input settings. When a new signal is confirmed, the indicator plots a layered glow marker below (long) or above (short) the signal bar, with three concentric circles creating a visual depth effect. Exit signals are displayed as cross markers when a position reaches its Stop Loss, Take Profit, or Trailing Stop level, or when the signal direction reverses.

The built-in backtesting engine replays the full history bar by bar on initial load. It tracks entry and exit results separately for each of the eleven indicators in standalone mode, and also tracks the combined signal as a unified system. Win rate statistics are computed in real time and displayed on the dashboard. The trailing stop is dynamic: it moves in favor of the trade as price advances, recalculating on every bar using the ATR multiplier.

How to Read the Indicator

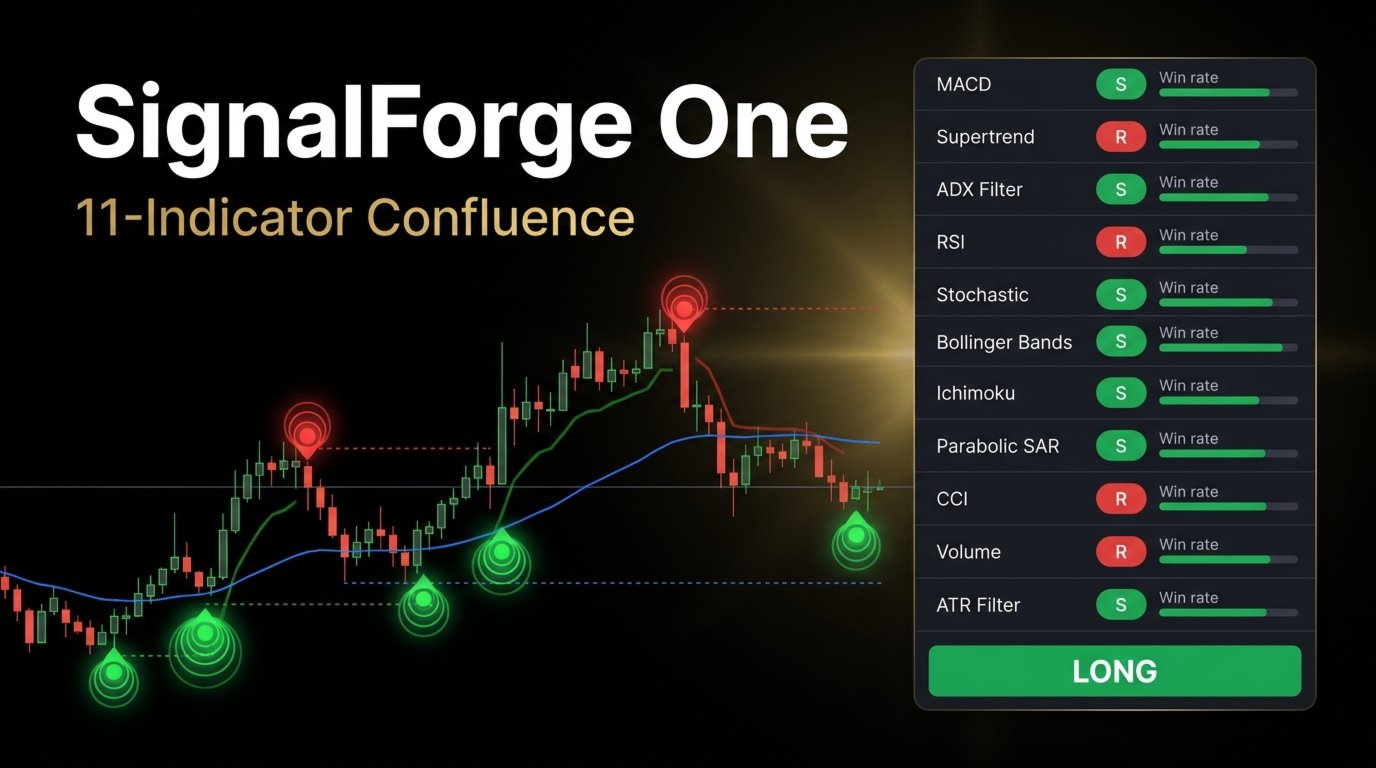

A layered green circle below a bar indicates a long entry signal. A layered red circle above a bar indicates a short entry signal. The size and intensity of the glow layers reflect the configured orb size setting. A small cross marker above the bar marks an exit from a long position; a cross below marks an exit from a short position.

Three dotted lines follow price after an entry: the red line is the Stop Loss level, the green line is the Take Profit level, and the blue solid line is the Trailing Stop. A percentage label near each entry marker shows the cumulative win rate of the combined signal at that point in history.

The on-chart dashboard lists all eleven indicators with their current directional bias (bullish, bearish, or neutral), their individual win rate from the historical backtest, and whether each indicator is currently enabled. The bottom row of the dashboard shows the current combined signal: Long, Short, or Neutral.

Key Features

• 11-indicator confluence engine: Evaluates SMA, RSI, MACD, Supertrend, Stochastic, Bollinger Bands, EMA, Awesome Oscillator, Parabolic SAR, CCI, and ADX simultaneously. Each indicator is independently configurable and can be toggled on or off without reloading.
• AND / OR signal logic: In AND mode, all enabled indicators must agree on direction before a signal is generated, reducing false entries in ranging conditions. In OR mode, any single enabled indicator can trigger a signal, increasing sensitivity for early trend detection.
• Dynamic ATR risk management: Stop Loss, Take Profit, and Trailing Stop distances are calculated as multiples of the ATR, automatically scaling to market volatility. Each multiplier is set independently through input parameters.
• Per-indicator standalone backtest: The built-in replay engine tracks trade results for each of the eleven indicators separately, allowing direct comparison of individual performance. Win rate and trade count are updated on every bar during the replay.
• Layered glow signal markers: Entry signals are rendered with three concentric arrow layers of decreasing intensity, providing clear visual separation from standard price action. Marker size and distance from the bar are adjustable.
• Real-time confluence dashboard: A canvas-rendered overlay displays the current directional status and win rate of each indicator in a structured table. The dashboard anchor position and screen coordinates are configurable.
• Custom Parabolic SAR and ADX engines: Both indicators are computed natively within the tool using Wilder smoothing, consistent with standard platform behavior, without depending on additional external indicator handles.

Recommended Use

SignalForge One is designed for use on any currency pair, index, or commodity available in MetaTrader 5. It is most effective on timeframes from M15 upward, where indicator signals carry more weight and false crossovers are less frequent. Traders focusing on trend-following strategies will find the AND mode more suitable, as it requires full agreement across all enabled indicators. Traders looking for early reversals or confirmation of momentum shifts may prefer the OR mode with a smaller set of indicators enabled.

For best results in trending markets, enabling MACD, Supertrend, and ADX together in AND mode provides a strong directional filter. In ranging or mean-reversion setups, replacing the trend filters with RSI, Stochastic, and Bollinger Bands can improve signal relevance. The indicator does not execute trades and is intended as a decision-support tool alongside the trader's own analysis.

Parameters

Signal Logic:

• Require all enabled indicators — AND mode when enabled, OR mode when disabled — Default: true

Risk Management:

• ATR length — Lookback period for ATR calculation — Default: 14
• Enable Take Profit — Activate the Take Profit level — Default: true
• Take Profit multiplier — ATR multiplier for Take Profit distance — Default: 2.5
• Enable Stop Loss — Activate the Stop Loss level — Default: true
• Stop Loss multiplier — ATR multiplier for Stop Loss distance — Default: 1.5
• Enable Trailing Stop — Activate the dynamic Trailing Stop — Default: true
• Trailing Stop multiplier — ATR multiplier for Trailing Stop distance — Default: 1.2

Visuals:

• Orb distance — Distance from bar high/low to signal marker, as ATR multiplier — Default: 1.2
• Orb base size — Pixel width of the outer glow layer (1 to 50) — Default: 8

Individual Indicators (each has an Enable toggle and relevant period or threshold inputs):

• SMA Crossover — Fast period: 10, Slow period: 20
• RSI — Period: 14, Long threshold: 50, Short threshold: 50
• MACD — Fast: 12, Slow: 26, Signal: 9
• Supertrend — Factor: 2.5, Period: 10
• Stochastic — K period: 14, D period: 3, Smoothing: 3
• Bollinger Bands — Period: 20, Multiplier: 2.0
• EMA Crossover — Fast period: 10, Slow period: 20
• Awesome Oscillator — Fixed periods 5 and 34
• Parabolic SAR — Start: 0.02, Increment: 0.02, Maximum: 0.2
• CCI — Period: 20, Long threshold: 0, Short threshold: 0
• ADX Filter — ADX smoothing: 14, DI period: 14, Threshold: 25

Dashboard:

• Show dashboard — Display the on-chart indicator panel — Default: true
• Dashboard X position — Horizontal offset from the anchor corner — Default: 10
• Dashboard Y position — Vertical offset from the anchor corner — Default: 30
• Dashboard anchor corner — Screen corner for panel placement — Default: upper left

Performance:

• Maximum history bars — Number of bars to include in the initial backtest replay (0 = all available) — Default: 2000

This indicator is a visual analysis and signal display tool. It does not place, modify, or close trades on the account. All trading decisions remain with the user. Past signal statistics displayed on the dashboard reflect historical bar calculations and do not guarantee future results.
