Indicators

Moving Averages Convergence/Divergence Indicator Blau_MACD - indicator for MetaTrader 5

| English Русский 中文 Español Deutsch 日本語 Português

Views:
6368
Rating:
votes: 14
blau_macd.mq5 (6.56 KB)view
\MQL5\Include\

Author: Andrey N. Bolkonsky

The Moving Averages Convergence/Divergence Indicator by William Blau is described in the book Momentum, Direction, and Divergence: Applying the Latest Momentum Indicators for Technical Analysis".

The Moving Average Convergence/Divergence (MACD) technical Indicator is the difference between two exponentially smoothed moving averages (EMA) (fast EMA has period s and slow EMA has period r).

The sign of MACD indicates the relative position of fast s-period EMA and slow r-period EMA. It's positive when EMA(s)>EMA(r) and negative if EMA(s)<EMA(r). The increase of the |MACD| (absolute value) indicates the divergence of moving averages, the decrease of of the |MACD| indicated the convergence of EMAs.

  • WilliamBlau.mqh must be placed in terminal_data_folder\MQL5\Include\
  • Blau_SM_Stochastic.mq5 must be placed in terminal_data_folder\MQL5\Indicators\

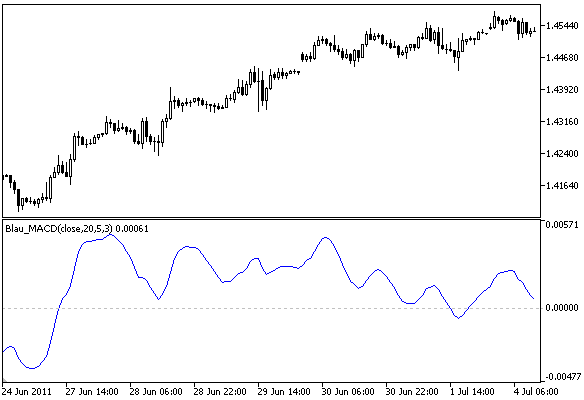

Moving Averages Convergence/Divergence by William Blau.

Moving Averages Convergence/Divergence by William Blau.

Calculation:

Moving Averages Convergence/Divergence is calculated by formula:

macd(price,r,s) = EMA(price,s) - EMA(price,r)
s < r

where:

  • price - close price of the current period;
  • EMA(price,r) - slow EMA with period r, applied to price;
  • EMA(price,s) - fast EMA with period s, applied to price.

The formula of MACD by William Blau looks as follows:

MACD(price,r,s,u) = EMA( macd(price,r,s) ,u) = EMA( EMA(price,s)-EMA(price,r) ,u)
s < r

where:

  • price - close price;
  • EMA(price,r) - 1st smoothing - slow EMA, applied to price;
  • EMA(price,s) - 2nd smoothingе - fast EMA, appled to price;
  • macd(r,s)=EMA(price,s)-EMA(price,r) - moving averages convergence/divergence;
  • EMA(macd(r,s),u) - 3rd smoothing (with period u), applied to MACD.
Input parameters:
  • r - period of the 1st EMA (slow), applied to price (by default r=20);
  • s - period of the 2nd EMA (fast), applied to price (by default s=5)
  • u - period of the 3rd EMA, applied to MACD (by default u=3);
  • AppliedPrice - price type (by default AppliedPrice=PRICE_CLOSE).
Note:
  • r>1, s>1;
  • s<r (according by William Blau, there isn't any checks in the code);
  • u>0. If u=1, smoothing is not used;
  • Min. rates =([max(r,s)]+u-2+1).

Translated from Russian by MetaQuotes Software Corp.
Original code: https://www.mql5.com/ru/code/375
