BarionQuant Multi Timeframe Confluence Signals

BarionQuant MTF Confluence generates high-probability buy/sell arrows only when multiple timeframes agree on trend direction. Built with a regime-based state machine and hysteresis filter to eliminate whipsaw signals.

How It Works

The indicator monitors three timeframes simultaneously (default: M15, H1, H4). On each timeframe, it evaluates trend direction using two conditions that must BOTH be met:

1. EMA Alignment: Fast EMA (21) above/below Slow EMA (55) determines primary trend

2. RSI Confirmation: RSI(14) must exceed the bullish threshold (55) or drop below the bearish threshold (45) to confirm momentum

A signal is generated only when at least 2 of the 3 timeframes agree on direction AND the regime state machine confirms a valid entry setup.

Key Features

• Regime State Machine: Tracks bull/bear/neutral market regimes to prevent conflicting signals on the same bar

• Hysteresis Filter: Configurable minimum vote hold (InpMinHold) prevents rapid regime flipping in choppy markets

• Closed-Bar Only Calculation: Uses fully closed higher-timeframe bars exclusively — zero repainting, zero flicker

• Auto Timeframe Resolution: If input timeframes are lower than chart period, automatically pads with higher timeframes

• Configurable Sensitivity: Adjust RSI thresholds (55/45 default), EMA periods, alignment requirement (2 or 3 TFs)

• Multi-Notification Alerts: Popup, push notification, and email alerts on new confirmed signals

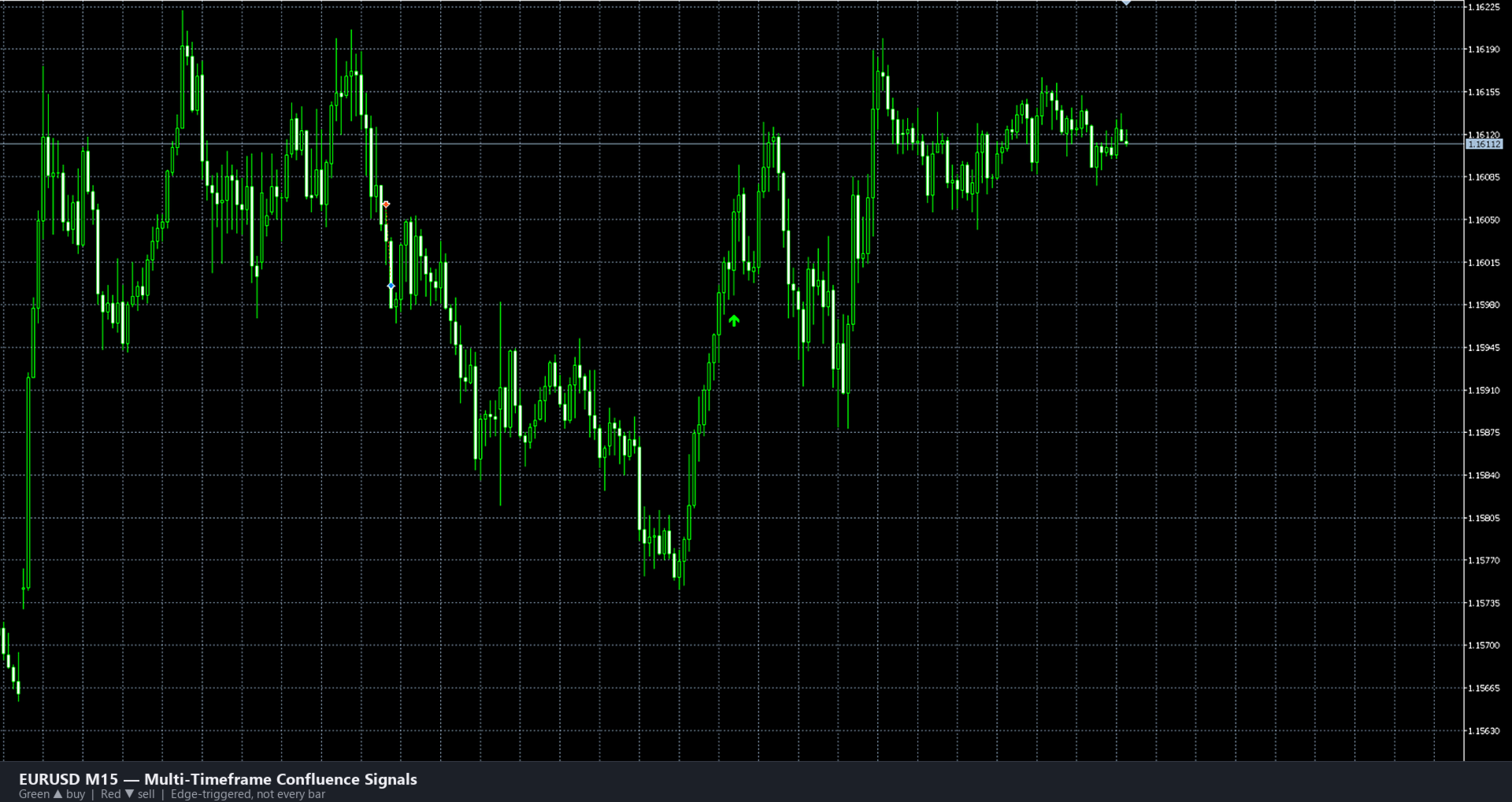

• Clean Visual Design: Buy arrows plotted below candles, Sell arrows above candles

Who Is This For?

• Swing traders seeking high-confidence multi-timeframe entries

• Traders tired of single-TF indicators generating too many false signals

• Beginners learning confluence-based analysis

• Algorithmic traders needing a non-repainting signal source for backtesting

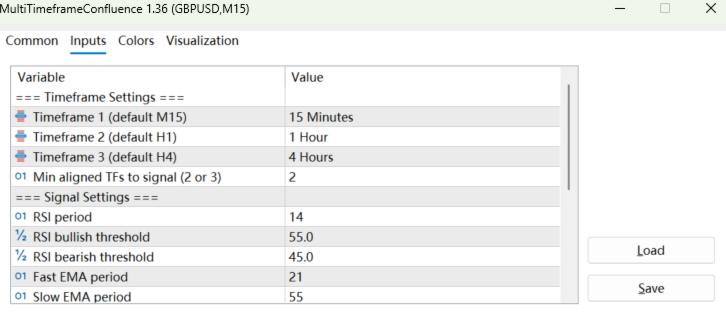

Parameters

Timeframe Settings

• Timeframe 1/2/3: Three timeframes to monitor (default: M15, H1, H4). Must be >= chart period.

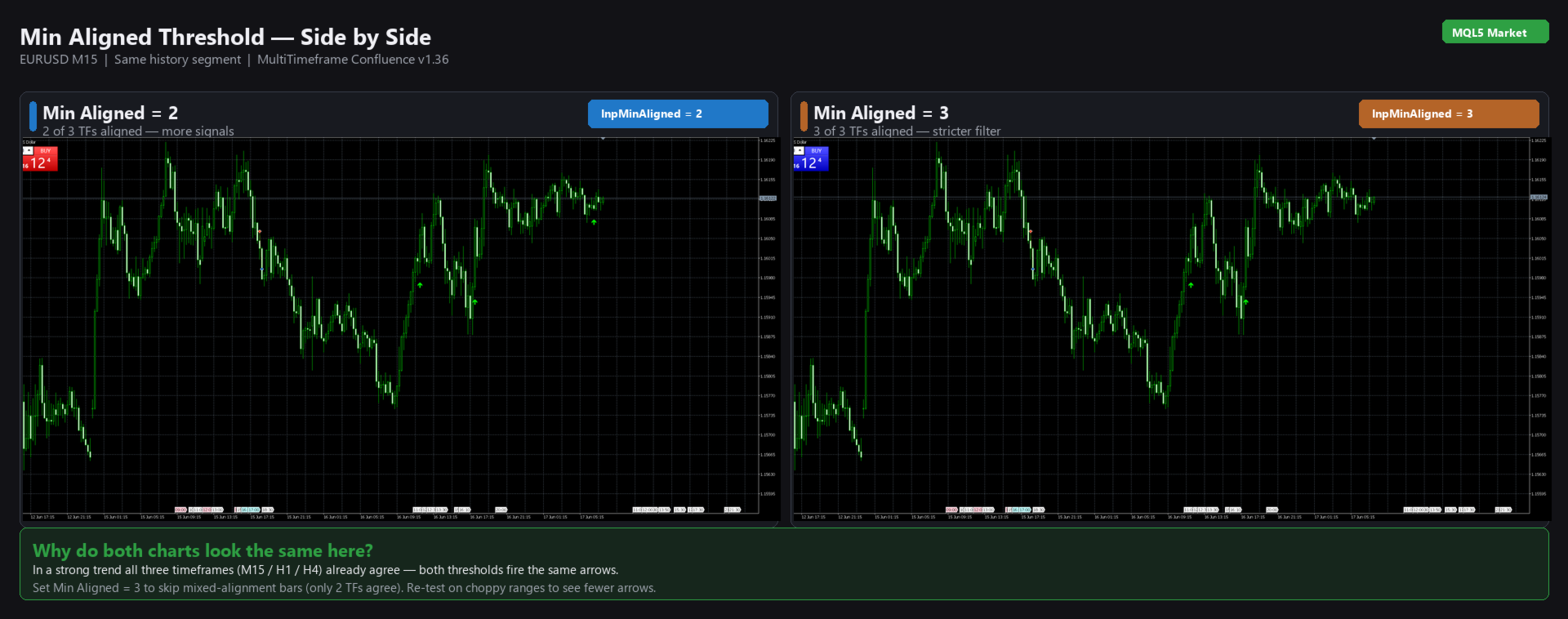

• Min Aligned TFs: Minimum timeframes that must agree to trigger a signal (2 = more signals, 3 = stricter)

Signal Settings

• RSI Period: RSI calculation period (default: 14)

• RSI Bullish Threshold: RSI value above which bullish momentum is confirmed (default: 55.0)

• RSI Bearish Threshold: RSI value below which bearish momentum is confirmed (default: 45.0)

• Fast EMA Period: Fast EMA for trend direction (default: 21)

• Slow EMA Period: Slow EMA for trend direction (default: 55)

Alert Settings

• Popup Alert: Show popup dialog on new signal (default: true)

• Push Notification: Send mobile push notification (default: false)

• Email Alert: Send email alert (default: false)

Display Settings

• Signal Lookback Bars: Number of closed bars to evaluate for regime history (default: 120)

• Min Hold Votes: Minimum bull/bear votes required to maintain current regime (hysteresis, default: 2)

• Arrow Offset: Distance of signal arrows from candlesticks in points (default: 20)

Important Notes

• This indicator is designed for swing trading on H1 and above. Lower timeframes may produce fewer signals due to the strict confluence requirements.

• Set Min Aligned TFs to 3 for maximum signal quality (all three timeframes must agree). Set to 2 for more frequent signals.

• The RSI thresholds (55/45) are intentionally set away from 50 to avoid noise. Adjust closer to 50 for more signals, further away for fewer but higher-quality signals.

• Non-repainting guarantee: All signals are calculated on fully closed bars only. Once an arrow appears, it will never disappear or move.

Tags: multitimeframe, confluence, trend-following, EMA, RSI, regime, hysteresis, non-repainting, swing-trading, BarionQuant, free
