HTF Candles MT4
- Indicatori
-
Felix Bitum
A Programmer proficient in C++, JS, Python, SQL, Java and mql4/5 and pinescript.
The market is like a rich minefield. Your tools are important in your quest to extract what you want. And I can do the following for you.
1. Craft new tools
2. Upgrade your tools
3. Modify - Versione: 1.8
- Aggiornato: 1 settembre 2025
- Attivazioni: 5

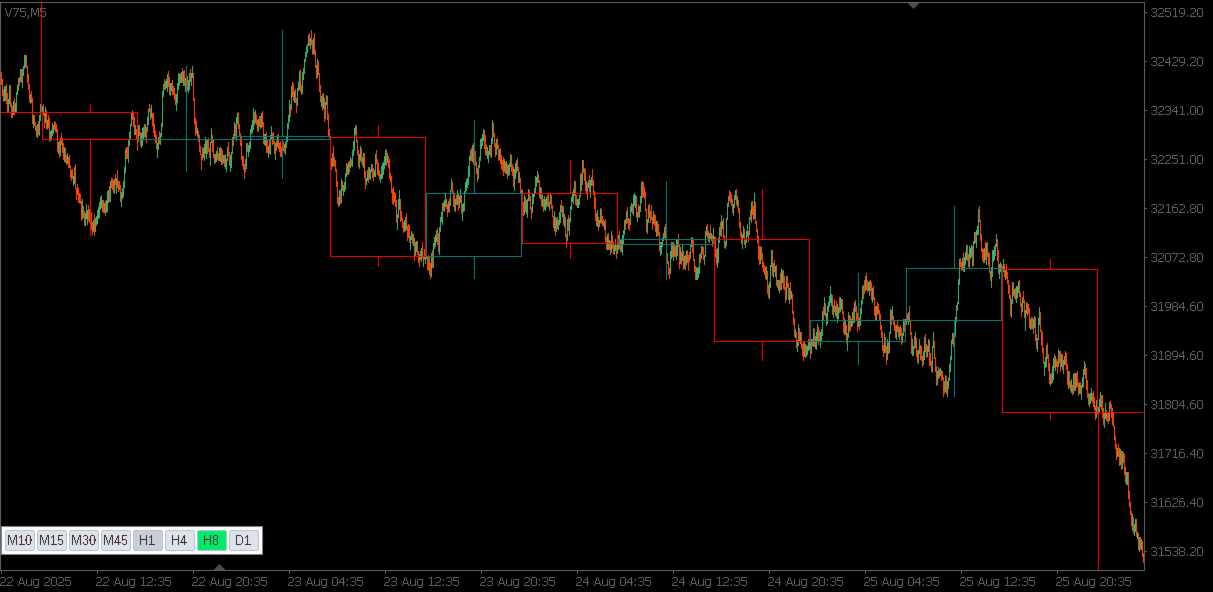

HTF Candles MT4 is a mt4 indicator which plots the outline of the higher time-frame candles on the lower candle, including any MT5 higher time-frame chosen. The indicator gives you the option to choose whether or not to view live current HTF candle, with no lag or repainting.
Features
- MT5 Period Candles: This indicator plots any mt5 time-frame candle e.g m3, m5, m12, m15, m20... and so on, on the lower time-frame.
- Heiken Ashi Options: You have the option to view the HTF Heiken ashi instead of the normal candleSticks.
- No objects drawn on chart: The indicator does not plot any lines or rectangle objects on the chart, it simply draws the htf candles. This keeps your chart simple and clean.
- MTF Selection: The indicator allows you to choose all the different higher time-frames for each lower period in one go, and goes changing accordingly.
- ON/OFF Toggle: The indicator has a feature which allows you to hide/show the htf candles at any time with a keyboard shortcut of your choice which can be set via input.
- Custom htf candle Colors: You can easily set the color of the bear and bull htf candle via input settings, to your color of choice.
- HTF Panel Buttons: You have the ability to change the current Highertimeframe being overlaid on chart by a button click.

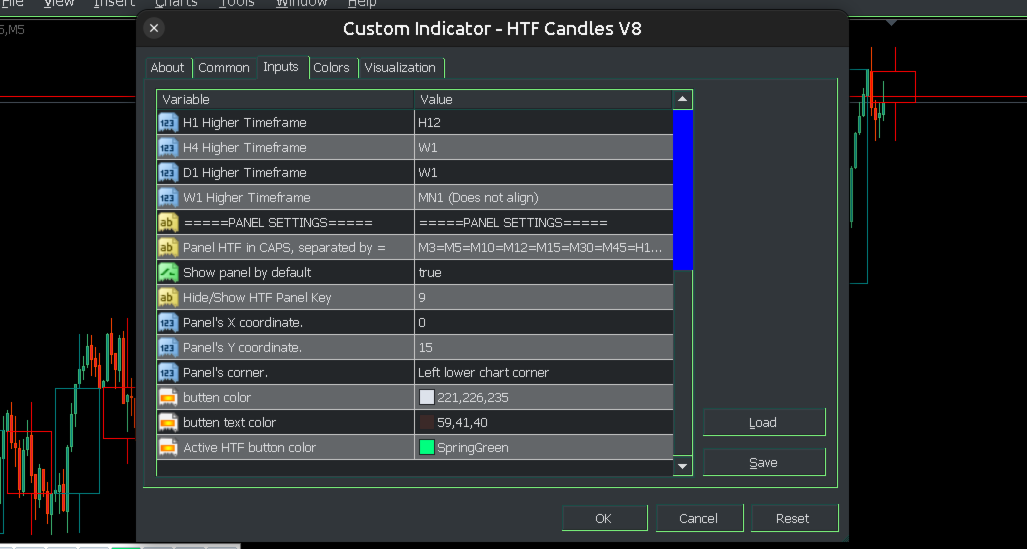

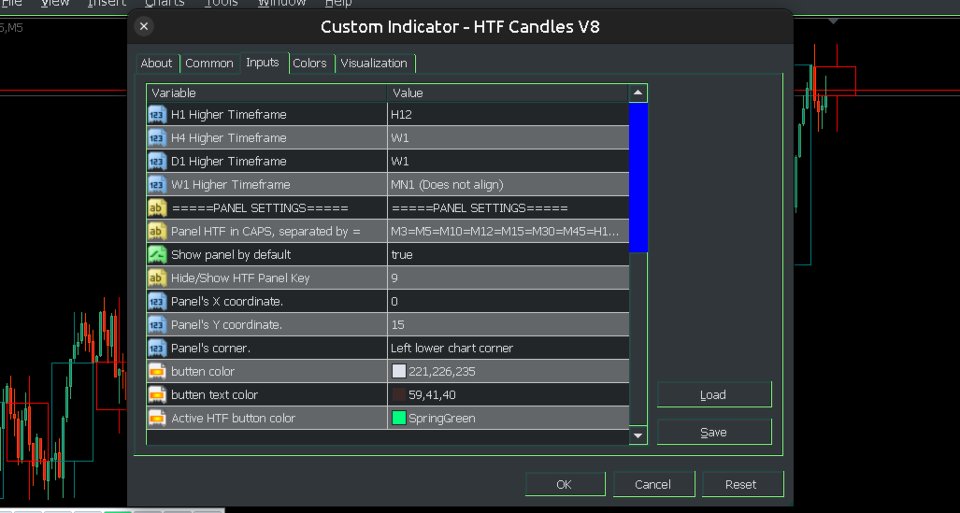

Inputs Settings
| Input item | Description of values or settings |
|---|---|
| HTF Candle Type | Choose between Heiken ashi and norm Japanese candleSticks |
| Show Candles? | Choose whether to [show both HTF and lower candles, only HTF candles, hide HTF], by default. |
| Show current live htf candle | Choose whether to show or hide current live HTF candle |
| Candle Wick postion | Choose the Position of the candle wick. at actual highs or middle of HTF bar |
| Bearish Candle color | Choose the color for the bearish candle |
| Bullish Candle color | Choose the color for the bullish candle |
| htf candle width | The width of the htf candle outline |
| M1 Higher Time-frame | Choose the htf candle to be displayed on M1 time-frame |
| M5 Higher Time-frame | Choose the htf candle to be displayed on M5 time-frame |
| M15 Higher Time-frame | Choose the htf candle to be displayed on M15 time-frame |
| M30 Higher Time-frame | Choose the htf candle to be displayed on M30 time-frame |
| .... etc | Continue likewise for all the subsequent time-frames |
| PANEL SETTINGS | |
| Panel HTF in CAPs | Enter the HTF candles to be overlayed separated by "=" eg. M1=M5=M30=H1=H8=D1=W1 |
| Hide/Show HTF Panel Keys | A shortcut key to hide/show the HTF buttons panel. Numpad keys are treated as numbers |
| Panel's X coordinate | Horizontal dispacement of panel, with the corner as a reference |
| Panel's Y coordinates | Vertical dispacement of panel, with the corner as a reference |
| Panel's corner | Corner on which the panel should be placed |
| Button color | Normal color for the panel buttons |
| Button text color | button's text color |
| Active button HTF color | The current HTF button highlight color |
More features will be added for this indicator. in subsequent updates. The price will increase accordingly, buy previous purchases will have benefit from the feature updates. Next price is $54.
If you would like custom adjustments, EA or another indicator based on this, please feel free to contact me.
The MT5 version may be got from here
You can order a custom indicator or EA from me here
