Multi‑timeframe analysis has long been a core method for traders who want a more profound understanding of market direction. A signal that looks strong on a lower timeframe can quickly lose appeal when viewed against the trend of a higher one. Many traders have experienced an M15 setup that fails because H1 or H4 are moving in the opposite direction. Confirming alignment across multiple time horizons often makes the difference between a trade that works and one that fails. In trading circles, the topic has been explored in various ways. Some approaches rely on numeric comparisons and calculated statistics, while others present symbolic indicators or trend readings. My own published works have also touched on multi‑timeframe confirmation, using different logical angles in each case. The Timeframe Visual Analyzer( the expert advisor I am introducing), builds on that collective foundation, taking a fresh route by turning those relationships between timeframes into something visually clear and interactive.
A moderator corrected the formatting this time. Please format code properly in future; posts with improperly formatted code may be removed.
When you call indicators from a higher timeframe, it’s important to remember that the higher TF only updates on a **new bar**, not every tick. If you don’t handle that, the MTF indicator can look like it’s “lagging” or giving strange values.
In MQL4/MQL5 I usually do two things:
1) Always pass the timeframe explicitly when I use iCustom / iMA / iRSI, etc. For example:
iRSI(_Symbol, PERIOD_H1, 14, PRICE_CLOSE, shift);
2) In the calling code I only recalculate the logic when a new bar appears on the **higher timeframe**, something like:
The problem is that most MTF implementations in MQL5 contain two hidden issues:
indicator instances are created but never fully released;
calculations rely on data from the current unfinished bar.
During short tests, these problems are almost invisible. But in long-running systems, small mistakes gradually turn into real stability issues. This is exactly why the Unified MTF Engine was created — a lightweight library that handles all the repetitive and error-prone parts of multi-timeframe logic.

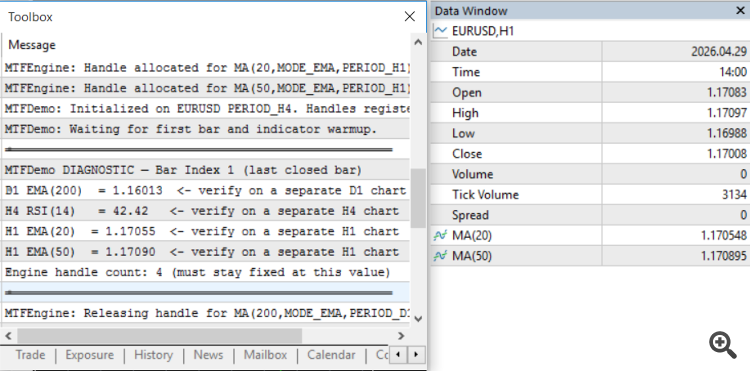

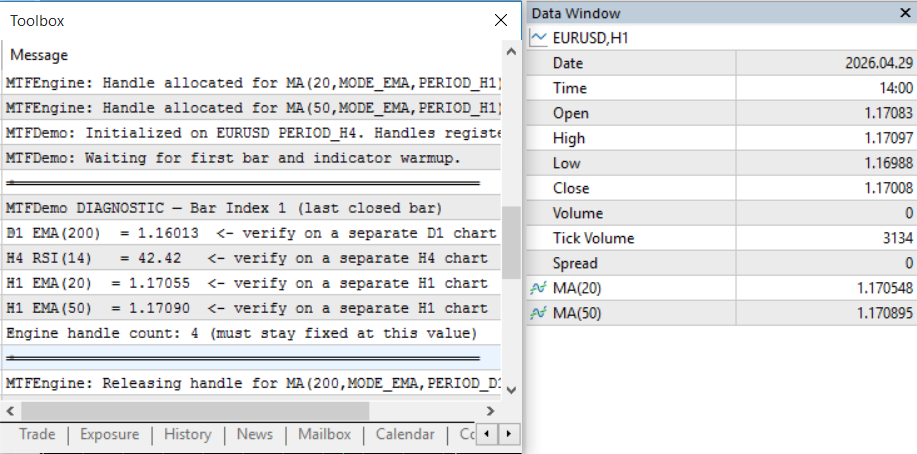

The article presents two systematic pitfalls in MQL5 multi‑timeframe work: indicator handle leaks that exhausted resources and repainting from reading the forming bar (index 0). It introduces MTFEngine.mqh, a unified include that creates and tracks handles in one place and defaults all reads to closed bars (index 1). A D1–H4–H1 example shows how this approach keeps signals technically correct and consistent with charts.
The problem is that most MTF implementations in MQL5 contain two hidden issues:
indicator instances are created but never fully released;
calculations rely on data from the current unfinished bar.
During short tests, these problems are almost invisible. But in long-running systems, small mistakes gradually turn into real stability issues. This is exactly why the Unified MTF Engine was created — a lightweight library that handles all the repetitive and error-prone parts of multi-timeframe logic.
Great solution! Handle leaks & repainting are eternal pains. Switching to closed bars (index 1) greatly boosts signal reliability. Thanks!
Allow the use of cookies to log in to the MQL5.com website.
Please enable the necessary setting in your browser, otherwise you will not be able to log in.
You are signed in. Two-factor authentication has been disabled. Set it up again and scan a new QR code, or continue with two-factor authentication disabled.
Histo multi time frame version with alerts and arrows attached
Also a multi time frame of regular version attached (alerts in it too)
can you convert these indicators to the mt5 version?
HalfTrend MTF with alerts.mq4
HalfTrend 2 histov arrows.mq4
Forum on trading, automated trading systems and testing trading strategies
All About Price Action
Sergey Golubev, 2025.11.26 07:35
Price Action Analysis Toolkit Development (Part 52): Master Market Structure with Multi-Timeframe Visual Analysis
A moderator corrected the formatting this time. Please format code properly in future; posts with improperly formatted code may be removed.
2) In the calling code I only recalculate the logic when a new bar appears on the **higher timeframe**, something like:
Leak-Free Multi-Timeframe Engine with Closed-Bar Reads in MQL5
The problem is that most MTF implementations in MQL5 contain two hidden issues:
During short tests, these problems are almost invisible. But in long-running systems, small mistakes gradually turn into real stability issues. This is exactly why the Unified MTF Engine was created — a lightweight library that handles all the repetitive and error-prone parts of multi-timeframe logic.
Leak-Free Multi-Timeframe Engine with Closed-Bar Reads in MQL5
The problem is that most MTF implementations in MQL5 contain two hidden issues:
During short tests, these problems are almost invisible. But in long-running systems, small mistakes gradually turn into real stability issues. This is exactly why the Unified MTF Engine was created — a lightweight library that handles all the repetitive and error-prone parts of multi-timeframe logic.
