Indicator Stalin_HTF_Signal shows a trend direction or a signal generated by the Stalin indicator at the chosen bar as a graphical object with colored trend indication or deal direction. It also triggers alerts and plays audio signals.

In case a trend continues at the selected bar, the indicator alerts by a graphic object in the form of a star, the color of which corresponds to a trend direction. In case a trend has changed at the selected bar, the indicator alerts by a diagonal arrow, the color and direction of which correspond to a performed deal direction.

All input parameters can be divided into three large groups:

1. Input parameters of indicator Stalin:

   input string Symbol_="";                   // Financial asset
   input ENUM_TIMEFRAMES Timeframe=PERIOD_H6; // Timeframe for calculating the indicator
   input ENUM_MA_METHOD MAMethod=MODE_EMA;
   input int    MAShift=0;
   input int    Fast=14;
   input int    Slow=21;
   input int    RSI=17;
   input int    Confirm=0.0;
   input int    Flat=0.0;




2. Input parameters of indicator Stalin_HTF_Signal, required for the indicator visualization:

   //---- indicator display settings
   input uint SignalBar=0;                                // The bar number to get a signal (0 - current bar)
   input string Symbols_Sirname=INDICATOR_NAME"_Label_";  // Indicator labels name
   input color UpSymbol_Color=clrLime;                    // Uptrend symbol color
   input color DnSymbol_Color=clrRed;                     // Downtrend symbol color
   input color IndName_Color=clrDarkOrchid;               // Indicator name color
   input uint Symbols_Size=60;                            // Signal symbols size
   input uint Font_Size=10;                               // Indicator name font size
   input int X_1=5;                                       // Horizontal name offset
   input int Y_1=-15;                                     // Vertical name offset
   input bool ShowIndName=true;                           // Display the indicator name
   input ENUM_BASE_CORNER  WhatCorner=CORNER_RIGHT_UPPER; // Location corner
   input uint X_=0;                                       // Horizontal offset
   input uint Y_=20;                                      // Vertical offset




3. Input parameters of indicator Stalin_HTF_Signal, which are necessary for generating alerts and audio signals:


   //---- Alert Settings
   input ENUM_ALERT_MODE alert_mode=OnlySound;  // Triggering option
   input uint AlertCount=0;                     // Number of alerts


In case of several indicators SilverTrend_HTF_Signal to be used on one chart, each of them should have its own Symbols_Sirname (indicators labels names) string variable value.

For the indicator to operate, the compiled file of indicator Stalin.mq5 should be available in the terminal_data_folder\MQL5\Indicators\ folder.

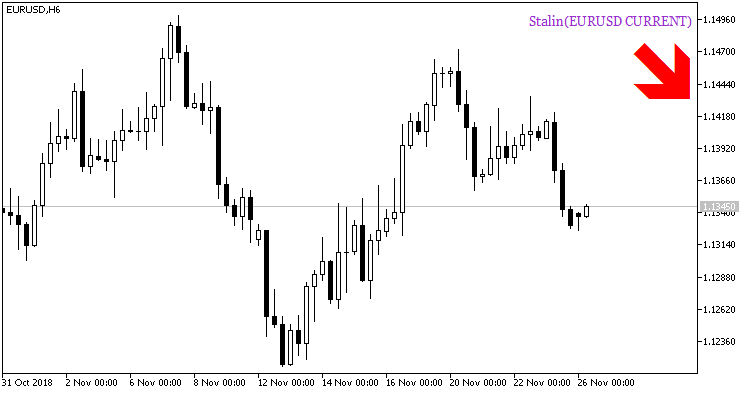

Fig. 1. Indicator Stalin_HTF_Signal. Signal to open a position.

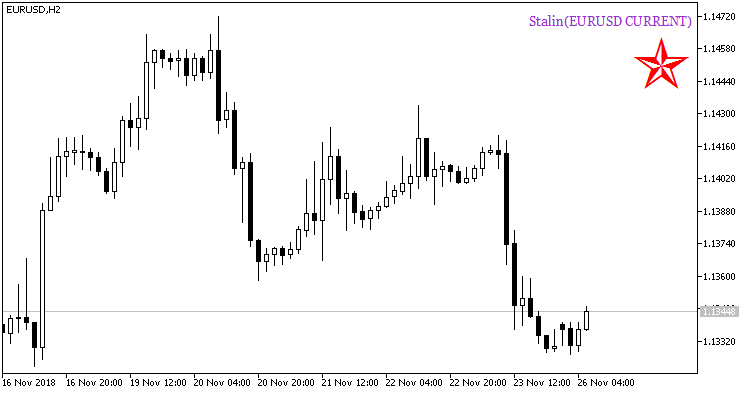

Fig. 2. Indicator Stalin_HTF_Signal. Signal of trend continuation.
