TradexCodez Autofibonacci with Alerts
- Indicateurs
-
Shanker Madhavarajan
Trader and software developer based in Chennai, India. I build MetaTrader 5 tools and broker API integrations for Indian exchanges — NSE, BSE and MCX. - Version: 1.6
AutoFibonacci draws Fibonacci retracement and extension levels automatically. It finds the significant swing high and low on the chart itself, so the levels appear without you drawing anything, and they update as new highs and lows form.
Drawing Fibonacci by hand has a practical problem: you choose the swing. Two traders looking at the same chart pick different points and get different levels. This indicator removes that step.
It works on any symbol and any timeframe.
How the range is chosen
Three modes are available.
- Auto-detect uses the highest high and lowest low in the visible chart area. Scroll or zoom and the levels are recalculated for what you are looking at.
- Daily takes the range from daily bars over a number of days you set. Levels then stay the same when you switch timeframes, which is useful if you analyse on a higher timeframe and execute on a lower one.
- Manual uses a bar range you specify, with a direction setting.
Levels

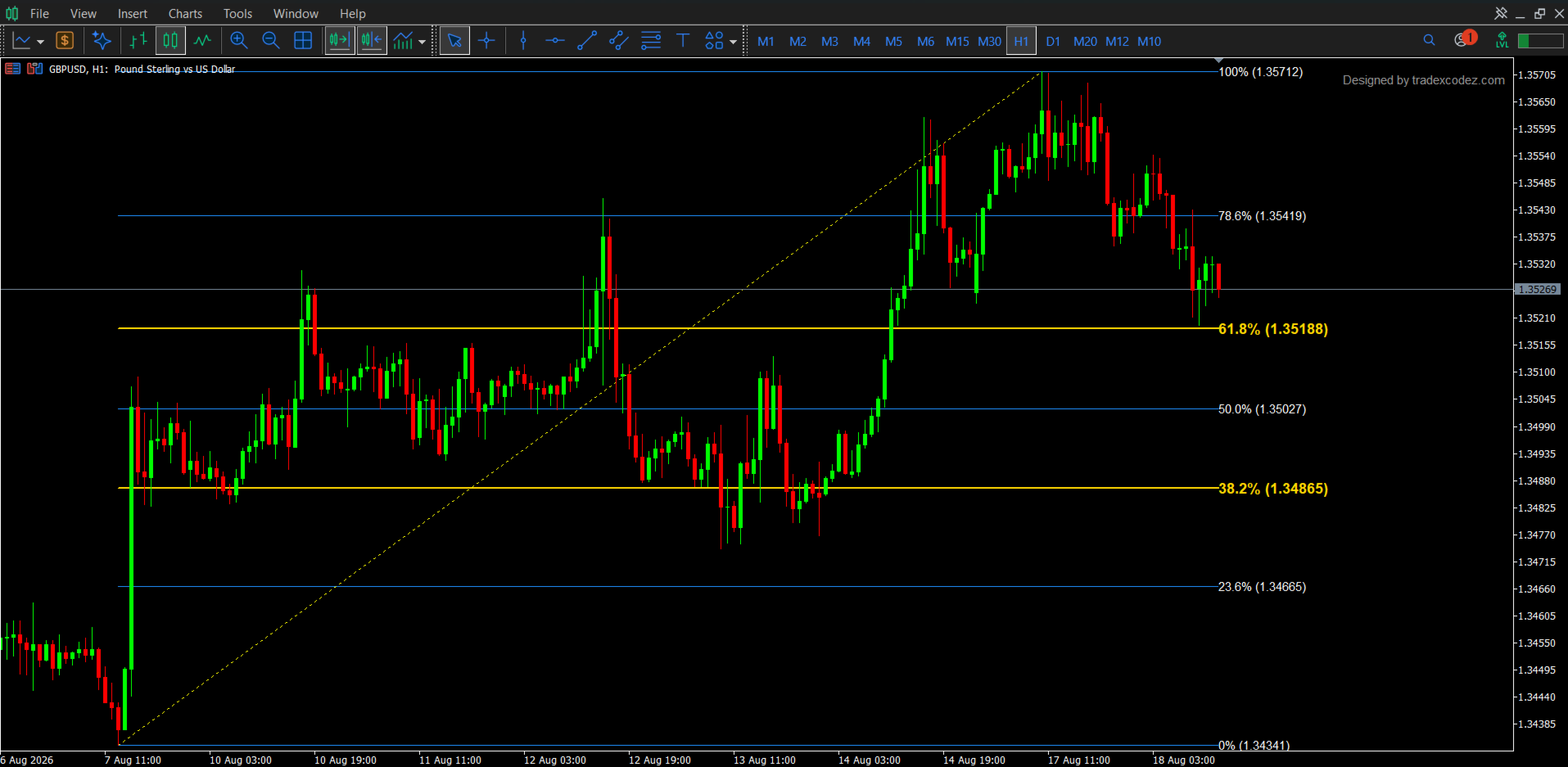

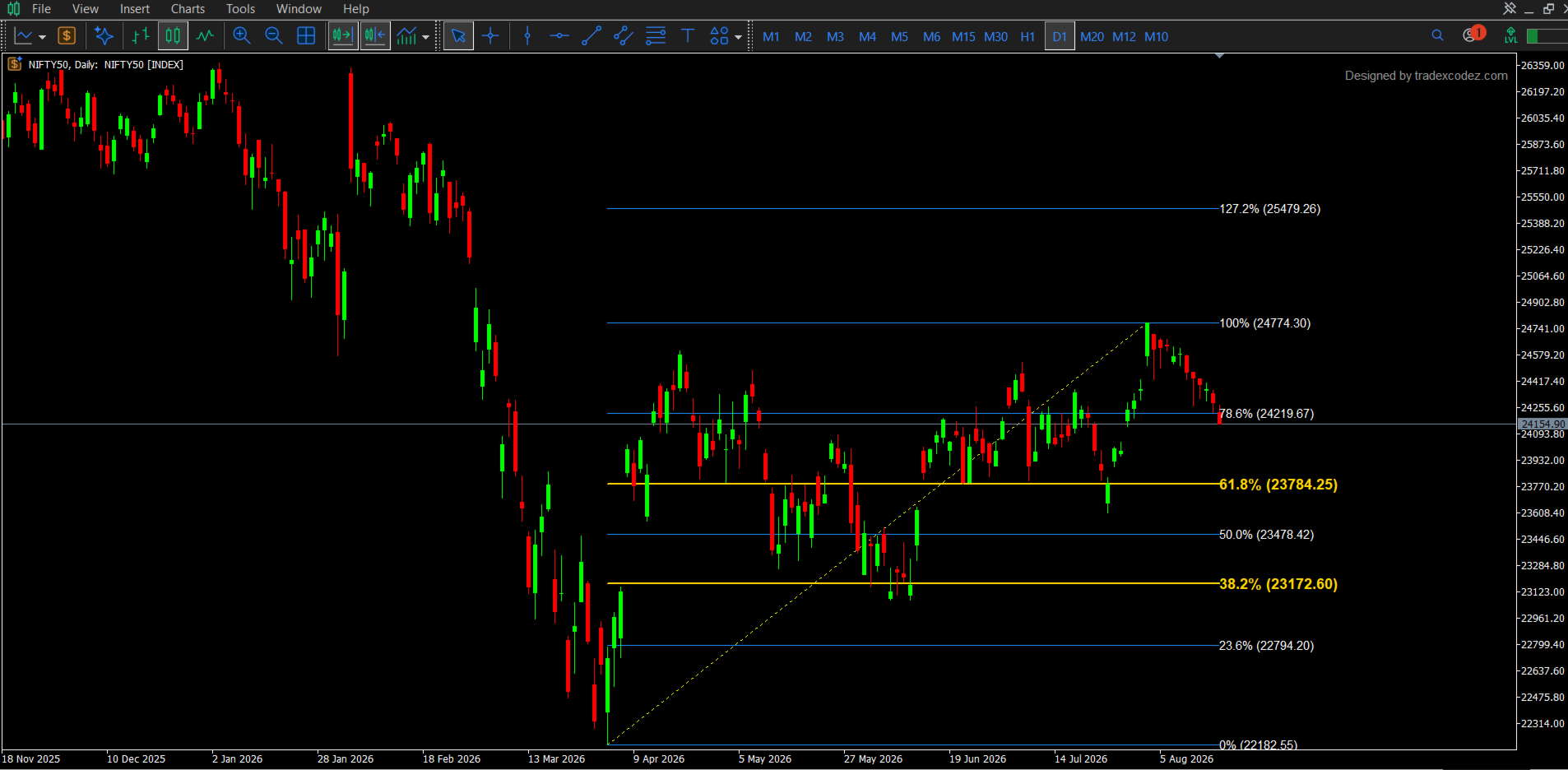

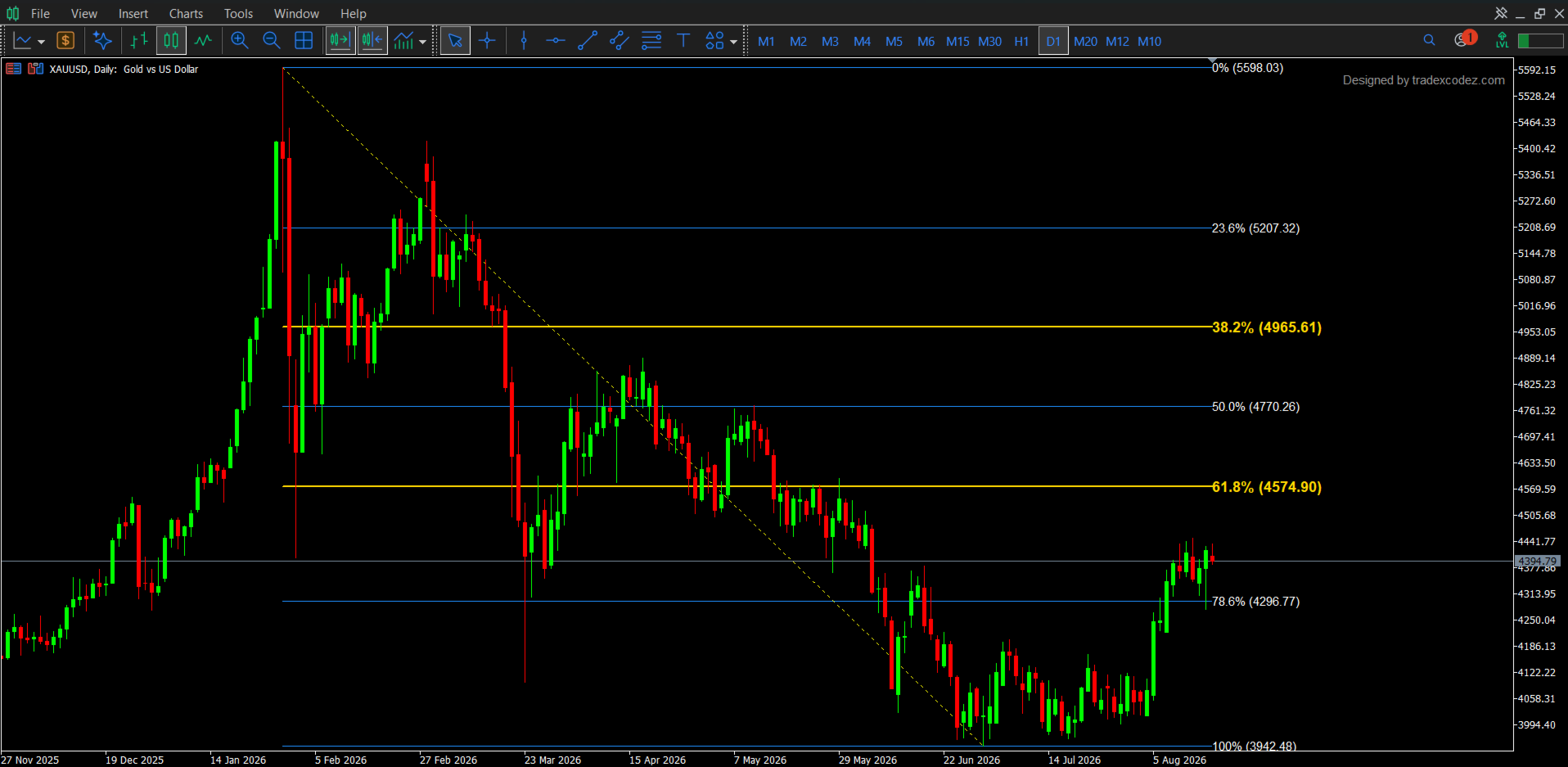

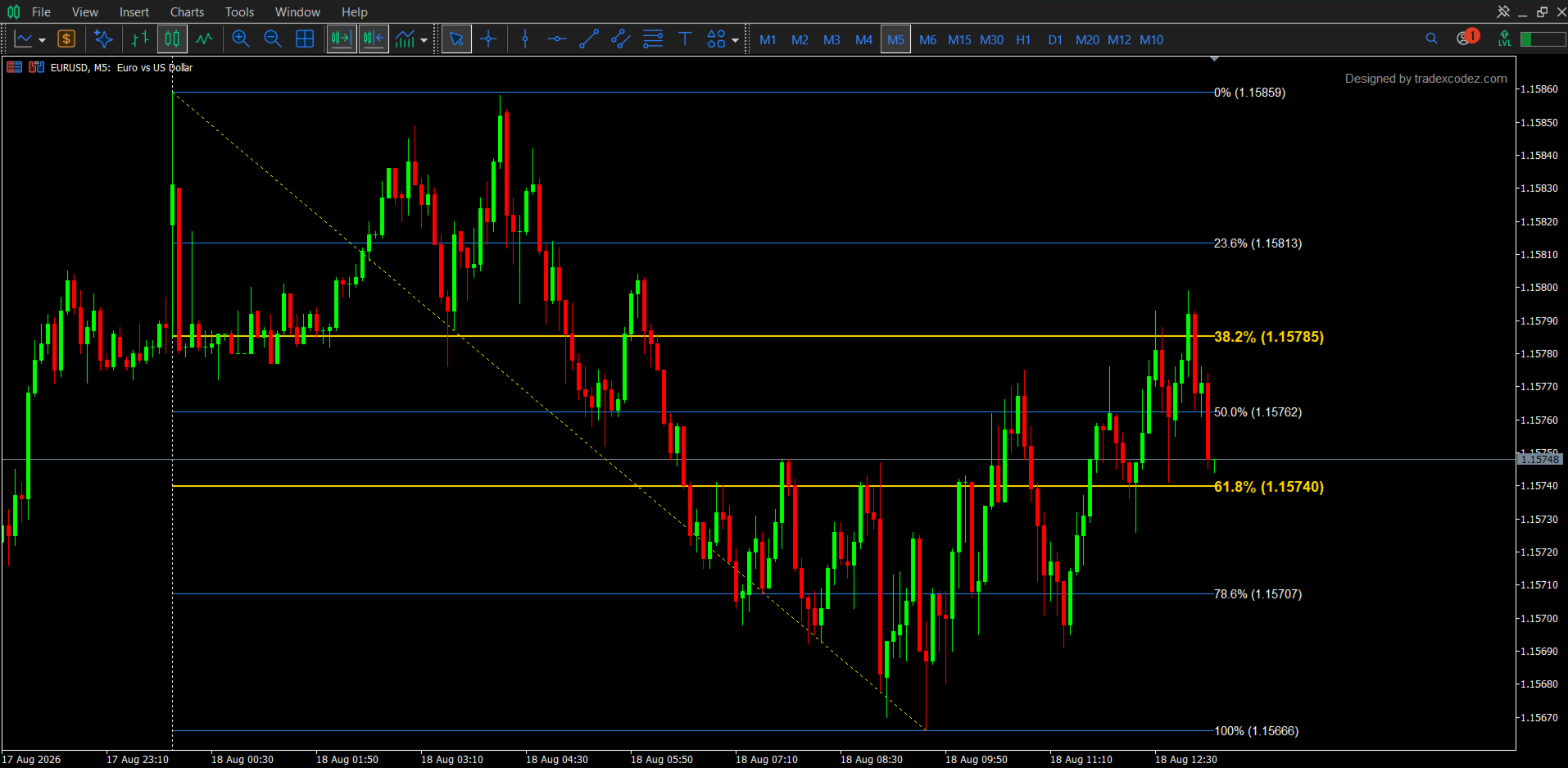

Retracement levels: 0, 23.6, 38.2, 50, 61.8, 78.6 and 100 percent.
Extension levels: 127.2, 141.4, 161.8, 200 and 261.8 percent.
Every level can be switched off, and the ratio of every level can be edited. If you work with a ratio that is not in the standard set, change one of the values to it.
The two golden ratio levels, 38.2 and 61.8 percent, can be drawn in a separate colour and thickness so they stand apart from the rest. This is on by default.
Each level is labelled with its percentage and the exact price. A dotted line marks the swing the levels were measured from.
Alerts

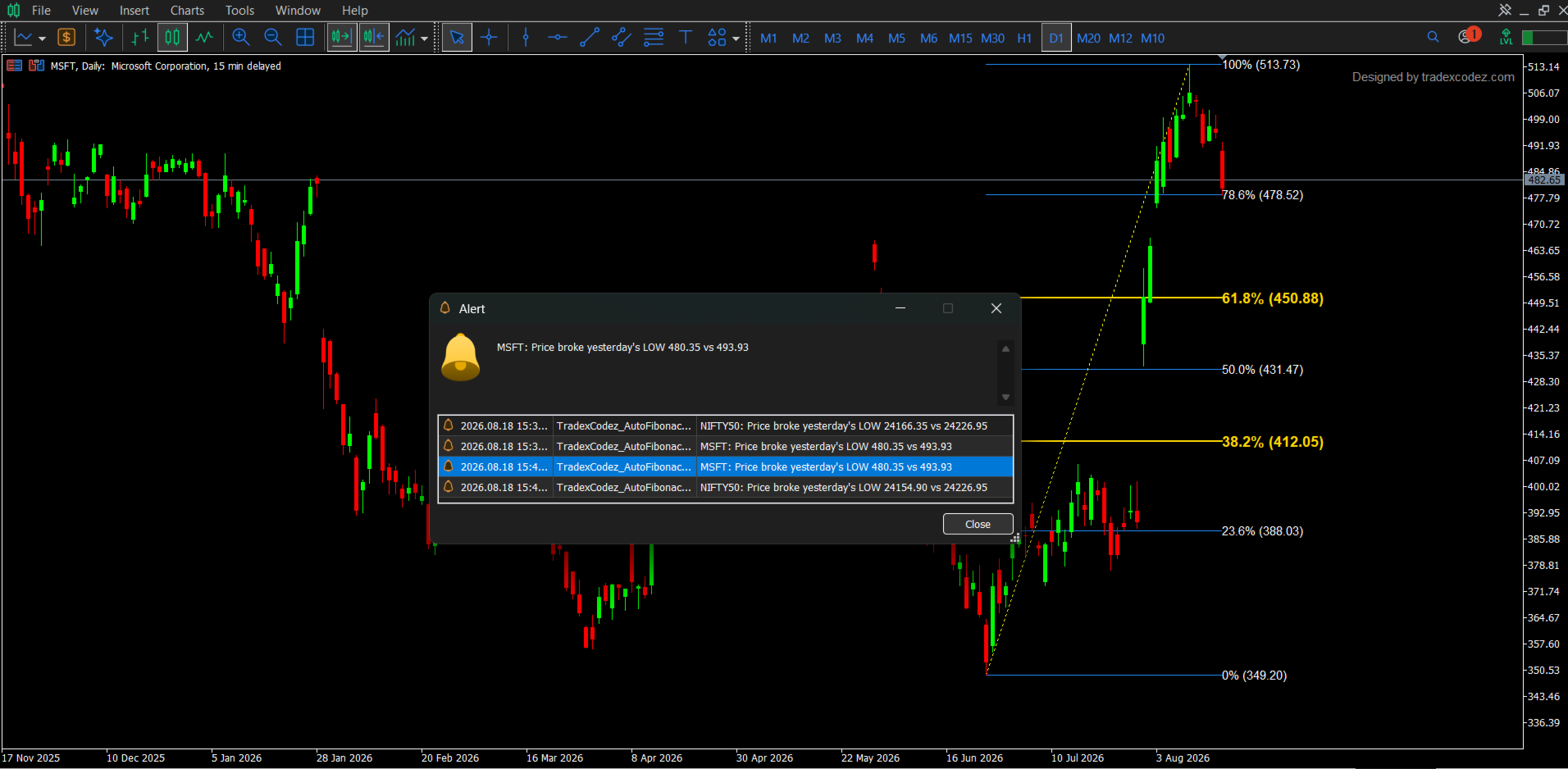

The indicator can alert you when price breaks the previous day high or the previous day low. Each alert fires once per day and resets at the start of the next day.
Four channels are available and can be used together: a popup in the terminal, a sound, an email, and a push notification to the MetaTrader mobile app. Email and push must first be configured in Tools - Options - Notifications.
Input parameters
Appearance
- FibColor - colour of the standard levels
- LineWidth - thickness of the standard levels
- LineStyle - line style
- TextColor - colour of the price labels
- FontSize - size of the price labels
- ShowPriceLabels - show the percentage and price beside each level
- HighlightGoldenRatio - draw 38.2 and 61.8 percent differently
- GoldenRatioColor - colour for those two levels
- GoldenRatioWidth - thickness for those two levels
Fibonacci range
- AutoDetect - find the high and low from the visible chart
- UseDaily - take the range from daily bars instead
- DailyBarsBack - how many days to look back in daily mode
- ManualStartBar - start of the range in manual mode
- ManualEndBar - end of the range in manual mode
- UseHighToLow - direction in manual mode
Break alert settings
- EnableBreakAlert - alert on a previous day high or low break
- AlertPopup - show a popup in the terminal
- AlertSound - play a sound
- AlertEmail - send an email
- AlertPush - send a push notification
- AlertSoundFile - which sound file to play
Retracement levels
- Show_Level_0 to Show_Level_1000 - switch each level on or off
- Level_0 to Level_1000 - the ratio used for each level
Extension levels
- Show_Ext_1272 to Show_Ext_2618 - switch each extension on or off
- Ext_1272 to Ext_2618 - the ratio used for each extension
Branding
- WatermarkCorner - which corner the credit label sits in
Notes
The indicator draws chart objects and plots no buffers, so it adds no lines to the Data Window. All objects it creates are removed when it is taken off the chart.
Fibonacci levels are reference points for analysis. They are not trading signals, and this indicator does not place orders.
This product is free.
