LatticeFlow Grid EA
- 实用工具
- 版本: 1.23
- 激活: 5
LatticeFlow Grid EA is a chart-based manual multi-grid assistant for MetaTrader 5. Start Buy or Sell grid series from an on-chart panel, place a pending limit entry by dragging a line, and manage up to six independent series on the same symbol.
Trade the grid with control, not autopilot claims
LatticeFlow Grid EA is designed for traders who use grid-based execution and want clear, hands-on control over every series. You decide when a series starts and which parameters it uses. The EA then places and manages the configured limit levels while displaying live position, profit and drawdown information directly on the chart.
Main features
- Up to 6 independent grid series on one symbol.
- Start Buy and Sell series from the chart panel.
- Place a Buy Limit or Sell Limit entry by positioning an entry line on the chart.
- Configure initial lot, grid step, number of levels and lot multiplier.
- Configure a step multiplier for progressively spaced levels.
- Basket take-profit calculated from the active series parameters.
- Optional money-based loss limit for each series.
- Three breakeven modes: each position, near position, or off.

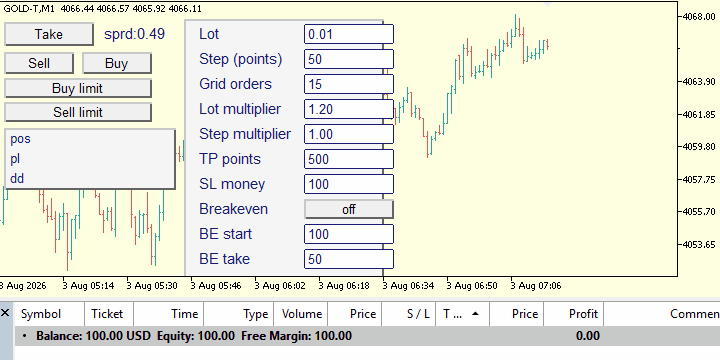

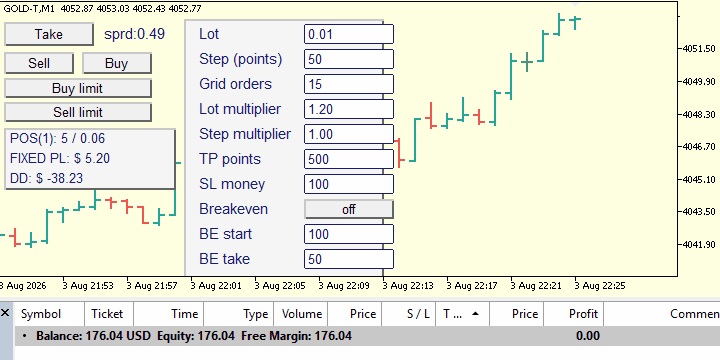

- On-chart display of spread, positions, volume, floating P/L and drawdown.
- Separate magic numbers for independent series.
- Optional CSV logging of completed series for later analysis.
- Uses the symbol's supported volume step and filling mode.
How it works
1. Attach the EA to a chart.
2. Set the lot, step, level count, multipliers, TP, loss limit and breakeven values.
3. Press Buy or Sell to start a market-entry series, or use Buy Limit/Sell Limit to set an entry level on the chart.
4. The EA creates the configured pending grid levels after the entry is activated.
5. Monitor the live panel and close the active series with Take or use the configured exit logic.
Recommended market conditions
The default parameters are designed for gold, typically XAUUSD, and should be treated as a starting point rather than a universal preset. The strategy is intended primarily for a horizontal, ranging market with repeated swings and sufficient liquidity. Avoid extremely quiet conditions where the grid is unlikely to complete, as well as highly active directional moves where price can run through several levels without meaningful retracement.
Do not leave the EA unattended during important economic news or other events that can cause a sharp spread expansion and one-sided move. Monitor market sentiment and disable or close the EA before high-impact releases when appropriate. The panel can make a grid look calm and controlled, but no grid strategy is immortal or guaranteed to win.
Risk notice
Grid trading can increase exposure as price moves against a position. A larger number of levels, a lot multiplier above 1.0, or a small account balance can create substantial margin requirements and drawdown. Backtest and forward-test on a demo account first. Use conservative parameters, verify the broker's contract specifications, and never risk money you cannot afford to lose.
For accounts around $100, use only the smallest lot size allowed by the broker and keep the number of levels and total exposure conservative. A $100 balance is not a promise that the default settings are safe or suitable; the required margin and contract size for gold vary by broker.
This Expert Advisor is an execution tool. It is not financial advice, a signal service, a guarantee of profit, or a promise of recovery from losses. Results depend on the symbol, broker, spread, execution, leverage, settings and market conditions.
Requirements
- MetaTrader 5.
- A hedging account is recommended for independent Buy and Sell positions and multiple grid series.
- Sufficient free margin for the selected maximum exposure.
- VPS is recommended when continuous monitoring is required.
