Garch: GARCH, GJR-GARCH and EGARCH volatility models with forecasts - MetaTrader 5용 라이브러리

Garch.mqh fits GARCH volatility models to a series of returns by maximum likelihood and forecasts the variance of the next periods. It gives the parameters with classic and robust standard errors, the log-likelihood with AIC and BIC, the conditional variance of every period, the persistence and the half-life of a shock. No DLL; the matrix type of MQL5 is used for the covariances.

Usage

#include <Garch\Garch.mqh>

double y[];                           // returns, for example 100 * log(close[i] / close[i-1])
// ... fill y ...
CGarch g;
g.Model(GARCH_MEAN_CONSTANT, GARCH_VOL_GJR, GARCH_DIST_T);
if(g.Fit(y))
  {
   for(int i = 0; i < g.Parameters(); i++)
      PrintFormat("%s %.5f (%.5f)", g.Name(i), g.Parameter(i), g.StdError(i));   // robust standard error
   double variance[];
   g.Forecast(20, variance);          // variance of each of the next 20 periods
   double half = g.HalfLife();        // periods for a shock to lose half its effect
  }

Models

• Mean: zero or constant.
• Variance: GARCH(1,1); GJR-GARCH(1,1,1), where a fall adds gamma times the squared return to the next variance; EGARCH(1,1,1), a model of the log variance with a sign term.
• Shocks: normal, Student t (standardized) or generalized error distribution (GED), with the shape estimated.

How it works

• The recursion starts from an exponentially weighted variance of the first 75 residuals, and the variance is kept within bounds taken from an EWMA variance, as in the Python package arch, so the likelihoods of the two are the same for the same parameters.
• The optimum is found in three steps: quasi-Newton (BFGS) on free parameters for which every point is a valid model, a Nelder-Mead search with the bounds of the parameters, then BFGS again with the bounds that are reached held fixed. The last two steps matter when an optimum sits on a bound (a persistence of 1, a shape at its limit), or when the GED shape is near 1 and the likelihood has kinks.
• Standard errors come from numerical derivatives with the steps of statsmodels: classic from the inverse Hessian, robust (Bollerslev-Wooldridge) from the sandwich with the scores of each period.
• Forecasts are exact for GARCH and GJR (a fall has a probability of one half). For EGARCH the first period is exact and the next ones come from a simulation with a seed (ForecastSimulated is also available for every model).

Two things to know

• EGARCH with Student t shocks has no finite mean variance beyond one period: the exponential of a t variable has no expectation, so simulated forecasts do not settle. Use the normal or GED shocks with EGARCH for forecasts.
• When the GED shape is close to 1 the fitted mean sits on a kink of the likelihood, and its numerical standard error comes out far too small. arch gives the same figure.

Example

The script GarchExample.mq5 takes the returns of a symbol, fits the nine models with a constant mean, keeps the best by BIC and prints its parameters, the volatility now, the long-run volatility and the volatility expected over the next 1 to 60 periods, all in percent a year (picture 1). It can write the returns and the fitted volatility to a CSV file (picture 2).

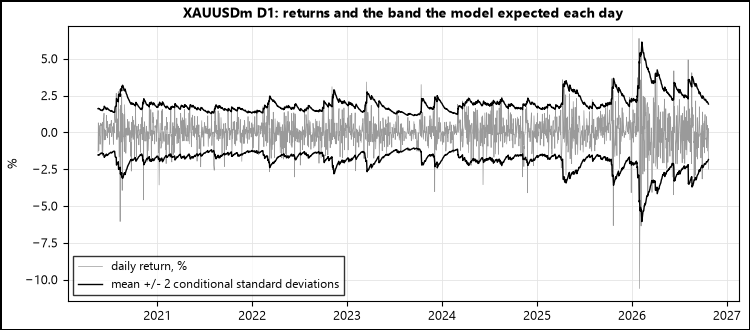

Picture 3: every daily return of XAUUSDm with the band of two conditional standard deviations that the model gave for that day. The band widens after large moves and narrows again in calm months, which a constant volatility cannot do. 5.1% of the days fall outside it; the fitted GED expects 5.9%, a normal distribution 4.6%.

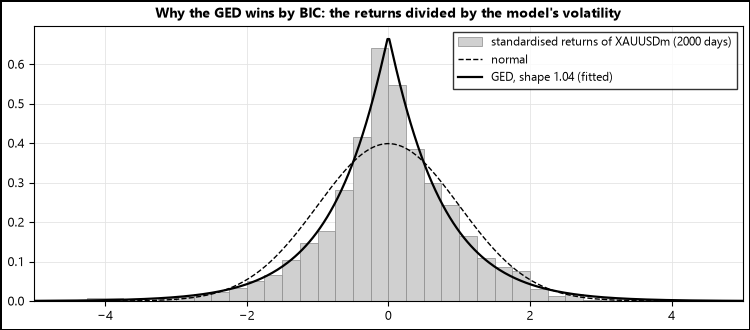

Picture 4: the returns minus their mean, divided by the volatility of the model for that day. With normal shocks they would follow the dashed curve. They do not: 49.7% of the days are within half a standard deviation (38.3% for a normal) and 1.45% beyond three (0.27% for a normal). The GED with shape 1.04 follows both the peak and the tails, which is why the GED models have the lowest BIC in picture 1.

Checked

108 fits (every mean, variance and distribution) on six series: three simulated, daily BTCUSDT, hourly XAUUSD and the daily results of a trading portfolio, compared with arch 8.0:

• for the same parameters, the log-likelihood, the conditional variances and the forecasts were equal within 1e-12, and the standard errors within 3e-4 (the precision of numerical second derivatives);
• the likelihood found was never lower than arch's. In 6 fits arch stopped early and Garch.mqh found up to 0.21 more; in 4 fits with a persistence of 1, arch ended slightly past its own constraint.

A fit of 2 000 returns takes 10 to 100 ms; the slowest, with a shape that goes to its bound, about 1.5 s.

Files

Garch.mqh goes to MQL5\Include\Garch, GarchExample.mq5 to MQL5\Scripts\Garch.
