Grid Visual Wolf Trend Line EA
SHORT DESCRIPTION
The Visual Wolf Trend Line strategy, wired into a complete grid, hedge and cycle engine. A fast crossing, confirmed by price, arms the first level. Everything after that - the ladder, the fragmenting closer, the target slicer, the reopen guard, the optional hedge cycle - is handled by an engine that was built to keep a grid alive rather than to hope it never goes wrong.
WHAT THIS EA IS
Most grid robots are one idea: open a level, open another one further away, and wait. That works until it does not. This EA is three engines that share one chart and one account, wired together so money only ever flows in one direction.
1. THE OPENER - VISUAL WOLF TREND LINE
Two very short smoothed lines crossing, confirmed by price.
Three and seven is fast - fast enough that on most instruments
the two lines cross several times a session. On a conventional
single-entry robot that would be unusable.
Two choices make it work. The lines are SMOOTHED averages of the
MEDIAN price, not exponential averages of the close. Smoothed
averages respond more slowly than an exponential of the same
length, and the median ignores where the bar happened to finish,
so both lines are far harder to disturb than their lengths
suggest.
And the crossing has to be confirmed by price being on the
correct side of BOTH lines. An average crossing that price has
already walked away from is a crossing about the past, and this
is the condition that throws those away.
What remains is a talkative trigger, which is exactly what a
ladder with a fragmenting closer is built to use.
You can also keep the plain distance trigger, or require both: the reading must agree with a real move before a single order is sent.
2. THE LADDER
Once a cycle is armed, the grid builds. BUY and SELL grids run independently, each with its own anchor, its own level counter, its own spacing and its own bar gate, so a market that trends one way and ranges the other is not forced into a single model. Single-grid mode is there when you want one direction at a time.
Spacing is fixed points or ATR-driven, with a floor, a ceiling and an option to freeze the ATR value for the whole cycle so the spacing does not drift under you mid-cycle. A per-level multiplier lets the grid widen as it goes deeper.
Lots climb by multiplication or by addition. Additive is the honest choice for most accounts: 0.01, 0.02, 0.03, 0.04 rather than a curve that doubles into margin call. Auto-lot scales the starting size with the balance, and scaling down is opt-in rather than assumed.
3. THE CLOSER - AND THIS IS THE REAL DIFFERENCE
A normal grid closes the oldest order against the newest and waits for the pair to cover its own cost. When the market does not come back, nothing closes, and the book grows.
This closer does not wait.
It scans combinations of both ends of the book - several of the oldest orders against several of the newest - and ranks the qualifying combinations by how much of the book each one clears. It counts swap and it counts commission, both sides, from your own trade history rather than from a number you typed in.
When no whole combination can cover the target, it buys a SLICE. Part of the oldest order is closed, paid for by the profit the newest orders have already made, and the rest of that order is remembered in a ledger. The ledger survives restarts, reattaches and terminal crashes, and the part already killed is rebuilt from deal history every time rather than trusted from storage. Over several slices the oldest, heaviest order is retired piece by piece while the market does whatever it wants.
A reopen guard refuses any closure that would immediately reopen the level it just closed, which is the quiet way most grids churn their own account into commission.
4. THE HEDGE CYCLE - OFF BY DEFAULT
An optional volume engine. It opens a perfect hedge - equal BUY and SELL on a rotating list of symbols - and then retires it in slices, each slice funded by a small surcharge added to the closures the grid was making anyway. The hedge is held in balance, verified on a timer, and repaired automatically if one leg is left naked.
There are hard limits on what the hedge may cost. A cap in money on a single closure, a cap as a percentage of any closure's target, and a weekly cash-day window that can hold new cycles and new slices before a withdrawal.
This is off by default and deliberately so. With it off, this EA is the Visual Wolf Trend Line reading driving a dual grid with a fragmenting closer, and nothing else is touched.
5. EXECUTION YOU CAN AUDIT
Every closure is a plan that is scanned, sent leg by leg, and then verified against the deal history. A leg that does not fill goes to a retry queue instead of being assumed. A market that refuses orders makes the EA wait rather than burn its retry budget. A book that changed between the scan and the send aborts the plan.
There is a run mode that scans and reports without trading, so you can watch what it would have done before you let it do anything.

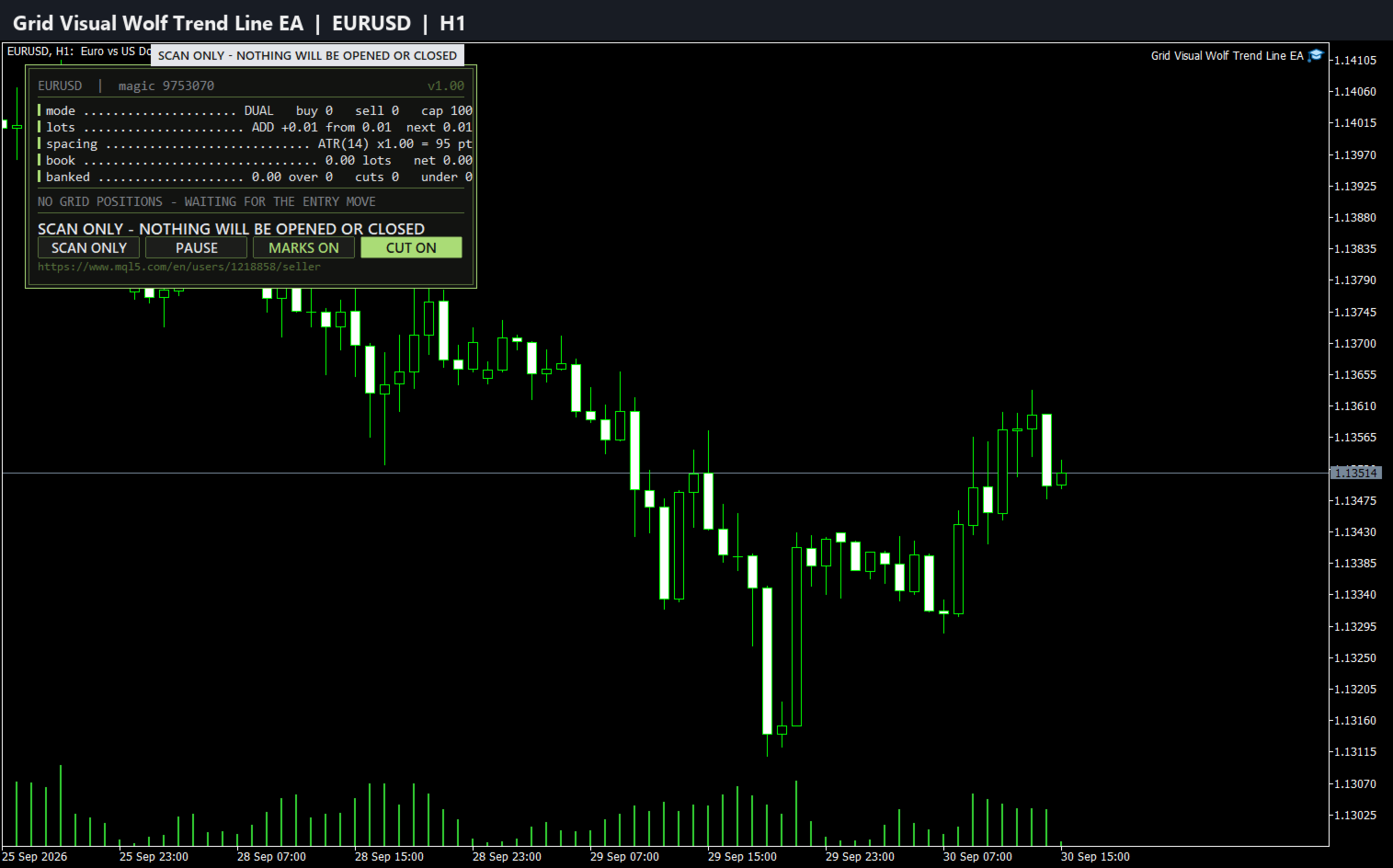

6. THE PANEL
This product has its own panel, not a shared one. The theme is CONFIRMED: this product has its own panel, not one shared with the rest of the range. The theme is CONFIRMED: pack green owns everything the grid does and heather owns everything the hedge does, on its own palette, typeface pairing, corner layout, row pitch and table depth.
Both cards are drawn in English with an Arabic line underneath, and both can be switched off. In a non-visual backtest nothing is drawn at all, so optimisation runs at full speed.
MAIN SETTINGS
Entry trigger: Strategy only, Distance only, or Both
The strategy settings listed above
Signal bar, signal validity window, allow BUY / allow SELL, invert
Trade mode: dual grid or single grid
Spacing: fixed points or ATR, with floor, ceiling, freeze and per-level multiplier
Lots: multiply or add, maximum per order, auto-lot on balance
Profit target: fixed or scaled by volume, depth and a safety cap
Fragment scanner: how many oldest and newest orders may club together
Target slicing: minimum slice size, profit weighting, full-closure preference
Reopen guard, minimum margin level, maximum floating loss, maximum orders
Hedge cycle: symbols, rotation, cycle lots, slice lots, bonus, caps, repair
Panel position, font size, table depth, Arabic display, chart marks, verbose logging
REQUIREMENTS
A HEDGING account is required. On a netting account every grid level merges into one position, so there is nothing to fragment and no way to hold a hedge. The EA checks this at startup and stops with a clear message rather than misbehaving quietly.
Works on any symbol and any timeframe. No DLLs, no external indicator files, nothing to install beyond the EA itself. The strategy maths is written into the EA, so the reading on the chart and the reading it trades from are the same number.
A NOTE ON EXPECTATIONS
A grid is a way of managing a position, not a way of predicting a market. The Visual Wolf Trend Line reading decides when to start and which way to face. The closer and the slicer are what keep a cycle from becoming permanent. Size the ladder for the account you actually have, test on your own broker's spreads and swap, and start with the hedge cycle off.
Set files for the main configurations are included. Questions and setup help are welcome through private message.
