how to get value of this indicator?

[tom standly]

when i want to get value of first buffer, it always shows empty value but in Data window shows that it ( buffer 0 ) has a value!

this is the code of indicator:

//+--------------------------------------------------------------------------------------+
//|                                                                 Nearest_Neighbor.mq5 |
//|                                                                 Copyright 2010, gpwr |
//+--------------------------------------------------------------------------------------+
#property copyright "gpwr"
#property version   "1.00"
#property description "Prediction of future based on the nearest neighbor in the past"
#property indicator_chart_window
#property indicator_buffers 2
#property indicator_plots   2
//--- future model outputs
#property indicator_label1  "NN future"
#property indicator_type1   DRAW_LINE
#property indicator_color1  Red
#property indicator_style1  STYLE_SOLID
#property indicator_width1  1
//--- past model outputs
#property indicator_label2  "NN past"
#property indicator_type2   DRAW_LINE
#property indicator_color2  Blue
#property indicator_style2  STYLE_SOLID
#property indicator_width2  1

//Global constants
#define pi 3.141592653589793238462643383279502884197169399375105820974944592

//===================================== INPUTS ===========================================
input int    Npast   =300; // # of past bars in a pattern
input int    Nfut    =50;  // # of future bars in a pattern (must be < Npast)

// Global variables
int bars,PrevBars;
double mx[],sxx[],denx[];
bool FirstTime;

// Indicator buffers
double ynn[],xnn[];

// Custom indicator initialization function ---------------------------------------------+
void OnInit()
{
// Initialize global variables
   PrevBars=Bars(_Symbol,_Period)-1;
   FirstTime=true;

// Map indicator buffers
   SetIndexBuffer(0,ynn,INDICATOR_DATA);
   SetIndexBuffer(1,xnn,INDICATOR_DATA);
   IndicatorSetInteger(INDICATOR_DIGITS,_Digits);
   IndicatorSetString(INDICATOR_SHORTNAME,"1NN("+string(Npast)+")");
   PlotIndexSetInteger(0,PLOT_SHIFT,Nfut);
}

//====================================== MAIN ============================================
int OnCalculate(const int rates_total,
                const int prev_calculated,
                const datetime& Time[],
                const double& Open[],
                const double& High[],
                const double& Low[],
                const double& Close[],
                const long& tick_volume[],
                const long& volume[],
                const int& spread[])
{
// Check for insufficient data and new bar
   int bars=rates_total;
   if(bars<Npast+Nfut)
   {
      Print("Error: not enough bars in history!");
      return(0);
   }
   if(PrevBars==bars) return(rates_total);
   PrevBars=bars;

// Initialize indicator buffers to EMPTY_VALUE
   ArrayInitialize(xnn,EMPTY_VALUE);
   ArrayInitialize(ynn,EMPTY_VALUE);

// Main cycle ---------------------------------------------------------------------------+
   // Compute correlation sums for current pattern
   // Current pattern starts at i=bars-Npast and ends at i=bars-1
   double my=0.0;
   double syy=0.0;
   for(int i=0;i<Npast;i++)
   {
      double y=Open[bars-Npast+i];
      my +=y;
      syy+=y*y;
   }
   double deny=syy*Npast-my*my;
   if(deny<=0)
   {
      Print("Zero or negative syy*Npast-my*my = ",deny);
      return(0);
   }
   deny=MathSqrt(deny);

   // Compute correlation sums for past patterns
   // Past patterns start at k=0 and end at k=bars-Npast-Nfut
   ArrayResize(mx,bars-Npast-Nfut+1);
   ArrayResize(sxx,bars-Npast-Nfut+1);
   ArrayResize(denx,bars-Npast-Nfut+1);
   int kstart;
   if(FirstTime) kstart=0;
   else kstart=bars-Npast-Nfut;
   FirstTime=false;
   for(int k=kstart;k<=bars-Npast-Nfut;k++)
   {
      if(k==0)
      {
         mx[0] =0.0;
         sxx[0]=0.0;
         for(int i=0;i<Npast;i++)
         {
            double x =Open[i];
            mx[0] +=x;
            sxx[0]+=x*x;
         }
      }
      else
      {
         double xnew=Open[k+Npast-1];
         double xold=Open[k-1];
         mx[k] =mx[k-1]+xnew-xold;
         sxx[k]=sxx[k-1]+xnew*xnew-xold*xold;
      }
      denx[k]=sxx[k]*Npast-mx[k]*mx[k];
   }

   // Compute cross-correlation sums and correlation coefficients and find NN
   double sxy[];
   ArrayResize(sxy,bars-Npast-Nfut+1);
   double b,corrMax=0;
   int knn=0;
   for(int k=0;k<=bars-Npast-Nfut;k++)
   {
      // Compute sxy
      sxy[k]=0.0;
      for(int i=0;i<Npast;i++) sxy[k]+=Open[k+i]*Open[bars-Npast+i];

      // Compute corr coefficient
      if(denx[k]<=0)
      {
         Print("Zero or negative sxx[k]*Npast-mx[k]*mx[k]. Skipping pattern # ",k);
         continue;
      }
      double num=sxy[k]*Npast-mx[k]*my;
      double corr=num/MathSqrt(denx[k])/deny;
      if(corr>corrMax)
      {
         corrMax=corr;
         knn=k;
         b=num/denx[k];
      }
   }
   Print("Nearest neighbor is dated ",Time[knn]," and has correlation with current pattern of ",corrMax);

   // Compute xm[] and ym[] by scaling the nearest neighbor
   double delta=Open[bars-1]-b*Open[knn+Npast-1];
   for(int i=0;i<Npast+Nfut;i++)
   {
      if(i<=Npast-1) xnn[bars-Npast+i]=b*Open[knn+i]+delta;
      if(i>=Npast-1) ynn[bars-Npast-Nfut+i]=b*Open[knn+i]+delta;
   }

   return(rates_total);
}

i get buffer by this code:

double a = iCustom(_Symbol,PERIOD_CURRENT,"nearest-neighbor");
double ma[];
ArraySetAsSeries(ma,true);
CopyBuffer(a,0,0,5,ma);
double maval =ma[1];
Print(maval);

[Fernando Carreiro]

Your attached executable files was removed. Only attach source code files, not executable ones.

[Conor Mcnamara]

iCustom might not be finding the indicator, look to see if there's any errors in the journal

better code:

input int    Npast   =300; // # of past bars in a pattern
input int    Nfut    =50;  // # of future bars in a pattern (must be < Npast)

string ind_name =  "Nearest_Neighbor";

int handle = iCustom(_Symbol,PERIOD_CURRENT,ind_name, Npast, Nfut);

https://www.mql5.com/en/docs/indicators/icustom

[ceejay1962]

tom standly:

when i want to get value of first buffer, it always shows empty value but in Data window shows that it ( buffer 0 ) has a value!

this is the code of indicator:

i get buffer by this code:

I ran your code through the debugger - according to the debugger watch window, only the first bar of the future buffer contains a value, everything else is EMPTY_VALUE. The issue is in your indicator.

[William Roeder]

1. //|                                                                 Nearest_Neighbor.mq5 |

   double a = iCustom(_Symbol,PERIOD_CURRENT,"nearest-neighbor");

   Perhaps you should read the manual, especially the examples.
      How To Ask Questions The Smart Way. (2004)
         How To Interpret Answers.
            RTFM and STFW: How To Tell You've Seriously Screwed Up.

   They all (including iCustom) return a handle (an int). You get that in OnInit. In OnTick/OnCalculate/OnStart (after the indicator has updated its buffers), you use the handle, shift and count to get the data.
             Technical Indicators - Reference on algorithmic/automated trading language for MetaTrader 5
             Timeseries and Indicators Access / CopyBuffer - Reference on algorithmic/automated trading language for MetaTrader 5
             How to start with MQL5 - General - MQL5 programming forum - Page 3 #22 (2020)
             How to start with MQL5 - MetaTrader 5 - General - MQL5 programming forum - Page 7 #61 (2020)
             MQL5 for Newbies: Guide to Using Technical Indicators in Expert Advisors - MQL5 Articles (2010)
             How to call indicators in MQL5 - MQL5 Articles (2010)




2.                 const double& Open[],
   ⋮
         double y=Open[bars-Npast+i];

   In MT5, you must set the direction.

   To define the indexing direction in the time[], open[], high[], low[], close[], tick_volume[], volume[] and spread[] and other arrays (copyXXXX functions), call the ArrayGetAsSeries() function. In order not to depend on defaults, call the ArraySetAsSeries() function for the arrays to work with.
             Event Handling / OnCalculate - Reference on algorithmic/automated trading language for MetaTrader 5

[tom standly]

ceejay1962 #:

I ran your code through the debugger - according to the debugger watch window, only the first bar of the future buffer contains a value, everything else is EMPTY_VALUE. The issue is in your indicator.

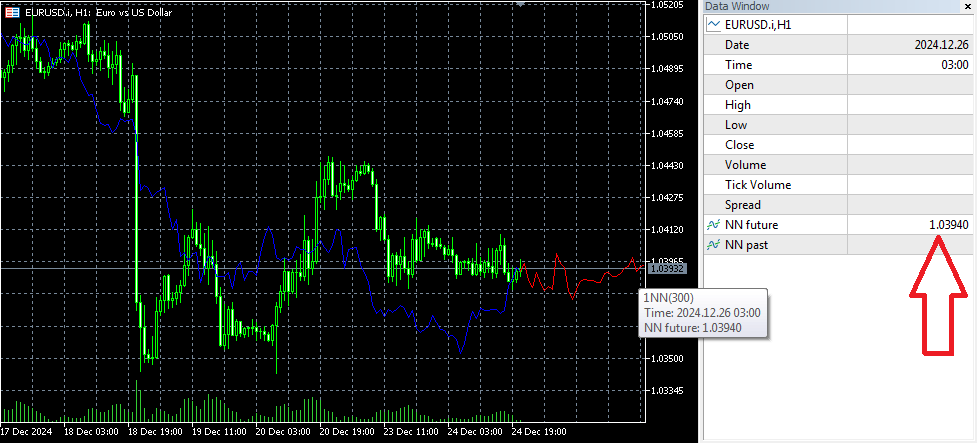

but in Data Window future buffer shows value. i attached image that shows it.

[tom standly]

Conor Mcnamara #:

iCustom might not be finding the indicator, look to see if there's any errors in the journal

better code:

https://www.mql5.com/en/docs/indicators/icustom

It find the indicator. it shows buffer 1 but it shows empty value for buffer 0. my problem is buffer 0 value.

[Conor Mcnamara]

You're basically getting the data of the last (current) bar in the EA.

If you look at the two buffers

They give the same value on that last bar.

I see it working fine.

#include <Trade/Trade.mqh>

#resource "\\Indicators\\Examples\\Nearest Neighbor.ex5"

input int    Npast   =300; // # of past bars in a pattern
input int    Nfut    =50;  // # of future bars in a pattern (must be < Npast)


int handle = INVALID_HANDLE;

double first_buf[];
double second_buf[];
//+------------------------------------------------------------------+
//| Expert initialization function                                   |
//+------------------------------------------------------------------+
int OnInit()
  {
//---
   handle = iCustom(_Symbol, _Period, "::Indicators\\Examples\\Nearest Neighbor", Npast, Nfut);

   ArraySetAsSeries(first_buf, true);
   ArraySetAsSeries(second_buf, true);

//---
   return(INIT_SUCCEEDED);
  }
//+------------------------------------------------------------------+
//| Expert deinitialization function                                 |
//+------------------------------------------------------------------+
void OnDeinit(const int reason)
  {
//---
   IndicatorRelease(handle);
  }
//+------------------------------------------------------------------+
//| Expert tick function                                             |
//+------------------------------------------------------------------+
void OnTick()
  {
      if(!CopyBuffer(handle, 0, 0, 1, first_buf)){

         Print("Something wrong retrieving data from buffer 0");
      }

      if(!CopyBuffer(handle, 1, 0, 1, second_buf)){

         Print("Something wrong retrieving data from buffer 1");
      }

      double b0 = first_buf[0];
      double b1 = second_buf[0];


      string debug = "Buffer 0 value: " + DoubleToString(b0) + "\n" + "Buffer 1 value: " + DoubleToString(b1);

      Comment(debug);
  }
//+------------------------------------------------------------------+

If you want to test this when the markets are closed, you will have to use strategy tester visual mode. There are no incoming ticks on forex markets at the weekend.
