PulseTrail Pro
- 지표
- 버전: 2.7
- 활성화: 5
PulseTrail Pro is an all-in-one trend indicator for MetaTrader 5. It combines an adaptive ATR trailing line, a colored tick-volume histogram, an automatic position tool with three take-profit levels, and a multi-timeframe dashboard with four oscillators.
HOW IT WORKS
The indicator builds a trailing level around an EMA: EMA ± ATR × multiplier. The level moves only in the direction of the current trend. When the bar closes beyond it, the trend flips and a Buy or Sell arrow appears on the chart.
• Signals are generated on CLOSED bars only (default) and do not repaint.
• The sub-window histogram shows tick volume. Blue bar = Buy flip, red bar = Sell flip, green bar = no flip.
• Every signal has a strength value from 0 to 100: the range of the signal bar measured in ATR units.
• A higher ATR multiplier gives fewer signals and fewer whipsaws; a lower one reacts faster.
POSITION TOOL (R-MULTIPLE)
On every signal the indicator draws a ready trade plan:
• Entry — close of the signal bar
• Stop — the trailing level at the moment of the flip
• TP1 / TP2 / TP3 — 1R, 2R and 3R by default (all three are adjustable)
• Optional shaded risk box between entry and stop
• Lines can extend to the end of the current day/week or a fixed number of bars
• Colors, line styles and widths are fully configurable

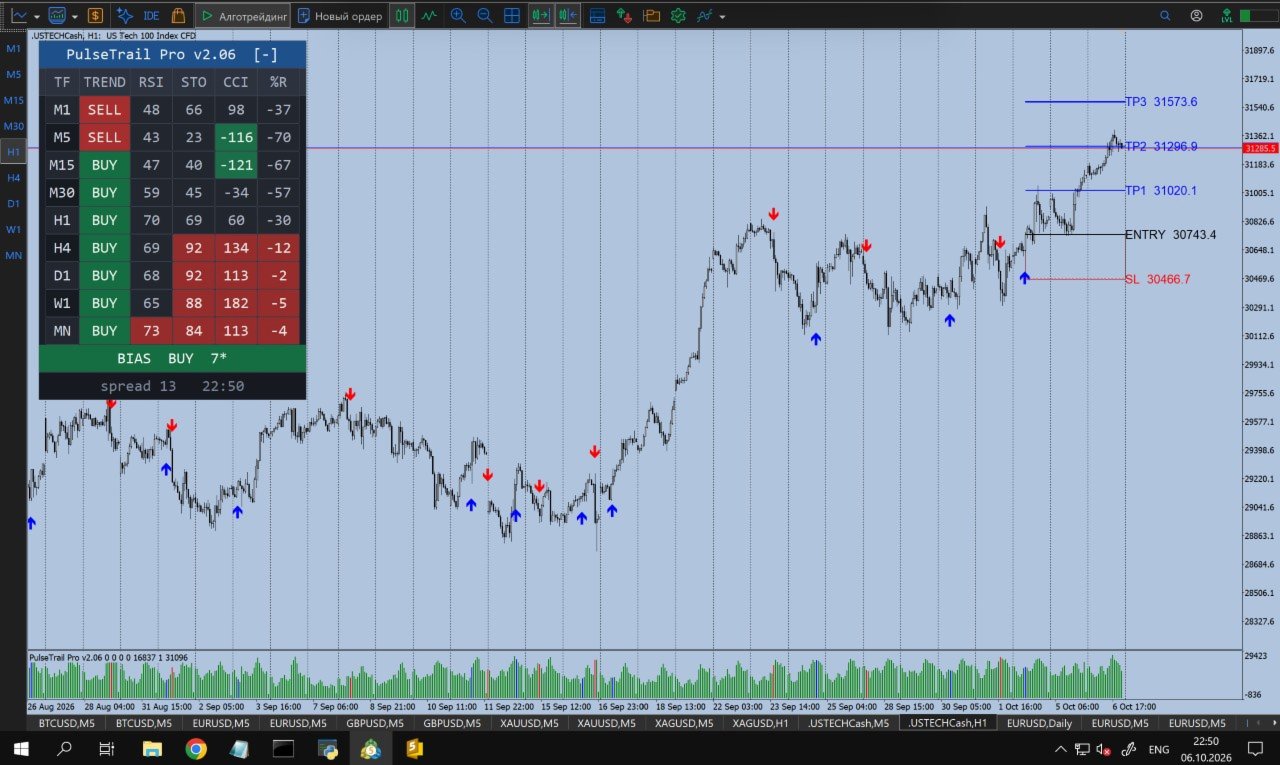

MULTI-TIMEFRAME DASHBOARD
A compact on-chart panel covering all 9 timeframes (M1, M5, M15, M30, H1, H4, D1, W1, MN):
• Trend direction on each timeframe, calculated by the same engine as the chart signals
• RSI, Stochastic, CCI and Williams %R, colored by overbought / oversold zones
• BIAS line: when 3 or more neighboring timeframes agree, it shows BIAS BUY or BIAS SELL with the number of agreeing timeframes
• Click a timeframe cell to switch the chart to it
• Collapsible to a single button; any corner, adjustable scale and font size
ALERTS
Popup, sound, push notification and email. One alert per signal, fired on bar close. History is never "announced" when you attach the indicator or change the timeframe.
FOR EXPERT ADVISOR DEVELOPERS
The indicator exposes 20 buffers that can be read with iCustom / CopyBuffer. Enable the first input "Expert mode" to get a lightweight copy without panels, objects and alerts.
0 — Sell signal (1.0 on the signal bar)
1 — Sell strength (0..100)
2 — Buy signal (1.0 on the signal bar)
3 — Buy strength (0..100)
6 — Trend direction (+1 / -1)
7 — Trailing level (stop price)
8 / 9 / 10 — TP1 / TP2 / TP3 of the active signal
11..19 — Trend direction on M1, M5, M15, M30, H1, H4, D1, W1, MN
KEY SETTINGS
• EMA period (28), ATR period (15), ATR multiplier (1.25)
• Closed-bar signals on/off, arrow size, arrow history depth, arrow codes and colors
• TP1 / TP2 / TP3 in R, line styles, risk box
• Dashboard: corner, scale, start collapsed, RSI / Stochastic / CCI / Williams %R periods and levels
• Alerts: popup / sound / push / email
USE WITH THE FXSTRIKE999_OA BOT 4.49 (FULLY AUTOMATED TRADING)
PulseTrail Pro is compatible with the FxStrike999_OA bot 4.49 Expert Advisor. The indicator passes its signals and levels to the robot through its buffers, so the same signals you see on the chart can be traded fully automatically, without manual entries.
• The robot reads the indicator through iCustom, so no extra configuration of the signals is needed.
• The robot, like the indicator, can be downloaded and tested in the developer's store (MQL5 Market, developer's profile).
• Test the combination on a demo account before using it on a live account.
RECOMMENDATIONS
• Works on any symbol and any timeframe.
• Trend-following logic: in sideways markets any trailing-stop indicator produces false flips. Raise the ATR multiplier or move to a higher timeframe to reduce them.
• Use it as a trend filter and a trade-planning tool, together with your own analysis and risk management.
• Test on a demo account first.
RISK WARNING
Trading financial markets involves a high risk of capital loss. The indicator is a technical analysis tool, not trading advice, and does not guarantee profit. Past results do not predict future performance.
