SMCtarget

SMC Pro is a chart-window indicator for traders who work with Smart Money Concepts: structure first, then wait for price to return into a high-quality POI.

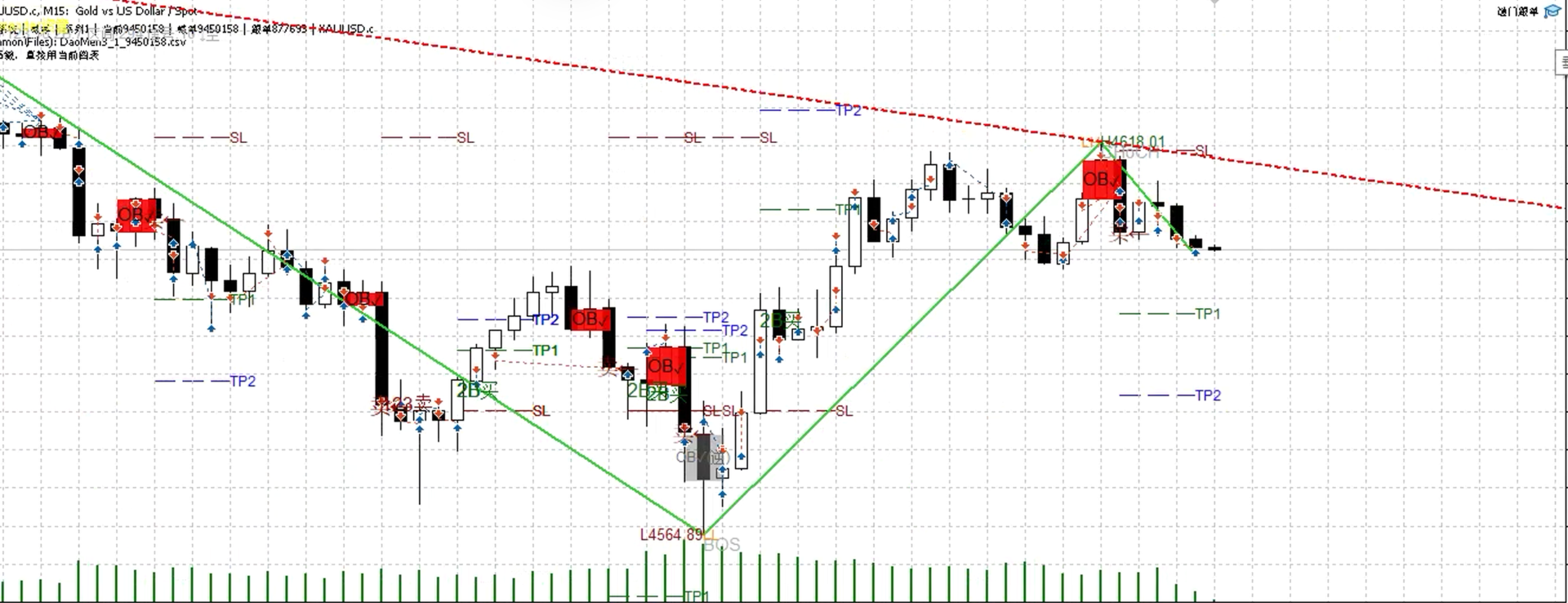

What it shows

• ZigZag swings on higher-timeframe structure (default H1) and on the chart timeframe
• BOS (break of structure) and CHoCH (change of character)
• Equal Highs / Equal Lows (liquidity pools) and an equilibrium midpoint
• Fair Value Gaps (FVG) filtered by ATR
• Order Blocks (OB) defined from a strong impulse candle
• Confluence score: structure alignment, nearby liquidity, premium/discount, FVG+OB overlap
• Entry markers when a wick taps a strong, unfilled POI in the direction of H1 structure
• Suggested Stop Loss, TP1 (at least 1:1, prefers opposite liquidity) and TP2 (1:2)
• Liquidity sweeps: wick through a swing or EQH/EQL, then close back
• Optional Dow labels (HH / HL / LH / LL) and trend lines
• Optional 123 reversal and 2B (false break) patterns, with a filter to stay with H1 bias

How confirmation works Confirmed FVG/OB and entry arrows are calculated on closed bars so historical structure does not jump around. While the current candle is still forming, candidate FVG/OB appear as a dashed preview and do not generate entries until the bar closes.

Practical use

1. Attach to M15 (or your execution timeframe). Keep structure TF at H1 unless you know you want another HTF.
2. Trade with the H1 arrow: buy POIs below equilibrium in a bullish structure, sell POIs above equilibrium in a bearish structure.
3. Prefer zones with higher score, FVG+OB overlap, or a fresh sweep into the zone.
4. Treat SL / TP lines as a plan, not an auto-trader. Position size and news remain your responsibility.

Extras

• Light / dark chart theme: text and zone colors adapt automatically
• Optional CSV log:  MQL5\Files\SMC_Signals.csv  (time, symbol, direction, type, score, entry, SL, TP1, TP2)
• Inputs for ZZ depth, FVG size, OB strength, lookback, max zones, score threshold, and on/off for Sweep / 123 / 2B / Dow

Important
 This is an analysis and markup tool. It does not place trades and does not guarantee profit. Past pattern detection is not a forecast. Test on a demo account and use risk management.
