Real author:

Sergey Bochkanov. ALGLIB project website - http://www.alglib.net/. The library dates back to 1999.

Note: The Expert Advisor works with MetaTrader 4 build 555 and higher.

The archive must be unpacked to: terminal_data_folder.
The codes of the library are located in terminal_data_folder\Math\Alglib\
Examples of test scripts are located in terminal_data_folder\MQL4\Scripts\Alglib\

ALGLIB is one of the largest and most complete mathematical libraries

Do you need to make a fast Fourier transform or to solve a differential equation system? Do you perform a complex data analysis trying to gather all methods in one place as a source code? Then ALGLIB library of numerical methods is for you!

ALGLIB is currently one of the best libraries of the multi-language algorithms. Below are ALGLIB features mentioned on the official website:

ALGLIB is a cross-platform numerical analysis and data processing library. It supports several programming languages (C++, C#, Pascal, VBA) and several operating systems (Windows, Linux, Solaris). ALGLIB features include:

  • Linear algebra (direct algorithms, EVD/SVD)
  • Solvers (linear and nonlinear)
  • Interpolation
  • Optimization
  • Fast Fourier transforms
  • Numerical integration
  • Linear and nonlinear least-squares fitting
  • Ordinary differential equations
  • Special functions
  • Statistics (descriptive statistics, hypothesis testing)
  • Data analysis (classification/regression, including neural networks)
  • Multiple precision versions of linear algebra, interpolation optimization and others algorithms (using MPFR for floating point computations)

Why to choose ALGLIB? Because it is:

  • portable. It can be compiled almost anywhere using almost any compiler (see compatibility matrix for more info).
  • easy to use. It supports many programming languages. If you use one language, you don't need to study another (FORTRAN, for example) to compile and link an external library.
  • open source. It can be used for free under GPL 2+.
  • suited for commercial users too. Those who want to use ALGLIB in commercial applications can buy commercial license without copyleft requirement.

ALGLIB library is being constantly enhanced, new functions and improvements according to users' comments are implemented regularly. The latest version is 3.6.0.

Besides, the library contains the large collection of test cases covering the major part of the proposed methods' functionality. That will allow you to carry the tests and report detected errors to the project's authors.


CAlglib class static functions should be used to work with the library - all library functions are moved to CAlglib system class as static functions.

testclasses.mq4 and testinterfaces.mq5 test cases scripts are attached together with a simple usealglib.mq4 demo script. Include files of the same name (testclasses.mqh and testinterfaces.mqh) are used to launch test cases. They must be placed to \MQL4\Scripts\Alglib\Testcases\.

Note: testclasses.mq4 script execution takes quite a long time (about 30 minutes).

Below is more detailed information about ALGLIB MQL4 ported library packages:

Packages
Description
alglib.mqh
The main library package includes custom functions. These functions should be called for working with the library.
alglibinternal.mqh
Additional classes for the operation of other library packages.
alglibmisc.mqh

The package contains the following classes:

  1. CHighQualityRand - high quality random number generator.
  2. CNearestNeighbor - KD-trees generation and solution.
ap.mqh The package also contains additional classes necessary for other packages.
bitconvert.mqh С++ basic classes and functions that are absent in MQL4 as built-in:
  1. BitConverter - class for transforming int and double type figures into an array of bits and vice versa.
  2. CInfOrNaN - NaNs and plus/minus infinity verification and generation class.
  3. ArrayReverse - array elements reverse function.
  4. GetSelectionString - function for receiving the string generated from char type array elements.
  5. MathSign - number sign calculation function.
  6. MathSinh - hyperbolic sine calculation function.
  7. MathCosh - hyperbolic sine calculation function.
  8. MathTanh - hyperbolic tangent calculation function.
complex.mqh Defining complex structures for working with complex numbers.
dataanalysis.mqh Classes of data analysis:
  1. CBdSS - error functions calculation.
  2. CDForest - working with the forests of solution trees.
  3. CKMeans - clustering using k-means++ algorithm.
  4. CLDA - linear discriminant analysis.
  5. CLinReg - linear regression.
  6. CMLPBase - multilayer perceptron (neural networks).
  7. CLogit - multinomial logit regression.
  8. CMarkovCPD - Markov chains for population data.
  9. CMLPTrain - training of multilayer perceptron.
  10. CMLPE - ensembles of neural networks.
  11. CPCAnalysis - principal components method.
delegatefunctions.mqh The package contains the classes created as replacement for the delegates. The objects of these classes are the functions optimized in several library methods.
diffequations.mqh The class for solving ordinary differential equations:
  1. CODESolver - solving ordinary differential equations.
fasttransforms.mqh Fast transformation classes:
  1. CFastFourierTransform - fast Fourier transform.
  2. CConv - convolution.
  3. CCorr - cross-correlation.
  4. CFastHartleyTransform - fast Hartley transform.
integration.mqh Classes for numerical integration:
  1. CGaussQ - Gaussian quadrature.
  2. CGaussKronrodQ - Gauss–Kronrod quadrature formulas.
  3. CAutoGK - adaptive integrator.
interpolation.mqh Interpolation, approximation and numerical differentiation classes:
  1. CIDWInt - interpolation and approximation by the inverse average weighted distance.
  2. CRatInt - rational interpolation.
  3. CPolInt - polynomial interpolation.
  4. CSpline1D - one-dimensional spline interpolation.
  5. CLSFit - approximation using linear or non-linear least squares method.
  6. CPSpline - parametric spline interpolation.
  7. CSpline2D - two-dimensional spline interpolation.
linalg.mqh Classes for calculation of some linear algebra operations:
  1. COrtFac - QR/LQ decompositions, decompositions of Hessenberg, as well as of bi- and tridiagonal matrices.
  2. CEigenVDetect - finding the eigenvalues ​​and eigenvectors.
  3. CMatGen - random matrices generation.
  4. CTrFac - LU and Cholesky decompositions.
  5. CRCond - estimation of a matrix dependence value.
  6. CMatInv - matrix inversion.
  7. CBdSingValueDecompose - singular decomposition of a bidiagonal matrix.
  8. CSingValueDecompose - matrix singular decomposition.
  9. CFbls - quick basic linear solutions.
  10. CMatDet - calculation of a matrix determinant.
  11. CSpdGEVD - finding the eigenvalues ​​and eigenvectors in generalized symmetric matrices.
  12. CInverseUpdate - matrices inversion and update.
  13. CSchur - Issai Schur decomposition.
matrix.mqh Classes of matrices: integer, continuous and complex.
optimization.mqh Dimensional and multidimensional optimization classes:
  1. CMinCG - optimization using conjugate gradient method.
  2. CMinBLEIC - optimization with linear constraints in the form of equations and inequations.
  3. CMinLBFGS - optimization using successive generation and classification of the function's quadratic model.
  4. CMinQP - quadratic programming with linear constraints in the form of equations and inequations.
  5. CMinLM - optimization using Levenberg-Marquardt algorithm.
  6. CMinComp - backward compatibility functions.
solvers.mqh Classes for solving linear and non-linear equation systems:
  1. CDenseSolver - solving linear equation systems.
  2. CNlEq - solving non-linear equation systems.
specialfunctions.mqh Classes of distribution functions, integrals and polynomials:
  1. CGammaFunc - Gamma function.
  2. CIncGammaF - incomplete Gamma function.
  3. CBetaF - Beta function.
  4. CIncBetaF - incomplete beta function.
  5. CPsiF - psi-function.
  6. CAiryF - Airy function.
  7. CBessel - Bessel functions of integral order.
  8. CJacobianElliptic - Jacobian elliptic functions.
  9. CDawson - Dawson integral.
  10. CTrigIntegrals - trigonometric integrals.
  11. CElliptic - elliptic integrals of the first and second kind.
  12. CExpIntegrals - exponential integrals.
  13. CFresnel - Fresnel integrals.
  14. CHermite - Hermite polynomials.
  15. CChebyshev - Chebyshev polynomials.
  16. CLaguerre - Laguerre polynomials.
  17. CLegendre - Legendre polynomials.
  18. CChiSquareDistr - chi-square distribution.
  19. CBinomialDistr - binomial distribution.
  20. CNormalDistr - normal distribution.
  21. CPoissonDistr - Poisson distribution.
  22. CStudenttDistr - Student t-distribution.
  23. CFDistr - F-distribution.
statistics.mqh Classes of statistical data analysis:
  1. CBaseStat - basic statistical methods.
  2. CCorrTests - test for correlation ratio significance.
  3. CJarqueBera - JarqueBera croterion.
  4. CMannWhitneyU - Mann-Whitney U-criterion.
  5. CSignTest - sign test.
  6. CStudentTests - Student t-tests.
  7. CVarianceTests - F-test and chi-square test.
  8. CWilcoxonSignedRank - Wilcoxon W-criterion.


Code:

Library functions have detailed comments on their usage.

//+------------------------------------------------------------------+
//| Calculation of the distribution moments: mean, variance,         |
//| skewness, kurtosis.                                              |
//| INPUT PARAMETERS:                                                |
//|     X       -   sample                                           |
//|     N       -   N>=0, sample size:                               |
//|                 * if given, only leading N elements of X are     |
//|                   processed                                      |
//|                 * if not given, automatically determined from    |
//|                   size of X                                      |
//| OUTPUT PARAMETERS                                                |
//|     Mean    -   mean.                                            |
//|     Variance-   variance.                                        |
//|     Skewness-   skewness (if variance<>0; zero otherwise).       |
//|     Kurtosis-   kurtosis (if variance<>0; zero otherwise).       |
//+------------------------------------------------------------------+
static bool CBaseStat::SampleMoments(const double &cx[],const int n,double &mean,
                                     double &variance,double &skewness,double &kurtosis)
  {
//--- check
   if(!CAp::Assert(n>=0,__FUNCTION__+": the error variable"))
      return(false);
//--- check
   if(!CAp::Assert(CAp::Len(cx)>=n,__FUNCTION__+": length(x)<n"))
      return(false);
//--- check
   if(!CAp::Assert(CApServ::IsFiniteVector(cx,n),__FUNCTION__+": x is not finite vector"))
      return(false);
//--- create variables
   double v=0;
   double v1=0;
   double v2=0;
   double stddev=0;
//--- Init, special case 'N=0'
   mean=0;
   variance=0;
   skewness=0;
   kurtosis=0;
//--- check
   if(n<=0)
      return(true);
//--- Mean
   for(int i=0;i<n;i++)
      mean+=cx[i];
   mean/=n;
//--- Variance (using corrected two-pass algorithm)
   if(n!=1)
     {
      //--- calculation
      for(int i=0;i<n;i++)
         v1+=CMath::Sqr(cx[i]-mean);
      for(int i=0;i<n;i++)
         v2+=cx[i]-mean;
      v2=CMath::Sqr(v2)/n;
      variance=(v1-v2)/(n-1);
      //--- calculation
      stddev=MathSqrt(variance);
     }
   else
      variance=EMPTY_VALUE;
//--- Skewness and kurtosis
   if(stddev!=0)
     {
      //--- calculation
      for(int i=0;i<n;i++)
        {
         v=(cx[i]-mean)/stddev;
         v2=CMath::Sqr(v);
         skewness+=v2*v;
         kurtosis+=CMath::Sqr(v2);
        }
      //--- change values
      skewness=skewness/n;
      kurtosis=kurtosis/n-3;
     }
//--- successful execution
   return(true);
  }

CAlglib class static functions should be used to work with the library. Below is usealglib.mq5 function script's source code for calculation of some statistical trading parameters:

//+------------------------------------------------------------------+
//|                                                    UseAlglib.mq4 |
//|                        Copyright 2012, MetaQuotes Software Corp. |
//|                                              https://www.mql5.com |
//+------------------------------------------------------------------+
#property copyright "Copyright 2012, MetaQuotes Software Corp."
#property link      "https://www.mql5.com"
#property version   "1.00"
#property strict
//+------------------------------------------------------------------+
//| Include libraries                                                |
//+------------------------------------------------------------------+
#include <Math\Alglib\alglib.mqh>
#include <Arrays\ArrayDouble.mqh>
//+------------------------------------------------------------------+
//| Script program start function                                    |
//+------------------------------------------------------------------+
void OnStart()
  {
//--- object for storage of profit/loss data for each order
   CArrayDouble *profit=new CArrayDouble;
//--- object for storage of balance data
   CArrayDouble *balance_total=new CArrayDouble;
//--- initial balance
   double        balance=0;
//--- historical data request
//--- get total amount ot orders
   int orders_total=OrdersHistoryTotal();
//--- get profit data
   for(int i=0;i<orders_total;i++)
     {
      if(OrderSelect(i,SELECT_BY_POS,MODE_HISTORY)==false)
        {
         Print("Error in OrderSelect (",GetLastError(),")");
         return;
        }
      int order_type=OrderType();
      //--- initial balance
      if(order_type==6) // OP_BALANCE=6
        {
         if(NormalizeDouble(OrderProfit()+OrderSwap(),2)>=0.0)
            if(balance==0.0)
               balance=OrderProfit();
        }
      //--- add order profit
      if(order_type==OP_BUY || order_type==OP_SELL)
        {
         double order_profit=OrderProfit()+OrderSwap()+OrderCommission();
         profit.Add(NormalizeDouble(order_profit,2));
         balance_total.Add(balance);
         balance=balance+NormalizeDouble(order_profit,2);
        }
     }
//---
   balance_total.Add(balance_total.At(balance_total.Total()-1)+profit.At(balance_total.Total()-1));
//--- copy balance data to the array of double type
   double arr_balance[];
   ArrayResize(arr_balance,balance_total.Total());
   for(int i=0;i<balance_total.Total();i++)
      arr_balance[i]=balance_total.At(i);
//--- copy profit data to the array of double type
   double arr_profit[];
   ArrayResize(arr_profit,profit.Total());
   for(int i=0;i<profit.Total();i++)
      arr_profit[i]=profit.At(i);
//--- linear regression
//--- number of independent variables
   int nvars=1;
//--- number of points
   int npoints=balance_total.Total();
//--- creating parameters matrix, used for linear regression
   CMatrixDouble xy(npoints,nvars+1);
   for(int i=0;i<npoints;i++)
     {
      xy[i].Set(0,i);
      xy[i].Set(1,arr_balance[i]);
     }
//--- variable for detecting calculations result (successful, unsuccessful)
   int info;
//--- class objects necessary for storing data on calculations
   CLinearModelShell lm;
   CLRReportShell    ar;
//--- arrays for storing regression results
   double lr_coeff[];
   double lr_values[];
   ArrayResize(lr_values,npoints);
//--- calculate linear regression coefficients
   CAlglib::LRBuild(xy,npoints,nvars,info,lm,ar);
//--- get linear regression coefficients
   CAlglib::LRUnpack(lm,lr_coeff,nvars);
//--- get the recovered linear regression values
   for(int i=0;i<npoints;i++)
      lr_values[i]=lr_coeff[0]*i+lr_coeff[1];
//--- calculation of Expected Payoff
   double exp_payoff,tmp1,tmp2,tmp3;
   CAlglib::SampleMoments(arr_profit,exp_payoff,tmp1,tmp2,tmp3);
//--- calculation of HPR array
   double HPR[];
   ArrayResize(HPR,balance_total.Total()-1);
   for(int i=0;i<balance_total.Total()-1;i++)
      HPR[i]=balance_total.At(i+1)/balance_total.At(i);
//--- calculation of the standard deviation and mean of the HPR
   double AHPR,SD;
   CAlglib::SampleMoments(HPR,AHPR,SD,tmp2,tmp3);
   SD=MathSqrt(SD);
//--- calculation of LR Correlation
   double lr_corr=CAlglib::PearsonCorr2(arr_balance,lr_values);
//--- calculation of LR Standard Error
   double lr_stand_err=0;
   for(int i=0;i<npoints;i++)
     {
      double delta=MathAbs(arr_balance[i]-lr_values[i]);
      lr_stand_err=lr_stand_err+delta*delta;
     }
   lr_stand_err=MathSqrt(lr_stand_err/(npoints-2));
//--- calculation of Sharpe Ratio
   double sharpe_ratio=(AHPR-1)/SD;
//--- print
   PrintFormat("-----------------------------------------------");
   PrintFormat("Linear regression: y = %.2fx + %.2f",lr_coeff[0],lr_coeff[1]);
//--- parameters
   PrintFormat("Expected Payoff = %.2f",exp_payoff);
   PrintFormat("AHPR = %.4f",AHPR);
   PrintFormat("Sharpe Ratio = %.2f",sharpe_ratio);
   PrintFormat("LR Correlation = %.2f",lr_corr);
   PrintFormat("LR Standard Error = %.2f",lr_stand_err);
   PrintFormat("-----------------------------------------------");
//--- delete objects
   delete profit;
   delete balance_total;
  }
//+------------------------------------------------------------------+

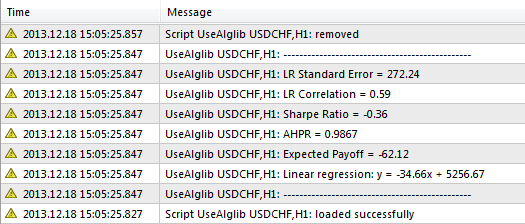

We will receive the following result (depening on results of your trading):

Alglib test result



Translated from Russian by MetaQuotes Software Corp.
Original code: https://www.mql5.com/ru/code/11077

Time indicator Time indicator

Time indicator displays broker time and local computer time on the chart.

OBJ_EDIT_Example OBJ_EDIT_Example

Example of working with OBJ_EDIT graphic object.

Value Chart Deluxe Edition Value Chart Deluxe Edition

Value Chart as developed by David Stendhal. Value Chart was designed to show the valuation of the market.

Renko Range Detector Renko Range Detector

Detects and displays the fixed size of Renko Bars/Candles on offline chart.
