Custom Moving Average Input Color:

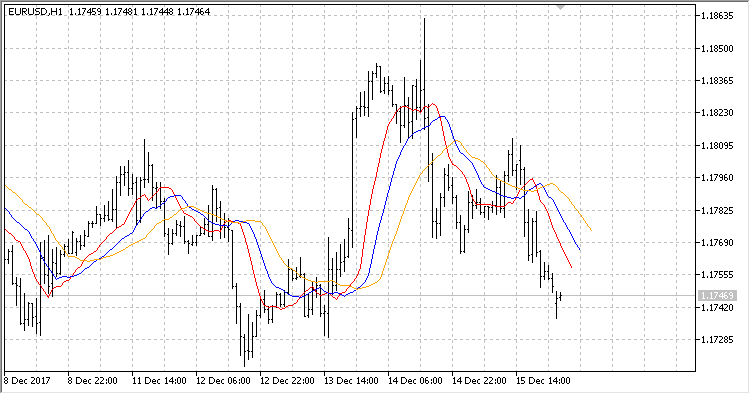

A modification of the "Custom Moving Average" indicator: now the line color can be passed in input parameters.


Author: Vladimir Karputov


It is possible to write a utility that will change any line/histogram (etc.) of an arbitrary indicator according to the principle shown in the video.

Well done! Thank you!


I adapted the code to include the lineweight and style settings:


//+------------------------------------------------------------------+
//| Custom Moving Average Input Colour.mq5 |
//| Copyright 2009-2017, MetaQuotes Software Corp. |
//|http://www.mql5.com |
//+------------------------------------------------------------------+
#property copyright "2009-2017, MetaQuotes Software Corp."
#property link      "http://www.mql5.com"
#property version   "1.001"
//--- indicator settings
#property indicator_chart_window
#property indicator_buffers 1
#property indicator_plots   1
#property indicator_type1   DRAW_LINE
#property indicator_color1  clrRed
//--- input parameters
input int               InpMAPeriod=13;            // Period
input int               InpMAShift=0;              // Shift
input ENUM_MA_METHOD    InpMAMethod=MODE_SMMA;     // Method
input color             InpColor=clrYellow;        // Colour
input ENUM_LINE_STYLE   InpMAStyle=STYLE_SOLID;      // Style
input int               InpMAWidth=1;              // Width


//--- indicator buffers
double               ExtLineBuffer[];
//+------------------------------------------------------------------+
//| simple moving average|
//+------------------------------------------------------------------+
void CalculateSimpleMA(int rates_total,int prev_calculated,int begin,const double &price[])
  {
   int i,limit;
//--- first calculation or number of bars was changed
   if(prev_calculated==0)// first calculation
     {
      limit=InpMAPeriod+begin;
      //--- set empty value for first limit bars
      for(i=0;i<limit-1;i++) ExtLineBuffer[i]=0.0;
      //--- calculate first visible value
      double firstValue=0;
      for(i=begin;i<limit;i++)
         firstValue+=price[i];
      firstValue/=InpMAPeriod;
      ExtLineBuffer[limit-1]=firstValue;
     }
   else limit=prev_calculated-1;
//--- main loop
   for(i=limit;i<rates_total && !IsStopped();i++)
      ExtLineBuffer[i]=ExtLineBuffer[i-1]+(price[i]-price[i-InpMAPeriod])/InpMAPeriod;
//---
  }
//+------------------------------------------------------------------+
//| exponential moving average|
//+------------------------------------------------------------------+
void CalculateEMA(int rates_total,int prev_calculated,int begin,const double &price[])
  {
   int    i,limit;
   double SmoothFactor=2.0/(1.0+InpMAPeriod);
//--- first calculation or number of bars was changed
   if(prev_calculated==0)
     {
      limit=InpMAPeriod+begin;
      ExtLineBuffer[begin]=price[begin];
      for(i=begin+1;i<limit;i++)
         ExtLineBuffer[i]=price[i]*SmoothFactor+ExtLineBuffer[i-1]*(1.0-SmoothFactor);
     }
   else limit=prev_calculated-1;
//--- main loop
   for(i=limit;i<rates_total && !IsStopped();i++)
      ExtLineBuffer[i]=price[i]*SmoothFactor+ExtLineBuffer[i-1]*(1.0-SmoothFactor);
//---
  }
//+------------------------------------------------------------------+
//| linear weighted moving average|
//+------------------------------------------------------------------+
void CalculateLWMA(int rates_total,int prev_calculated,int begin,const double &price[])
  {
   int        i,limit;
   static int weightsum;
   double     sum;
//--- first calculation or number of bars was changed
   if(prev_calculated==0)
     {
      weightsum=0;
      limit=InpMAPeriod+begin;
      //--- set empty value for first limit bars
      for(i=0;i<limit;i++) ExtLineBuffer[i]=0.0;
      //--- calculate first visible value
      double firstValue=0;
      for(i=begin;i<limit;i++)
        {
         int k=i-begin+1;
         weightsum+=k;
         firstValue+=k*price[i];
        }
      firstValue/=(double)weightsum;
      ExtLineBuffer[limit-1]=firstValue;
     }
   else limit=prev_calculated-1;
//--- main loop
   for(i=limit;i<rates_total && !IsStopped();i++)
     {
      sum=0;
      for(int j=0;j<InpMAPeriod;j++) sum+=(InpMAPeriod-j)*price[i-j];
      ExtLineBuffer[i]=sum/weightsum;
     }
//---
  }
//+------------------------------------------------------------------+
//| smoothed moving average|
//+------------------------------------------------------------------+
void CalculateSmoothedMA(int rates_total,int prev_calculated,int begin,const double &price[])
  {
   int i,limit;
//--- first calculation or number of bars was changed
   if(prev_calculated==0)
     {
      limit=InpMAPeriod+begin;
      //--- set empty value for first limit bars
      for(i=0;i<limit-1;i++) ExtLineBuffer[i]=0.0;
      //--- calculate first visible value
      double firstValue=0;
      for(i=begin;i<limit;i++)
         firstValue+=price[i];
      firstValue/=InpMAPeriod;
      ExtLineBuffer[limit-1]=firstValue;
     }
   else limit=prev_calculated-1;
//--- main loop
   for(i=limit;i<rates_total && !IsStopped();i++)
      ExtLineBuffer[i]=(ExtLineBuffer[i-1]*(InpMAPeriod-1)+price[i])/InpMAPeriod;
//---
  }
//+------------------------------------------------------------------+
//| Custom indicator initialisation function |
//+------------------------------------------------------------------+
void OnInit()
  {
//--- indicator buffers mapping
   SetIndexBuffer(0,ExtLineBuffer,INDICATOR_DATA);
//--- set accuracy
   IndicatorSetInteger(INDICATOR_DIGITS,_Digits+1);
//--- sets first bar from what index will be drawn
   PlotIndexSetInteger(0,PLOT_DRAW_BEGIN,InpMAPeriod);
//---- line shifts when drawing
   PlotIndexSetInteger(0,PLOT_SHIFT,InpMAShift);
//--- colour line
   PlotIndexSetInteger(0,PLOT_LINE_COLOR,InpColor);
//--- style line
   PlotIndexSetInteger(0,PLOT_LINE_STYLE,InpMAStyle);
//--- width line
   PlotIndexSetInteger(0,PLOT_LINE_WIDTH,InpMAWidth);

//--- name for DataWindow
   string short_name="unknown ma";
   switch(InpMAMethod)
     {
      case MODE_EMA :  short_name="EMA";  break;
      case MODE_LWMA : short_name="LWMA"; break;
      case MODE_SMA :  short_name="SMA";  break;
      case MODE_SMMA : short_name="SMMA"; break;
     }
   IndicatorSetString(INDICATOR_SHORTNAME,short_name+"("+string(InpMAPeriod)+")");
//---- sets drawing line empty value--
   PlotIndexSetDouble(0,PLOT_EMPTY_VALUE,0.0);
//---- initialisation done
  }
//+------------------------------------------------------------------+
//| Moving Average|
//+------------------------------------------------------------------+
int OnCalculate(const int rates_total,
                const int prev_calculated,
                const int begin,
                const double &price[])
  {
//--- check for bars count
   if(rates_total<InpMAPeriod-1+begin)
      return(0);// not enough bars for calculation
//--- first calculation or number of bars was changed
   if(prev_calculated==0)
      ArrayInitialize(ExtLineBuffer,0);
//--- sets first bar from what index will be drawn
   PlotIndexSetInteger(0,PLOT_DRAW_BEGIN,InpMAPeriod-1+begin);

//--- calculation
   switch(InpMAMethod)
     {
      case MODE_EMA:  CalculateEMA(rates_total,prev_calculated,begin,price);        break;
      case MODE_LWMA: CalculateLWMA(rates_total,prev_calculated,begin,price);       break;
      case MODE_SMMA: CalculateSmoothedMA(rates_total,prev_calculated,begin,price); break;
      case MODE_SMA:  CalculateSimpleMA(rates_total,prev_calculated,begin,price);   break;
     }
//--- return value of prev_calculated for next call
   return(rates_total);
  }
//+------------------------------------------------------------------+

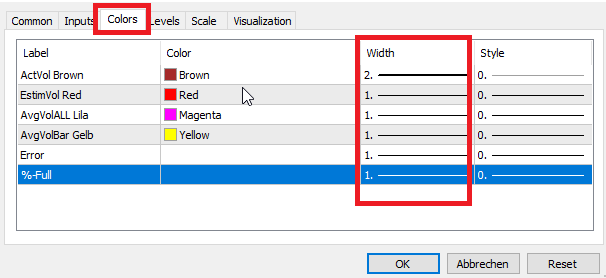

And could we add the possibility of modifying the thickness of the line from the EA?

Pirata Independent #:
And could we add the possibility of modifying the thickness of the line from the EA?

Yes at the start of the indicator:



And how is it modified from the EA code?
