Technical Limitation: Running >6 simultaneous MetaTrader instances per Windows user session (Registry adjustments & Multi-user workaround)
It is nothing to do with MetaQuotes Support Team. Because this issue was extensively discussed many times, and It is mostly related to the Windows (not to Metatrader).
For example (the forum threads):
- I want to open 30 mt5 at the same time
- Metatrader 4 - maximum platforms on one system ?
- MT5 Cant open and My PC Freezes when i try to open more then 21 Terminals
- and more and more (check it in search here).
i have 7 instances of mt5 running in "portable mode"; however i am sure that the number of instances that windows will allow to be opened, depends on the hardware and total system specs. But search the site for "portable mode", and you can try that to increase your number too. But again, i am sure that the number that you will be limited to -- will depend on your computers resources.
Note that even windows "own" programs, have the same limit, but that can also differ from system to system depending on its hardware's specs. but normally 5 - 8, unless you have an option to install to custom folders like you can with mt5 "portable".
Hardware Capacity: The machine has high-end specifications (CPU, RAM, and NVMe I/O) running well below threshold limits, fully capable of handling 20–30+ instances without performance bottlenecks.

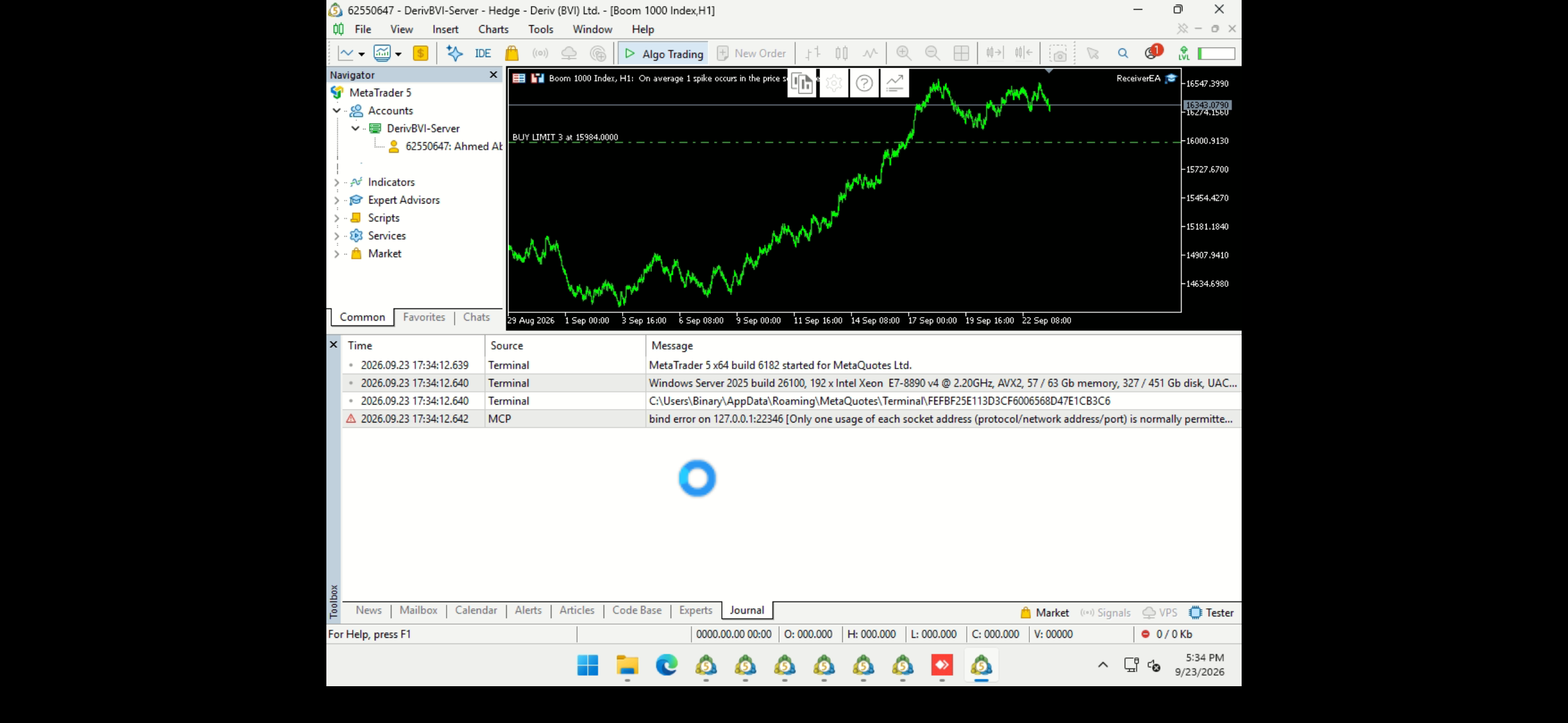

Post your specs, from the Journal tab.
- Free trading apps
- Over 8,000 signals for copying
- Economic news for exploring financial markets
You agree to website policy and terms of use
Dear MetaQuotes Support Team,
I am reaching out regarding a persistent limitation encountered when running multiple concurrent terminal instances on the same machine, and to request technical clarification or a potential update in upcoming builds.
Setup & Environment:
Hardware Capacity: The machine has high-end specifications (CPU, RAM, and NVMe I/O) running well below threshold limits, fully capable of handling 20–30+ instances without performance bottlenecks.
Independent Installations: Each terminal was cleanly installed via its own separate setup into an isolated folder directory (configured with dedicated data paths / portable mode), rather than copying and pasting existing folders.
Troubleshooting & Registry Adjustments Attempted:
Suspecting an OS-level session resource ceiling, we extensively modified Windows Registry settings to expand user session resources, yet none resolved the issue:
1. Desktop Heap Allocation (SharedSection):
Increased the interactive and non-interactive desktop heap allocations under:
HKLM\SYSTEM\CurrentControlSet\Control\Session Manager\SubSystems\Windows (modifying SharedSection=xxxx,yyyy,zzzz).
2. GDI & USER Object Limits:
Increased both GDIProcessHandleQuota and USERProcessHandleQuota under:
HKLM\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Windows.
3. Application & Process Quotas:
Verified handle counts, thread pools, and memory quotas to ensure the OS was not running out of session handles.
Despite all these OS-level optimizations, no more than 6 instances can be launched simultaneously under a single Windows user account. Launching a 7th terminal fails silently or terminates immediately.
Current Workaround:
Currently, our only working solution is splitting the instances across multiple Windows user accounts (running 5 to 6 terminals per Windows profile and switching/logging between them). While this proves the machine and OS can host dozens of terminals concurrently across the entire system, managing multiple user sessions is inefficient, cumbersome, and impractical for unified monitoring and maintenance.
Questions & Requests:
1. Is there an embedded hard ceiling (mutex naming, internal inter-process messaging, IPC, or local socket/pipe constraints) within the terminal architecture restricting it to 6 active instances per interactive desktop/session?
2. Is there a command-line switch, terminal configuration parameter, or specific registry setting that allows scaling beyond 6 instances under a single user session (targeting 15 to 30 instances)?
3. If this is hardcoded, we strongly request lifting or providing an option to configure this limit in future builds to allow running an unrestricted number of instances per user on high-capacity servers.
Looking forward to your technical feedback.
