Hi
I am using iIchimoku indicator to write an expert and I need to know the values of spanA and spanB but I can only access the current candle values but what I need is the ahead of time values.
Can anybody help me with this?

ichi_handle = iIchimoku(_Symbol, ichi_period,ichi_tenkan, ichi_kijun, ichi_span);

 copy = CopyBuffer(ichi_handle,SENKOUSPANA_LINE,0,1, ichi_array);
      if(copy>0)
        {
         last_span_a = ichi_array[0];
        }


Example:

//+------------------------------------------------------------------+
//|                                          iIchimoku Get Value.mq5 |
//|                        Copyright 2021, MetaQuotes Software Corp. |
//|                                             https://www.mql5.com |
//+------------------------------------------------------------------+
#property copyright "Copyright 2021, MetaQuotes Software Corp."
#property link      "https://www.mql5.com"
#property version   "1.00"
//--- input parameters
input group          "Ichimoku"
input int              Inp_Ichimoku_tenkan_sen     = 9;           // Ichimoku: period of Tenkan-sen
input int              Inp_Ichimoku_kijun_sen      = 26;          // Ichimoku: period of Kijun-sen
input int              Inp_Ichimoku_senkou_span_b  = 52;          // Ichimoku: period of Senkou Span B
input group          "Additional features"
input bool              InpPrintLog                = false;       // Print log
//---
int      handle_iIchimoku;                // variable for storing the handle of the iIchimoku indicator
//+------------------------------------------------------------------+
//| Expert initialization function                                   |
//+------------------------------------------------------------------+
int OnInit()
  {
   handle_iIchimoku=INVALID_HANDLE;
//--- create handle of the indicator iIchimoku
   handle_iIchimoku=iIchimoku(Symbol(),Period(),Inp_Ichimoku_tenkan_sen,
                              Inp_Ichimoku_kijun_sen,Inp_Ichimoku_senkou_span_b);
//--- if the handle is not created
   if(handle_iIchimoku==INVALID_HANDLE)
     {
      //--- tell about the failure and output the error code
      PrintFormat("Failed to create handle of the iIchimoku indicator for the symbol %s/%s, error code %d",
                  Symbol(),
                  EnumToString(Period()),
                  GetLastError());
      //--- the indicator is stopped early
      return(INIT_FAILED);
     }
////---
////   ResetLastError();
////   if(!ChartIndicatorAdd(ChartID(),0,handle_iIchimoku))
////     {
////      --- tell about the failure and output the error code
////      PrintFormat("Failed to ChartIndicatorAdd, error code %d",GetLastError());
////      --- the indicator is stopped early
////      return(INIT_FAILED);
////     }
//---
   return(INIT_SUCCEEDED);
  }
//+------------------------------------------------------------------+
//| Expert deinitialization function                                 |
//+------------------------------------------------------------------+
void OnDeinit(const int reason)
  {
//---
   if(handle_iIchimoku!=INVALID_HANDLE)
      IndicatorRelease(handle_iIchimoku);
  }
//+------------------------------------------------------------------+
//| Expert tick function                                             |
//+------------------------------------------------------------------+
void OnTick()
  {
//---
   double span_a[],span_b[];
   ArraySetAsSeries(span_a,true);
   ArraySetAsSeries(span_b,true);
   int start_pos=0,count=3;
   if(!iGetArray(handle_iIchimoku,SENKOUSPANA_LINE,start_pos,count,span_a) || !iGetArray(handle_iIchimoku,SENKOUSPANB_LINE,start_pos,count,span_b))
      return;
//---
   string text="";
   for(int i=0; i<count; i++)
     {
      text=text+
           " bar #"+IntegerToString(i)+": "+
           " span_a "+DoubleToString(span_a[i],Digits()+1)+" span_b "+DoubleToString(span_b[i],Digits()+1)+"\n";
     }
   Comment(text);
  }
//+------------------------------------------------------------------+
//| Get value of buffers                                             |
//+------------------------------------------------------------------+
bool iGetArray(const int handle,const int buffer,const int start_pos,
               const int count,double &arr_buffer[])
  {
   bool result=true;
   if(!ArrayIsDynamic(arr_buffer))
     {
      PrintFormat("ERROR! EA: %s, FUNCTION: %s, this a no dynamic array!",__FILE__,__FUNCTION__);
      return(false);
     }
   ArrayFree(arr_buffer);
//--- reset error code
   ResetLastError();
//--- fill a part of the iBands array with values from the indicator buffer
   int copied=CopyBuffer(handle,buffer,start_pos,count,arr_buffer);
   if(copied!=count)
     {
      //--- if the copying fails, tell the error code
      PrintFormat("ERROR! EA: %s, FUNCTION: %s, amount to copy: %d, copied: %d, error code %d",
                  __FILE__,__FUNCTION__,count,copied,GetLastError());
      //--- quit with zero result - it means that the indicator is considered as not calculated
      return(false);
     }
   return(result);
  }
//+------------------------------------------------------------------+

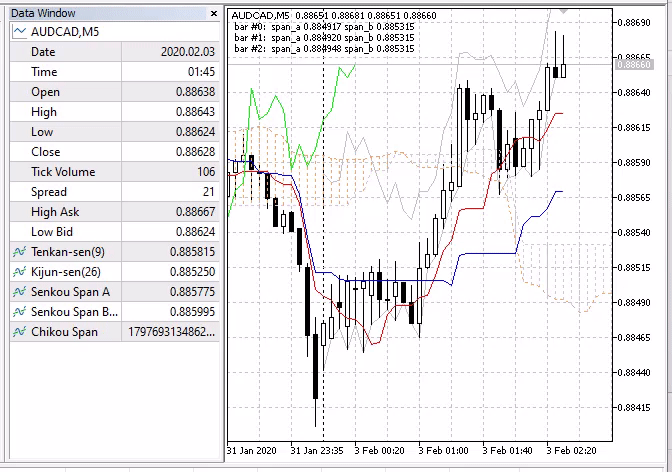

Result:

iIchimoku Get Value

Files:
iIchimoku_Get_Value.mq5  5 kb
