MT5 Dashboard MSS / CISD

I would require and indicator for Metatrader 5 that functions as a dashboard with a Graphic User Inteface. The dashboard alerts for MSS and CISD. If you do not know what these are please do not apply.

1. The dashboard needs to monitor the instruments either for Market Structure Shifts (MSS) aka Change of Character or it should monitor for Change in the State of Delivery (CISD). This should be able to be amendable in the indicator settings.
2. The instruments to be monitored are manually entered in the indicator settings.
3. The dashboard needs to monitor a maximum of 6 timeframes. The time frames to be monitored should be able to be preselected in the indicator settings. The available options to preselect are the MT5 timeframe options. However the timeframe(s) ultimately used would be selected in the GUI. (Please note that I might only want to ultimately select one time frame in the GUI).
4. The dashboard needs to alert me only when it is in line with the direction I tell it to monitor for each instrument individually in the GUI.
5. The dashboard look needs to be amendable in the settings such as font size, cell colors, font color, cell height, cell width, spacing between cell rows, alert cell color, alert cell font, alert cell font size
6. An MSS alert or an CISD alert should only be made if

• the MSS or CISD is in the same direction then what has been selected before in the GUI
• the MSS or CISD is only valid when in the leg where the MSS or the CISD was create at least either one displacement candle (wide range candle) or an FVG was present.
• What is a wide range candle
• a wide range candle is a candle that is at least x percent bigger than the average of the last x days. ( these settings should be changeable in the indicator settings)
• a wide range candle should close at least x percent within the low ( bearish candle ) or x percent within the high ( bullish candle). For example a bullish candle that closes at 100% within the high is a candle where the high price and the close price is the same. A 90 percent candle is a candle where the close price is 10% lower than the high price
• What is an FVG
• am FVG is a 3 candle formation. A bullish example is where the high of candle 1 does not touch the low of candle 3. A bearish example is where the low of candle 1 does not touch the high of candle 3.

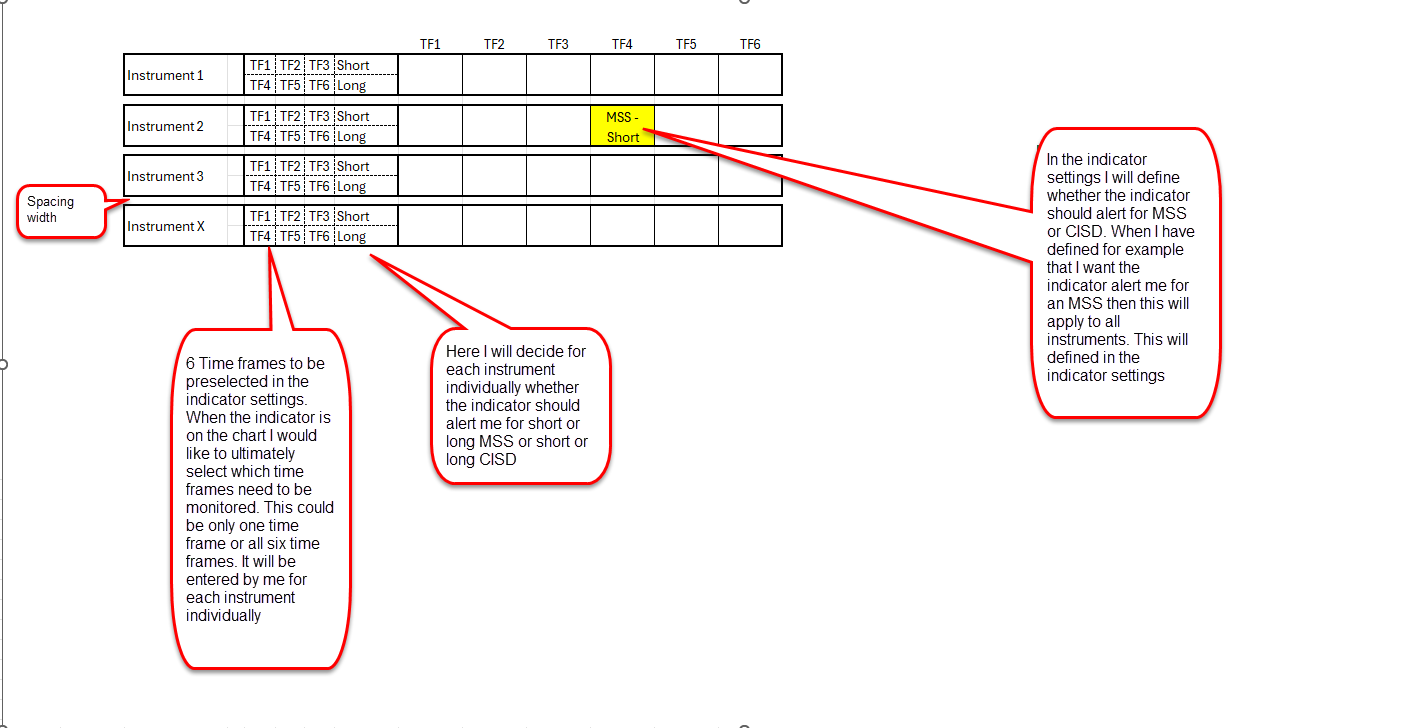

Please see attachment for GUI example

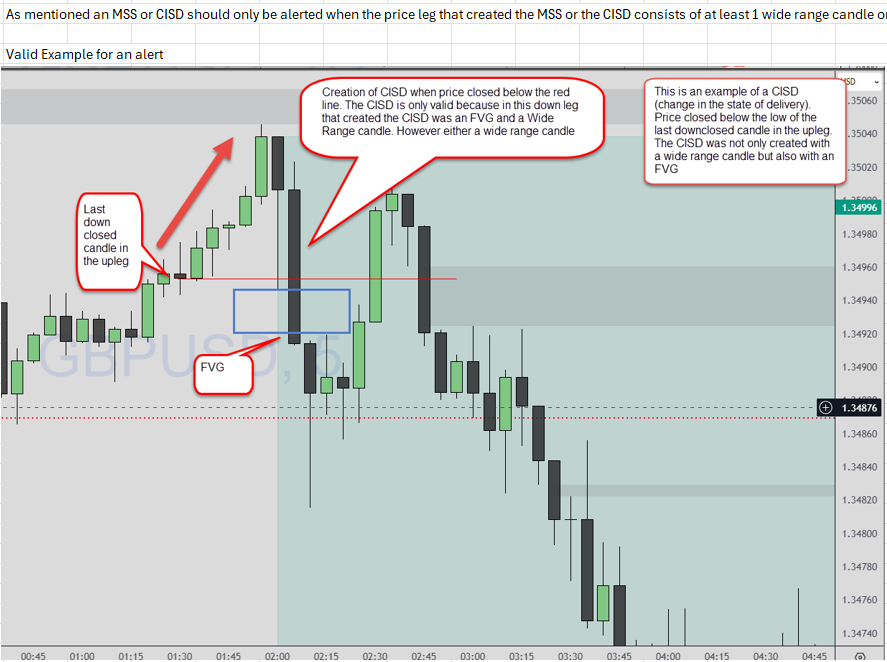

Please also find an attachment for a valid alert trigger using a Change in the State of Delivery example.
