Check out the new article: MQL5 Trading Tools (Part 23): Camera-Controlled, DirectX-Enabled 3D Graphs for Distribution Insights.
In this article, we advance the binomial distribution graphing tool in MQL5 by integrating DirectX for 3D visualization, enabling switchable 2D/3D modes with camera-controlled rotation, zoom, and auto-fitting for immersive analysis. We render 3D histogram bars, ground planes, and axes alongside the theoretical probability mass function curve, while preserving 2D elements like statistics panels, legends, and customizable themes, gradients, and labels.
The DirectX 3D visualization framework in MQL5 leverages hardware-accelerated graphics to render complex 3D scenes on charts, integrating with the canvas system for seamless 2D/3D mode switching and interactive controls. It utilizes DirectX for efficient rendering of 3D objects, such as boxes for histogram bars, planes for ground planes, and lines for axes, while managing camera positions, lighting, and projections to create depth and perspective in data displays. This architecture supports dynamic user interactions like rotation, zoom, and auto-fitting, making it ideal for exploring multidimensional data like distributions in trading contexts where visual depth highlights patterns not visible in 2D.

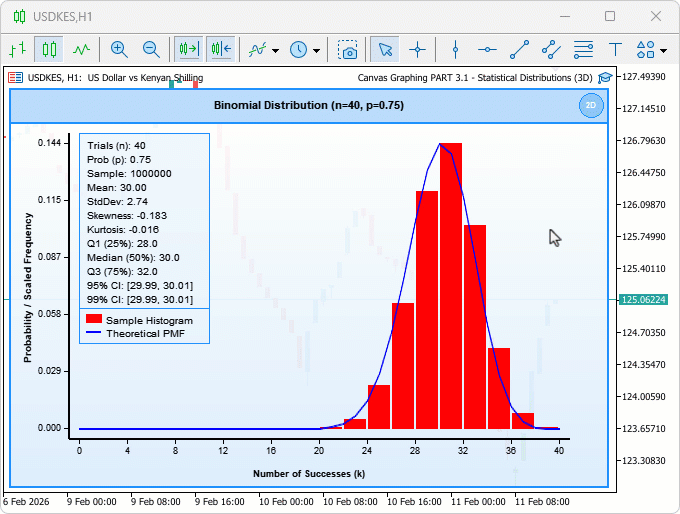

We intend to build upon the 2D binomial graphing tool by adding a 3D mode that visualizes histogram bars in three dimensions, incorporates ground planes and colored axes for orientation, and enables camera manipulation for better inspection of probability mass functions and frequencies. The blueprint involves a class-based structure to handle canvas creation, 3D object initialization, data loading for simulations, and event-driven updates for real-time responsiveness. We will define a visualizer class that encapsulates 2D and 3D rendering logic, create 3D elements using box primitives, set up projection and view matrices for camera control, and integrate mode switching with interactive features like dragging, resizing, and wheel zooming, ultimately providing a tool for in-depth probabilistic analysis in trading scenarios. In brief, this framework transforms flat data plots into interactive 3D models for enhanced insights. See what we intend to achieve.
