Adding extra lines to a custom MA
You need to create 2 new buffers and assign their values into the "main loop" you have in your code.
One buffer will have value of MABufferLine + x pips
Other one will have MABufferLine - x pips
Fabio Cavalloni #:
You need to create 2 new buffers and assign their values into the "main loop" you have in your code.
You need to create 2 new buffers and assign their values into the "main loop" you have in your code.
One buffer will have value of MABufferLine + x pips
Other one will have MABufferLine - x pips
Thank you. I thought I'd start by just adding the upper grey line. I've added what I thought it needed, but the line isn't drawing. I'm not getting any compile errors either.
Please let me know what I'm missing.
//--- indicator settings #property indicator_chart_window #property indicator_buffers 3 #property indicator_plots 2 //---- plot ColorLine #property indicator_label1 "MALine" #property indicator_type1 DRAW_COLOR_LINE #property indicator_color1 clrBlack,clrOrange,clrCornflowerBlue #property indicator_style1 STYLE_SOLID #property indicator_width1 4 //---- plot GreyLines #property indicator_label2 "UpperLine" #property indicator_type2 DRAW_LINE #property indicator_color2 clrGray #property indicator_style2 STYLE_DASH #property indicator_width2 1 #define PLOT_MAXIMUM_BARS_BACK 5000 #define OMIT_OLDEST_BARS 50 //--- INPUTS input int MovingAverage = 60; input double ExtraPips = 200; input ENUM_MA_METHOD MA_Method = MODE_SMA; input ENUM_APPLIED_PRICE MA_Price = PRICE_CLOSE; input bool Draw_Extra_Lines = true; //--- indicator buffers double MALineBuffer[]; double ColourBuffer[]; double MA_UpperBuffer[]; double myPoint; //initialized in OnInit double Close[]; int MA_handle; double MA[]; double Open[]; double Low[]; int ATR_handle; double ATR[]; double High[]; //--- Custom functions ----------------------------------------------- double Point = SymbolInfoDouble(_Symbol, SYMBOL_POINT); //--- End of custom functions ---------------------------------------- void myAlert(string type, string message) { if(type == "print") Print(message); else if(type == "error") { Print(type+" | PBItest @ "+Symbol()+","+IntegerToString(Period())+" | "+message); } else if(type == "order") { } else if(type == "modify") { } } //+------------------------------------------------------------------+ //| Custom indicator initialization function | //+------------------------------------------------------------------+ int OnInit() { SetIndexBuffer(0,MALineBuffer,INDICATOR_DATA); SetIndexBuffer(1,ColourBuffer,INDICATOR_COLOR_INDEX); SetIndexBuffer(2,MA_UpperBuffer,INDICATOR_DATA); //initialize myPoint myPoint = Point(); if(Digits() == 5 || Digits() == 3) { myPoint *= 10; } MA_handle = iMA(NULL, PERIOD_CURRENT, MovingAverage, 0, MODE_SMA, PRICE_CLOSE); if(MA_handle < 0) { Print("The creation of iMA has failed: MA_handle=", INVALID_HANDLE); Print("Runtime error = ", GetLastError()); return(INIT_FAILED); } ATR_handle = iATR(NULL, PERIOD_CURRENT, 16); if(ATR_handle < 0) { Print("The creation of iATR has failed: ATR_handle=", INVALID_HANDLE); Print("Runtime error = ", GetLastError()); return(INIT_FAILED); } return(INIT_SUCCEEDED); } //+------------------------------------------------------------------+ //| Custom indicator iteration function | //+------------------------------------------------------------------+ int OnCalculate(const int rates_total, const int prev_calculated, const datetime& time[], const double& open[], const double& high[], const double& low[], const double& close[], const long& tick_volume[], const long& volume[], const int& spread[]) { int limit = rates_total - prev_calculated; //--- counting from 0 to rates_total ArraySetAsSeries(MALineBuffer, true); ArraySetAsSeries(ColourBuffer, true); ArraySetAsSeries(MA_UpperBuffer, true); //--- initial zero if(prev_calculated < 1) { ArrayInitialize(MALineBuffer, EMPTY_VALUE); ArrayInitialize(ColourBuffer, EMPTY_VALUE); ArrayInitialize(MA_UpperBuffer, EMPTY_VALUE); } else limit++; if(CopyClose(Symbol(), PERIOD_CURRENT, 0, rates_total, Close) <= 0) return(rates_total); ArraySetAsSeries(Close, true); if(BarsCalculated(MA_handle) <= 0) return(0); if(CopyBuffer(MA_handle, 0, 0, rates_total, MA) <= 0) return(rates_total); ArraySetAsSeries(MA, true); if(CopyOpen(Symbol(), PERIOD_CURRENT, 0, rates_total, Open) <= 0) return(rates_total); ArraySetAsSeries(Open, true); if(CopyLow(Symbol(), PERIOD_CURRENT, 0, rates_total, Low) <= 0) return(rates_total); ArraySetAsSeries(Low, true); if(BarsCalculated(ATR_handle) <= 0) return(0); if(CopyBuffer(ATR_handle, 0, 0, rates_total, ATR) <= 0) return(rates_total); ArraySetAsSeries(ATR, true); if(CopyHigh(Symbol(), PERIOD_CURRENT, 0, rates_total, High) <= 0) return(rates_total); ArraySetAsSeries(High, true); //--- copy values of MA into indicator buffer MALineBuffer int copied=CopyBuffer(MA_handle,0,0,rates_total,MALineBuffer); if(copied<=0) return(0);// copying failed - throw away //Print ("rates total ",rates_total," prev_calc ",prev_calculated," limit ",limit," copied ", copied); //--- main loop for(int i = limit-1; i >= 0; i--) { if (i >= MathMin(PLOT_MAXIMUM_BARS_BACK-1, rates_total-1-OMIT_OLDEST_BARS)) continue; //omit some old rates to prevent "Array out of range" or slow calculation //--- now set line color for every bar if (MALineBuffer [i-1] == MALineBuffer [i]) ColourBuffer[i] = 0; else if (MALineBuffer [i-1] < MALineBuffer [i]) ColourBuffer[i] = 1; else ColourBuffer[i] = 2; //--- now set upper line for every bar if (Draw_Extra_Lines == true) MA_UpperBuffer[i] = MALineBuffer[i] + ExtraPips; else if (Draw_Extra_Lines == false) continue; } return(rates_total); }
Hi
You did well, but you haven’t multiplied the distance by point value. Simply change the line with UpperBuffer calculation to this:
MA_UpperBuffer[i] = MALineBuffer[i] + ExtraPips*_Point; Have a nice day👍📊
Marzena Maria Szmit #:
Thank you so much, Marzena. That's done the trick. I'm extremely grateful.
Hi
You did well, but you haven’t multiplied the distance by point value. Simply change the line with UpperBuffer calculation to this:
Have a nice day👍📊
You are missing trading opportunities:
- Free trading apps
- Over 8,000 signals for copying
- Economic news for exploring financial markets
Registration
Log in
You agree to website policy and terms of use
If you do not have an account, please register

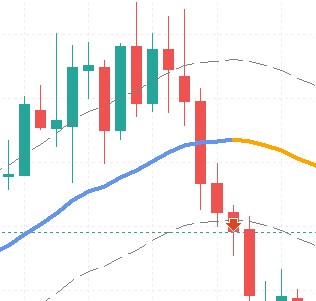

I'd like the ability to add lines a certain number of pips from the MA line, like the below image, but I don't know how.
I've written the code (below) for the colour-changing MA, but I'm hoping someone would help me add the extra lines 200 pips from the MA in either direction.
