Revo Trades #:

i recommend that you search codebase for any "on array indicator" for mt4, and then insert your own rso code in the appropriate place, or look over the ma on array code and copy that into your rso indicator. OR pay a coder on freelance, that is: if you cant code it yourself.

I have added a MA on price array to my RSO the only thing is that it looks a little different than when I add it to the RSO via drag and drop on mt4. It also does not go below zero. The code isn't that long if I sent it could you take a look and see what the issue would possibly be ?

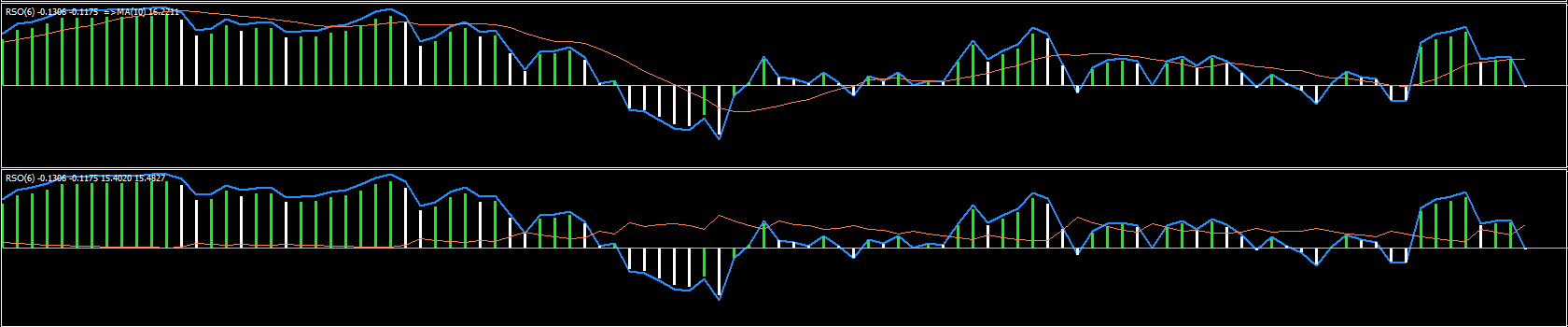

The image of the indicators are attached, the one above is what it should look like, the one below is after coding the MA on price array into the RSO

Here is the code, the MA on price array is at the bottom and the only other thing added was the code for colour, width, buffer, setindexbuffer, and setindexstyle

//+------------------------------------------------------------------+
//|                                                          RSO.mq4 |
//|                   Copyright 2005-2014, MetaQuotes Software Corp. |
//|                           Modification by Paran Softwares, 2017. |
//|                                              http://www.mql4.com |
//+------------------------------------------------------------------+
#property copyright   "2005-2014, MetaQuotes Software Corp; 2017, Paran Softwares"
#property link        "http://www.mql4.com"
#property description "Relative Strength Oscillator"
#property strict

#property indicator_separate_window
#property indicator_buffers    5

#property indicator_minimum    -50
#property indicator_maximum    50
#property indicator_level1     0
#property indicator_level2     0
#property indicator_levelcolor Silver
#property indicator_levelstyle DRAW_LINE
#property indicator_color1     DodgerBlue
#property indicator_color2     Lime
#property indicator_color3     White
#property indicator_color5     Coral
#property indicator_width1     2
#property indicator_width2     2
#property indicator_width3     2
#property indicator_width5     1

//--- input parameters
extern int InpRSOPeriod = 6;      // RSO Period

//--- buffers
double ExtRSOBuffer[];
double ExtRSOUpBuffer[];
double ExtRSODnBuffer[];
double ExtPosBuffer[];
double ExtNegBuffer[];
double SimpleMAOnBuffer[];

//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int OnInit(void)
{
   string short_name;
//--- buffers mapping
   IndicatorBuffers(5);
//--- indicator line
   SetIndexBuffer(0, ExtRSOBuffer);
   SetIndexStyle(0, DRAW_LINE);
   SetIndexBuffer(5, SimpleMAOnBuffer);
   SetIndexStyle(5, DRAW_LINE);
//--- indicator bars
   SetIndexBuffer(1, ExtRSOUpBuffer);
   SetIndexStyle(1, DRAW_HISTOGRAM);
   SetIndexBuffer(2, ExtRSODnBuffer);
   SetIndexStyle(2, DRAW_HISTOGRAM);

   SetIndexBuffer(3, ExtPosBuffer);
   SetIndexStyle(3, DRAW_LINE);
   SetIndexBuffer(4, ExtNegBuffer);
//--- name for DataWindow and indicator subwindow label
   short_name="RSO("+string(InpRSOPeriod)+")";
   IndicatorShortName(short_name);
   SetIndexLabel(0, short_name);
//--- check for input
   if(InpRSOPeriod < 2)
     {
      Print("Incorrect value for input variable InpRSOPeriod = ", InpRSOPeriod);
      Print("Corrected to 14!");
      InpRSOPeriod = 6;
     }
//---
   SetIndexDrawBegin(0, InpRSOPeriod);
   SetIndexDrawBegin(1, InpRSOPeriod);
   SetIndexDrawBegin(2, InpRSOPeriod);
//--- initialization done
   return(INIT_SUCCEEDED);
}

//+------------------------------------------------------------------+
//| Relative Strength Index                                          |
//+------------------------------------------------------------------+
int OnCalculate(const int rates_total,
                const int prev_calculated,
                const datetime &time[],
                const double &open[],
                const double &high[],
                const double &low[],
                const double &close[],
                const long &tick_volume[],
                const long &volume[],
                const int &spread[])
{
   int    i, pos;
   double diff;
//---
   if(Bars<=InpRSOPeriod || InpRSOPeriod<2)
      return(0);
//--- counting from 0 to rates_total
   ArraySetAsSeries(ExtRSOBuffer, false);
   ArraySetAsSeries(ExtRSOUpBuffer, false);
   ArraySetAsSeries(ExtRSODnBuffer, false);
   ArraySetAsSeries(ExtPosBuffer, false);
   ArraySetAsSeries(ExtNegBuffer, false);
   ArraySetAsSeries(close, false);
//--- preliminary calculations
   pos = prev_calculated-1;
   if(pos <= InpRSOPeriod)
   {
      //--- first RSIPeriod values of the indicator are not calculated
      ExtRSOBuffer[0]=0.0;
      ExtPosBuffer[0]=0.0;
      ExtNegBuffer[0]=0.0;
      double sump=0.0;
      double sumn=0.0;
      for(i=1; i<=InpRSOPeriod; i++)
        {
         ExtRSOBuffer[i]=0.0;
         ExtPosBuffer[i]=0.0;
         ExtNegBuffer[i]=0.0;
         diff=close[i]-close[i-1];
         if(diff>0)
            sump+=diff;
         else
            sumn-=diff;
      }
      //--- calculate first visible value
      ExtPosBuffer[InpRSOPeriod]=sump/InpRSOPeriod;
      ExtNegBuffer[InpRSOPeriod]=sumn/InpRSOPeriod;
      if(ExtNegBuffer[InpRSOPeriod]!=0.0)
         ExtRSOBuffer[InpRSOPeriod]=50.0-(100.0/(1.0+ExtPosBuffer[InpRSOPeriod]/ExtNegBuffer[InpRSOPeriod]));
      else
      {
         if(ExtPosBuffer[InpRSOPeriod]!=0.0)
            ExtRSOBuffer[InpRSOPeriod]=50.0;
         else
            ExtRSOBuffer[InpRSOPeriod]=0.0;
      }
      //--- prepare the position value for main calculation
      pos = InpRSOPeriod+1;
   }

//--- the main loop of calculations
   for(i=pos; i<rates_total && !IsStopped(); i++)
   {
      diff=close[i]-close[i-1];
      ExtPosBuffer[i]=(ExtPosBuffer[i-1]*(InpRSOPeriod-1)+(diff>0.0?diff:0.0))/InpRSOPeriod;
      ExtNegBuffer[i]=(ExtNegBuffer[i-1]*(InpRSOPeriod-1)+(diff<0.0?-diff:0.0))/InpRSOPeriod;
      if(ExtNegBuffer[i]!=0.0)
         ExtRSOBuffer[i]=50.0-100.0/(1+ExtPosBuffer[i]/ExtNegBuffer[i]);
      else
      {
         if(ExtPosBuffer[i]!=0.0)
            ExtRSOBuffer[i]=50.0;
         else
            ExtRSOBuffer[i]=0.0;
      }

      if(ExtRSOBuffer[i] - ExtRSOBuffer[i-1] < 0)
         ExtRSODnBuffer[i] = 0.9*ExtRSOBuffer[i];
      else
         ExtRSOUpBuffer[i] = 0.9*ExtRSOBuffer[i];
   }
//---
   return(rates_total);
}
//+------------------------------------------------------------------+
//| Simple moving average on price array                             |
//+------------------------------------------------------------------+
int SimpleMAOnBuffer(const int rates_total,const int prev_calculated,const int begin,
                     const int period,const double& price[],double& buffer[])
  {
   int i,limit;
//--- check for data
   if(period<=1 || rates_total-begin<period) return(0);
//--- save as_series flags
   bool as_series_price=ArrayGetAsSeries(price);
   bool as_series_buffer=ArrayGetAsSeries(buffer);
   if(as_series_price)  ArraySetAsSeries(price,false);
   if(as_series_buffer) ArraySetAsSeries(buffer,false);
//--- first calculation or number of bars was changed
   if(prev_calculated==0) // first calculation
     {
      limit=period+begin;
      //--- set empty value for first bars
      for(i=0;i<limit-1;i++) buffer[i]=0.0;
      //--- calculate first visible value
      double firstValue=0;
      for(i=begin;i<limit;i++)
         firstValue+=price[i];
      firstValue/=period;
      buffer[limit-1]=firstValue;
     }
   else limit=prev_calculated-1;
//--- main loop
   for(i=limit;i<rates_total;i++)
      buffer[i]=buffer[i-1]+(price[i]-price[i-period])/period;
//--- restore as_series flags
   if(as_series_price)  ArraySetAsSeries(price,true);
   if(as_series_buffer) ArraySetAsSeries(buffer,true);
//---
    return(rates_total);
  }
Files:
RSO.PNG  37 kb
