Change the SuperTrend View

fxewen 2012.11.21 14:46

I try to change the indicators view from main window to sub window by replace

#property indicator_chart_window to #property indicator_separate_window

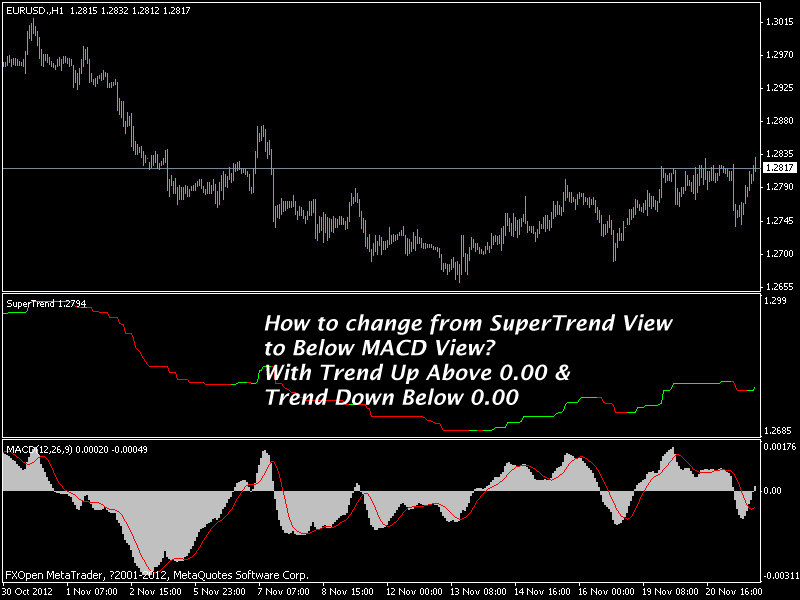

What code need to add to make it view like the MACD View below?

SuperTrend Indicator: https://www.mql5.com/en/code/10005

//+------------------------------------------------------------------+
//|                                       Kolier_SuperTrend_Indi.mq4 |
//|                                       Copyright 2010, KoliEr Li. |
//|                                                 http://kolier.li |
//+------------------------------------------------------------------+
/*
 * I here get paid to program for you. Just $15 for all scripts.
 *
 * I am a bachelor major in Financial-Mathematics.
 * I am good at programming in MQL for Meta Trader 4 platform. Senior Level. Have done hundreds of scripts.
 * No matter what it is, create or modify any indicators, expert advisors and scripts.
 * I will ask these jobs which are not too large, price from $15, surely refundable if you are not appreciate mine.
 * All products will deliver in 3 days.
 * Also, I am providing EA, Indicator and Trade System Improvement Consultant services, contact me for the detail.
 * If you need to have it done, don't hesitate to contact me at: kolier.li@gmail.com
 */

//+------------------------------------------------------------------+
//| Indicator Properties                                             |
//+------------------------------------------------------------------+
#property copyright "Copyright 2010, KoliEr Li."
#property link      "http://kolier.li"
// Client:
// Tags: SuperTrend, ATR
// Revision: 1

/* Change Logs */
/*
*/

//#property indicator_chart_window
#property indicator_separate_window
#property indicator_buffers 2
#property indicator_color1 Lime
#property indicator_color2 Red
#property indicator_width1 2
#property indicator_width2 2

//+------------------------------------------------------------------+
//| Universal Constants                                              |
//+------------------------------------------------------------------+
#define PHASE_NONE 0
#define PHASE_BUY 1
#define PHASE_SELL -1

//+------------------------------------------------------------------+
//| User input variables                                             |
//+------------------------------------------------------------------+
extern string    AdvisorName = "Kolier_SuperTrend_Indi";
extern string AdvisorVersion = "1.0.1";            // The version number of this script
extern string    ProjectPage = "http://kolier.li/project/kolier-supertrend-indi";            // The project landing page
extern int       BarsToCount = 0;    // Set to 0 to count all bars, if >0, set more to calculate more bars
extern int         TrendMode = 0;    // 0=Show line same as SuperTrend.mq4, 1=New way to show trend line
// iATR
extern string ATR_Indicator = "http://kolier.li/example/mt4-iatr-system-average-true-range";
extern int       ATR_Period = 10;
extern double ATR_Multiplier = 3.0;

//+------------------------------------------------------------------+
//| Universal variables                                              |
//+------------------------------------------------------------------+
double buffer_line_up[], buffer_line_down[];
double atr, band_upper, band_lower;
int phase=PHASE_NONE;

//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
   IndicatorShortName(AdvisorName);
   IndicatorDigits(MarketInfo(Symbol(), MODE_DIGITS));

   SetIndexBuffer(0, buffer_line_up);
   SetIndexLabel(0, "Up Trend");
   SetIndexBuffer(1, buffer_line_down);
   SetIndexLabel(1, "Down Trend");

   return(0);
  }

//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
   return(0);
  }

//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {
   int bars_counted = IndicatorCounted();
   if(bars_counted < 0) {
      return(1);
   }
   else if(bars_counted > 0) {
      bars_counted--;
   }
   int limit = Bars - bars_counted;
   if(BarsToCount>0 && limit>BarsToCount) {
      limit = BarsToCount;
   }

   for(int i=limit; i>=0; i--) {
      atr = iATR(Symbol(), 0, ATR_Period, i);
      band_upper = (High[i]+Low[i])/2 + ATR_Multiplier * atr;
      band_lower = (High[i]+Low[i])/2 - ATR_Multiplier * atr;

      if(phase==PHASE_NONE) {
         buffer_line_up[i] = (High[i+1]+Low[i+1])/2;
         buffer_line_down[i] = (High[i+1]+Low[i+1])/2;
      }

      if(phase!=PHASE_BUY && Close[i]>buffer_line_down[i+1] && buffer_line_down[i+1]!=EMPTY_VALUE) {
         phase = PHASE_BUY;
         buffer_line_up[i] = band_lower;
         buffer_line_up[i+1] = buffer_line_down[i+1];
      }

      if(phase!=PHASE_SELL && Close[i]<buffer_line_up[i+1] && buffer_line_up[i+1]!=EMPTY_VALUE) {
         phase = PHASE_SELL;
         buffer_line_down[i] = band_upper;
         buffer_line_down[i+1] = buffer_line_up[i+1];
      }

      if(phase==PHASE_BUY
         && ((TrendMode==0 && buffer_line_up[i+2]!=EMPTY_VALUE) || TrendMode==1) ) {
         if(band_lower>buffer_line_up[i+1]) {
            buffer_line_up[i] = band_lower;
         }
         else {
            buffer_line_up[i] = buffer_line_up[i+1];
         }
      }
      if(phase==PHASE_SELL
         && ((TrendMode==0 && buffer_line_down[i+2]!=EMPTY_VALUE) || TrendMode==1) ) {
         if(band_upper<buffer_line_down[i+1]) {
            buffer_line_down[i] = band_upper;
         }
         else {
            buffer_line_down[i] = buffer_line_down[i+1];
         }
      }

   }

   return(0);
  }
