Future Bollinger Bands predictions and drawing Indicator

[jaffer wilson]

I tried the following code, iin the custom indicator of the bollingerband Where I want to forecast or predict the future one bollinger. See the code:

//+------------------------------------------------------------------+
//|                                                           BB.mq5 |
//|                   Copyright 2009-2017, MetaQuotes Software Corp. |
//|                                              http://www.mql5.com |
//+------------------------------------------------------------------+
#property copyright   "2009-2017, MetaQuotes Software Corp."
#property link        "http://www.mql5.com"
#property description "Bollinger Bands"
#include <MovingAverages.mqh>
//---
#property indicator_chart_window
#property indicator_buffers 4
#property indicator_plots   3
#property indicator_type1   DRAW_LINE
#property indicator_color1  LightSeaGreen
#property indicator_type2   DRAW_LINE
#property indicator_color2  LightSeaGreen
#property indicator_type3   DRAW_LINE
#property indicator_color3  LightSeaGreen
#property indicator_label1  "Bands middle"
#property indicator_label2  "Bands upper"
#property indicator_label3  "Bands lower"
//--- input parametrs
input int     InpBandsPeriod=21;       // Period
input int     InpBandsShift=0;         // Shift
input double  InpBandsDeviations=2.0;  // Deviation
//--- global variables
int           ExtBandsPeriod,ExtBandsShift;
double        ExtBandsDeviations;
int           ExtPlotBegin=0;
//---- indicator buffer
double        ExtMLBuffer[];
double        ExtTLBuffer[];
double        ExtBLBuffer[];
double        ExtStdDevBuffer[];
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
void OnInit()
  {
//--- check for input values
   if(InpBandsPeriod<2)
     {
      ExtBandsPeriod=21;
      printf("Incorrect value for input variable InpBandsPeriod=%d. Indicator will use value=%d for calculations.",InpBandsPeriod,ExtBandsPeriod);
     }
   else ExtBandsPeriod=InpBandsPeriod;
   if(InpBandsShift<0)
     {
      ExtBandsShift=0;
      printf("Incorrect value for input variable InpBandsShift=%d. Indicator will use value=%d for calculations.",InpBandsShift,ExtBandsShift);
     }
   else
      ExtBandsShift=InpBandsShift;
   if(InpBandsDeviations==0.0)
     {
      ExtBandsDeviations=2.0;
      printf("Incorrect value for input variable InpBandsDeviations=%f. Indicator will use value=%f for calculations.",InpBandsDeviations,ExtBandsDeviations);
     }
   else ExtBandsDeviations=InpBandsDeviations;
//--- define buffers
   SetIndexBuffer(0,ExtMLBuffer);
   SetIndexBuffer(1,ExtTLBuffer);
   SetIndexBuffer(2,ExtBLBuffer);
   SetIndexBuffer(3,ExtStdDevBuffer,INDICATOR_CALCULATIONS);
//--- set index labels
   PlotIndexSetString(0,PLOT_LABEL,"Bands("+string(ExtBandsPeriod)+") Middle");
   PlotIndexSetString(1,PLOT_LABEL,"Bands("+string(ExtBandsPeriod)+") Upper");
   PlotIndexSetString(2,PLOT_LABEL,"Bands("+string(ExtBandsPeriod)+") Lower");
//--- indicator name
   IndicatorSetString(INDICATOR_SHORTNAME,"Bollinger Bands");
//--- indexes draw begin settings
   ExtPlotBegin=ExtBandsPeriod;
   PlotIndexSetInteger(0,PLOT_DRAW_BEGIN,ExtBandsPeriod);
   PlotIndexSetInteger(1,PLOT_DRAW_BEGIN,ExtBandsPeriod);
   PlotIndexSetInteger(2,PLOT_DRAW_BEGIN,ExtBandsPeriod);
//--- indexes shift settings
   PlotIndexSetInteger(0,PLOT_SHIFT,ExtBandsShift);
   PlotIndexSetInteger(1,PLOT_SHIFT,ExtBandsShift);
   PlotIndexSetInteger(2,PLOT_SHIFT,ExtBandsShift);
//--- number of digits of indicator value
   IndicatorSetInteger(INDICATOR_DIGITS,_Digits+1);
//---- OnInit done
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int OnCalculate(const int rates_total,
                const int prev_calculated,
                const int begin,
                const double &price[])
  {
//--- variables
   int pos;
//--- indexes draw begin settings, when we've recieved previous begin
   if(ExtPlotBegin!=ExtBandsPeriod+1+begin)
     {
      ExtPlotBegin=ExtBandsPeriod+begin;
      PlotIndexSetInteger(0,PLOT_DRAW_BEGIN,ExtPlotBegin);
      PlotIndexSetInteger(1,PLOT_DRAW_BEGIN,ExtPlotBegin);
      PlotIndexSetInteger(2,PLOT_DRAW_BEGIN,ExtPlotBegin);
     }
//--- check for bars count
   if(rates_total<ExtPlotBegin)
      return(0);
//--- starting calculation
   if(prev_calculated>1) pos=prev_calculated;
   else pos=0;
//--- main cycle
   for(int i=pos;i<rates_total+1 && !IsStopped();i++)
     {
      //--- middle line
      ExtMLBuffer[i]=SimpleMA(i,ExtBandsPeriod,price);
      //Print(ExtBandsPeriod);
      //--- calculate and write down StdDev
      ExtStdDevBuffer[i]=StdDev_Func(i,price,ExtMLBuffer,ExtBandsPeriod);
      //--- upper line
      ExtTLBuffer[i]=ExtMLBuffer[i]+ExtBandsDeviations*ExtStdDevBuffer[i];
      //--- lower line
      ExtBLBuffer[i]=ExtMLBuffer[i]-ExtBandsDeviations*ExtStdDevBuffer[i];
      //---
     }
//---- OnCalculate done. Return new prev_calculated.
   return(rates_total + 1);
  }
//+------------------------------------------------------------------+
//| Calculate Standard Deviation                                     |
//+------------------------------------------------------------------+
double StdDev_Func(int position,const double &price[],const double &MAprice[],int period)
  {
//--- variables
   double StdDev_dTmp=0.0;
//--- check for position
   if(position<period) return(StdDev_dTmp);
//--- calcualte StdDev
   for(int i=0;i<period;i++) StdDev_dTmp+=MathPow(price[position-i]-MAprice[position],2);
   StdDev_dTmp=MathSqrt(StdDev_dTmp/period);
//--- return calculated value
   return(StdDev_dTmp);
  }
//+------------------------------------------------------------------+

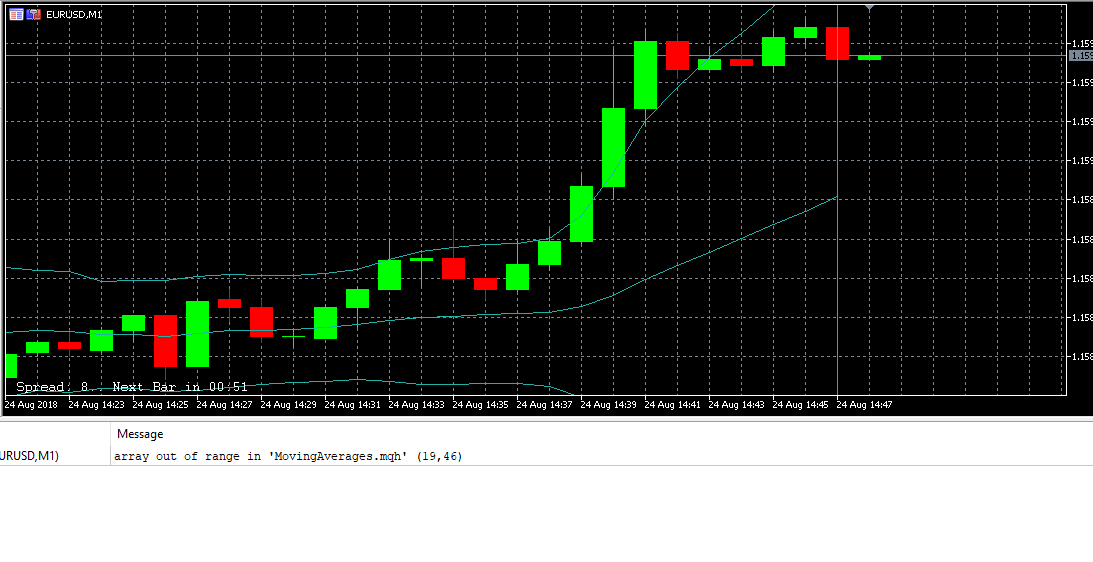

But I am getting the following image when I applied the bollinger band.:

Please help me in creating a forecast for the bollinger using MQL5.

[jaffer wilson]

IS there someone please help me and guide me.
