Hello i need help !!!!!

[Deleted] 2013.08.14 09:48

Hello everybody.

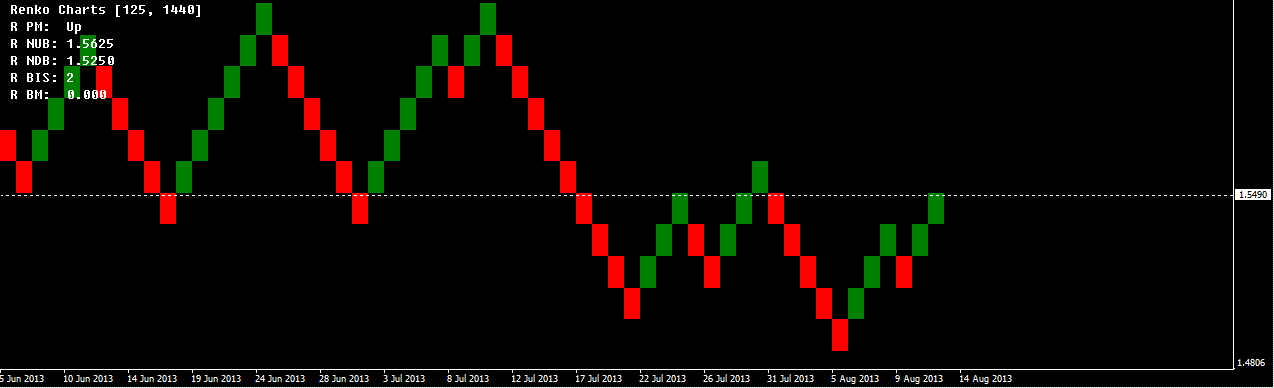

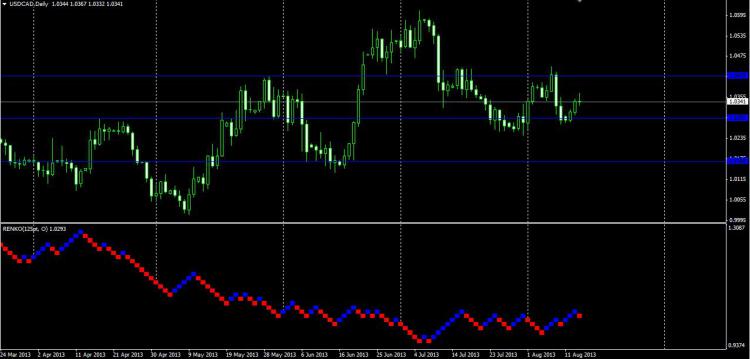

i'm new in the world of forex. i get the renko indicator somewhere in this forum. i love to use it. i need somebody help to do some motification on the code so that the indicator can draw a line follow the box size in the indicator window, as in the screen shot i attached. The 3 blue line is the next upcoming box level.

if the code can motify as show in the picture above showing in reading where is the next up box or down box is ok too.

thank in advance

nick

here is the code

//+------------------------------------------------------------------+
//|                                                    RENKO-2.1.mq4 |
//|                           Copyright ? 2005, ??????????? ???????? |
//|                                   http://www.traderstools.h15.ru |
//+------------------------------------------------------------------+
#property copyright "Copyright ? 2005, ??????????? ????????"
#property link      "http://www.traderstools.h15.ru"
//----
#property indicator_separate_window
#property indicator_buffers 4
//
// Datasource-Parameters
#define DS_PAR_NULL -1
#define DS_PAR_HIGH 1
#define DS_PAR_LOW 0
//
//---- input parameters
extern string sDatasource="0=Open 1=High 2=Low 3=Close 4=HL";
extern int   iDatasource=3;
extern int   Porog = 50;
extern color ColorOfFon = White;
extern color Color1 = Blue;
extern color Color2 = Red;
//---- buffers
double Lab[];
double HU[];
double HD[];
double Fon[];
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
   IndicatorBuffers(4);
   IndicatorShortName("RENKO(" + Porog + "pt, " + DataSourceDesc() + ")");
//---- indicators
   SetIndexStyle(0, DRAW_LINE,EMPTY, 0, ColorOfFon);
   SetIndexBuffer(0, Lab);
   SetIndexLabel(0, "RENKO");
   SetIndexEmptyValue(0,0);
   SetIndexStyle(1, DRAW_HISTOGRAM, EMPTY, 8, Color1);
   SetIndexBuffer(1, HU);
   SetIndexLabel(1, NULL);
   SetIndexEmptyValue(1,0);
   SetIndexStyle(2, DRAW_HISTOGRAM,EMPTY, 8, Color2);
   SetIndexBuffer(2, HD);
   SetIndexLabel(2, NULL);
   SetIndexEmptyValue(2,0);
   SetIndexStyle(3, DRAW_HISTOGRAM,EMPTY, 8, ColorOfFon);
   SetIndexBuffer(3, Fon);
   SetIndexLabel(3, NULL);
   SetIndexEmptyValue(3, 0);
   return(0);
  }
//+------------------------------------------------------------------+
//| Custor indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
   ObjectDelete("RENKO-" + Porog);
   return(0);
  }

//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int start()
  {
   int i, ii, j, RenkoBuffShift = 0;
   double RenkoBuff[];
   double RenkoBuff2[];
   //----
   ArrayResize(RenkoBuff, Bars);
   ArrayResize(RenkoBuff2, Bars);
   RenkoBuff[RenkoBuffShift] = DataSource(DS_PAR_HIGH, Bars-1);
   //----
   double pp=Porog*Point;
   for(i = Bars - 2; i >= 0; i--) {
      if(RenkoBuffShift > ArraySize(RenkoBuff) - 100) {
          ArrayCopy(RenkoBuff2, RenkoBuff);
          ArrayResize(RenkoBuff, ArraySize(RenkoBuff) + Bars);
          ArrayCopy(RenkoBuff, RenkoBuff2, 0, 0, RenkoBuffShift + 1);
          ArrayResize(RenkoBuff2, ArraySize(RenkoBuff2) + Bars);
      }
      //----
      if(RenkoBuffShift == 0) {
          while(DataSource(DS_PAR_HIGH, i) > RenkoBuff[RenkoBuffShift] + pp) {
             RenkoBuffShift++;
             RenkoBuff[RenkoBuffShift] = RenkoBuff[RenkoBuffShift-1] + pp;
          }
          //----
          while(DataSource(DS_PAR_LOW, i)<RenkoBuff[RenkoBuffShift]-pp) {
             RenkoBuffShift++;
             RenkoBuff[RenkoBuffShift]=RenkoBuff[RenkoBuffShift-1]-pp;
          }
      }
      //----
      if(RenkoBuff[RenkoBuffShift] > RenkoBuff[RenkoBuffShift-1]) {
          if(DataSource(DS_PAR_HIGH, i) > RenkoBuff[RenkoBuffShift] + pp) {
              while(DataSource(DS_PAR_HIGH, i) > RenkoBuff[RenkoBuffShift] + pp) {
                  RenkoBuffShift++;
                  RenkoBuff[RenkoBuffShift] = RenkoBuff[RenkoBuffShift-1] + pp;
              }
          }
          if(DataSource(DS_PAR_LOW, i) < RenkoBuff[RenkoBuffShift] - 2*pp) {
              RenkoBuffShift++;
              RenkoBuff[RenkoBuffShift] = RenkoBuff[RenkoBuffShift-1] - 2*pp;
              while(DataSource(DS_PAR_LOW, i) < RenkoBuff[RenkoBuffShift] - pp) {
                  RenkoBuffShift++;
                  RenkoBuff[RenkoBuffShift]=RenkoBuff[RenkoBuffShift-1]-pp;
              }
          }
      }
      //----
      if(RenkoBuff[RenkoBuffShift] < RenkoBuff[RenkoBuffShift-1]) {
          if(DataSource(DS_PAR_LOW, i) < RenkoBuff[RenkoBuffShift] - pp) {
              while(DataSource(DS_PAR_LOW, i) < RenkoBuff[RenkoBuffShift] - pp) {
                  RenkoBuffShift++;
                  RenkoBuff[RenkoBuffShift] = RenkoBuff[RenkoBuffShift-1] - pp;
              }
          }
          if(DataSource(DS_PAR_HIGH, i) > RenkoBuff[RenkoBuffShift] + 2*pp) {
              RenkoBuffShift++;
              RenkoBuff[RenkoBuffShift] = RenkoBuff[RenkoBuffShift-1] + 2*pp;
              while(DataSource(DS_PAR_HIGH, i) > RenkoBuff[RenkoBuffShift] + pp) {
                  RenkoBuffShift++;
                  RenkoBuff[RenkoBuffShift] = RenkoBuff[RenkoBuffShift-1] + pp;
              }
          }
      }
   }
//---- ?????? ??????
   ObjectCreate("RENKO-" + Porog, OBJ_RECTANGLE, WindowFind("RENKO(" + Porog + "pt)"),
                0, 0, 0, 0);
   ObjectSet("RENKO-" + Porog, OBJPROP_TIME2, Time[0]);
   ObjectSet("RENKO-" + Porog, OBJPROP_PRICE2, High[ArrayMaximum(RenkoBuff)]*2);
   ObjectSet("RENKO-" + Porog, OBJPROP_COLOR, ColorOfFon);
   for(i = 0; i < Bars; i++) {
       Lab[i] = 0;
       HU[i] = 0;
       HD[i] = 0;
       Fon[i] = 0;
   }
   if(RenkoBuffShift > Bars - 100) {
       for(i = 0; i <= Bars - 100; i++)
           RenkoBuff[i] = RenkoBuff[i+RenkoBuffShift-(Bars-100)];
       RenkoBuffShift = Bars - 100;
   }

   for(i = 1; i <= RenkoBuffShift; i++)
       Lab[RenkoBuffShift-i] = RenkoBuff[i];

   for(i = 1; i <= RenkoBuffShift; i++) {
       if(RenkoBuff[i] > RenkoBuff[i-1] && RenkoBuff[i-1] > RenkoBuff[i-2]) {
         HU[RenkoBuffShift-i] = RenkoBuff[i];
         HD[RenkoBuffShift-i] = RenkoBuff[i-1];
         Fon[RenkoBuffShift-i] = RenkoBuff[i-1];
       }
       if(RenkoBuff[i] > RenkoBuff[i-1] && RenkoBuff[i-1] < RenkoBuff[i-2]) {
         HU[RenkoBuffShift-i] = RenkoBuff[i];
         HD[RenkoBuffShift-i] = RenkoBuff[i] - pp;
         Fon[RenkoBuffShift-i] = RenkoBuff[i] - pp;
       }
       if(RenkoBuff[i] < RenkoBuff[i-1] && RenkoBuff[i-1] < RenkoBuff[i-2]) {
         HD[RenkoBuffShift-i] = RenkoBuff[i-1];
         HU[RenkoBuffShift-i] = RenkoBuff[i];
         Fon[RenkoBuffShift-i] = RenkoBuff[i];
       }
       if(RenkoBuff[i] < RenkoBuff[i-1] && RenkoBuff[i-1] > RenkoBuff[i-2]) {
         HD[RenkoBuffShift-i] = RenkoBuff[i] + pp;
         HU[RenkoBuffShift-i] = RenkoBuff[i];
         Fon[RenkoBuffShift-i] = RenkoBuff[i];
       }
   }
   return(0);
  }
//+------------------------------------------------------------------+

double DataSource(int dir, int i) {
   switch (iDatasource) {
      case 0:
         return(Open[i]);
         break;
      case 1:
         return(High[i]);
         break;
      case 2:
         return(Low[i]);
         break;
      case 3:
         return(Close[i]);
         break;
      case 4:
         switch (dir) {
          case DS_PAR_HIGH:
            return(High[i]);
            break;
          case DS_PAR_LOW:
            return(Low[i]);
            break;
         }
   }
}

string DataSourceDesc() {
   switch (iDatasource) {
      case 0:
         return("O");
         break;
      case 1:
         return("H");
         break;
      case 2:
         return("L");
         break;
      case 3:
         return("C");
         break;
      case 4:
         return("HL");
         break;
   }
}

Simon Gniadkowski 2013.08.14 10:06 #1

nick2013:

Hello everybody.

if the code can motify as show in the picture above showing in reading where is the next up box or down box is ok too.

<CODE REMOVED>

Please read some other posts before posting . . .

Please edit your post . . . please use the SRC button to post code: How to use the SRC button.

[Deleted] 2013.08.14 12:00 #2

RaptorUK:

Please read some other posts before posting . . .

Please edit your post . . . please use the SRC button to post code: How to use the SRC button.
