12
Boris Sedov

Inputs

General settings

  • Signal names — you need to write down the names of the signals separated by commas.
    If you have programmed several signals, then you need to write a name for each signal. Signals are searched by the number of recorded names.
  • Search depth — the depth of the signal search is set in bars.
    You can specify a value starting from 1, increasing the value to increase the depth.
  • Update rate (sec) — you need to specify the information update interval in seconds.
    For example, if you enter the value 20, the information in the panel will be updated every 20 seconds.
  • Corner — the anchor angle of the signal panel.
    You can choose one of four possible options —  top left, top right, bottom left, bottom right.
  • Subwindow index (0, 1, 2 ... n) — you can select the index of the subwindow to show the signal bar in the desired subwindow.
    Note that the specified subwindow should already be open on the chart. This may be under the window of another indicator.
  • Panel size (%) — you can use scaling to increase or decrease the size of the entire panel.
    The default value is 100%, but you can increase this value to increase the size of the panel, and you can also reduce the size of the panel.
  • Smart objects — special mode of working with graphic objects.
    If you are doing markup, then this mode will make the work more convenient. For example, if you mark the right places with trend lines, then when switching to another symbol, your trend lines will be temporarily hidden so as not to interfere with making other markings. When you return to the previous symbol, you see your trend lines again.

Timeframes

  • M1 — 1 minute.
  • M5 — 5 minutes.
  • M15 — 15 minutes.
  • M30 — 30 minutes.
  • H1 — 1 hour.
  • H4 — 4 hours.
  • D1 — 1 day.
  • W1 — 1 week.
  • MN — 1 month.
    You can include the necessary timeframes.

Notifications

  • Terminal — you can enable notifications in the terminal.
    You will receive pop-up notifications in the terminal every time a signal is found.
  • Mobile terminal — enabling notifications in the mobile terminal.
    You will receive push notifications to the mobile terminals every time a signal is found.
  • Email — enabling sending notifications to email.
  • Advance notice (min) — you can set up advance notification.
    You need to specify the interval in minutes before the candle closes in order to receive notifications a little earlier.

Graphic settings

  • Width (symbols) — width of cells with symbols.
  • Width (timeframes, cells) — the width of all other cells.
  • Height (symbols, timeframes, cells) — height of all cells.
  • Text font — you can specify any font of the text.
  • Font size (symbols, timeframes) — font size for the first column with symbols and for the first row with timeframes.
  • Font size (cells) — font size for all other cells.
  • Background color — you can specify the desired background color.
  • Dashboard border color — the border color of the entire panel.
  • Cell border color — the borders of the cells can be highlighted in a separate color.
  • Text color (symbols, timeframes) — the text color for the first column with symbols and for the first row with timeframes.
  • Text color (cells) — the color of the text in all other cells.
  • Background color (symbol profit) — the color of the profit indication by symbol.
  • Background color (symbol loss) — the color of the loss indication by symbol.
  • Background color (Buy signal #1) — the color of the advance buy signal indication.
  • Background color (Buy signal #2) — the color of the indication of a reliable signal to buy.
  • Background color (Sell signal #1) — the color of the advance signal indication for sale.
  • Background color (Sell signal #2) — the color of the indication of a reliable signal to sell.
  • Symbol selection color — the color of the symbols selection.
    You can select individual symbols on the panel in order not to lose sight of them.
Boris Sedov

Signal programming

Let's consider the aspect of programming in more detail.

Let's create the conditions for determining signals by the "Stochastic Oscillator" indicator.
Buy when the Oscillator (%D) falls below a specific level (20) and then rises above that level. Sell when the Oscillator rises above a specific level (80) and then falls below that level.

if(iStochastic(NULL,0,5,3,3,MODE_SMA,0,MODE_SIGNAL,i)>20.0 &&
   iStochastic(NULL,0,5,3,3,MODE_SMA,0,MODE_SIGNAL,i+1)<=20.0) bf0[i]=low[i];
else if(iStochastic(NULL,0,5,3,3,MODE_SMA,0,MODE_SIGNAL,i)<80.0 &&
        iStochastic(NULL,0,5,3,3,MODE_SMA,0,MODE_SIGNAL,i+1)>=80.0) bf1[i]=high[i];

Please note that this is all that we have changed in the file.
In order to create conditions for only one signal, in most cases no other changes are needed.

The lines that we changed are 107-110.

File:
Signal_Collection.mq4  7 kb
Boris Sedov

Let's create the conditions for determining signals by the "Relative Strength Index" indicator.

Buy when the indicator falls below a specific level (30) and then rises above that level. Sell when the indicator rises above a specific level (70) and then falls below that level.

if(iRSI(NULL,0,14,PRICE_CLOSE,i)>30.0 &&
   iRSI(NULL,0,14,PRICE_CLOSE,i+1)<=30.0) bf0[i]=low[i];
else if(iRSI(NULL,0,14,PRICE_CLOSE,i)<70.0 &&
        iRSI(NULL,0,14,PRICE_CLOSE,i+1)>=70.0) bf1[i]=high[i];

Let's analyze the lines of code in more detail.

iRSI(NULL, 0, 14, PRICE_CLOSE, i)
iRSI(NULL, 0, 14, PRICE_CLOSE, i + 1)
bf0[i]=low[i]
bf1[i]=high[i]

i — index of the last candle on the right.
i + 1 — index of the second last candle on the right. This candle is located to the left of the i-th.

File:
Signal_Collection.mq4  7 kb
Boris Sedov
I am always ready to help program the necessary signals.
Please contact me if you need help.
minijus704

HI,

Why I can't add it on M4T??

Click download and it don't added to my mt4...

minijus704

From journal:

2023.04.24 23:42:42.037 MQL4 Market: failed to get list of user products [403]

2023.04.24 23:42:42.037 MQL4 Market: failed parsing info about purchasing a product 'Dashboard Premium'

Why I can't add it?
Boris Sedov
The indicator is added normally.
Check again, work may have been carried out on the site.
Boris Sedov

Example of signal connection

The original idea.
I need to use ZigZag indicator:
1- Get the average pips of the previous 10 zigzag lines ( input)
2- Compare this with the pips volume of the current ZigZag line ( the last line)
3- If current is 2x ( input) or more of the previous average, show a signal on the dashboard ( if current line is going down, show red, if going up , show green)
Note that: the last zz line is the one is currently forming and I call it the current line.
The previous zz lines are the lines that already formed before the current line. I can go back based on the input value. Here, I input 10 so 10 lines before the current line
I hope my description is clear

To solve this problem, I wrote a ZigZag+ signal indicator that does the necessary work in real time.
The indicator is based on the standard ZigZag indicator. Input parameters are available for configuration.
The number of zigzag lines is set by the variable 'Lines', and the multiplicity of the signal condition is set by the variable 'k' (item #3).

I connected ZigZag+ to the signal collection indicator.
The depth of the search for the end point of the forming zigzag line is set in the input parameters of the signal collection indicator. The default value is 20 bars.

ZigZag+ shows signals only in real time, but it can be used in the strategy tester to analyze the chronology.
Use 'Config' with the alarm panel settings.

How it works.

1. Drag the standard ZigZag onto any chart.
2. Drag the 'Signal Collection' indicator onto the same chart.
3. Drag the 'Dashboard Premium' signal panel onto the same chart.


File:
ZigZagPlus.mq4  11 kb
Signal_Collection.mq4  8 kb
Config.set  1 kb
Boris Sedov

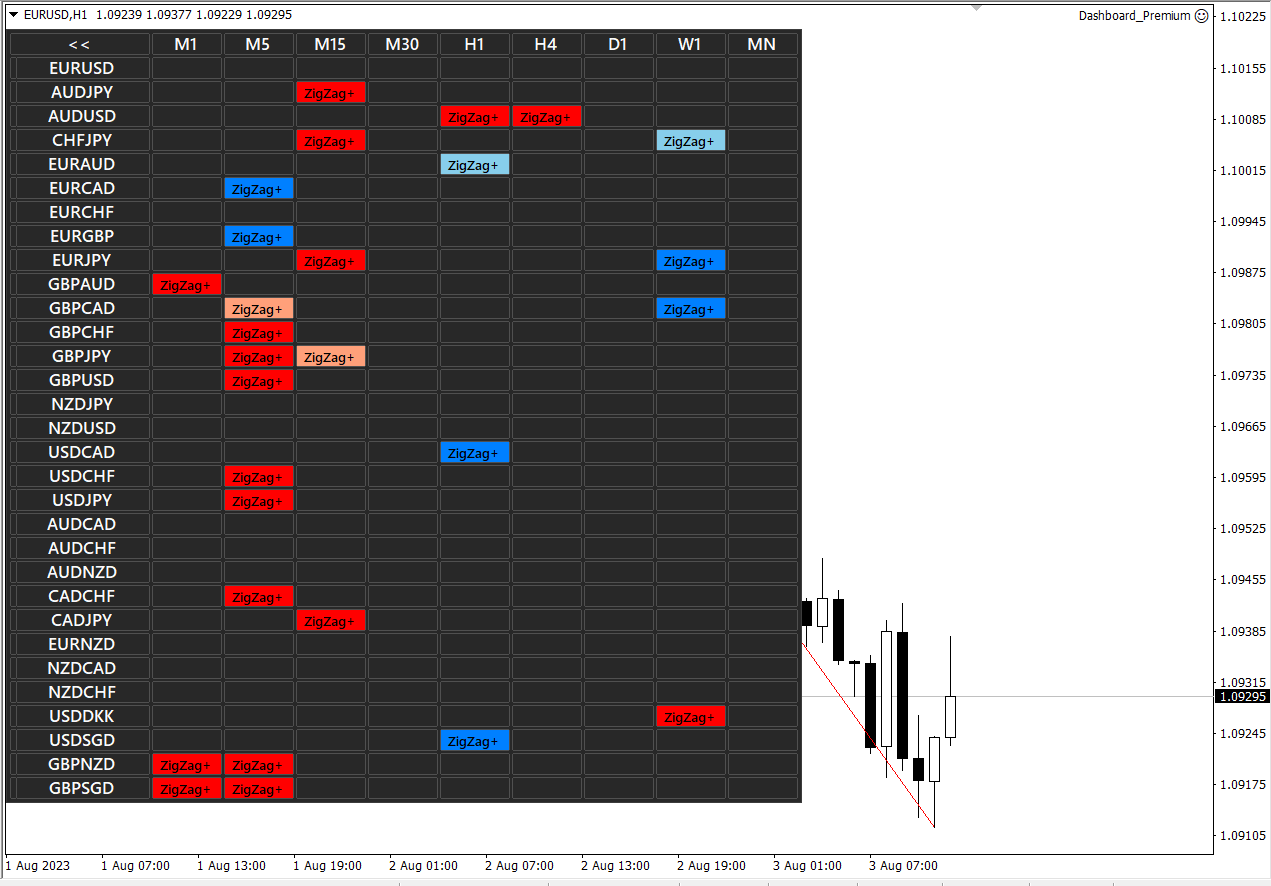

It is convenient to use such a signal panel because you can simply click on the cell with the signal and the desired chart will automatically open. We collapse the panel to analyze the chart, see a good signal and open a position. So, we can analyze the entire market at once. This is a very convenient solution.
Boris Sedov

If the cell is colored in a brighter color, it means that the zigzag line ends at the current forming candle.



Boris Sedov

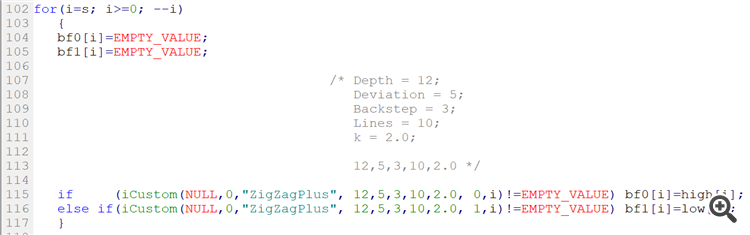

How to change the ZigZag+ settings in the 'Signal Collection' indicator.

To do this, get used to editing the signal collection indicator, it's not as difficult as it seems.


Hatem Abou Ouf
Boris Sedov #:
It is convenient to use such a signal panel because you can simply click on the cell with the signal and the desired chart will automatically open. We collapse the panel to analyze the chart, see a good signal and open a position. So, we can analyze the entire market at once. This is a very convenient solution.

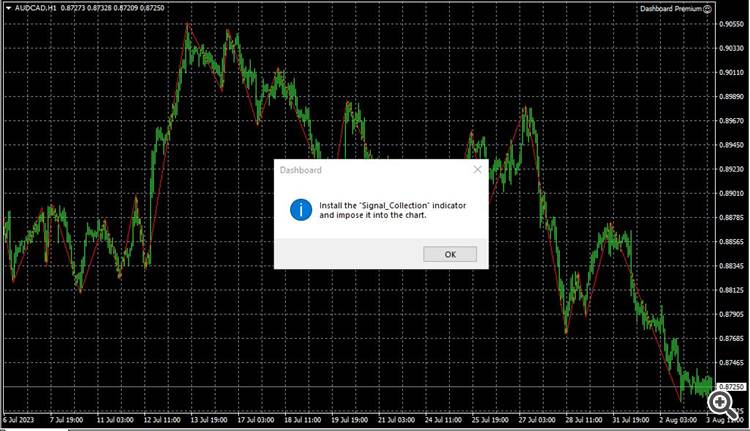

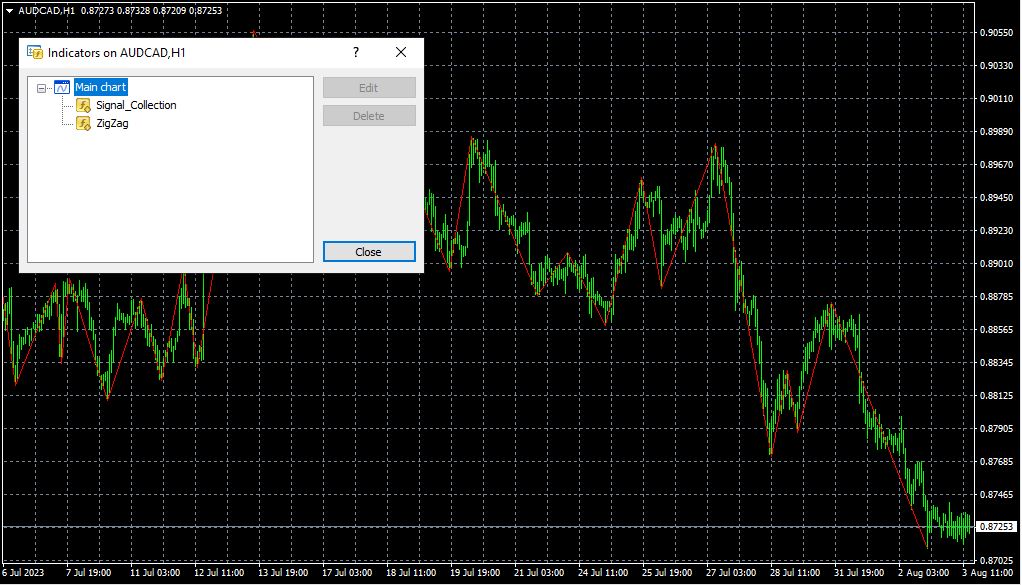

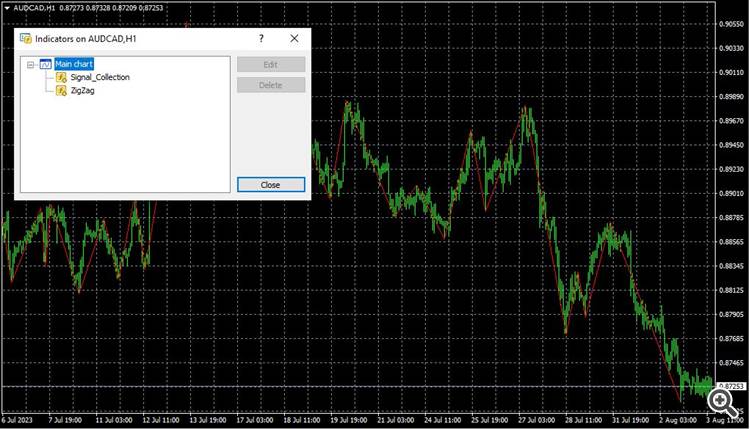

Thank you Boris for your kind help. I tried to use the system but after I installed everything on the chart as instruction, I got this error message!! first

2

Hatem Abou Ouf
Hatem Abou Ouf #:

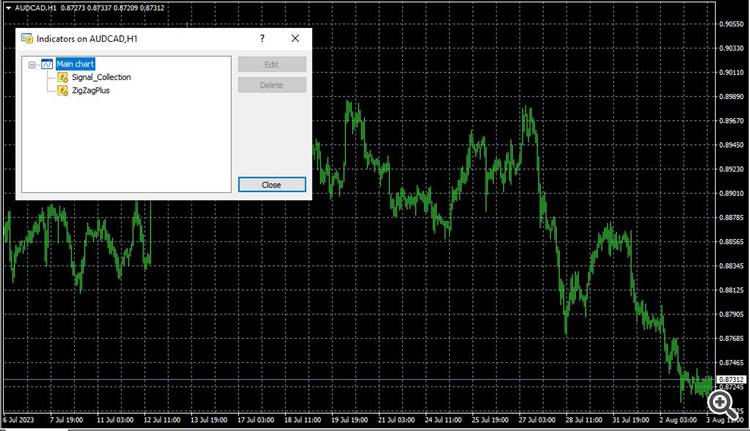

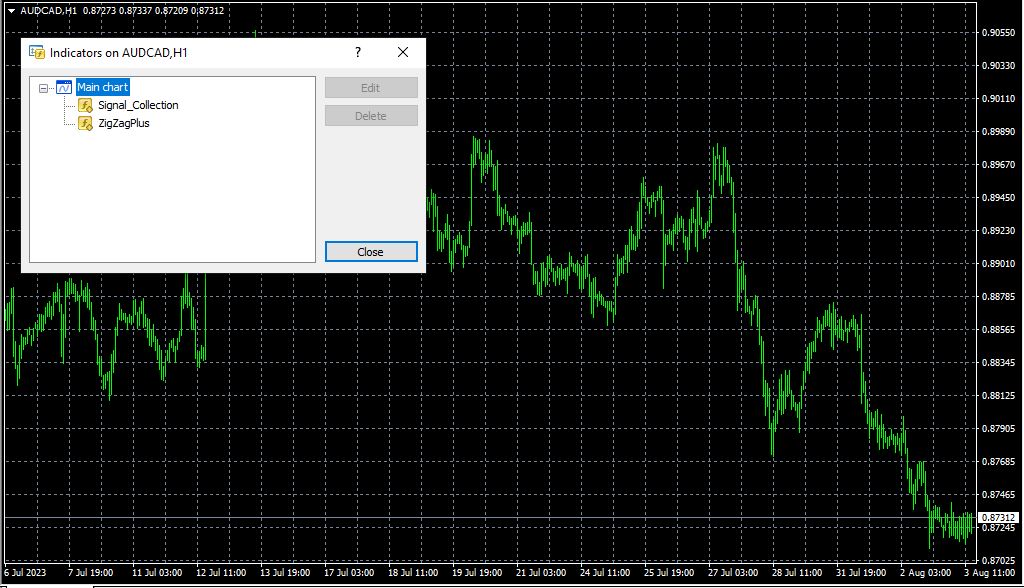

Thank you Boris for your kind help. I tried to use the system but after I installed everything on the chart as instruction, I got this error message!!


1

and still the same error message

Hatem Abou Ouf
Where to install the ZZ plus file? and the config set?
Boris Sedov
Hatem Abou Ouf #:

Thank you Boris for your kind help. I tried to use the system but after I installed everything on the chart as instruction, I got this error message!!


In the first screenshot, everything is running correctly.

'Dashboard Premium' checks that the 'Signal_Collection' indicator is already running on the chart.
This check is done by the short name of the indicator 'Signal_Collection'. The short name is not explicitly specified, which means it matches the file name of the indicator 'Signal_Collection'.
If you have added a string to the 'Signal_Collection' indicator specifying a different short name, in this case 'Dashboard Premium' will not be able to find the 'Signal_Collection' indicator.

For example:
IndicatorShortName("My Signal");

If you do this, Dashboard Premium will not be able to find the Signal_Collection indicator.
Check it out.

In addition, there may be some error with the encoding - the name of the indicator is written in Latin characters. Usually there are no problems with this, I will try to figure out how this is possible.

Boris Sedov
Hatem Abou Ouf #:
Where to install the ZZ plus file? and the config set?

You can use the ZigZag+ indicator as an independent product. But there are no additional functions, notifications, etc.
In order for 'Signal_Collection' to receive signals, ZigZag+ must be available in the navigator.

'Config' contains settings for 'Dashboard Premium'.
When installing on a chart, you can download the settings from the 'Config' file.

Boris Sedov

All components should be running in one window.

Boris Sedov
Hatem Abou Ouf #:
Thank you so much. It is working now

Please write — what was the problem?
How did you find the solution?

This is important for other users.
