version 1.00, first published 2019.03.13, updated 2019.03.13



  Contents


1. Introduction


2. Parameters

2.1.1 Data functions

2.1.2 Evaluation functions

2.1.3 Display

2.1.4 Notifications


3. Examples

3.1 Display


4. Downloads

4.1 Products




1. Introduction


Thank you for downloading the Price Volume Breakout Technical Indicator a specialized tool to perform technical analysis on price-volume, one of the most important technical indicators.

This manual contains parameters details, examples and downloads.


Support link

Products link



Prerequisites

The Price Volume Breakout Technical Indicator needs sufficient history data. On the price range especially, unavailable, i.e., empty, or newly filled price zones on upper or lower boundary limits provide inaccurate results.



2. Parameters

2.1 Data functions

  •       Data Volume - default 'Tick Volume'
    •       Tick Volume
    •       Real Volume
For more information about (price-) volume data and native 'Real Volume' availability in terminal refer to "Tick Volume and Real Volume - Volume by Price Indicator" (https://www.mql5.com/en/blogs/post/724587)



  • Data Price - price designating price zone for volume distribution, default 'Close'
  •     Close
  •     High
  •     Low
  •     Median
  •     Typical
  •     Weighted



  •      Data Price Zone, Size (Points) - size per price zone specified in points, default 50

  •      Data Time Range - total time range of price-volume dataset, default 'All Data'
    •       All Data
    •       Specified Start to End
    •       Specified Start to Specified End
    •       Start to Specified End



  • Data Price Zones, Max amount, default 2048, minimum 1024, upper bound limited by system resources, effective if sufficient history data is available, i.e., total price range being large enough to divide



  • Data Price Range Gauge, Sync with VBP - set at the exact point value as Volume by Price indicator, default 0



2.2 Evaluation functions

  • Evaluation Data, default 'Average difference volumes'
  • Average largest volume
  • Average difference volumes
  • Sum amount largest zones


  • Evaluation, Down - amount of zones to look-down, default 8

  • Evaluation, Up - amount of zones to look-up, default 8


  • Evaluation C/D MA, default Simple
    • Simple
    • Exponential


  • Evaluation C/D MA, Fast Period, default 12


  • Evaluation C/D MA, Slow Period, default 26


  • Evaluation C/D, Signal SMA Period, default 9


  • Evaluation, Ignore Gaps, default true



2.3 Display

  • Display Evaluation Data - display primary histogram, default true


  • Display Evaluation, C/D (Confergence/Divergence) - display secundary histogram and signal, default true



  • Display Evaluation Data Totals, default false

  • Display Evaluation Data Totals, Percentage - set in accord with parameter 'Evaluation Data', used with option 'Average largest volume' and 'Average difference volumes', default 0



2.4 Notifications

  • Notification - the AND operator is applied between parameter 'Notification Match' 1 to 3, parameter 'Match Value' is compared with 'CD Signal' value, default Off
    • Off
    • All
    • Email
    • App
    • Terminal Alert
    • Terminal Sound Alert - copy and rename sound file as 'pvbr.wav' to Terminal 'Sounds' folder
    • Terminal Global Variable - 'PVBR.Alert'

  • Notification Match 1- basic directional indication expression, default Off
    • Off
    • Periods Lower
    • Periods Higher
    • Periods Lower, Exclude Current
    • Periods Higher, Exclude Current
  • Notification Match 1, Value, default 5

  • Notification Match 2 - basic cross and touch indication expression, default Off
    • Off
    • Cross Up
    • Cross Down
    • Cross Up, Exclude Current
    • Cross Down, Exclude Current
  • Notification Match 2, Value, default 0

  • Notification Match 3 - basic cross and touch indication expression
  • Notification Match 3, Value, default 0



3.   Examples

3.1   Display

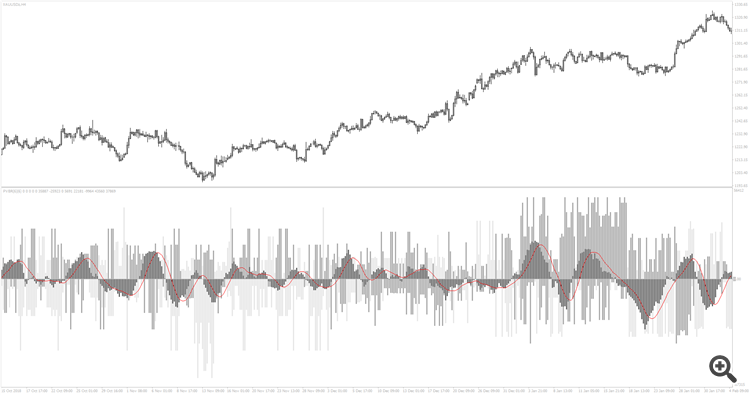

Evaluation Data, Average difference volumes
Price Volume Breakout - User Manual, Example 1


Evaluation Data, Average largest volume

Price Volume Breakout - User Manual, Example 2


Evaluation Data, Sum amount largest zones

Price Volume Breakout - User Manual, Example 3


Display Evaluation, Separate

Price Volume Breakout - User Manual, Example 4


Evaluation Data, Average largest volume with totals

Price Volume Breakout - User Manual, Example 5




4. Downloads

4.1   Products

 Price Volume Breakout MT4

Price Volume Breakout MT5
