Renko Charts

Renko Charts - indicator for MetaTrader 4

| English Spanish Portuguese Chinese

Views:
30560
Rating:
Files:
RENKO_2.mq4 (8.54 KB)view

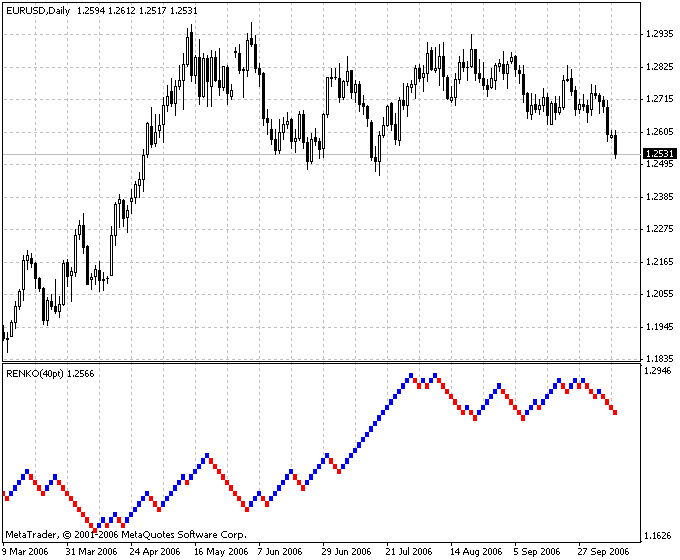

The Renko charting method is thought to have acquired its name from "renga" which is the Japanese word for bricks. Renko charts are similar to Three Line Break charts except that in a Renko chart, a line (or "brick" as they're called) is drawn in the direction of the prior move only if prices move by a minimum amount (i.e., the box size). The bricks are always equal in size. For example, in a 5-unit Renko chart, a 20-point rally is displayed as four, 5-unit tall Renko bricks.

Renko charts were first brought to the United States by Steven Nison when he published his book, Beyond Candlesticks.

Basic trend reversals are signaled with the emergence of a new red or blue brick. A new blue brick indicates the beginning of a new up-trend. A new red brick indicates the beginning of a new down-trend. Since the Renko chart is a trend following technique, there are times when Renko charts produce whipsaws, giving signals near the end of short-lived trends. However, the expectation with a trend following technique is that it allows you to ride the major portion of significant trends.

Since a Renko chart isolates the underlying price trend by filtering out the minor price changes, Renko charts can also be very helpful when determining support and resistance levels.

Parameters

Porog - box size






Last comments | Go to discussion (10)
Adam Richter
neta1o | 20 Aug 2009 at 01:28
funyoo:

Thanks for sharing this indicator. Here is the Renko expert advisor.


Can anyone advise on how to reference this using iCustom


I get this error written to the journal
RENKO_2 EURUSD,H1: unknown subwindow number -1 for ObjectCreate function

I'm using this as the reference
iCustom(NULL, 0, "RENKO_2",20,1,1);

MQL4 Comments
mql4_comments | 11 Jun 2010 at 22:16
can i get 10 seconds time frame ?
NoTomatoes
NoTomatoes | 1 Dec 2012 at 01:44

The Renko-implementation here suffers the lack of choosing the datasource.

Reasons:

  • The original renko implementation just draws bricks according to the Close()-Bar.
  • This is a bit misleading and leads to stopouts because the stop will occur on the respective High() or Low().

This implementation below allows the choosing of different datasources in addition to the Close()-Bar. The datasource is configurable as an input parameter which defaults to "3" (Close).

The value range of the parameter is: 0=Open 1=High 2=Low 3=Close 4=HL

HL means that High() is used when drawing an UP-Brick and Low() is used when drawing a DOWN-Brick. This is the most useful parameter because it takes care of up- and downpeaks when drawing bricks.


//+------------------------------------------------------------------+
//|                                                    RENKO-2.1.mq4 |
//|                           Copyright � 2005, ����������� �������� |
//|                                   http://www.traderstools.h15.ru |
//+------------------------------------------------------------------+
#property copyright "Copyright � 2005, ����������� ��������"
#property link      "http://www.traderstools.h15.ru"
//----
#property indicator_separate_window
#property indicator_buffers 4
//
// Datasource-Parameters
#define DS_PAR_NULL -1
#define DS_PAR_HIGH 1
#define DS_PAR_LOW 0
//
//---- input parameters
extern string sDatasource="0=Open 1=High 2=Low 3=Close 4=HL";
extern int   iDatasource=3;
extern int   Porog = 50;
extern color ColorOfFon = White;
extern color Color1 = Blue;
extern color Color2 = Red;
//---- buffers
double Lab[];
double HU[];
double HD[];
double Fon[];
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
   IndicatorBuffers(4);
   IndicatorShortName("RENKO(" + Porog + "pt, " + DataSourceDesc() + ")");
//---- indicators
   SetIndexStyle(0, DRAW_LINE,EMPTY, 0, ColorOfFon);
   SetIndexBuffer(0, Lab);
   SetIndexLabel(0, "RENKO");
   SetIndexEmptyValue(0,0);
   SetIndexStyle(1, DRAW_HISTOGRAM, EMPTY, 8, Color1);
   SetIndexBuffer(1, HU);
   SetIndexLabel(1, NULL);
   SetIndexEmptyValue(1,0);
   SetIndexStyle(2, DRAW_HISTOGRAM,EMPTY, 8, Color2);
   SetIndexBuffer(2, HD);
   SetIndexLabel(2, NULL);
   SetIndexEmptyValue(2,0);
   SetIndexStyle(3, DRAW_HISTOGRAM,EMPTY, 8, ColorOfFon);
   SetIndexBuffer(3, Fon);
   SetIndexLabel(3, NULL);
   SetIndexEmptyValue(3, 0);
   return(0);
  }
//+------------------------------------------------------------------+
//| Custor indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
   ObjectDelete("RENKO-" + Porog);
   return(0);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int start()
  {
   int i, ii, j, RenkoBuffShift = 0;
   double RenkoBuff[];
   double RenkoBuff2[];
   //----
   ArrayResize(RenkoBuff, Bars);
   ArrayResize(RenkoBuff2, Bars);
   RenkoBuff[RenkoBuffShift] = DataSource(DS_PAR_HIGH, Bars-1);
   //----
   double pp=Porog*Point;
   for(i = Bars - 2; i >= 0; i--) {
      if(RenkoBuffShift > ArraySize(RenkoBuff) - 100) {
          ArrayCopy(RenkoBuff2, RenkoBuff);
          ArrayResize(RenkoBuff, ArraySize(RenkoBuff) + Bars);
          ArrayCopy(RenkoBuff, RenkoBuff2, 0, 0, RenkoBuffShift + 1);
          ArrayResize(RenkoBuff2, ArraySize(RenkoBuff2) + Bars);
      }
      //----
      if(RenkoBuffShift == 0) {
          while(DataSource(DS_PAR_HIGH, i) > RenkoBuff[RenkoBuffShift] + pp) {
             RenkoBuffShift++;
             RenkoBuff[RenkoBuffShift] = RenkoBuff[RenkoBuffShift-1] + pp;
          }
          //----
          while(DataSource(DS_PAR_LOW, i)<RenkoBuff[RenkoBuffShift]-pp) {
             RenkoBuffShift++;
             RenkoBuff[RenkoBuffShift]=RenkoBuff[RenkoBuffShift-1]-pp;
          }
      }
      //----
      if(RenkoBuff[RenkoBuffShift] > RenkoBuff[RenkoBuffShift-1]) {
          if(DataSource(DS_PAR_HIGH, i) > RenkoBuff[RenkoBuffShift] + pp) {
              while(DataSource(DS_PAR_HIGH, i) > RenkoBuff[RenkoBuffShift] + pp) {
                  RenkoBuffShift++;
                  RenkoBuff[RenkoBuffShift] = RenkoBuff[RenkoBuffShift-1] + pp;
              }
          }
          if(DataSource(DS_PAR_LOW, i) < RenkoBuff[RenkoBuffShift] - 2*pp) {
              RenkoBuffShift++;
              RenkoBuff[RenkoBuffShift] = RenkoBuff[RenkoBuffShift-1] - 2*pp;
              while(DataSource(DS_PAR_LOW, i) < RenkoBuff[RenkoBuffShift] - pp) {
                  RenkoBuffShift++;
                  RenkoBuff[RenkoBuffShift]=RenkoBuff[RenkoBuffShift-1]-pp;
              }
          }
      }
      //----
      if(RenkoBuff[RenkoBuffShift] < RenkoBuff[RenkoBuffShift-1]) {
          if(DataSource(DS_PAR_LOW, i) < RenkoBuff[RenkoBuffShift] - pp) {
              while(DataSource(DS_PAR_LOW, i) < RenkoBuff[RenkoBuffShift] - pp) {
                  RenkoBuffShift++;
                  RenkoBuff[RenkoBuffShift] = RenkoBuff[RenkoBuffShift-1] - pp;
              }
          }
          if(DataSource(DS_PAR_HIGH, i) > RenkoBuff[RenkoBuffShift] + 2*pp) {
              RenkoBuffShift++;
              RenkoBuff[RenkoBuffShift] = RenkoBuff[RenkoBuffShift-1] + 2*pp;
              while(DataSource(DS_PAR_HIGH, i) > RenkoBuff[RenkoBuffShift] + pp) {
                  RenkoBuffShift++;
                  RenkoBuff[RenkoBuffShift] = RenkoBuff[RenkoBuffShift-1] + pp;
              }
          }
      }
   }
//---- ������ ������
   ObjectCreate("RENKO-" + Porog, OBJ_RECTANGLE, WindowFind("RENKO(" + Porog + "pt)"),
                0, 0, 0, 0);
   ObjectSet("RENKO-" + Porog, OBJPROP_TIME2, Time[0]);
   ObjectSet("RENKO-" + Porog, OBJPROP_PRICE2, High[ArrayMaximum(RenkoBuff)]*2);
   ObjectSet("RENKO-" + Porog, OBJPROP_COLOR, ColorOfFon);
   for(i = 0; i < Bars; i++) {
       Lab[i] = 0;
       HU[i] = 0;
       HD[i] = 0;
       Fon[i] = 0;
   }
   if(RenkoBuffShift > Bars - 100) {
       for(i = 0; i <= Bars - 100; i++)
           RenkoBuff[i] = RenkoBuff[i+RenkoBuffShift-(Bars-100)];
       RenkoBuffShift = Bars - 100;
   }
   for(i = 1; i <= RenkoBuffShift; i++)
       Lab[RenkoBuffShift-i] = RenkoBuff[i];
   for(i = 1; i <= RenkoBuffShift; i++) {
       if(RenkoBuff[i] > RenkoBuff[i-1] && RenkoBuff[i-1] > RenkoBuff[i-2]) {
         HU[RenkoBuffShift-i] = RenkoBuff[i];
         HD[RenkoBuffShift-i] = RenkoBuff[i-1];
         Fon[RenkoBuffShift-i] = RenkoBuff[i-1];
       }
       if(RenkoBuff[i] > RenkoBuff[i-1] && RenkoBuff[i-1] < RenkoBuff[i-2]) {
         HU[RenkoBuffShift-i] = RenkoBuff[i];
         HD[RenkoBuffShift-i] = RenkoBuff[i] - pp;
         Fon[RenkoBuffShift-i] = RenkoBuff[i] - pp;
       }
       if(RenkoBuff[i] < RenkoBuff[i-1] && RenkoBuff[i-1] < RenkoBuff[i-2]) {
         HD[RenkoBuffShift-i] = RenkoBuff[i-1];
         HU[RenkoBuffShift-i] = RenkoBuff[i];
         Fon[RenkoBuffShift-i] = RenkoBuff[i];
       }
       if(RenkoBuff[i] < RenkoBuff[i-1] && RenkoBuff[i-1] > RenkoBuff[i-2]) {
         HD[RenkoBuffShift-i] = RenkoBuff[i] + pp;
         HU[RenkoBuffShift-i] = RenkoBuff[i];
         Fon[RenkoBuffShift-i] = RenkoBuff[i];
       }
   }
   return(0);
  }
//+------------------------------------------------------------------+
double DataSource(int dir, int i) {
   switch (iDatasource) {
      case 0:
         return(Open[i]);
         break;
      case 1:
         return(High[i]);
         break;
      case 2:
         return(Low[i]);
         break;
      case 3:
         return(Close[i]);
         break;
      case 4:
         switch (dir) {
          case DS_PAR_HIGH:
            return(High[i]);
            break;
          case DS_PAR_LOW:
            return(Low[i]);
            break;
         }
   }
}
string DataSourceDesc() {
   switch (iDatasource) {
      case 0:
         return("O");
         break;
      case 1:
         return("H");
         break;
      case 2:
         return("L");
         break;
      case 3:
         return("C");
         break;
      case 4:
         return("HL");
         break;
   }
}
MQL4 Comments
mql4_comments | 20 Mar 2013 at 17:37
why cant we attach different indicators to this chart? also, when renko indi is attached, it gives a sub chart and not the main chart! how to get the renko on the main chart?
MQL4 Comments
mql4_comments | 20 Mar 2013 at 18:26

dear forum

i am interested in using renko indicator. but all the indicators which are available here when used open a subchart and not the main chart. so, various other indis like a simple MA cant be attached to it. the moment you attach it, it gets attached to the main chart!

what is the solution? OR is there any renko indicator which opens as main chart?

also, on various portals, e.g. stockcharts.com the renko option is given with ATR settings to determin the brick size. is there any indicator available here which has the same function?

thks in advance

 rahul
